Description

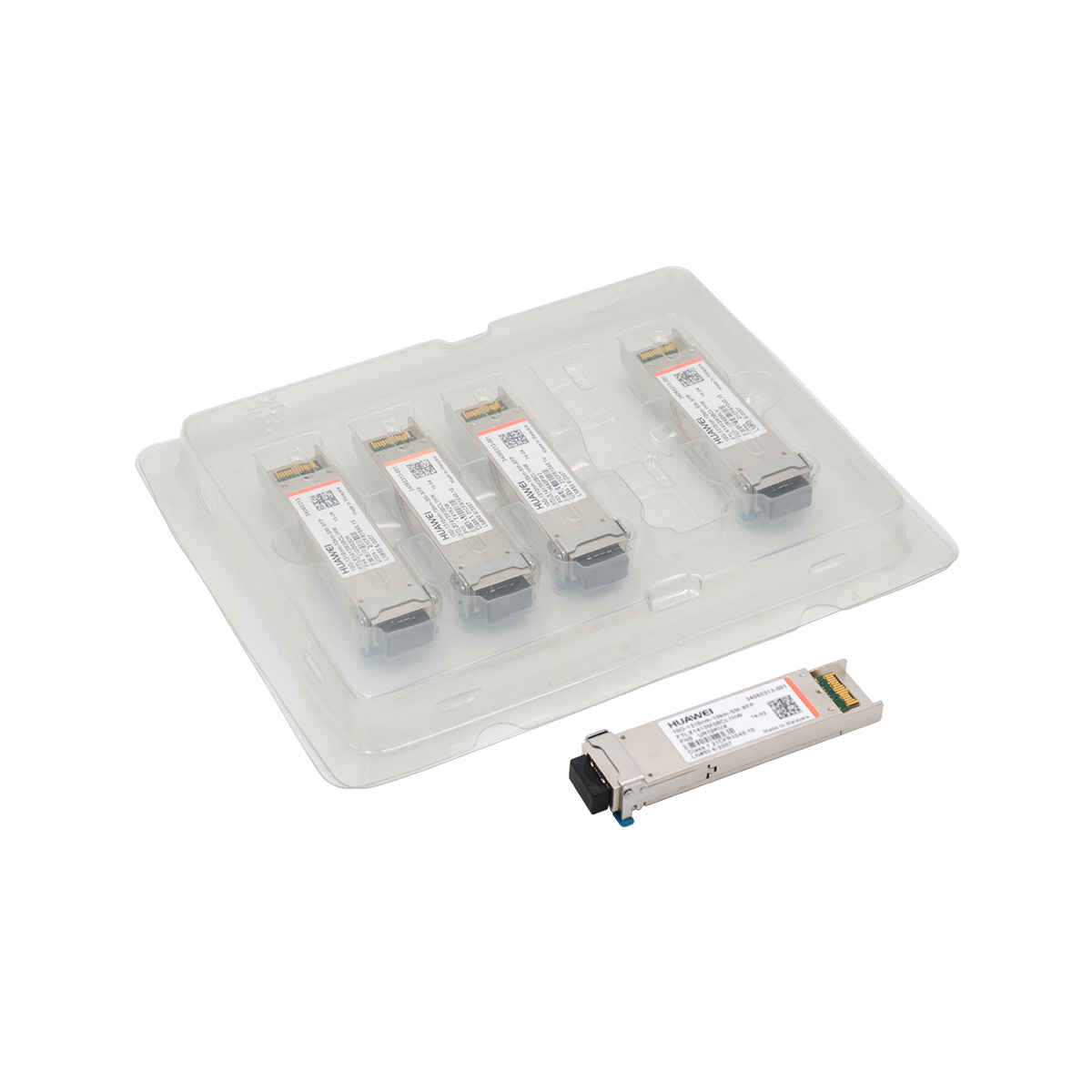

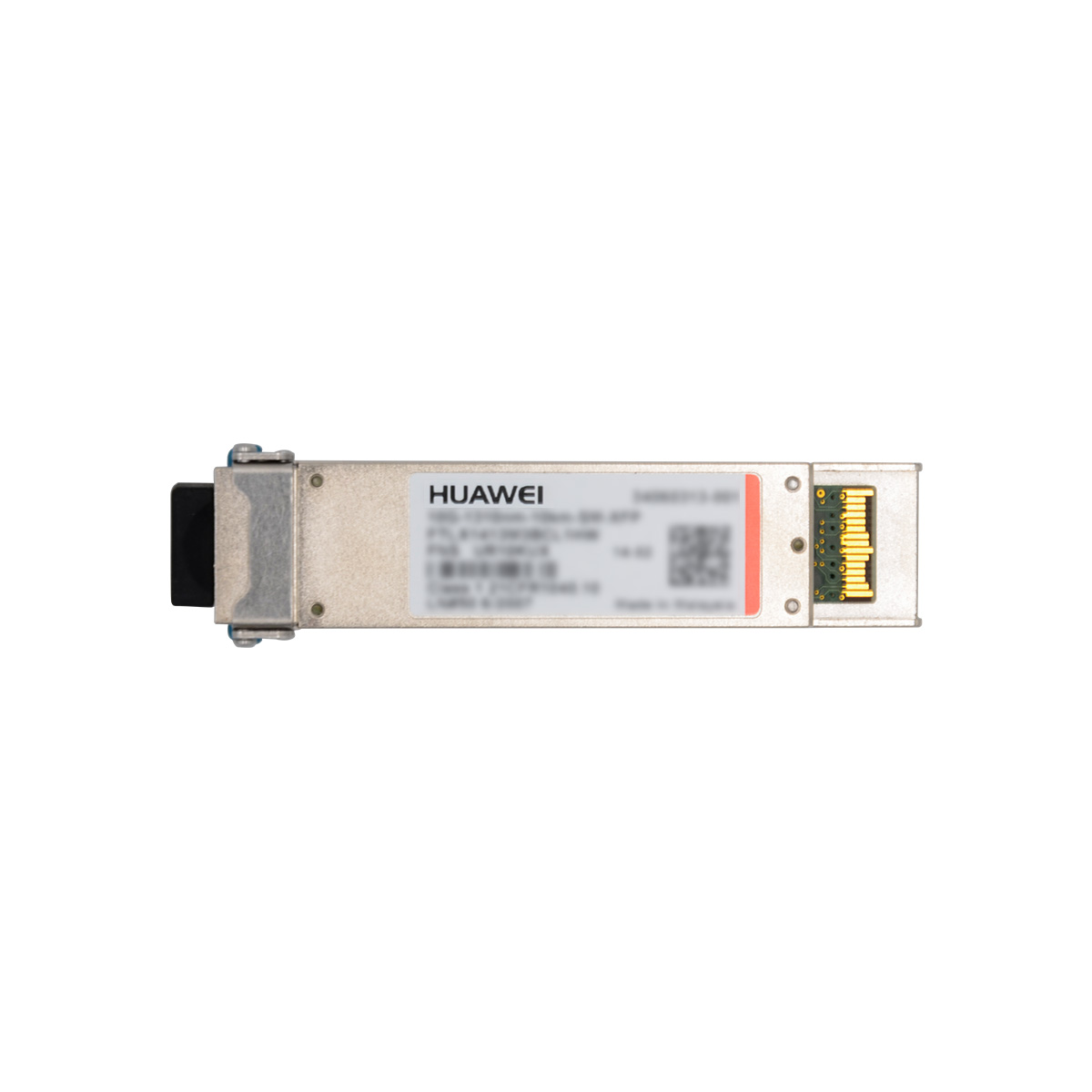

| Item | XG-PON&GPON Combo-XFP-N1 |
| Type | One-fiber bidirectional optical module, N1 |
| No. | 1 |
| Operating Wavelength(nm) |
GPON channel: XG-PON channel: |
| Encapsulation Type | XFP |
| Port Rate(Gbit/s) |
GPON channel: XG-PON channel: |
| Minimum Output Optical Power(dBm) | GPON channel: 1.5
XG-PON channel: 2 |
| Maximum Output Optical Power(dBm) | GPON channel: 5
XG-PON channel: 6 |
| Maximum Receiver Sensitivity(dBm) | GPON channel: -28
XG-PON channel: -27.5 |
| Optical Connector Type | SC |
| Optical Fiber Type | Single-mode |
| Overload Optical Power(dBm) | GPON channel: -8
XG-PON channel: -7 |
| Extinction Ratio(dB) | 8.2 |
| Dimension(D x W x H mm) | 80x20x15 |
Martinez –
Our customer need this XG-PON&GPON Combo module-XFP-N1 urgnetly, Telecomate.com has helped us for fast delivery and ship with test report, thanks a lot!
