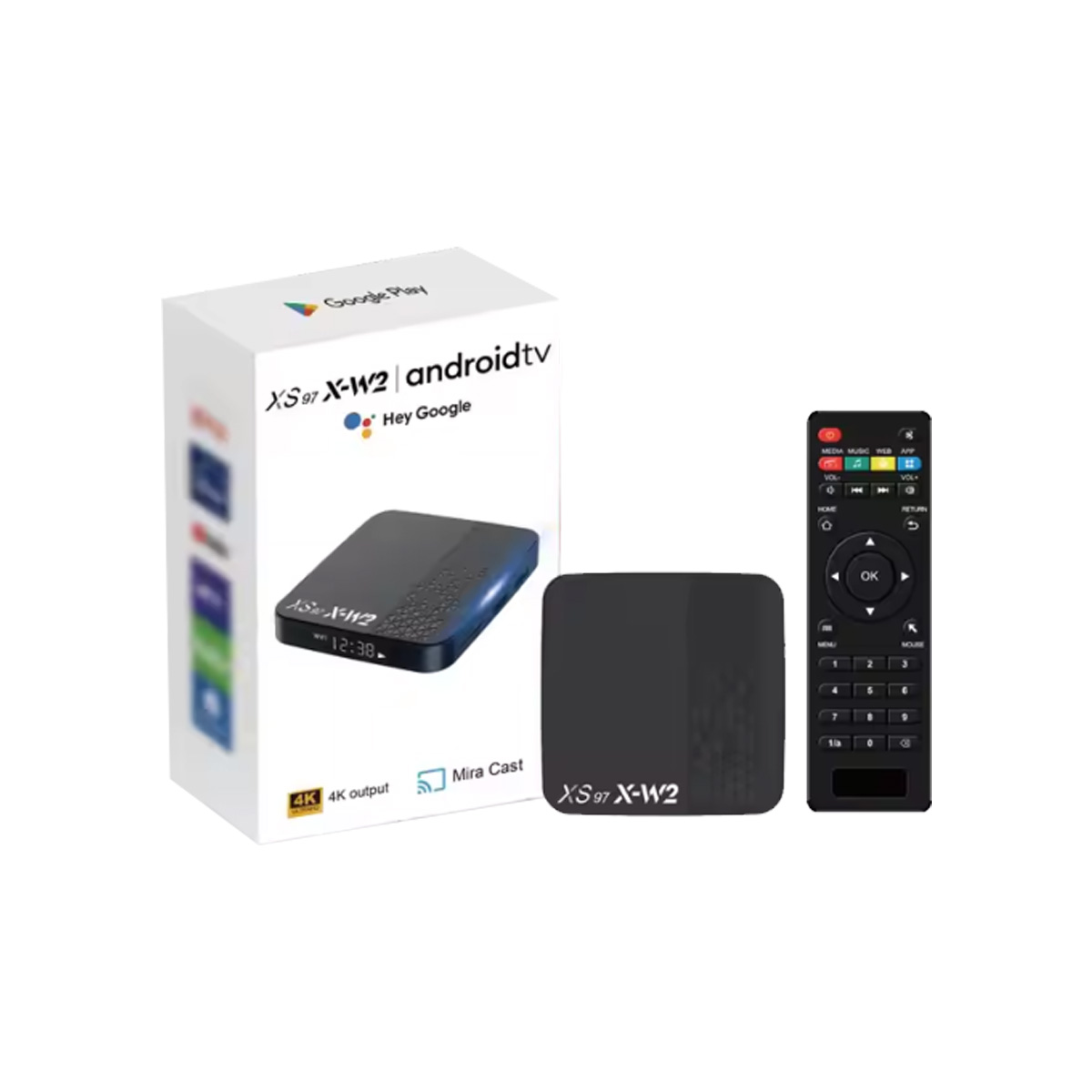

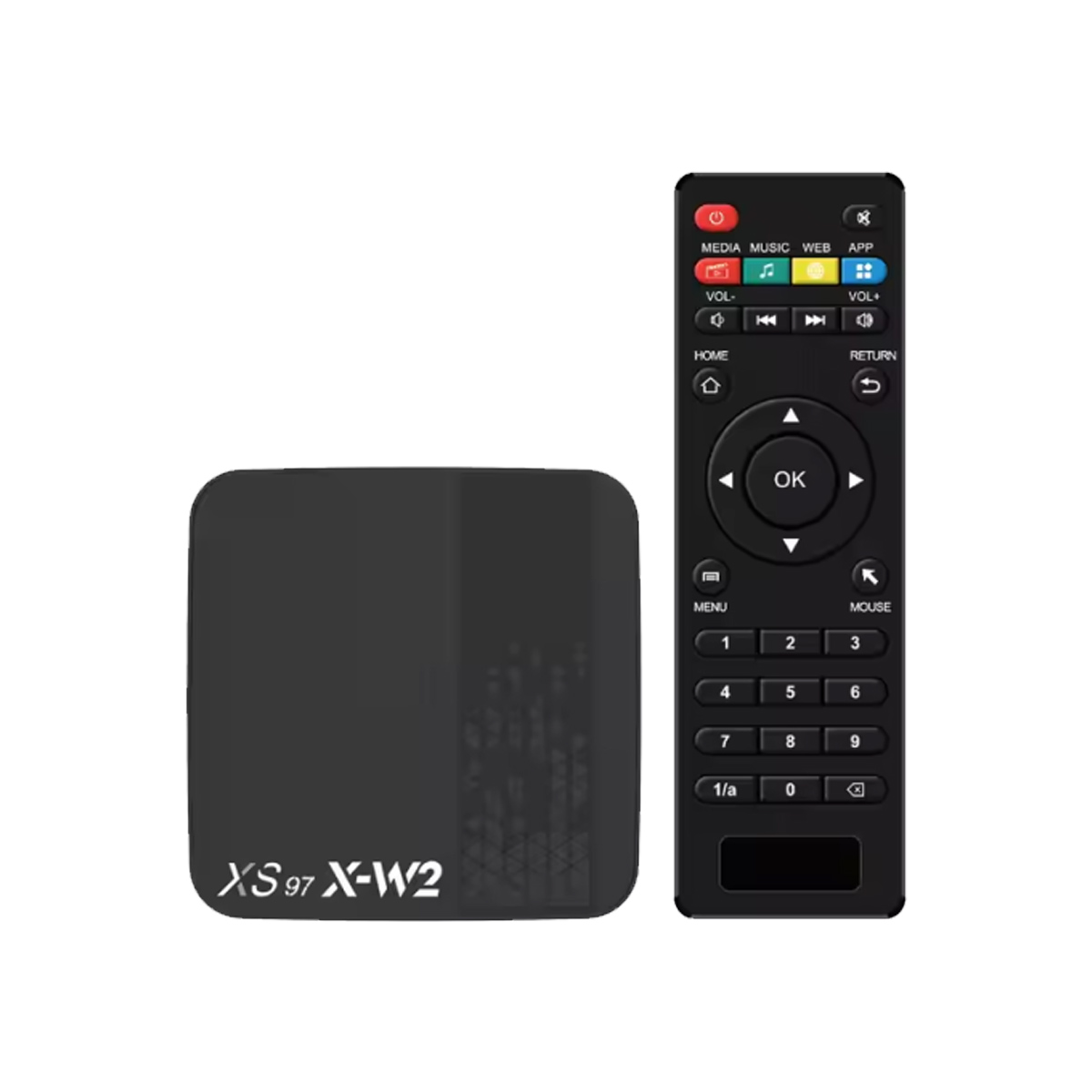

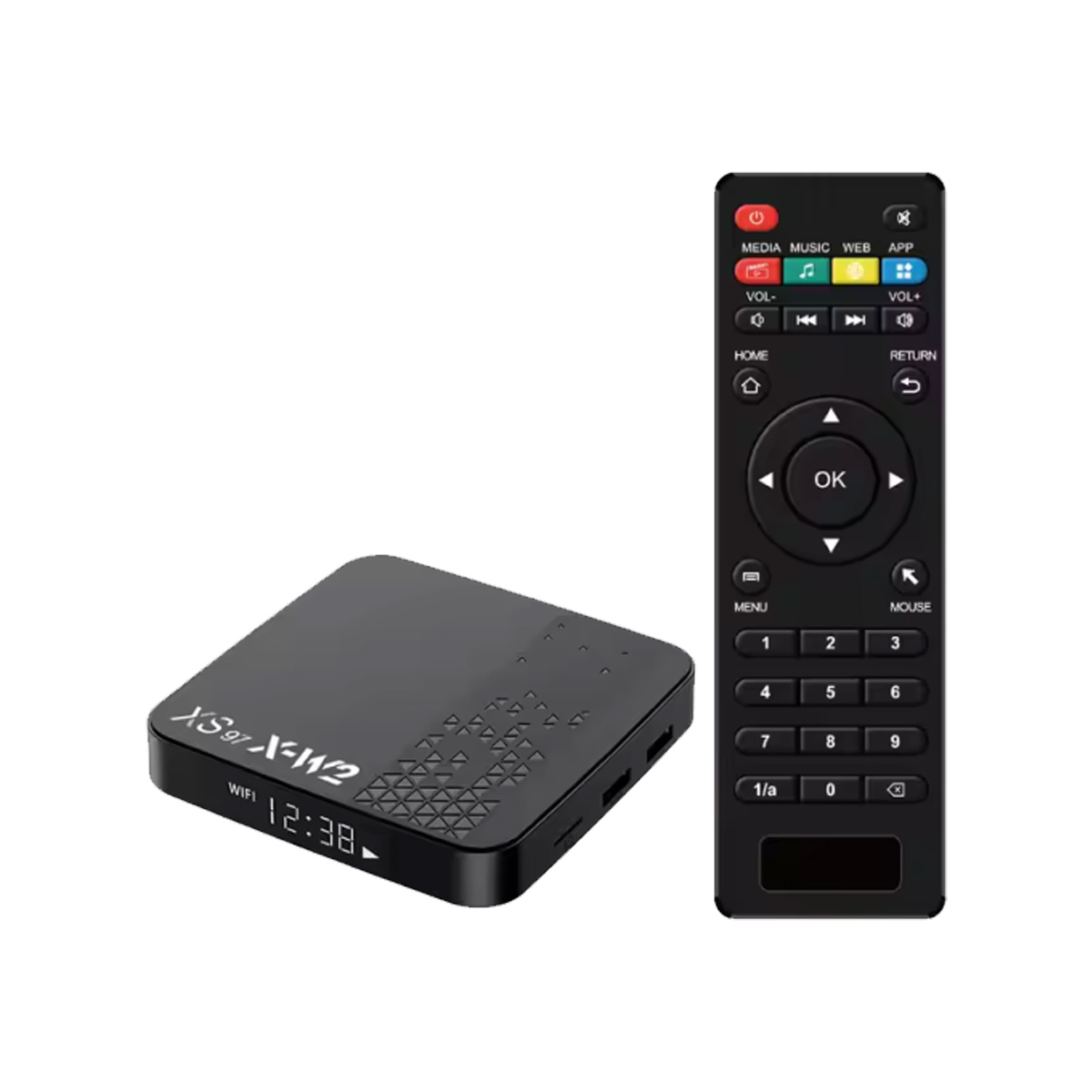

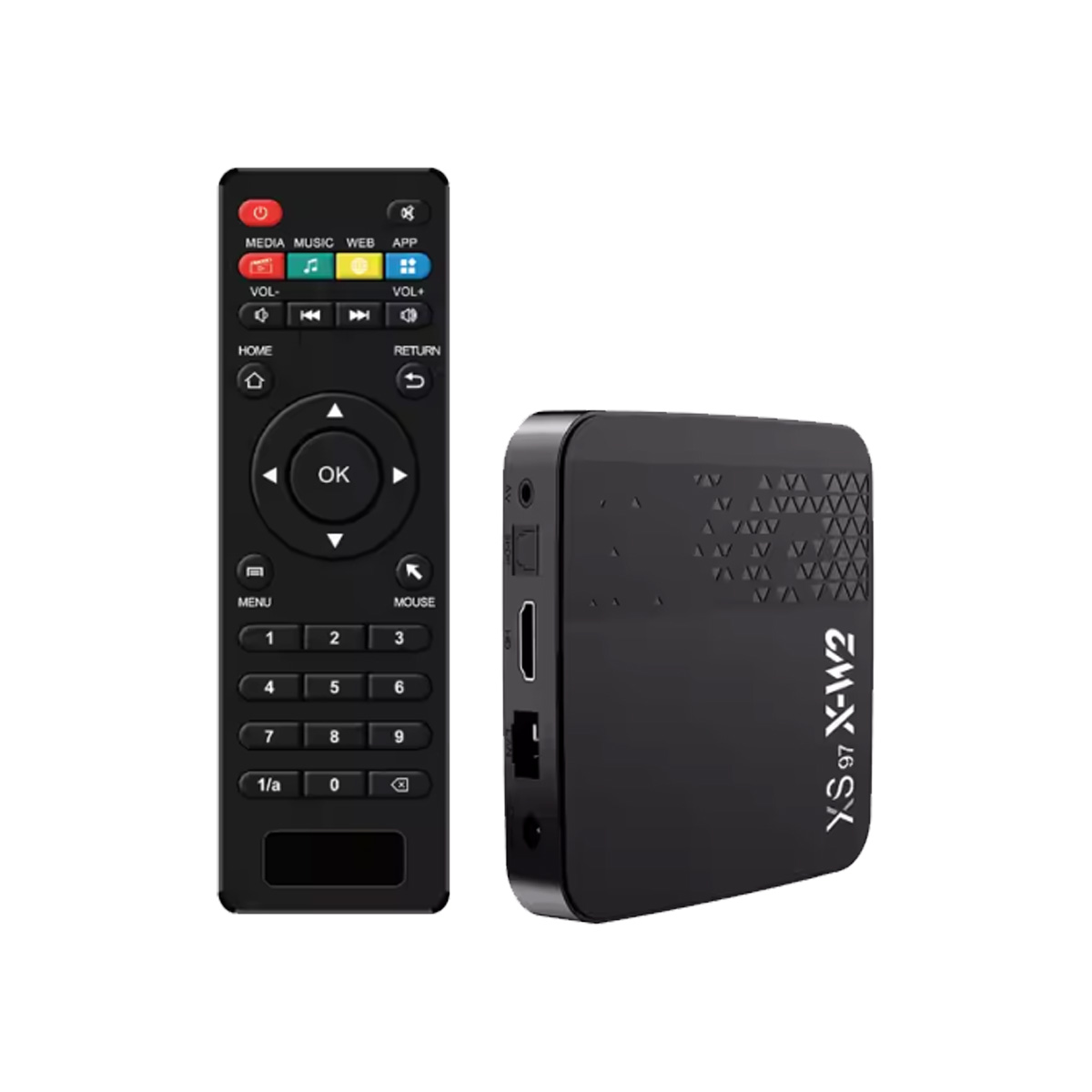

XS97 X-W2 set top box

0 Reviews Write a review 108 Solds
SKU2030960
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

XS97 X-W2 set top box 4k Amlogic S905w2 5G Dual-band WiFi Android 11 2GB 16GB Set TV Box

Description

XS97 X-W2  set top box Overview

  • CPU: Quad core ARM Cortex-A35 @ up to 1.8GHz(12nm)
  • GPU: Arm Mali-G31 MP2 GPU(up to 800MHz), OpenGL ES 3.2, vulkan 1.1 and OpencL 2.0 support.
  • RAM: 2GB
  • ROM: 16GB
  • OS: Android 11.0
  • WIFI: IEEE 802.11 b/g/n  2.4G/5Gdual wifi
  • HDMI: 4K6K 60fps resolution output
  • Support multi-video decoder up to 4K@60fps
  • Vpg Profile-2 up to 4K@30fps
  • H.265 Main10@l5.1 up to 4K@60fps
Item XS97 X-W2 set top box
CPU Quad core ARM Cortex-A35 @ up to 1.8GHz(12nm)
GPU Arm Mali-G31 MP2 GPU(up to 800MHz)
OpenGL ES 3.2, vulkan 1.1 and OpencL 2.0 support.
Memory DDR3:2GB; (/4GB[Optional])
Flash eMMC:16GB; 8GB/32GB[Optional]
WiFi IEEE 802.11 b/g/n/ac, 2.4G/5G
BT [Optional]
Moudle Plastic : Black Color
I/O 1*HD 4K*2K UHD Output, HD 2.1
1*AV OUT 480i/576i standard definition output
2*USB 1* USB Host Port ,1*USB Device
1*IR Reciver Remote Reciver Connect
1*RJ45 Ethernet Interface(100M)
1*TF CARD Support 4GB/8GB/16GB/32GB/64GB/128GB
Power DC 5V/2A;LED indicator,Working :Blue; Standby:Red
Software
OS Android 11
Video * AMLogic video Engine(AVE)with dedicated hardware decoders and encoders
* Supports multiple "secured"video decoding sessions and simultaneous decoding and encoding
* Video/Picture Decoding
AV1 MP-10@L5.1 up to 4Kx2K@60fps
VP9 Profile-2 up to 4Kx2K@60fps
H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps
AVS2-P2 Profile up to 4Kx2K@60fps
H.264 AVC HP@L5.1 up to 4Kx2K@30fps
MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
WMV/VC-1 SP/MP/AP up to 1080P@60fps
AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
Multiple language and multiple format sub-title video support
Supports JPEG thumbnail, scaling, rotation and transition effects
* Low latency 1080P H.264 60fps encoder
* HDR10 and HLG HDR Video Processing
* Supports *.mkv,*.mpg,*.wmv,*.mpeg,*.dat,*.avi,*.mov,*.iso,*.mp4,*.rm and *.jpg file formats
* Video/Picture Encoding
-Independent JPEG and H.264 encoder with configurable performance/bit-rate
-JPEG image encoding
-H.264 video encoding up to 1080P@60fps with low latency
Audio Low power MediaCPU with DSP audio processing
Supports MP3, AAC, WMA, RM, FLAC,and programmable with 7.1/5.1 down-mixing
Built-in stereo audio DAC
Built-in SPDIF/IEC958 and PCM serial digital audio input/output
Supports concurrent dual audio stereo output with combination of analog+PCMo or I2S+PCM
DRM N/A
Image HD JPEG,BMP,GIF,PNG,TIF
Language English French German Spanish Italian etc multilateral languages
Appliactions
Online Browse all video websites
Apps Apps download freely form android market
Medium Local Media playback,Support HDD, U Disck ,TF Card .
Talk online Support SKYPE video call ,MSN , facebook ,twitter ,QQ etc
Others Support Email,office suit etc.
Support DLNA function
Support 2.4G wireless mouse/keyboard
Accessories
1, HD cable *1 2, IR Remote *1 3, User Manual *1 4, Package box *1 5, Power adapter *1
