Description
Product Summary

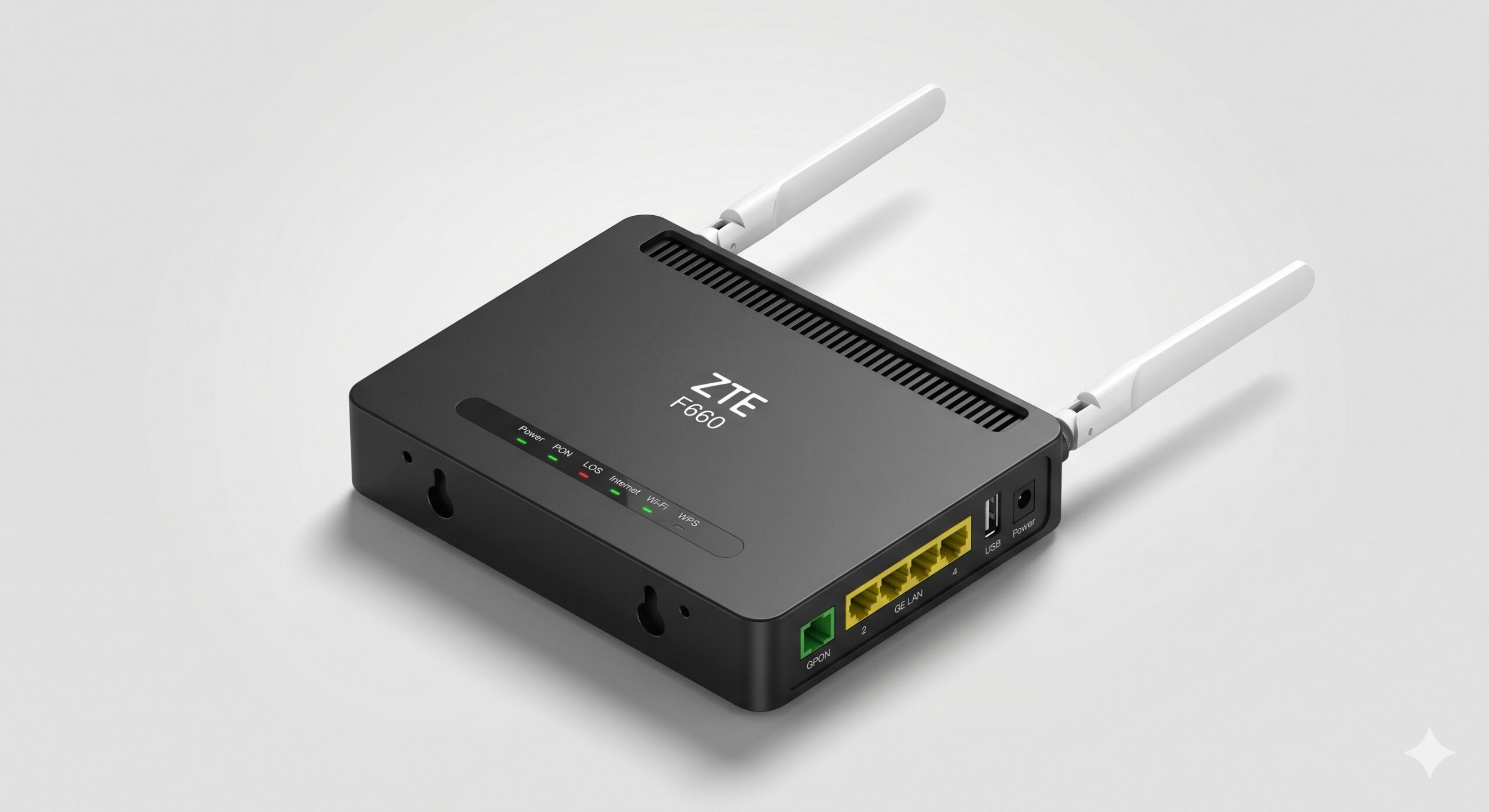

The ZTE F660 is a carrier-grade GPON Optical Network Terminal (ONT) designed for mass FTTH deployments. Delivering up to 2.5 Gbps downstream and 1.25 Gbps upstream, it features 1x Gigabit Ethernet, 1x Fast Ethernet, 2.4 GHz 802.11b/g/n Wi-Fi, and 1x USB 2.0 host port. Ideal for residential and SMB broadband access with zero-touch provisioning and TR-069 remote management.
Why Choose ZTE F660
- High Scalability: Supports up to 64 concurrent Wi-Fi clients and 8 MAC filters, perfect for dense multi-tenant buildings.
- Supply Chain Excellence: Available in bulk (MOQ 100 units) with global warehouse stock (Asia, Europe, NA) — 5-7 day express shipping.
- Carrier-Grade Reliability: MTBF > 150,000 hours, surge protection on PON port, and operating temperature from -5°C to +45°C.
- Lifetime Technical Support: Free firmware updates, remote debug via OMCI/TR-069, and 12-month advance replacement warranty.
- Cost-Optimized: Low power consumption (< 6W max) reduces OpEx; compatible with any standard GPON OLT (ZTE, Huawei, Nokia, Cisco).
Product Overview & Capabilities
Built on the ZTE self-developed GPON chipset, the F660 ensures sub-20ms latency and jitter below 5ms. Hardware features include hardware-based NAT acceleration (up to 300 Mbps routing) and IPsec VPN pass-through. The external 2dBi antenna provides stable coverage for 100m radius in open space. USB 2.0 port supports Samba/DLNA media sharing and 3G/4G dongle failover.
Technical Specifications
All parameters are verified under ITU-T G.984.x standards. For custom firmware or OEM branding, contact our engineering team.
| Technical Feature | Specification |
|---|---|

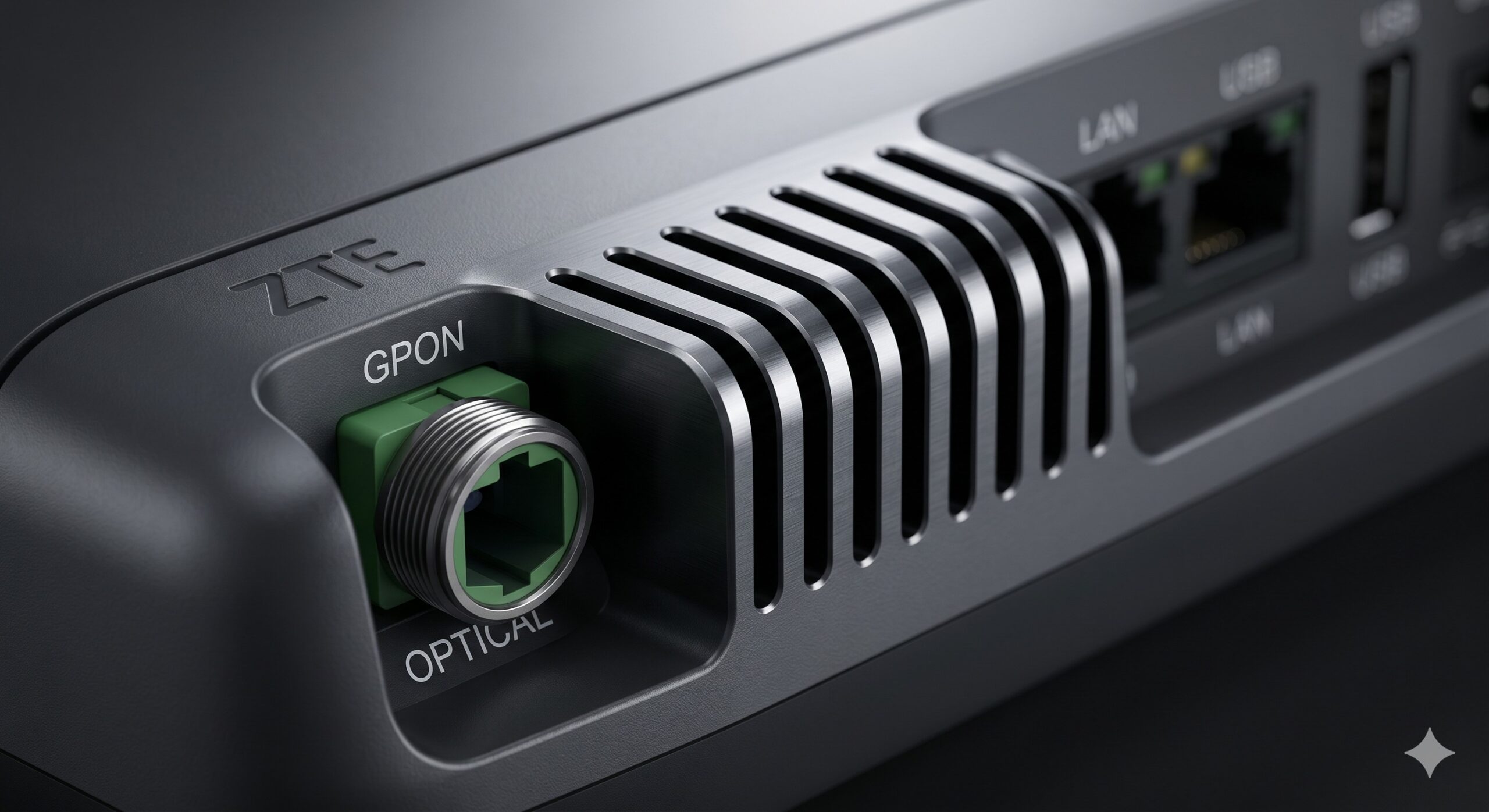

| GPON Interface | SC/APC connector, Class B+ (RX sensitivity: -27dBm, TX power: +0.5~+5dBm) |
| Ethernet Ports | 1x 10/100/1000BASE-T (RJ45), 1x 10/100BASE-T (RJ45) |
| Wi-Fi Standard | IEEE 802.11b/g/n, 2.4 GHz, 2×2 MIMO, up to 300 Mbps |
| USB Port | 1x USB 2.0 Host (supports storage, printer, 4G dongle) |
| Forwarding Rate | Routing: 300 Mbps NAT, Switching: 940 Mbps (wire-speed) |
| Power Supply | 12V DC, 1A (adapter included), max power consumption: 6W |
| Dimensions & Weight | 180mm x 125mm x 30mm, 0.35 kg |
| Operating Environment | Temperature: -5°C to 45°C, Humidity: 5%~95% non-condensing |
Application Scenarios

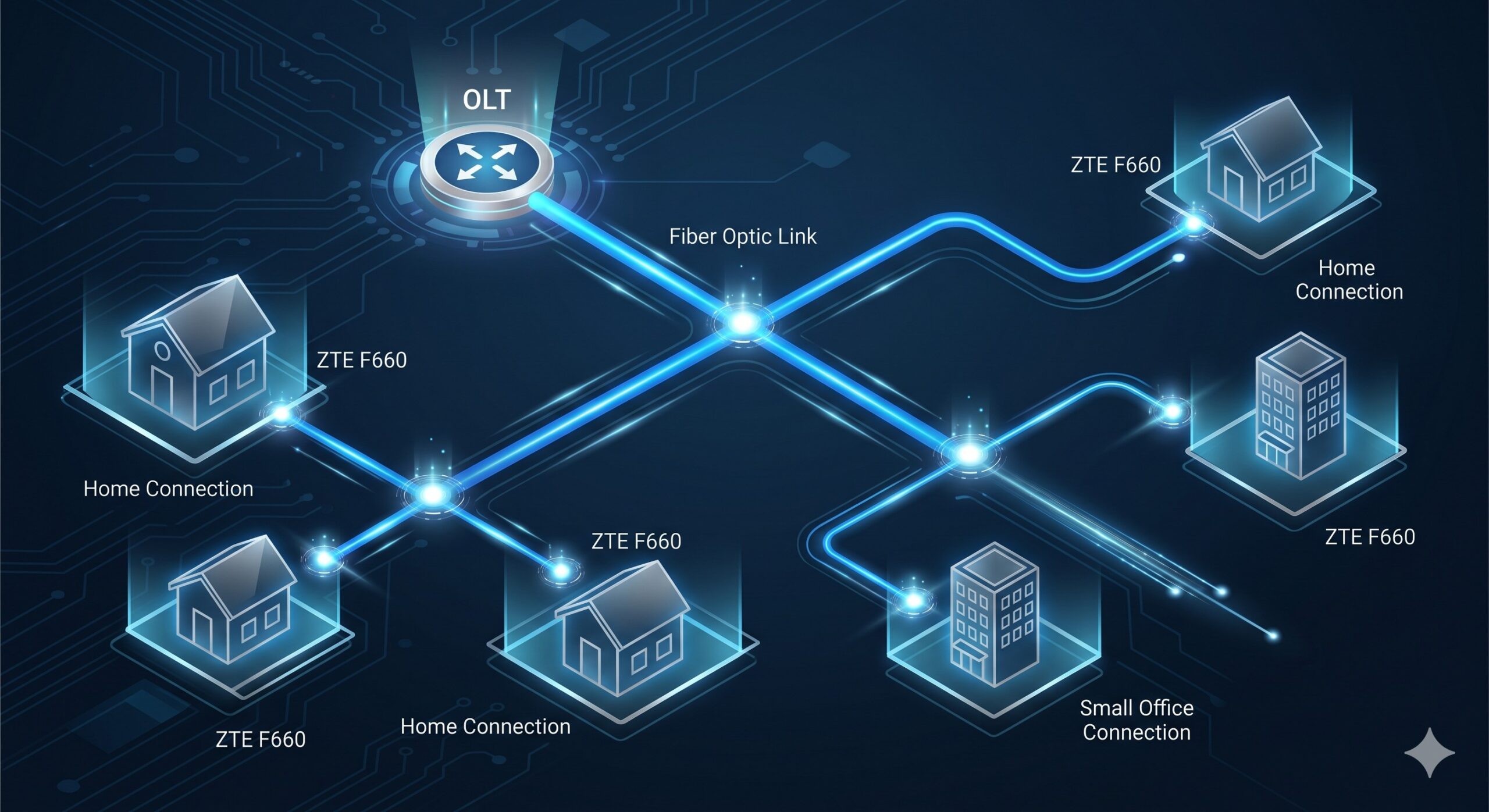

FTTH for MDUs & Private Residences
Deploy in multi-dwelling units (MDU) with one fiber to the basement and CAT5e distribution. The ZTE F660’s 2 SSIDs (main/guest) with VLAN tagging isolate tenant traffic securely. Compatible with ZTE OLT C300/C320/C600 for OMCI zero-touch activation.
SOHO & Teleworker Connectivity
For small offices, the USB port enables 3G/4G LTE failover (Huawei E3372/E8372 supported). The built-in QoS prioritizes VoIP (SIP) and video conferencing (Zoom, Teams) over best-effort traffic.
GPON Network Expansion
As a Type B protection-ready ONT, the F660 supports path and equipment protection when paired with redundant OLT ports. Dying Gasp feature reports power loss to the OLT, improving network diagnostics.
Frequently Asked Questions
- Q1: What is the lead time and MOQ for bulk orders of ZTE F660?
- A: MOQ is 100 units. Stock orders ship within 3 business days. For 500+ units, lead time is 10-15 days (factory direct). We offer DDP (Delivered Duty Paid) to EU, US, and ASEAN regions.
- Q2: Which GPON OLTs are compatible with the F660?
- A: Fully interoperable with ITU-T G.984-compliant OLTs: ZTE C300/C320/C600, Huawei MA5600T/MA5800, Nokia 7360 ISAM FX, and Calix E7-2. We provide pre-configured OMCI MIB files for non-ZTE OLTs.
- Q3: What warranty and RMA process do you offer?
- A: 12-month standard warranty extends to 24 months for orders >500 units. Advance replacement (cross-ship) within 72 hours for DOA units. Lifetime firmware updates and global RMA centers (USA, Netherlands, Singapore).
- Q4: Can the F660 replace an existing router or only work as a bridge?
- A: It supports three WAN modes: (1) PPPoE/IPoE router mode (NAT, DHCP server), (2) Bridge mode (public IP to your own router), (3) Mixed mode (IPoE for voice + bridge for data). Configured via WebUI or TR-069.
- Q5: Does the F660 support IPv6 and the latest Wi-Fi security?
- A: Yes. IPv6 dual stack (DHCPv6, SLAAC) and WPA2-PSK/WPA3 (via firmware update). The 2.4 GHz radio supports up to 4 SSIDs with separate VLANs and client isolation.
