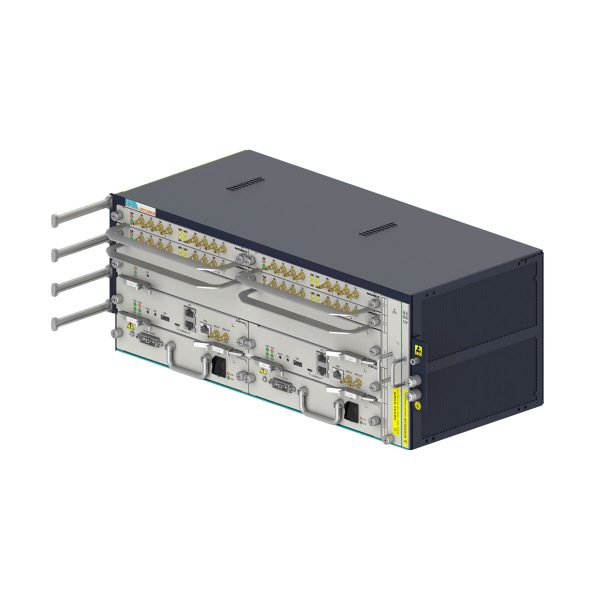

ZXR10 6800-4E overview
A ZXR10 6800-4E chassis has a height of 4 U (1 U = 44.45 mm), and dimensions of 175 mm (height) × 442 mm (width) × 200 mm (depth). For its components.
Heat Dissipation Mode
The ZXR10 6800-4E uses forced air for heat dissipation. It can automatically adjust the fan speed depending on the device operation status. The fan status monitoring and failure alarm function are supported. Cool air is taken in from one side of the chassis, goes through the boards and power supply modules inside the chassis, and is blown out from the other side of the chassis.
Power Supplies
The ZXR10 ASR series routers support an AC power supply (100 V to 240 V) and a DC power supply (-72 V to -38 V). The ZXR10 6800-4E supports dual power supplies in 1+1 redundancy mode and mixed installation of AC and DC power supplies. A power supply module provides the following functions:
- Input/output overvoltage/undervoltage alarm and protection
- Output overcurrent alarm and protection
- Temperature alarm and overtemperature protection
Components of the ZXR10 6800-4E
| Component | Description |
|---|---|
| Board section | Two MPU slots, one PFU slot, and four PIU slots are provided. |
| Power supply modules | Two power supply modules are provided. |
| Fan module | A vertical fan module is provided. |
