ZXR10 6800-8E

0 Reviews Write a review
SKU2009652
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

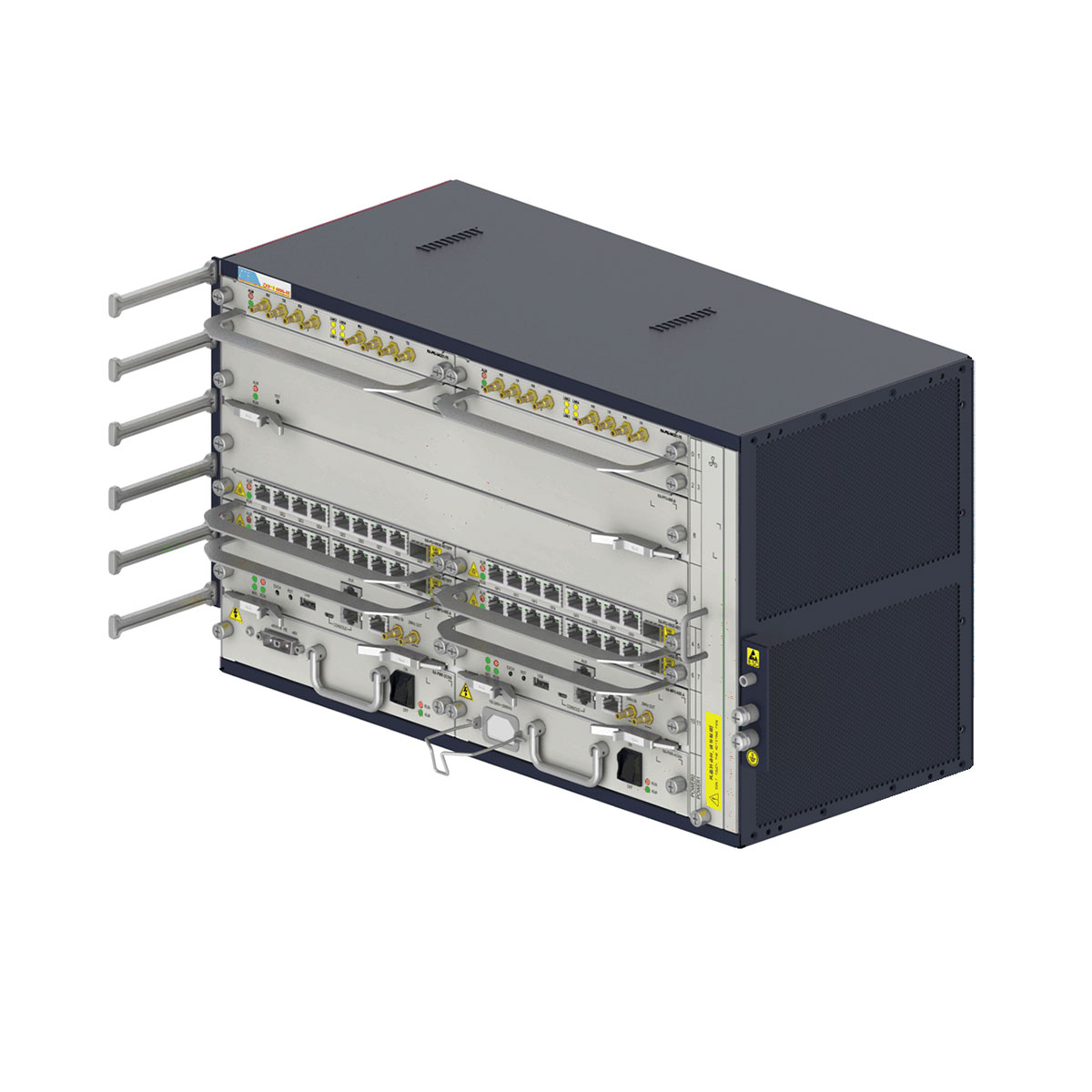

ZTE ZXR10 6800-8E chassis provide 2 MPU slots, 2 PFU slots, 8 PIU slots, 2 power supply slots, and 1 vertical fan slot

Description

ZXR10 6800-8E overview

A ZXR10 6800-8E chassis has a height of 6 U (1 U = 44.45 mm), and dimensions of 264 mm (height) × 442 mm (width) × 200 mm (depth). For its components.



Heat Dissipation Mode

The ZXR10 6800-8E uses forced air for heat dissipation. It can automatically adjust the fan speed depending on the device operation status. The fan status monitoring and failure alarm function are supported. Cool air is taken in from one side of the chassis, goes through the boards and power supply modules inside the chassis, and is blown out from the other side of the chassis

Power Supplies

The ZXR10 ASR series routers support an AC power supply (100 V to 240 V) and a DC power supply (-72 V to -38 V). The ZXR10 6800-8E supports dual power supplies in 1+1 redundancy mode and mixed installation of AC and DC power supplies. A power supply module provides the following functions:

  • Input/output overvoltage/undervoltage alarm and protection
  • Output overcurrent alarm and protection
  • Temperature alarm and overtemperature protection

Table1 Components of the ZXR10 6800-8E

Component Description
Board section Two MPU slots, two PFU slots, and eight PIU slots are provided.
Power module Two power supply modules are provided.
Fan module A vertical fan module is provided.
Parameter Specification
Physical parameters Dimensions (height × width × depth) 264 mm ×442 mm ×200 mm
Weight (full configuration) ≤ 22.5 kg
Slot Total number of slots 12
Number of PFU slots 2
Number of PIU slots 8
DC power (single) Redundancy mode 1+1
Maximum output power 500 W
Input voltage range -72 V DC to -38 V DC
AC power (single) Redundancy mode 1+1
Input voltage range 100 V AC-240 V AC
Input frequency range 50 Hz–60 Hz
Rated output power per module 500 W
Heat Dissipation System Number of fan modules 1
Grounding resistance Resistance of joint grounding : < 5 Ω

Additional information

Brand

ZTE

Ship From

Shenzhen Warehouse

Lead Time

3-5 days

Parameter Specification
Physical parameters Dimensions (height × width × depth) 264 mm ×442 mm ×200 mm
Weight (full configuration) ≤ 22.5 kg
Slot Total number of slots 12
Number of PFU slots 2
Number of PIU slots 8
DC power (single) Redundancy mode 1+1
Maximum output power 500 W
Input voltage range -72 V DC to -38 V DC
AC power (single) Redundancy mode 1+1
Input voltage range 100 V AC-240 V AC
Input frequency range 50 Hz–60 Hz
Rated output power per module 500 W
Heat Dissipation System Number of fan modules 1
Grounding resistance Resistance of joint grounding : < 5 Ω
