ZXR10 6804 overview

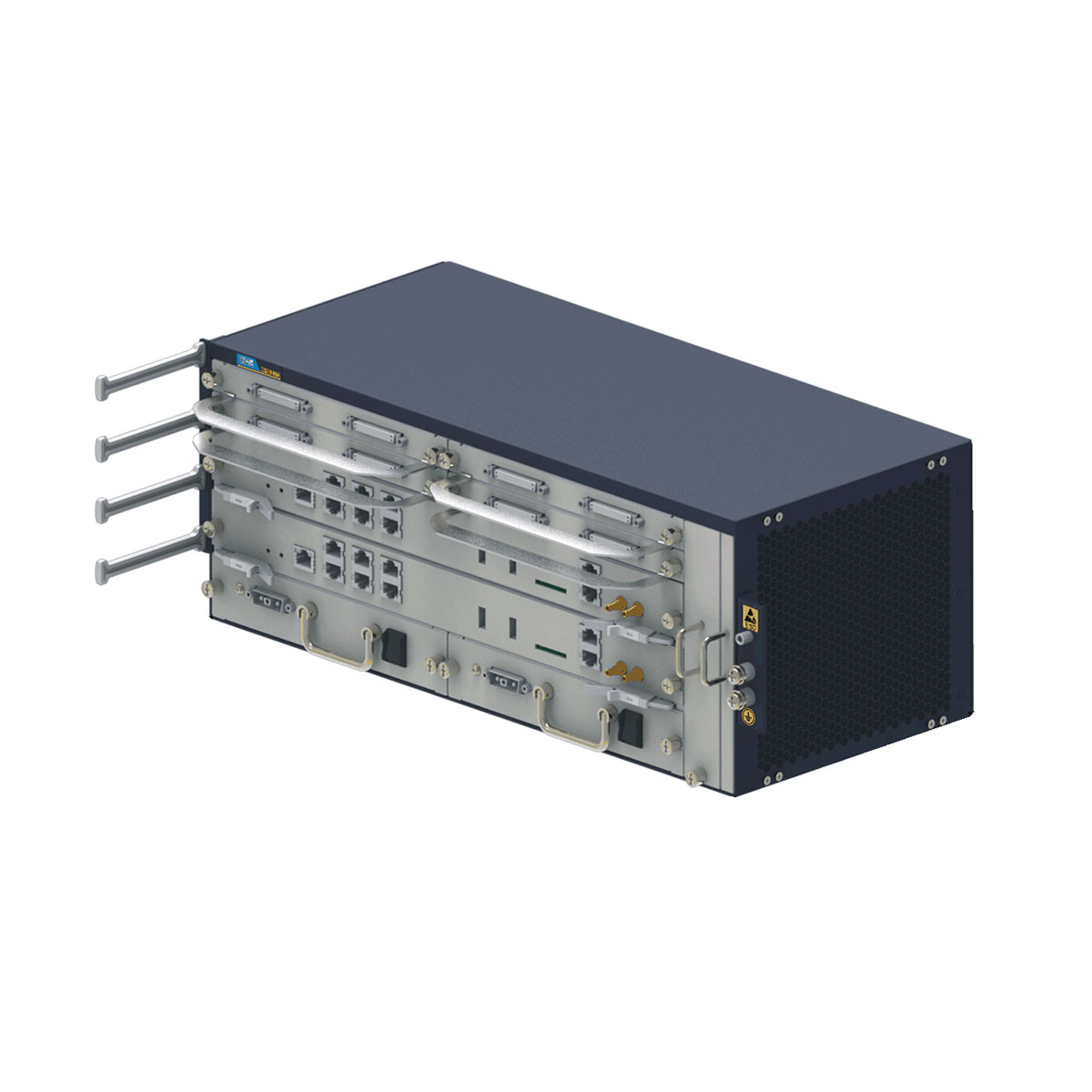

The height of the ZXR10 6804 chassis is 4U (1U = 44.45 mm), and the dimensions (H × W × D) are 175 mm × 442 mm × 200 mm. For the main components of the chassis.
Heat Dissipating Method
The ZXR10 6804 chassis uses forced air cooling for heat dissipation. The ZXR10 6804 chassis can automatically adjust the fan speed, monitor the status of the fan module, and report alarms if faults occur. Cool air is taken in from one side of the chassis, goes through the boards and power supply modules inside the chassis, and is blown out from the other side of the chassis.
Description of the Main Components of the ZXR10 6804 Chassis
| Component Name | Description |
|---|---|
| Board area | In the board area of the ZXR10 6804 chassis, two slots are provided for MPFUs and four slots for PIUs.1 |
| Power supply module | The ZXR10 6804 chassis has two power supply modules. |
| Fan module | The ZXR10 6804 chassis has one vertical fan module. |
| Air Filter | The ZXR10 6804 chassis has one vertical air filter. |
