5260-52PD-H

5260-52PD-H

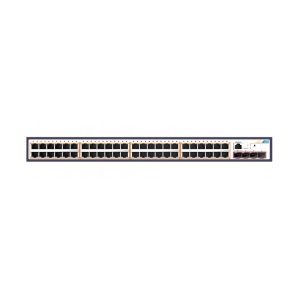

ZTE 5260-52PD-H switch supports 48 10/100/1000 Base-T Ethernet interface, 4 10G optical interface

ZTE

3-5 days

Shenzhen Warehouse

SKU: 5260-52PD-H Category:

Description

ZXR10 5260-52PD-H, the front panel provides 48 GE RJ45 electrical interfaces that supports CAT 5 and enhanced CAT 5 twisted-pair cables, the front panel provides 4 10G interfaces, and supports optical modules with the 10G SFP+ interface and modules with the1G SFP interface.



ZXR10 5260-52PD-H Interface Descriptions
Name Quantity Description
10/100/1000 Base-T Ethernet interface 48 Fixed Ethernet electrical interface that supports POE+.
10G optical interface 4 Fixed Ethernet optical interface, supporting optical modules with the 10G SFP+ interface and modules with the 1G SFP interface. The 100M optical module is not supported.
Console interface 2 One MiniUSB interface or RJ45 interface for service configuration management. Only either of the two interfaces can be used.
10/100/1000 Base-T management interface. 1 It is used to boot devices and download version files.
USB interface 1 Type-A USB interface for reading and writing a USB disk.



The ZXR10 5260-52PD-H provides the following indicators:

  • The ZXR10 5260-52PD-H provides the following indicators: One system status indicator (RUN/ALM) that indicates the device operation status, and one MNG indicator that indicates theoperational status of debugging interfaces.
  • 48 port indicators that indicate the status of 48 10/100/1000 Base-T ports. Each port corresponds to one indicator.
  • 4 port indicators that indicate the status of 4 10G optical interfaces. Each port corresponds to one indicator.
  • The power supply indicator PWR indicates the operational status of power supply. The fan indicator FAN indicates the operational status of the fan.



Item ZXR10 5260-28TD-H ZXR10 5260-52TD-H ZXR10 5260-28PD-H ZXR10 5260-52PD-H
Dimensions (H × W × D) 43.6mm×482mm×220mm 43.6mm×482mm×440mm
Weight ≤2.6 kg ≤2.92 kg ≤7.8 kg ≤8.1 kg
Power supply AC: 100 V to 240 V, 50/60 Hz AC: 100 V to 240 V, 50/60 Hz
DC : -38.4 V to -72 V
Power consumption Typical power consumption: 30 W
Maximum power consumption: 60 W
Typical power consumption: 39 W
Maximum power consumption: 74 W
Typical power consumption: 42 W
Maximum power consumption: 790 W (Output voltage: 53.5 V, maximum output power of PoE: 720 W, and system power consumption: 70 W)
Typical power consumption: 49 W
Maximum power consumption: 1040 W (Output voltage: 53.5 V, maximum output power of PoE: 960 W, and system power consumption: 80 W)
Ambient temperature Long term: -10℃~55℃
Short term: -15℃~60℃
Storage temperature: -40°C to +70°C
Relative humidity 5% to 95% (non-condensing)
Memory 1 GB
Environmental specification Reduction of Hazardous Substances (RoHS)
Reliability MTBF: > 400000 hours
MTtr: < 30 minutes
EMC:
*FCC Part 15 (CFR 47) Class A
*EN 55022 Class A
*ETSI EN 300 386
*EN55024
*ICES-003 Class A
*IEC 61000-3-2
*IEC 61000-3-3
*CISPR22 Class A
*CISPR24
*ICES-003 Class A
*AS/NZS CISPR22 Class A
*IEC61000-4-2
*ITU-T K 20
*ITU-T K 21
*ITU-T K 44
Safety:
*UL 60950 3rd Edition
*CSA C22.2 No. 60950 3rd Edition
*IEC 60950
*EN 60950
*EN60825-1
*EN60825-2
*IEC60825-1
*IEC60825-2
Device

Management

  • CLI, Telnet, SSHv2, and local and remote (RADIUS/TACACS+) user authentication
  • Out-band management interface
  • SNMP v1/v2/v3
  • Mirroring and RSPAN
  • RMON
  • Web management
  • NTP
  • FTP/TFTP/SFTP
  • Syslog and sFlow
  • Zero-touch configuration and fast batch inspection
  • Dying-gasp power-off
Enhanced

Features

  • Virtual Switch Cluster (VSC)
  • Zero-touch deployment
