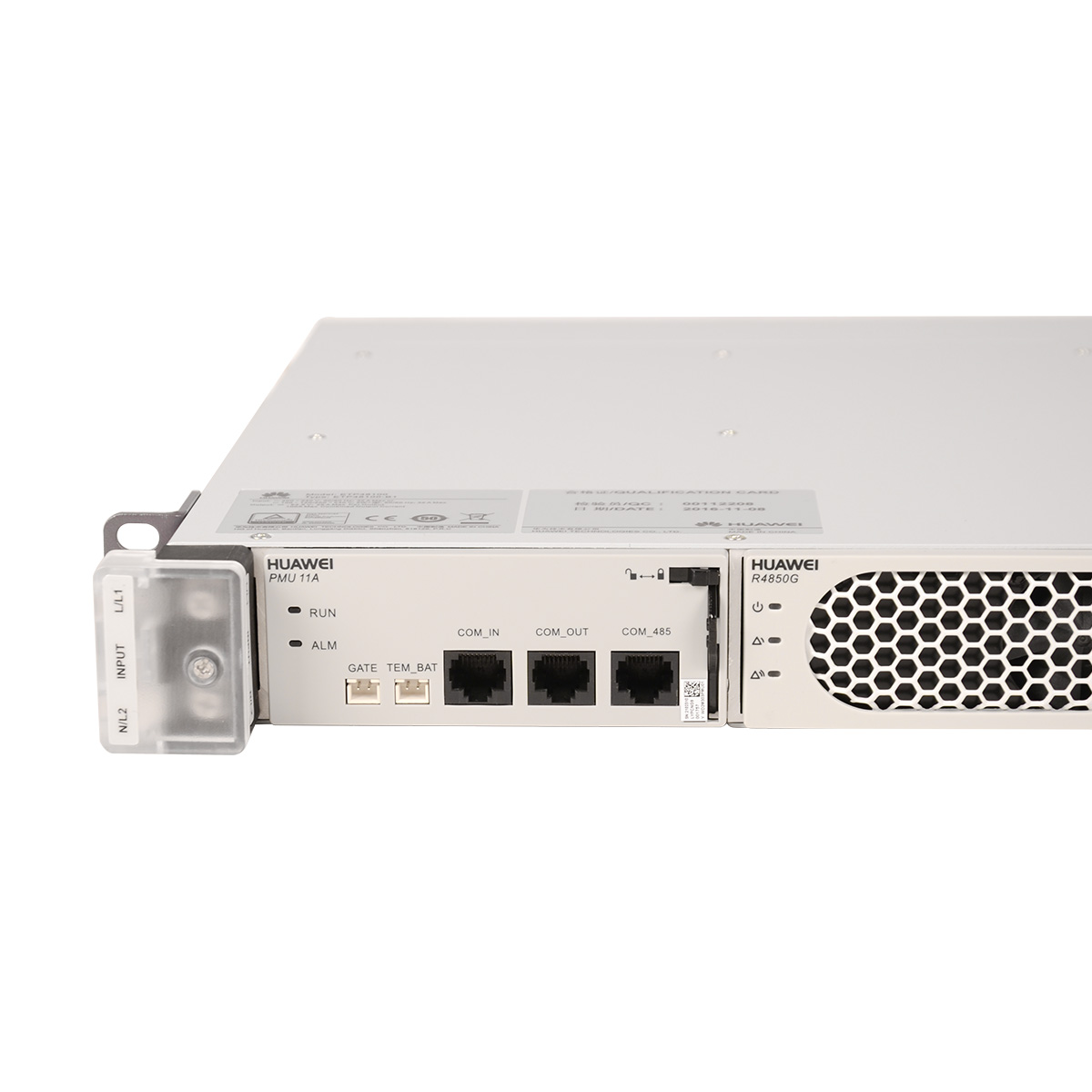

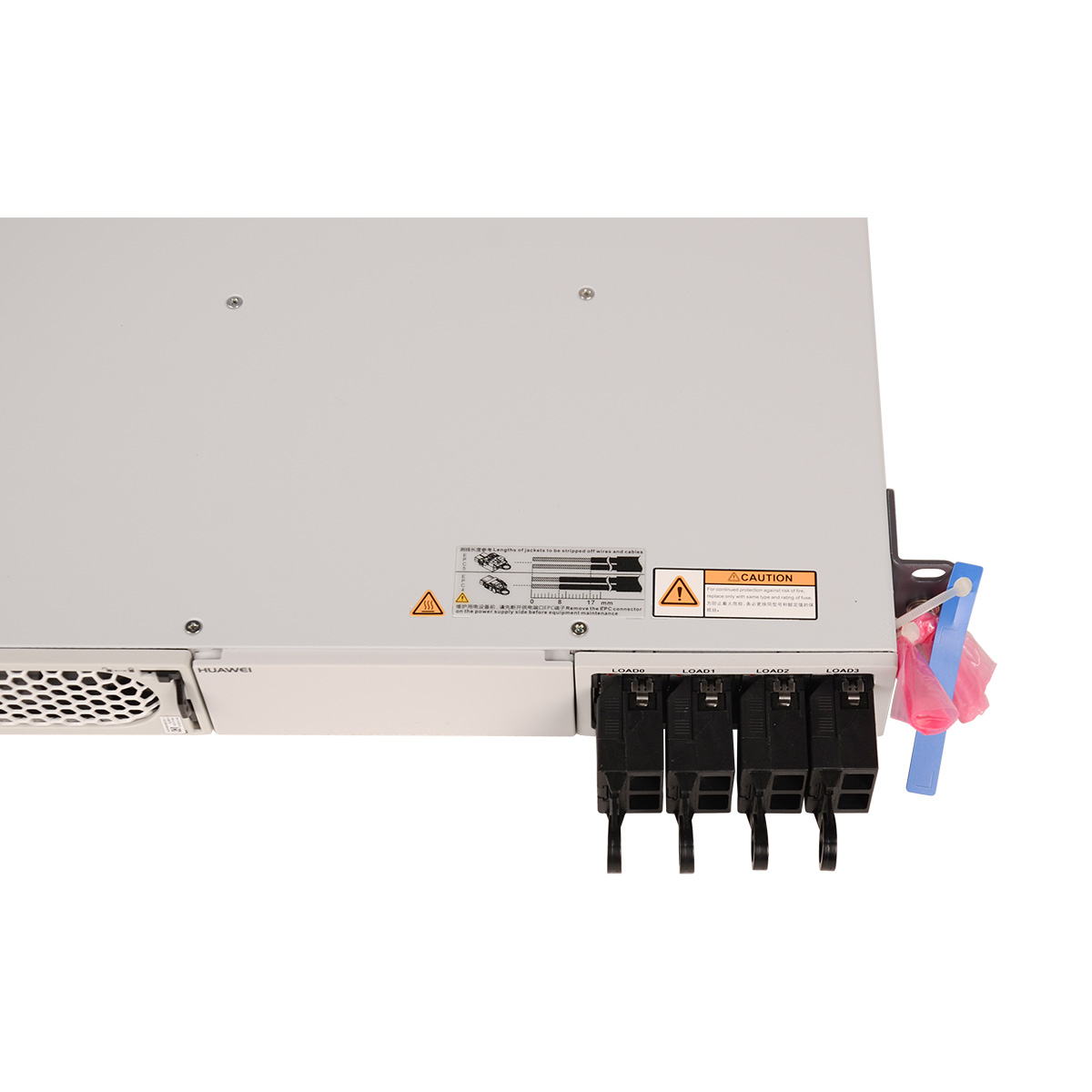

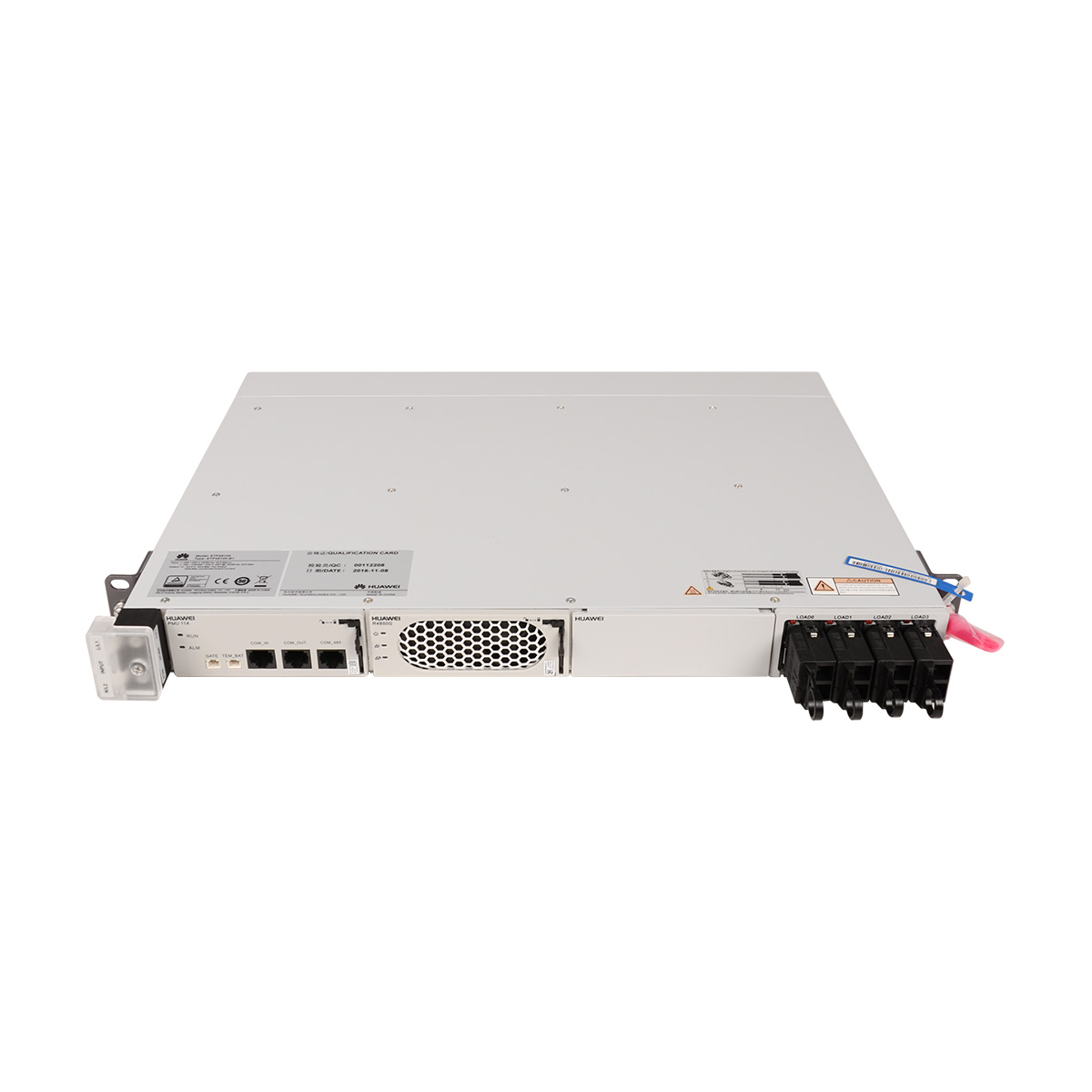

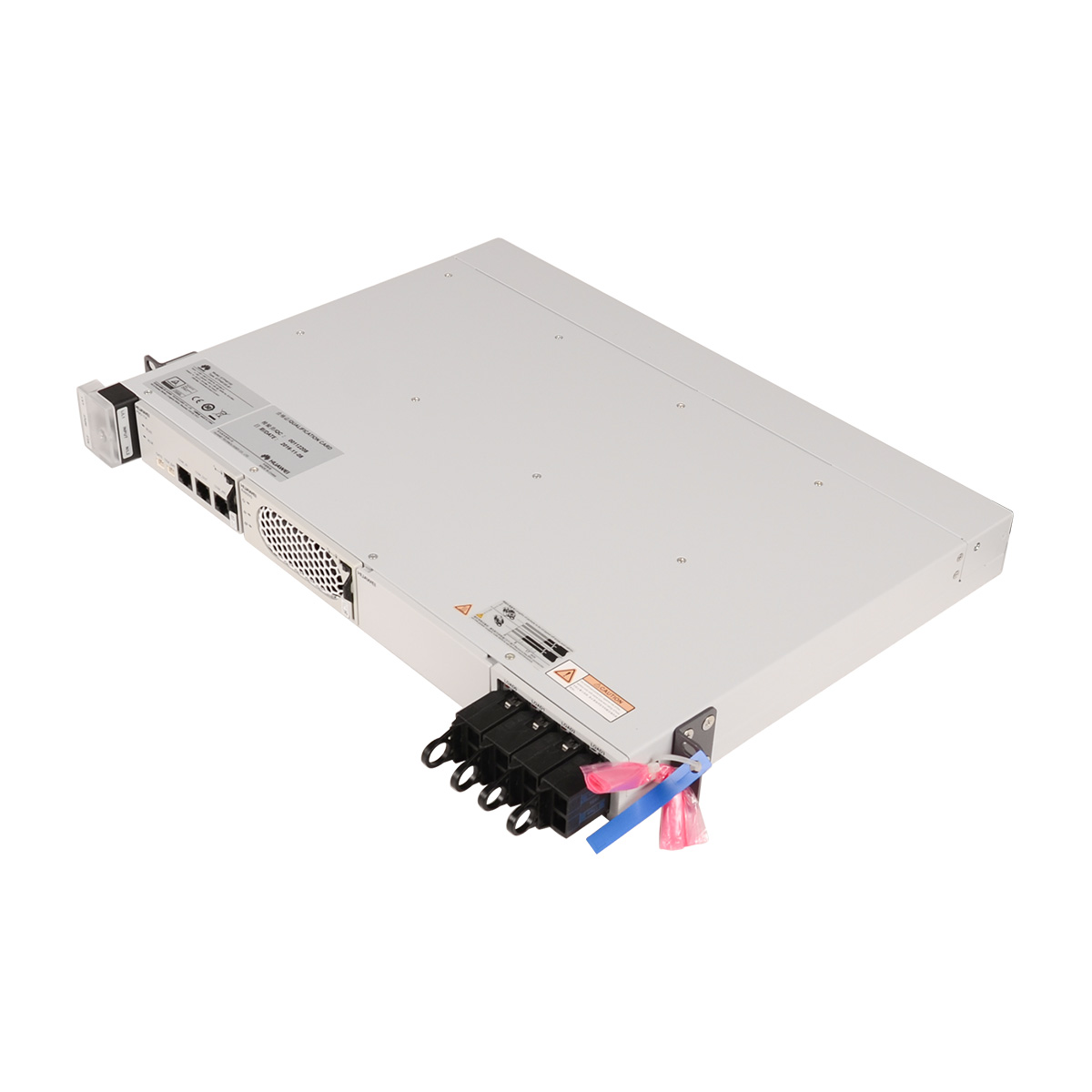

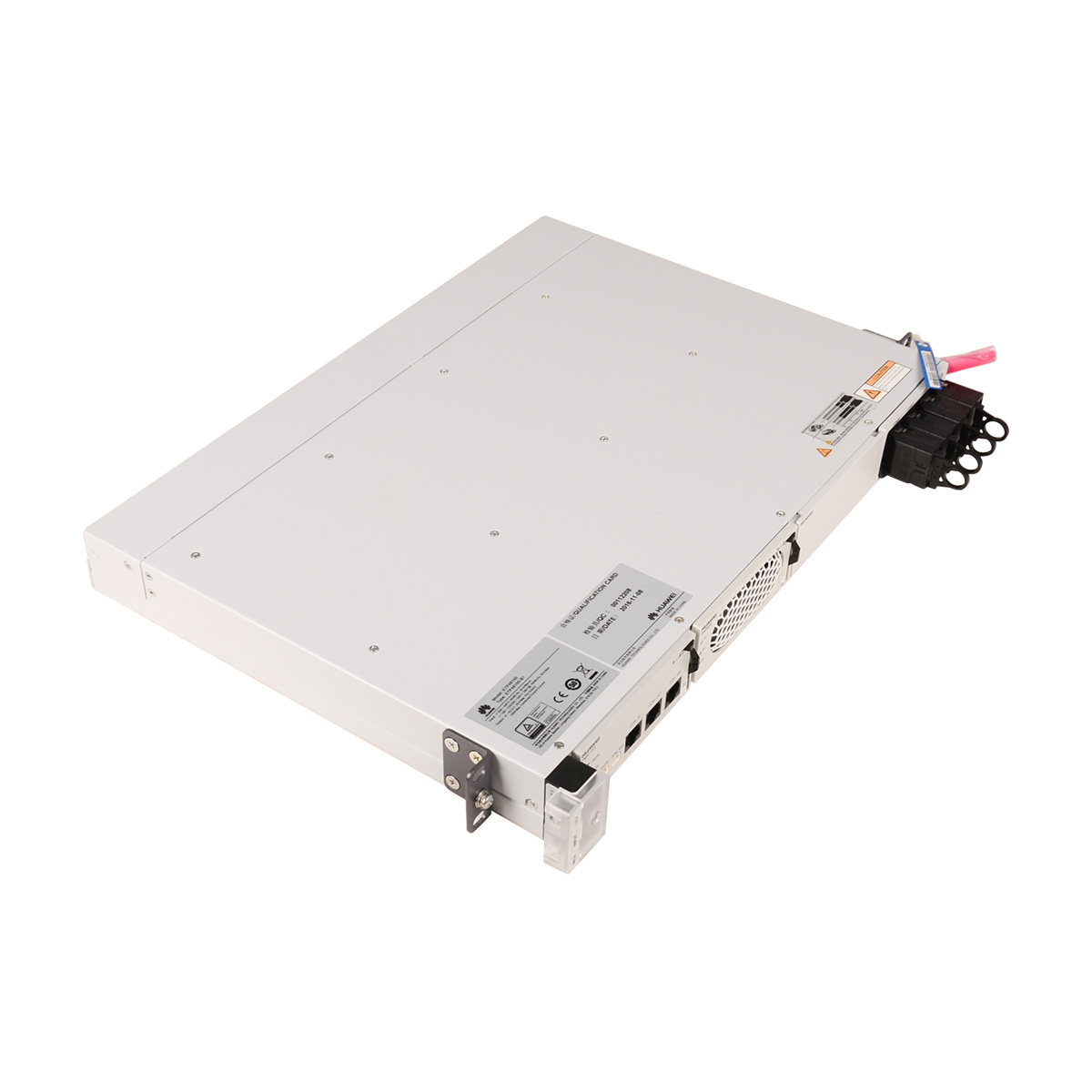

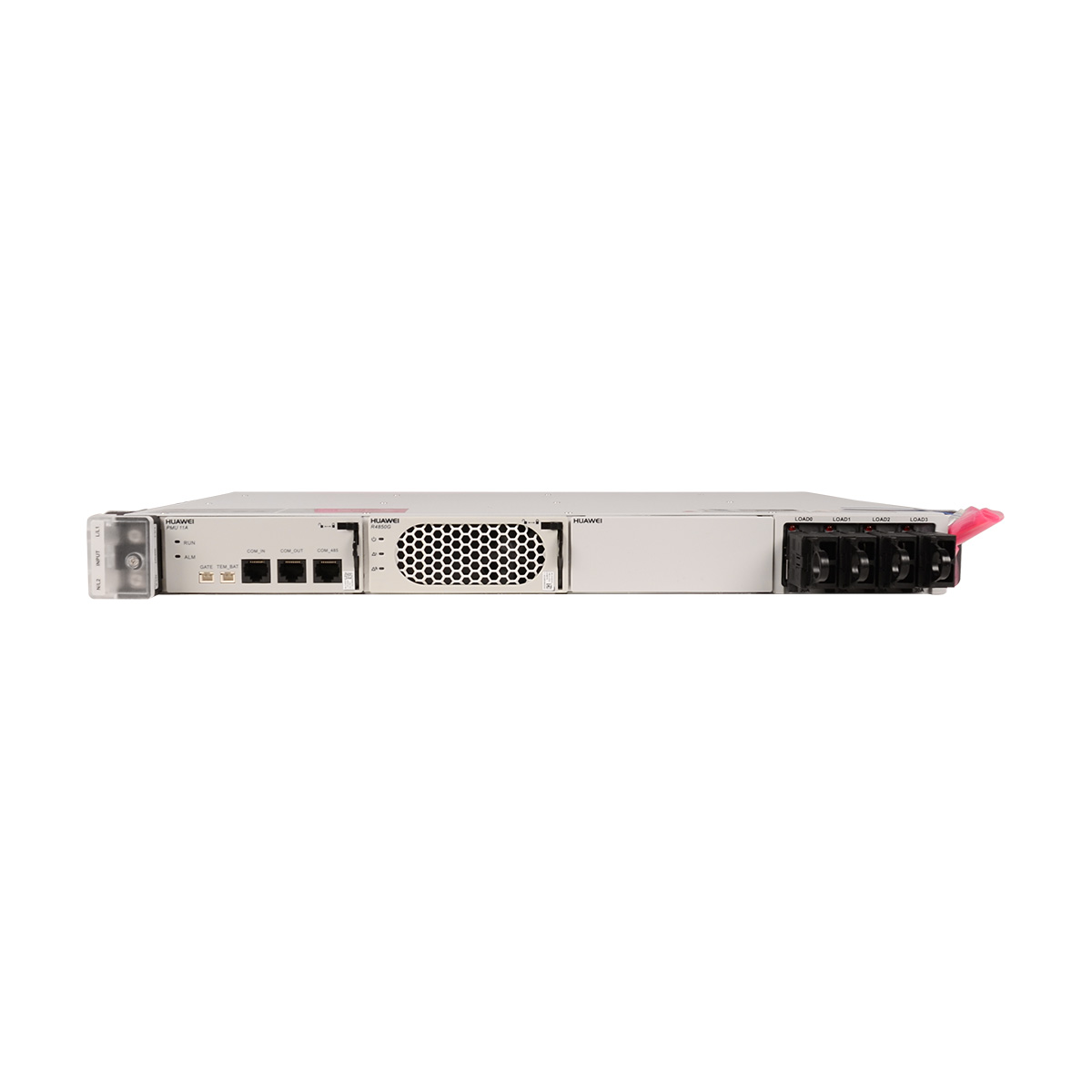

Huawei 50A AC/DC power converter with 1*PMU, 1*R4850G2


3-5 days

Shenzhen Warehouse

SKU: 8937 Category:


ETP48100-B1-50A Overview
  • ETP48100-B1-50A power converter typically apply to Huawei MA5683T, MA5680T, MA5800-X7, X15, X17.
  • ETP48100-B1 chassis 1*PMU(11A), 1*PSU(R4850G2); comes with pre- connected EU power cable, max output 50A.
  • Maximum output power: 3000 W (176–290 V AC); 1250 W (85–175 V AC decreased linearly).
  • 4*Power output port on ETP48100-B1 subrack, each provide 25A MAX.
  • 1*R4850G2 module condition, total MAX output is 50A.
  • 2*R4850G2 module condition, total MAX output is 100A.
  • Easy output power cable connection.
  • Without battery port.
 ETP48100-B1-50A Datasheet
Item ETP48100-B1-50A
Input voltage 220 V AC single-phase voltage range: 176 V AC to 290 V AC
Input voltage frequency 45 Hz to 65 Hz
Output voltage Voltage range: -42 V DC to -58 V DC
Output current 30 A for the 220 V AC single-phase input power
Maximum output power (W) 3000 W (176–290 V AC); 1250 W (85–175 V AC decreased linearly)
Surge protection capability 2 kV in differential mode
4 kV in common mode

Additional information

Weight 9.0000 kg
Dimensions 60.0000 × 50.0000 × 11.5000 cm

13 reviews for ETP48100-B1-50A

  1. 5 out of 5


    Used for my MA5683T, good converter.

  2. 4 out of 5


    Because of the rainy day, the outer packing of the goods was wet, but the goods inside were in good condition, hope can pay more attention about the package next time.

  3. 5 out of 5


    We need it for our MA5608T, brand new converter, works very well!

  4. 5 out of 5


    Compramos 3 unidades de ETP-48100 como repuestos, son nuevos, muy buenos y todos funcionan con normalidad, el tiempo de entrega solo tomó 5 días, estamos muy satisfechos.

  5. 5 out of 5


    Precio razonable, producto de alta calidad, servicio atento y entrega rápida , todo son muy buenos.

  6. 5 out of 5


    I received what I wanted on time and at a reasonable price.

  7. 5 out of 5


    ¡No esperaba que el precio del nuevo ETP-48100 en fuera tan bajo!

  8. 5 out of 5


    10pcs brand new and original ETP-48100 50A converter, work well with my 10 units ZTE C300 OLT.

  9. 5 out of 5


    Una muy buena solución para alimentar al MA5680T, me gusta este económico modelo.

  10. 5 out of 5


    I bought this power converter from Telecomate. It works very well with MA5800-X7. Good quality and new brand. Delivery is so fast.

  11. 5 out of 5


    I need BATT, then recommended me ZTE B600 power converter, price is almost same.

  12. 5 out of 5


    A reliable supplier all the time for me, I will buy it again.

  13. 5 out of 5


    Purchased for my new sites, all brand new.
