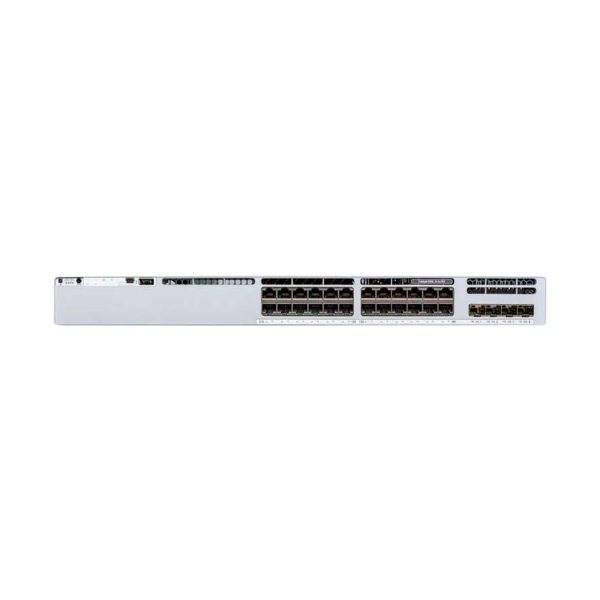

C9300L-24T-4X
Cisco C9300L-24T-4X switch supports 24 port, 4 10G/1G fixed uplinks
Cisco
3-5 days
Shenzhen Warehouse
- Description
- DATASHEET
- Reviews (0)
Description
C9300L-24T-4X overview
Cisco Catalyst 9300 Series switches are Cisco’s lead stackable enterprise access switching platform and as part of the Catalyst 9000 family, are build to transform your network to handle a hybrid world where the workplace is anywhere, endpoints could be anything, and applications are hosted all over the place.
The Catalyst 9300 Series, including the new Catalyst 9300X models, continues to shape the future with continued innovation that helps you reimagine connections, reinforce security and redefine the experience for your hybrid workforce big and small.
The many industry’s first include:
- Up to 1TB of stacking bandwidth
- Up to 1TB of stacking bandwidth
- Mixed Stacking with Backward Compatibility
- Highest Multigigabit Ports
- Highest 90W UPOE+ Density
- StackPower with Backward Compatibility
- 100G IPsec in hardware
- Secure Tunnel connectivity
- Enhanced Application Hosting
- ThousandEyes Enabled
- ThousandEyes Enabled
Cisco Catalyst 9300 Series switches support dual redundant power supplies. The switches ship with one power supply by default, and the second power supply can be purchased when the switch is ordered or at a later time. If only one power supply is installed, it should always be in power supply bay #1. The switches also ship with three field-replaceable fans. Power Supplies are common across the Catalyst 9300 Series.
Cisco Catalyst 9300 Series switch models are designed for stacking switches as a single virtual switch, enabling customers to have a single management plane and control plane for up to 448 access ports.
C9300L-24T-4X quick spec
24 port
4 10G/1G fixed uplinks
Switching capacity: 128 Gbps
Forwarding rate: 95.23 Mpps
Description | Catalyst 9300X modular uplink models | Catalyst 9300 modular uplink models | Catalyst 9300 higher scale models | Catalyst 9300L/LM fixed uplink models |
Total number of MAC addresses | 32,000 | 32,000 | 64,000 | 32,000 |
Total number of IPv4 routes (ARP plus learned routes) | 39,000 (24,000 direct routes and 15,000 indirect routes) | 32,000 (24,000 direct routes and 8000 indirect routes) | 112,000 (48,000 direct routes and 64,000 indirect routes) | 32,000 (24,000 direct routes and 8000 indirect routes) |
IPv6 routing entries | 19,500 | 16,000 | 56,000 | 16,000 |
Multicast routing scale | 8,000 | 8,000 | 16,000 | 8,000 |
QoS scale entries | 4,000 | 5,120 | 18,000 | 5,120 |
ACL scale entries | 8,000 | 5,120 | 18,000 | 5,120 |
Packet buffer per SKU | 16 MB buffer for 48-port 5G Multigigabit, 24-port 10G Multigigabit and 12-port Fiber 32 MB buffer for 48-port 10G Multigigabit and 24-port Fiber | 16 MB buffer for 24- or 48-port Gigabit Ethernet models 32 MB buffer for 24 and 48-port Multigigabit | 32 MB buffer for 24- and 48-port Gigabit Ethernet models 64 MB buffer for 24-port Multigigabit model (24UXB) | 16 MB buffer for 24 and 48 port Gigabit Ethernet models |
FNF entries | 64,000 flows on 48-port 5G Multigigabit and 24-port 10G Multigigabit and 12-port Fiber128,000 flows on 48-port 10G Multigigabit and 24-port Fiber | 64,000 flow on 24- and 48-port Gigabit Ethernet models 128,000 flows on 24-port Multigigabit | 128,000 flow on 24- and 48-port Gigabit Ethernet models 256,000 flows on 24-port Multigigabit | 64,000 flow on 24- and 48-port Gigabit Ethernet models |
DRAM | 16 GB | 8 GB | 8 GB | 8 GB |
Flash | 16 GB | 16 GB | 16 GB | 16 GB |
VLAN IDs | 4094 | 4094 | 4094 | 4094 |
Total Switched Virtual Interfaces (SVIs) | 1000 | 1000 | 1000 | 1000 |
Jumbo frames | 9198 bytes | 9198 bytes | 9198 bytes | 9198 bytes |
Total routed ports per Catalyst 9300 Series stack | 448 | 448 | 448 | 416 |
