CE-L48XS-FG Huawei CE12800 series 48-Port 10GBASE-X Interface Card (FG, SFP+)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

CE-L48XS-FG card overview

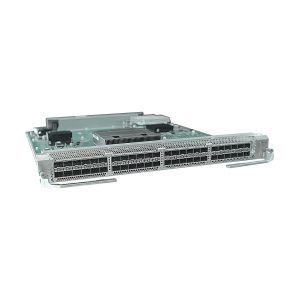

CE-L48XS-FG Huawei CE12800 series 48-Port 10GBASE-X Interface Card (FG, SFP+)



CE-L48XS-FG function and feature
Function and Feature CE-L48XS-FG
Basic function The CE-L48XS-FG provide data packet processing and traffic management on 48 10GE optical ports.
Maximum port density If all LPUs are CE-L48XS-FG cards:

  • The CE12804/CE12804S chassis provides a maximum of 192 10GE optical ports.
  • The CE12808/CE12808S chassis provides a maximum of 384 10GEoptical ports.
  • The CE12812 chassis provides a maximum of 576 10GE optical ports.
  • The CE12816 chassis provides a maximum of 768 10GEGE optical ports.
High 10GE/GE port density (48x10GE/GE)
  • When the 10GE ports work in 10GE mode, they support SFP+ 10GE optical modules, and can work with 10GE Twinax high-speed cables or AOC cables.
  • The CE-L48XS-FG card, optical ports card cannot work in GE mode.
Item CE-L48XS-FG
CPU Eight-core, 1.5 GHz clock speed
DDR3/DDR4 DDR4, standard 8 GB
Flash Standard 128 MB
Physical specifications
  • Dimensions (W x D x H): 433.0 mm x 530.8 mm x 45.7 mm (17.05 in. x 20.90 in. x 1.80 in.)
  • Weight: 6.3 kg (13.89 lb)
  • Typical power consumption: 249 W
  • Maximum power consumption: 322 W
  • Typical heat dissipation:852 BTU/hour
  • Maximum heat dissipation: 1099 BTU/hour
Environment parameters
  • Operating temperature: 0°C to 40°C (32°F to 104°F)
  • Storage temperature: -40°C to +70°C (-40°F to +158°F)
  • Operating relative humidity: 5% RH to 85% RH (noncondensing)
Certification
  • Safety standards compliance
  • EMC standards compliance
  • Environmental standards compliance

Additional information

Brand

Huawei
CE Switch

Lead Time

3-5 days
Ship From

Shenzhen Warehouse
