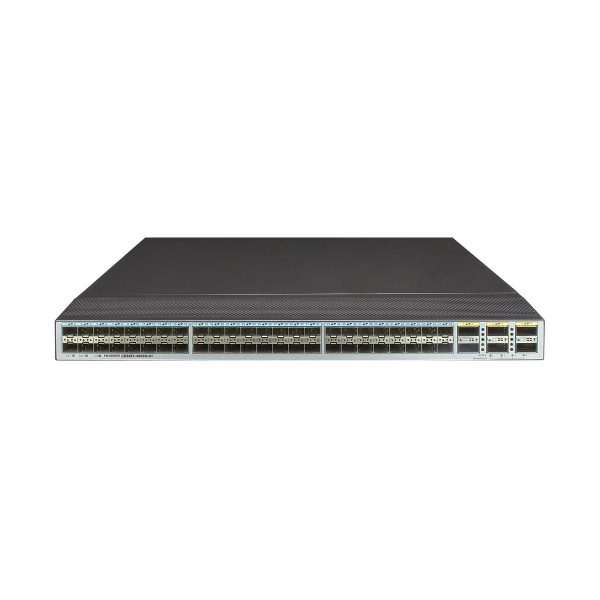

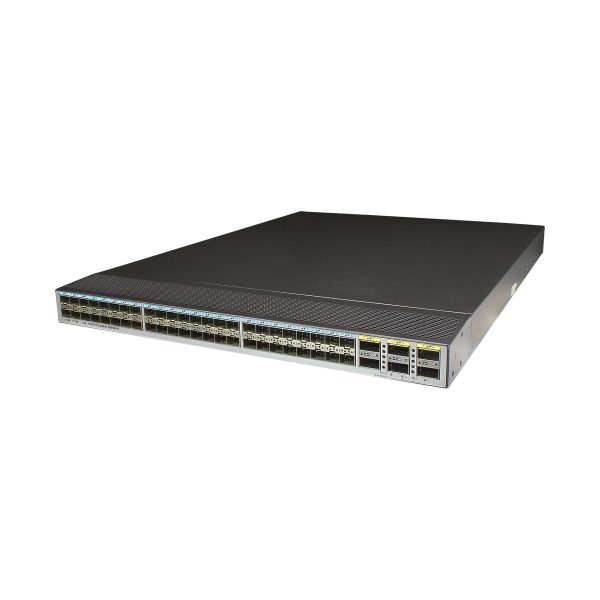

CE6851-HI-B-B0A-AC dual

CE6851-HI-B-B0A-AC dual

48 10GE SFP+ ports, 6 40GE QSFP+ ports, 2 AC equipped, 2 fan box, port-side exhaust

SKU: 02350JAS Category:

Description

Item CE6851-HI-B-B0A-AC dual
Fixed port 48 10G SFP+, 6 40GE QSFP+ ports
Forwarding rate 1,080 Mpps
Switching capacity 1.44 Tbit/s
Power source type AC/DC
AC power input Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz
Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
DC power input Rated voltage range: -48 V DC to -60 V DC
Maximum voltage range: -38.4 V DC to -72 V DC
High-voltage DC power input Not supported
Rated input current 350 W DC power (PDC-350WA series): 11 A (-48 V DC to -60 V DC)
600 W AC power (PAC-600WA series): 9 A (100 V AC to 240 V AC)
Maximum power consumption 245 W
Typical power consumption 145 W (100% throughput, SFP+ cables on 48 ports and QSFP+ cables on 6 ports, double power modules)
Maximum heat dissipation 836 BTU/hr
Typical heat dissipation 495 BTU/hr (100% throughput, SFP+ cables on 48 ports and QSFP+ cables on 6 ports, double power modules)
Surge protection Power module:
AC: 6 kV in common mode and 6 kV in differential mode
DC: 4 kV in common mode and 2 kV in differential mode
Heat dissipation mode Air cooling
Airflow Front-to-back or back-to-front, depending on the fan modules and power modules
Power module backup 1+1 backup
Fan module backup 1+1 backup not supported
NOTE: A CE6800 chassis uses two fan modules, with each fan module containing two fans. The four fans in the chassis work in 3+1 backup mode.
Hot swap Supported by all power modules and fan modules
Mean time between failures (MTBF) 49.08 years
Mean time to repair (MTTR) 1.77 hours
Availability 0.999995875
Processor 1.2 GHz, quad-core
DRAM Memory 2 GB
NOR Flash 16 MB
NAND Flash 1 GB
Service port supporting the stack function 10GE optical ports and 40GE optical ports
Certification Safety standards compliance
EMC standards compliance
Environmental standards compliance
Temperature Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.)
NOTE:When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature: -40°C to +70°C (-40°F to +158°F)
Relative humidity 5% RH to 95% RH, noncondensing
Altitude < 5000 m (16404 ft.)
Noise (sound pressure, 27°C) Back-to-front airflow: < 56 dBA
Front-to-back airflow: < 58 dBA
Physical specifications Dimensions (W x D x H): 442.0 mm x 420.0 mm x 43.6 mm (17.4 in. x 16.5 in. x 1.72 in.)
Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 8.7 kg (19.18 lb)



Additional information

Weight 16.0000 kg
Dimensions 60.0000 × 45.0000 × 5.0000 cm
