Description

CE8865-4C overview



The CloudEngine 8800 series is a next-generation high-performance, high-density, low-latency modular Ethernet switch designed for data centers. It works seamlessly with Huawei’s CloudEngine 16800, 6800, and 5800 switches to build an elastic, simple, open, and secure cloud data center network.

With high-density 400GE/200GE/100GE/40GE/25GE/10GE ports, CloudEngine 8800 supports advanced data center features and high-performance stacking, making it ideal for core or aggregation layers in data centers and campus networks.

Item Details
Description

CE8865-4C Mainframe (With 4 Subcard Slots, Without Fan and Power Modules)
Part Number 02355RTA
Model CE8865-4C

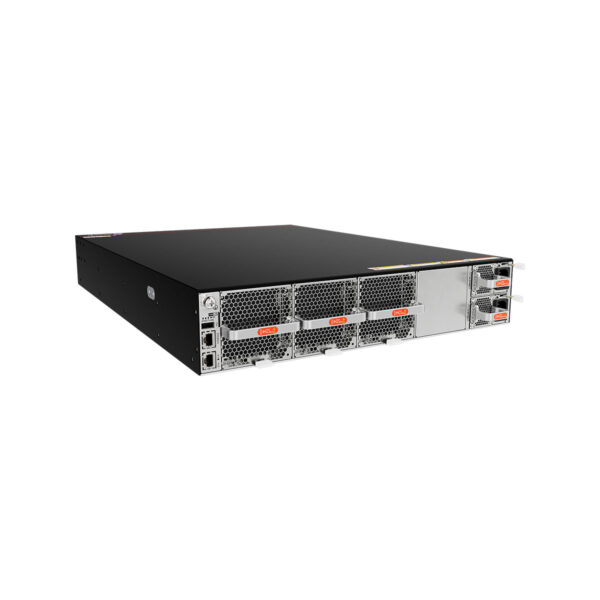

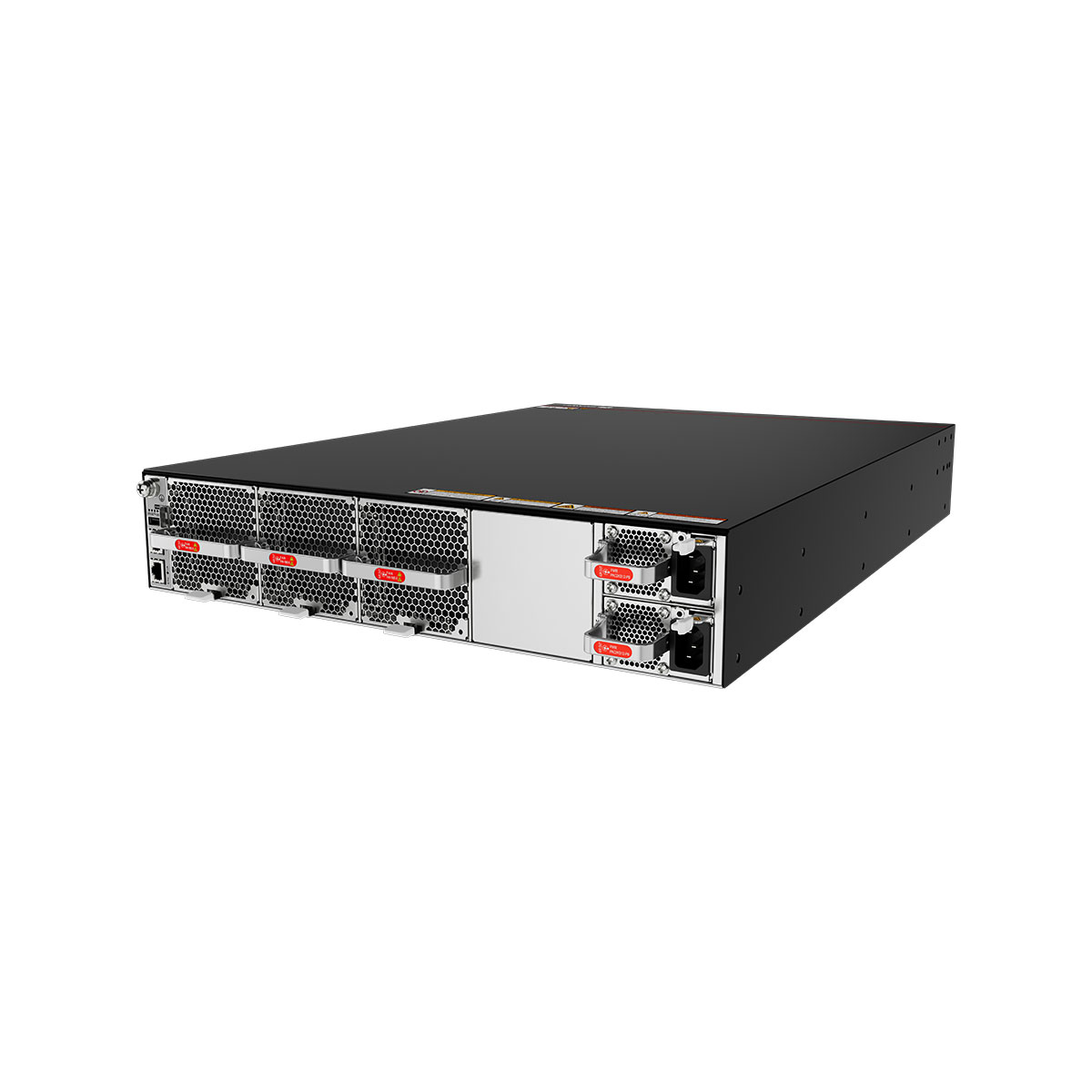

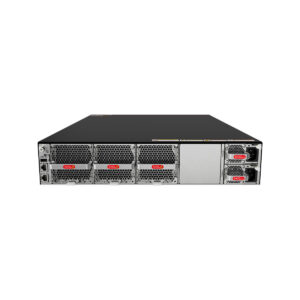

CE8865-4C Appearance

CE8865 4C

1. Ground screw

2. Console port

3. ETH management port (RJ45)

4. USB port

5. Equipment serial number (ESN) and MAC address

NOTE:

You can scan the code to view the ESN and MAC address of the switch.

6. Three Fan slots

Applicable fan modules:

  • FAN-180E-B
  • FAN-180E-F

7. Two Power supply slots Applicable power modules:

  • PAC1K8S12-PF
  • PAC2KS12-PB
  • PHD2KS12-PB
  • PDC2K2S12-PB
  • PDC2K2S12-PF

8. Extended card slots

Applicable cards:

  • CE88-D10CQ-H
  • CE88-D16CQ-H
  • CE88-D24T2CQ-H (0302041922)
  • CE88-D24T2CQ-H (0302071958)
  • CE88-D24YS2CQ-H
  • CE88-D8YS4DQ-H

9. Port-side mounting holes for mounting brackets

10. Equipotential bonding

Ground screws for a ground cable with a two-hole OT terminal
Item CE8865-4C
Installation Type Cabinet installation
Switching capacity To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
CPU 16-core, 2 GHz
Memory DRAM: 8 GB
NOR Flash 64 MB x 2
SSD Flash 4GB SSD
USB

It can be used for log backup and USB-based deployment.

This function is reserved.
Power supply mode
  • AC pluggable
  • DC pluggable
  • HVDC pluggable
Console port RJ45
Downlink Service interface For details, see the port description of each card.
Uplink Service interface For details, see the port description of each card.
Service port supporting the stack function Reserved function. This function is not enabled.
RTC Supported
Typical power consumption [W]

Configured with four CE88-D16CQ-H cards:

  • 650 W (100% traffic load, copper cables on 32 x 100GE ports, normal temperature, dual AC power modules)
  • 728 W (100% traffic load, short-distance optical modules on 32 x 100GE ports, normal temperature, dual AC power modules)

Configured with four CE88-D10CQ-H cards:

  • 315 W (100% traffic load, copper cables on 20 x 100GE ports, normal temperature, dual AC power modules)
  • 338 W (100% traffic load, copper cables on 20 x 200GE ports, normal temperature, dual AC power modules)
  • 345 W (100% traffic load, short-distance optical modules on 20 x 100GE ports, normal temperature, dual AC power modules)
  • 420 W (100% traffic load, short-distance optical modules on 20 x 200GE ports, normal temperature, dual AC power modules)

Configured with four CE88-D8YS4DQ-H cards:

  • 306 W (100% traffic load, copper cables on 8 x 400GE + 16 x 25GE ports, normal temperature, dual AC power modules)
  • 406 W (100% traffic load, short-distance optical modules on 8 x 400GE + 16 x 25GE ports, normal temperature, dual AC power modules)

Configured with four CE88-D24YS2CQ-H cards:

  • 305 W (100% traffic load, copper cables on 48 x 25GE + 4 x 100GE ports, normal temperature, dual AC power modules)
  • 338 W (100% traffic load, short-distance optical modules on 48 x 25GE + 4 x 100GE ports, normal temperature, dual AC power modules)

Configured with four CE88-D24T2CQ-H cards:

  • 381 W (100% traffic load, copper cables on 48 x 10GE electrical + 4 x 100GE ports, normal temperature, dual AC power modules)
  • 388 W (100% traffic load, short-distance optical modules on 48 x 10GE electrical + 4 x 100GE ports, normal temperature, dual AC power modules)
Typical heat dissipation [BTU/hour]

Configured with four CE88-D16CQ-H cards:

  • 2217.8 BTU/hour (100% traffic load, copper cables on 32 x 100GE ports, normal temperature, dual AC power modules)
  • 2483.9 BTU/hour (100% traffic load, short-distance optical modules on 32 x 100GE ports, normal temperature, dual AC power modules)

Configured with four CE88-D10CQ-H cards:

  • 1074.8 BTU/hour (100% traffic load, copper cables on 20 x 100GE ports, normal temperature, dual AC power modules)
  • 1153.3 BTU/hour (100% traffic load, copper cables on 20 x 200GE ports, normal temperature, dual AC power modules)
  • 1177.1 BTU/hour (100% traffic load, short-distance optical modules on 20 x 100GE ports, normal temperature, dual AC power modules)
  • 1433 BTU/hour (100% traffic load, short-distance optical modules on 20 x 200GE ports, normal temperature, dual AC power modules)

Configured with four CE88-D8YS4DQ-H cards:

  • 1044.1 BTU/hour (100% traffic load, copper cables on 8 x 400GE + 16 x 25GE ports, normal temperature, dual AC power modules)
  • 1385.3 BTU/hour (100% traffic load, short-distance optical modules on 8 x 400GE + 16 x 25GE ports, normal temperature, dual AC power modules)

Configured with four CE88-D24YS2CQ-H cards:

  • 1040.7 BTU/hour (100% traffic load, copper cables on 48 x 25GE + 4 x 100GE ports, normal temperature, dual AC power modules)
  • 1153.3 BTU/hour (100% traffic load, short-distance optical modules on 48 x 25GE + 4 x 100GE ports, normal temperature, dual AC power modules)

Configured with four CE88-D24T2CQ-H cards:

  • 1300 BTU/hour (100% traffic load, copper cables on 48 x 10GE electrical + 4 x 100GE ports, normal temperature, dual AC power modules)
  • 1323.9 BTU/hour (100% traffic load, short-distance optical modules on 48 x 10GE electrical + 4 x 100GE ports, normal temperature, dual AC power modules)
Static power consumption [W]

Configured with four CE88-D16CQ-H cards: 569 W

Configured with four CE88-D10CQ-H cards: 297 W

Configured with four CE88-D8YS4DQ-H cards: 297 W

Configured with four CE88-D24YS2CQ-H cards: 276 W

Configured with four CE88-D24T2CQ-H cards: 330 W
Static heat dissipation [BTU/hour]

Configured with four CE88-D16CQ-H cards: 1941.4 BTU/hour

Configured with four CE88-D10CQ-H cards: 1013.4 BTU/hour

Configured with four CE88-D8YS4DQ-H cards: 1013.4 BTU/hour

Configured with four CE88-D24YS2CQ-H cards: 941.7 BTU/hour

Configured with four CE88-D24T2CQ-H cards: 1126 BTU/hour
Maximum power consumption [W]

Configured with four CE88-D16CQ-H cards:

  • 888 W (100% traffic load, short-distance optical modules on 64 x 100GE ports, normal temperature, dual AC power modules)
  • 1318 W (100% traffic load, long-distance optical modules on 64 x 100GE ports, high temperature, dual AC power modules)
  • 1376 W (100% traffic load, long-distance optical modules on 48 x 100GE + 16 x 200GE ports, high temperature, dual AC power modules)

Configured with four CE88-D10CQ-H cards:

  • 406 W (100% traffic load, short-distance optical modules on 40 x 100GE ports, normal temperature, dual AC power modules)
  • 549 W (100% traffic load, short-distance optical modules on 40 x 200GE ports, normal temperature, dual AC power modules)
  • 612 W (100% traffic load, long-distance optical modules on 40 x 100GE ports, high temperature, dual AC power modules)
  • 965 W (100% traffic load, long-distance optical modules on 40 x 200GE ports, high temperature, dual AC power modules)

Configured with four CE88-D8YS4DQ-H cards:

  • 531 W (100% traffic load, short-distance optical modules on 16 x 400GE + 32 x 25GE ports, normal temperature, dual AC power modules)
  • 830 W (100% traffic load, long-distance optical modules on 16 x 400GE + 32 x 25GE ports, high temperature, dual AC power modules)

Configured with four CE88-D24YS2CQ-H cards:

  • 410 W (100% traffic load, short-distance optical modules on 96 x 25GE + 8 x 100GE ports, normal temperature, dual AC power modules)
  • 718 W (100% traffic load, long-distance optical modules on 96 x 25GE + 8 x 100GE ports, high temperature, dual AC power modules)

Configured with four CE88-D24T2CQ-H cards:

  • 455 W (100% traffic load, short-distance optical modules on 96 x 10GE electrical + 8 x 100GE ports, normal temperature, dual AC power modules)
  • 732 W (100% traffic load, long-distance optical modules on 96 x 10GE electrical + 8 x 100GE ports, high temperature, dual AC power modules)
Maximum heat dissipation [BTU/hour]

Configured with four CE88-D16CQ-H cards:

  • 3029.9 BTU/hour (100% traffic load, short-distance optical modules on 64 x 100GE ports, normal temperature, dual AC power modules)
  • 4497 BTU/hour (100% traffic load, long-distance optical modules on 64 x 100GE ports, high temperature, dual AC power modules)
  • 4694.9 BTU/hour (100% traffic load, long-distance optical modules on 48 x 100GE + 16 x 200GE ports, high temperature, dual AC power modules)

Configured with four CE88-D10CQ-H cards:

  • 1385.3 BTU/hour (100% traffic load, short-distance optical modules on 40 x 100GE ports, normal temperature, dual AC power modules)
  • 1873.2 BTU/hour (100% traffic load, short-distance optical modules on 40 x 200GE ports, normal temperature, dual AC power modules)
  • 2088.1 BTU/hour (100% traffic load, long-distance optical modules on 40 x 100GE ports, high temperature, dual AC power modules)
  • 3292.6 BTU/hour (100% traffic load, long-distance optical modules on 40 x 200GE ports, high temperature, dual AC power modules)

Configured with four CE88-D8YS4DQ-H cards:

  • 1811.8 BTU/hour (100% traffic load, short-distance optical modules on 16 x 400GE + 32 x 25GE ports, normal temperature, dual AC power modules)
  • 2832 BTU/hour (100% traffic load, long-distance optical modules on 16 x 400GE + 32 x 25GE ports, high temperature, dual AC power modules)

Configured with four CE88-D24YS2CQ-H cards:

  • 1398.9 BTU/hour (100% traffic load, short-distance optical modules on 96 x 25GE + 8 x 100GE ports, normal temperature, dual AC power modules)
  • 2449.8 BTU/hour (100% traffic load, long-distance optical modules on 96 x 25GE + 8 x 100GE ports, high temperature, dual AC power modules)

Configured with four CE88-D24T2CQ-H cards:

  • 1552.5 BTU/hour (100% traffic load, short-distance optical modules on 96 x 10GE electrical ports + 8 x 100GE ports, normal temperature, dual AC power modules)
  • 2497.6 BTU/hour (100% traffic load, long-distance optical modules on 96 x 10GE electrical ports + 8 x 100GE ports, high temperature, dual AC power modules)
Number of power modules 2
Redundant power supply 1+1 backup
Rated input voltage [V]
  • 2000 W AC&240 V DC power module: AC: 100 V AC to 240 V AC, 50/60 Hz; DC: 240 V DC
  • 1800 W AC&240 V DC power module: AC: 100 V AC to 240 V AC, 50/60 Hz; DC: 240 V DC
  • 2000 W high-voltage DC power module: 336 V DC
  • 2200 W DC power module: –48 V DC to –60 V DC; +48 V DC
Input voltage range [V]
  • 2000 W AC&240 V DC power module: AC: 90 V AC to 290 V AC, 45 Hz to 66 Hz; DC: 190 V DC to 290 V DC
  • 1800 W AC&240 V DC power module: AC: 90 V AC to 290 V AC, 45 Hz to 66 Hz; DC: 190 V DC to 290 V DC
  • 2000 W high-voltage DC power module: 260 V DC to 400 V DC
  • 2200 W DC power module: –38.4 V DC to –72 V DC; +38.4 V DC to +57 V DC
Maximum input current [A]
  • 2000 W AC&240 V DC power module: 10 A (100 V AC to 240 V AC); 10 A (240 V DC)
  • 1800 W AC&240 V DC power module: 10 A (100 V AC to 240 V AC); 10 A (240 V DC)
  • 2000 W high-voltage DC power module: 10 A (336 V DC)
  • 2200 W DC power module: 63 A (–48 V DC to –60 V DC); 63 A (+48 V DC)
Rated output power [W]
  • 2000 W AC&240 V DC power module: 2000 W (220 V AC to 240 V AC&240 V DC), 1800 W (200 V AC to 220 V AC), 900 W (100 V AC to 130 V AC)
  • 1800 W AC&240 V DC power module: 1800 W (200 V AC to 240 V AC&240 V DC), 900 W (100 V AC to 130 V AC)
  • 2000 W high-voltage DC power module: 2000 W
  • 2200 W DC power module: 2200 W
Certification
  • Compliance with safety standards
  • Compliance with EMC standards
  • Compliance with environment and environmental protection standards
Power supply surge protection [kV]
  • AC: 6 kV in common mode and 6 kV in differential mode
  • HVDC: 4 kV in common mode and 2 kV in differential mode
  • DC: 4 kV in common mode and 2 kV in differential mode
Types of fans Pluggable
Number of fans 3
Redundant fans The device supports 2+1 backup of fan modules that work in hot standby mode. The system can operate normally for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode Air cooling
Airflow direction Port-side air intake or port-side air exhaust, depending on the fan modules and power modules that are used. The fan modules and power modules must have the same airflow direction.
Availability 0.9999964621
MTBF [year] 48.4 years
MTTR [hour] 1.86 hours
Noise at normal temperature (27°C, sound pressure) [dB(A)]

Port-side air intake: < 64.3 dB(A)

Port-side air exhaust: < 65.2 dB(A)
Noise at high temperature (40°C, sound pressure) [dB(A)]

Port-side air intake: < 86.1 dB(A)

Port-side air exhaust: < 87.9 dB(A)
Long-term operating altitude [m (ft.)] ≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating temperature [°C (°F)]

0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.)

NOTE:

When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage altitude [m (ft.)] ≤ 5000 m (16404 ft.)
Storage relative humidity [RH] 5% to 95% RH, non-condensing
Storage temperature [°C (°F)] -40ºC to +70ºC (-40°F to +158°F)
Dimensions with packaging (H x W x D) [mm (in.)] 280 mm x 875 mm x 665 mm (11.02 in. x 34.45 in. x 26.18 in.)
Dimensions without packaging (H x W x D) [mm (in.)]
  • Basic dimensions (the depth excludes the parts protruding from the body): 88.1 mm x 442.0 mm x 600.0 mm (3.47 in. x 17.40 in. x 23.62 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 88.1 mm x 442.0 mm x 640.0 mm (3.47 in. x 17.40 in. x 25.20 in.)
Weight without packaging [kg (lb)]

12.76 kg (28.13 lb) (with two power module filler panels and three fan module filler panels but no power modules, fan modules, cards, and card filler panels)

15.48 kg (34.13 lb) (with four card filler panels, two power module filler panels, and three fan module filler panels but no power modules, fan modules, and cards)
Weight without packaging (full configuration) [kg (lb)]

16.54 kg (36.46 lb) (with two power modules and three fan modules, but no cards and card filler panels)

19.26 kg (42.46 lb) (with two power modules, three fan modules, and four card filler panels, but no cards)
Weight with packaging [kg (lb)]

21.3 kg (46.96 lb) (with two power module filler panels and three fan module filler panels but no power modules, fan modules, cards, and card filler panels)

24.02 kg (52.96 lb) (with four card filler panels, two power module filler panels, and three fan module filler panels but no power modules, fan modules, and cards)
Weight with packaging (full configuration) [kg (lb)]

25.08 kg (55.29 lb) (with two power modules and three fan modules, but no cards and card filler panels)

27.8 kg (61.29 lb) (with two power modules, three fan modules, and four card filler panels, but no cards)
Chassis height [U] 2 U

Additional information

Reviews

There are no reviews yet.

Be the first to review “CE8865-4C”

Your email address will not be published. Required fields are marked *

  +  36  =  41

Related products
Quick view
Categories1:

FAN-180E-F

R.F.Q
(1)
PN02354LKY
Quick view
Categories1:

FAN-036A-B

R.F.Q
(1)
PN02312EYW
Quick view
Categories1:

FAN-180E-B

R.F.Q
(1)
PN02354KXY
Quick view
Categories1:

CE8851-32CQ8DQ-K

R.F.Q
(1)
PN02353PJQ
Quick view
Categories1:

FAN-036A-F

R.F.Q
PN02312VRL
CE88-D10CQ-HCE88-D10CQ-H-1
Quick view
Categories1:

CE88-D10CQ-H

R.F.Q
(2)
PN0302050806
Main Menu
Back to Top

Search For Products

Popular
Product has been added to your cart
