CR5D000IE171

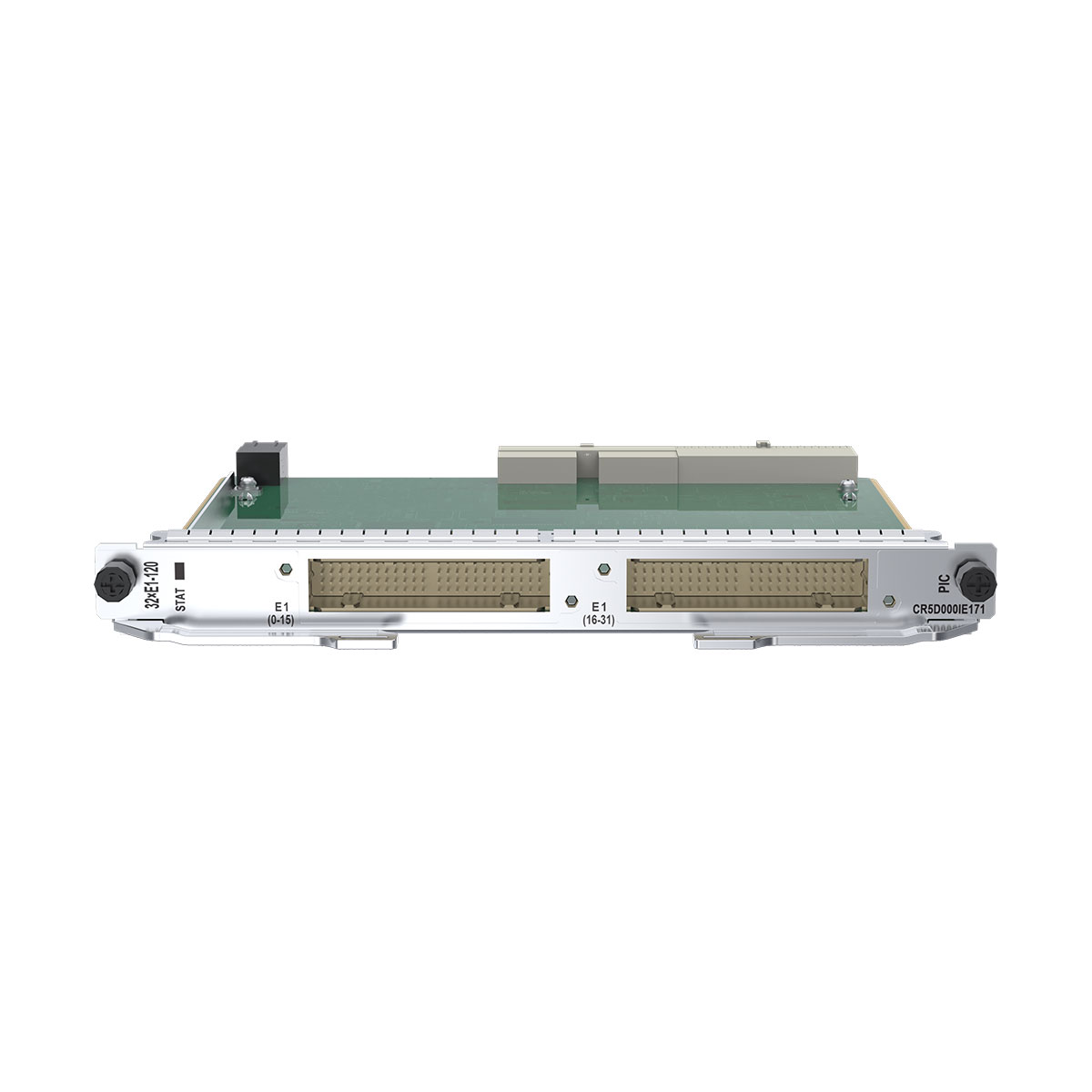

NE8000 CR5D000IE171 32*Port E1 Physical Interface Card(PIC,120ohm)
Huawei
3-5 days
Shenzhen Warehouse
- Description
- DATASHEET
- Reviews (1)
Description
Basic information about the CR5D000IE171
Item | Details |
---|---|
Description | 32-Port E1 Physical Interface Card(PIC,120ohm) |
Card type | Interface Card |
Part Number | 03030QBP |
Model | CR5D000IE171 |
Silkscreen | 32xE1-120 |
Mappings between CR5D000IE171 and product models
Product Sub-Series
|
Product Model
|
First Supported Version
|
Limitations
|
---|---|---|---|
NetEngine 8000 M14 | CR8B0BKPACC2 | NetEngine 8000 M V800R012C10 | – |
NetEngine 8000 M14 | CR8B0BKPDCC1 | NetEngine 8000 M V800R012C10 | – |
NetEngine 8000 M14 | CR8B0BKPACC1 | NetEngine 8000 M V800R012C10 | – |
NetEngine 8000 M8 | CR8BM8BKPDC1 | NetEngine 8000 M V800R012C10 | – |
NetEngine 8000 M8 | CR8BM8BKPAC1 | NetEngine 8000 M V800R012C10 | – |
Item | CR5D000IE171 |
---|---|
Basic function | Supports a maximum of 32 E1 interfaces. Services on each interface can be configured. |
Reliability and availability | Support for hot swap. |
Breakout supported | No |
Interface rate auto-sensing supported | No |
Link protocol | TDM, PPP, MP, ATM, IMA |
Dimensions without packaging (H x W x D) [mm(in.)] | 19.8 mm x 193.8 mm x 209.3 mm (0.78 in. x 7.63 in. x 8.24 in.) |
Weight without packaging [kg(lb)] | 0.5 kg(1.1 lb) |
Typical power consumption [W] | 13.5 W |
Typical heat dissipation [BTU/hour] | 43.8 BTU/hour |
Long-term operating temperature [°C(°F)] | -40°C to 65°C(-40°F to 149°F) |
