CR5D00E8GE71

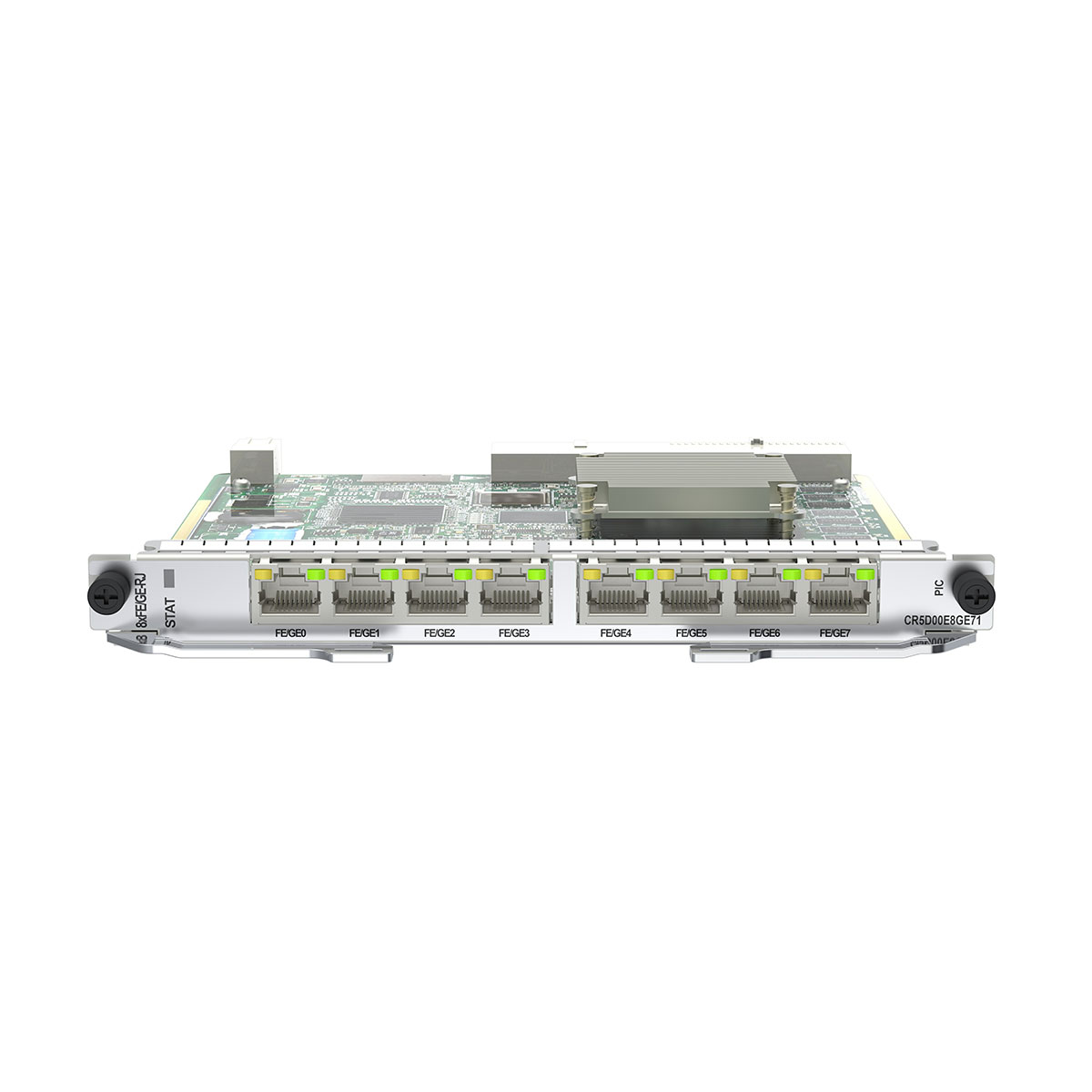

NE8000 CR5D00E8GE71 8*Port 100/1000Base-RJ45 Physical Interface Card(PIC)
Huawei
3-5 days
Shenzhen Warehouse
- Description
- DATASHEET
- Reviews (1)
Description
Basic information about the CR5D00E8GE71
| Item | Details |
|---|---|
| Description | 8-Port 100/1000Base-RJ45 Physical Interface Card(PIC) |
| Card type | Interface Card |
| Part Number | 03031DGY |
| Model | CR5D00E8GE71 |
| Silkscreen | 8xFE/GE-RJ |
Mappings between CR5D00E8GE71 and product models
|
Product Sub-Series
|
Product Model
|
First Supported Version
|
Limitations
|
|---|---|---|---|
| NetEngine 8000 M14 | CR8B0BKPACC2 | NetEngine 8000 M V800R012C00 | – |
| NetEngine 8000 M14 | CR8B0BKPDCC1 | NetEngine 8000 M V800R012C00 | – |
| NetEngine 8000 M14 | CR8B0BKPACC1 | NetEngine 8000 M V800R012C10 | – |
| NetEngine 8000 M8 | CR8BM8BKPDC1 | NetEngine 8000 M V800R012C00 | – |
| NetEngine 8000 M8 | CR8BM8BKPAC1 | NetEngine 8000 M V800R012C00 | – |
| Item | CR5D00E8GE71 |
|---|---|
| Basic function | Occupies one flexible card slot.
Supports the line-rate receiving and transmitting on eight GE/FE interfaces and supports 10M/100M/1000M electrical interface features on the interfaces. |
| Reliability and availability | Support for hot swap. |
| Breakout supported | No |
| Interface rate auto-sensing supported | No |
| Dimensions without packaging (H x W x D) [mm(in.)] | 19.8 mm x 193.8 mm x 209.3 mm (0.78 in. x 7.63 in. x 8.24 in.) |
| Weight without packaging [kg(lb)] | 0.5 kg(1.1 lb) |
| Typical power consumption [W] | 11.7 W |
| Typical heat dissipation [BTU/hour] | 37.96 BTU/hour |
| Long-term operating temperature [°C(°F)] | -40°C to 65°C(-40°F to 149°F) |
