CR8D0IPU2TC5
CR8D0IPU2TC5
CR8D0IPU2TC5
Categories:

CR8D0IPU2TC5

0 Reviews Write a review
PN03034MGL
Brands
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Huawei NetEngine 8000 M Series CR8D0IPU2TC5 Integrated Network Processing Unit (IPU-2T-C)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

CR8D0IPU2TC5 Overview

Item Details
Description Integrated Network Processing Unit (IPU-2T-C)
Part Number 03034MGL
Model CR8D0IPU2TC5
Card type IPU
Silkscreen IPU-2T-C

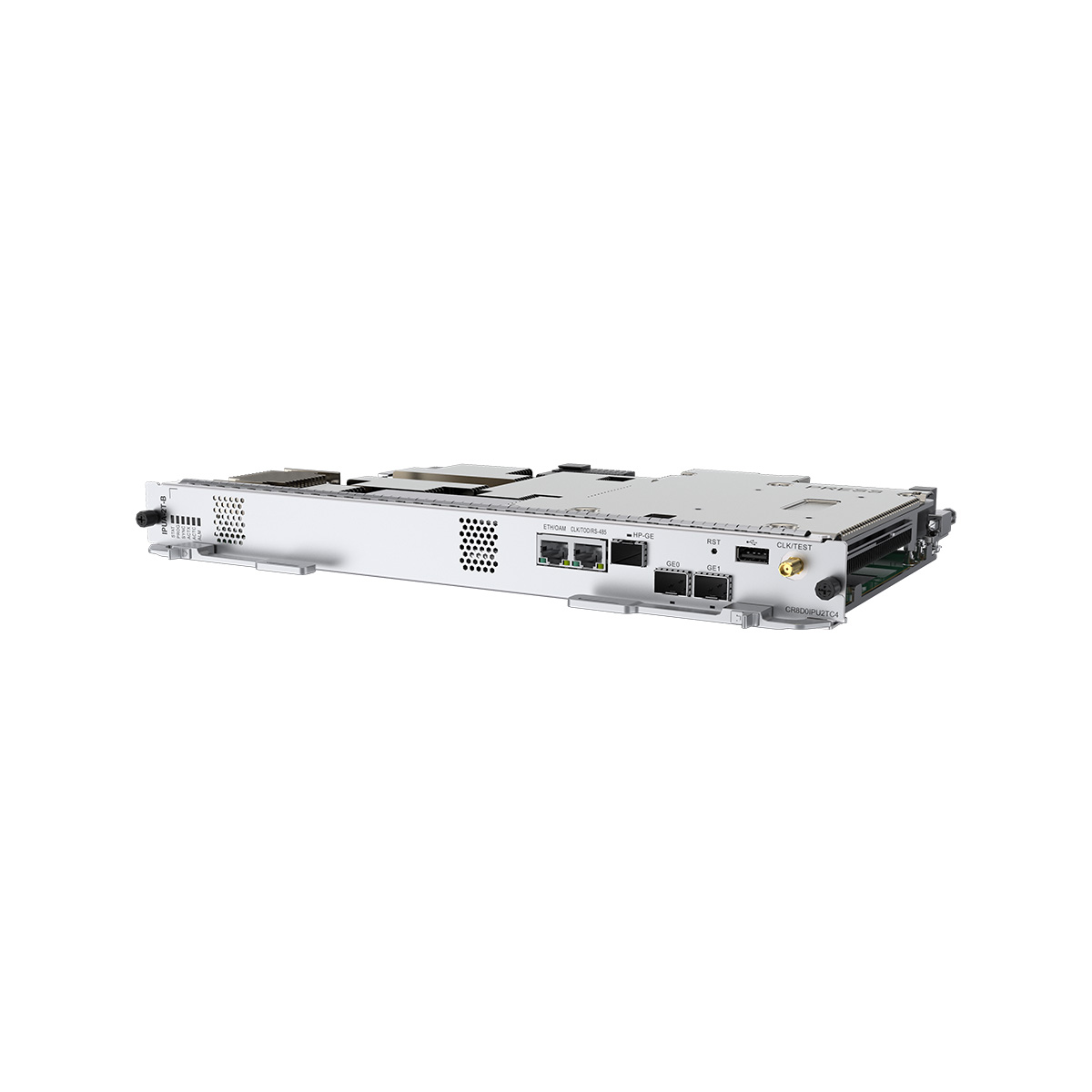

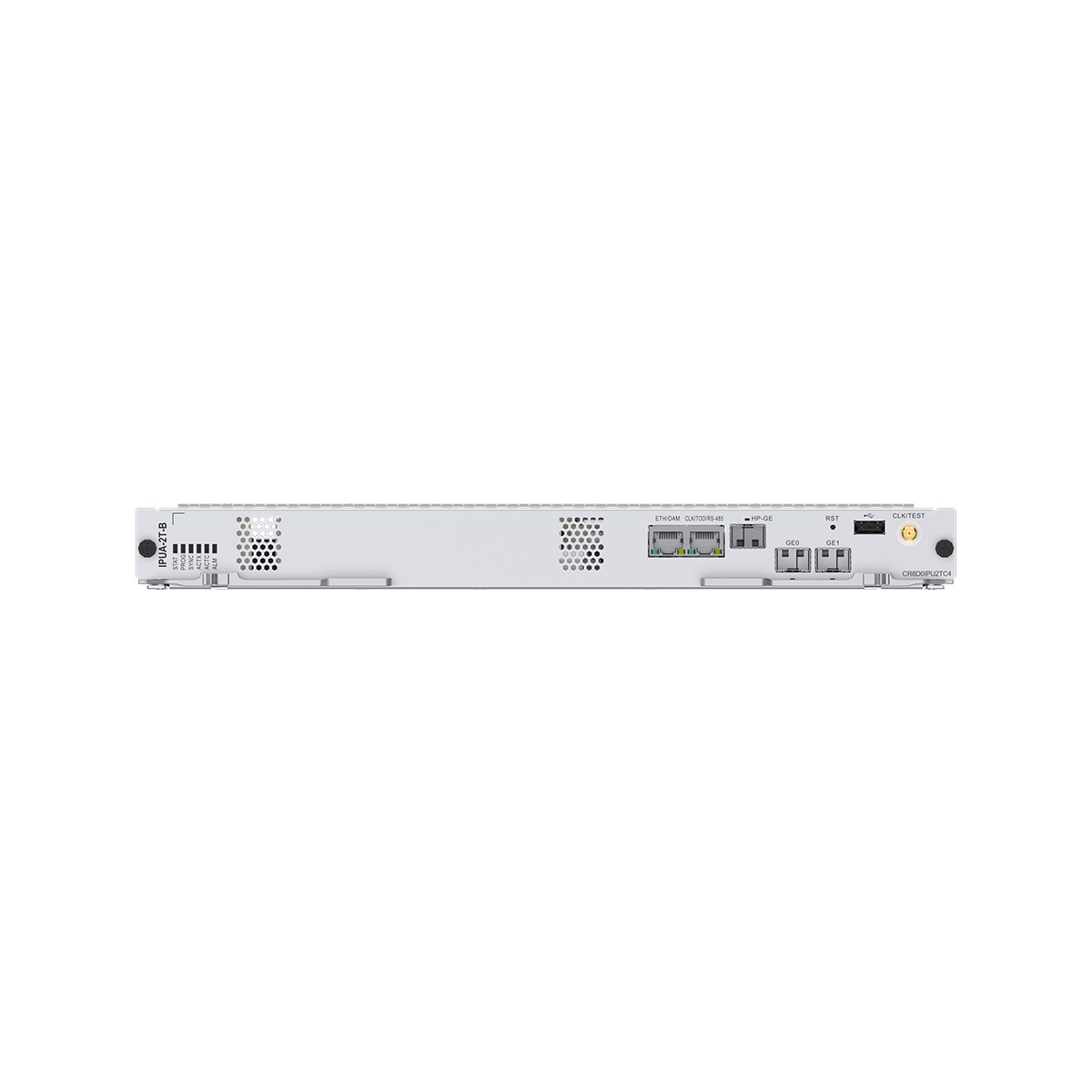

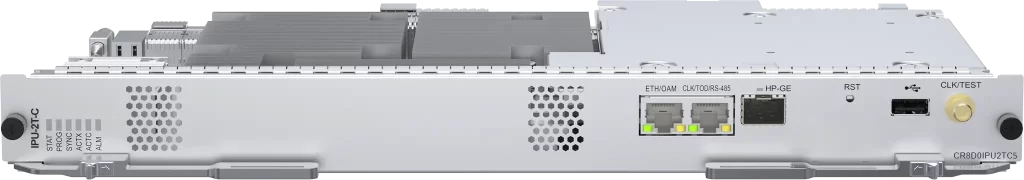

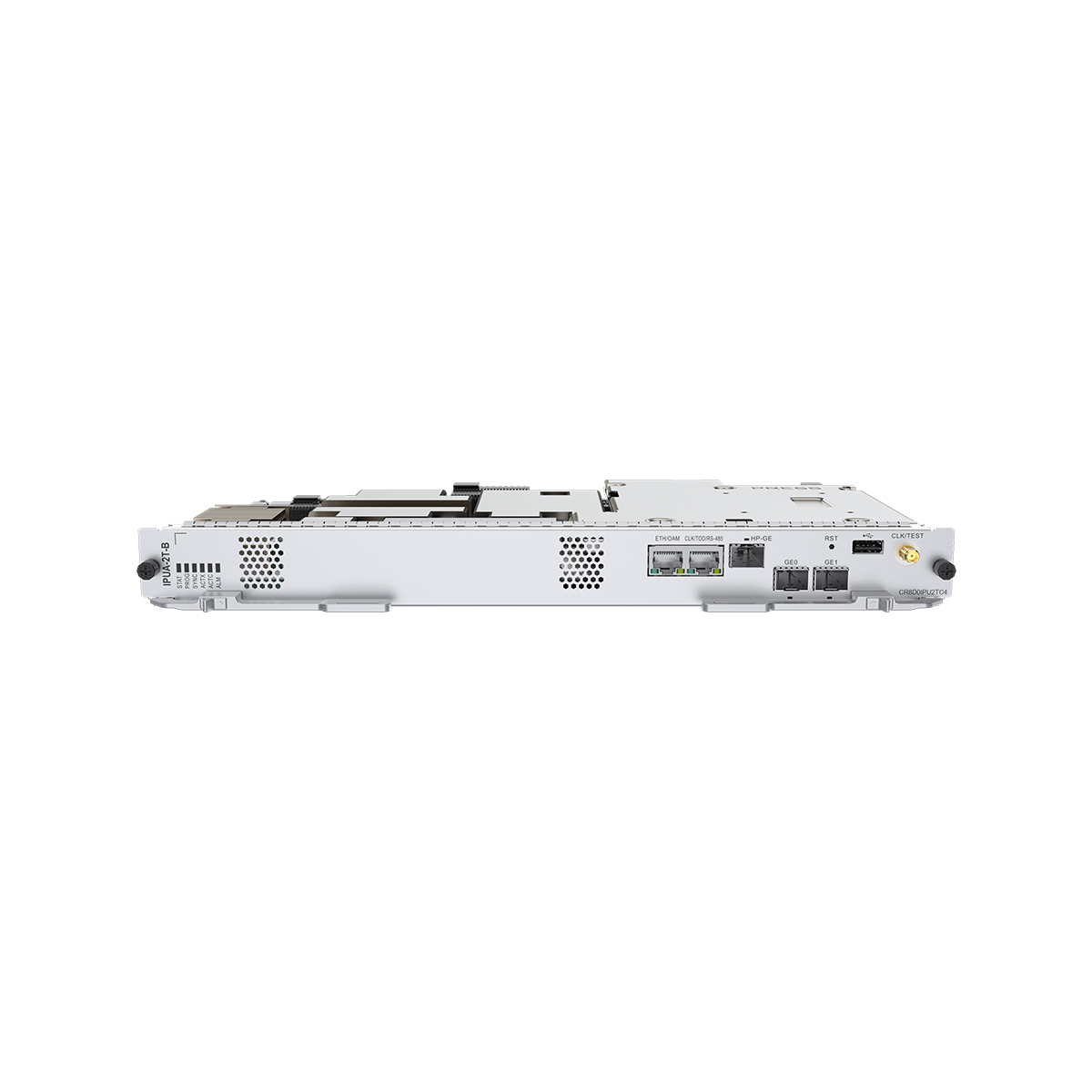

Appearance

CR8D0IPU2TC5





Mappings between CR8D0IPU2TC5 and Product Models

Part Type Part Number Part Model Description Supported Versions IDs of available slots
Chassis 02353ABK

CR8B0BKPACC2

 NetEngine 8000 M14 Integrated AC Chassis Components (Including 4*AC Power,Fan Box) V800R022C00SPC600 and later versions 15,16
Chassis 02356AQM

CR8B0BKPACC6

 NetEngine 8000 M14 Integrated AC Chassis Components(Including 2*AC Power,Fan Box) V800R023C10SPC500 and later versions 15,16
Chassis 02355VUR

CR8B0BKPACM1

 NetEngine 8000 M14 Integrated AC Chassis Components(Including 2*AC Power,Fan Box) V800R023C10SPC500 and later versions 15,16
Chassis 02353ABJ

CR8B0BKPDCC1

 NetEngine 8000 M14 Integrated DC Chassis Components (Including 2*DC Power,Fan Box) V800R022C00SPC600 and later versions 15,16
Chassis 02355VUS

CR8B0BKPDCM1

 NetEngine 8000 M14 Integrated DC Chassis Components(Including 2*DC Power,Fan Box) V800R023C10SPC500 and later versions 15,16
Item CR8D0IPU2TC5
Basic function Data forwarding: The IPU is the core of service processing in the entire system, and is connected to all subcards through data channels. Control and management: The MPU manages subcards and transmits routing protocol data through management channels. Supports 4 Tbit/s@256 bytes (bidirectional).
Reliability and availability Hot swappable; 1:1 backup mode.
Restrictions and remarks 1. The board cannot work with IPUs of other models. 2. When working with the 03033VMC board to support FlexE services, the board supports a maximum of eight FlexE physical interfaces.
Breakout supported No
Interface rate auto-sensing supported No
Dimensions without packaging (H x W x D) [mm(in.)] 34.8 mm x 354.4 mm x 209 mm (1.37 in. x 13.95 in. x 8.23 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 185 mm x 485 mm x 385 mm (7.28 in. x 19.09 in. x 15.16 in.)
Weight without packaging [kg(lb)] 4 kg (8.82 lb)
Weight with packaging [kg(lb)] 5.4 kg (11.9 lb)
Typical power consumption [W] 394.21 W
Typical heat dissipation [BTU/hour] 1278.98 BTU/hour
Long-term operating temperature [°C(°F)] –20°C to +55°C, startup: ≥ –5°C
CPU 8-core 2.3 GHz
Memory 16GB
Storage 16GB M.2

Additional information

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
