Huawei NetEngine 8000 M Series CR8D0IPU2TM1 Integrated Network Processing Unit (IPU-2T-E)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

CR8D0IPU2TM1 Overview

Item Details
Description Integrated Network Processing Unit (IPU-2T-E)
Part Number 03034VAT
Model CR8D0IPU2TM1
Card type IPU
Silkscreen IPU-2T-E

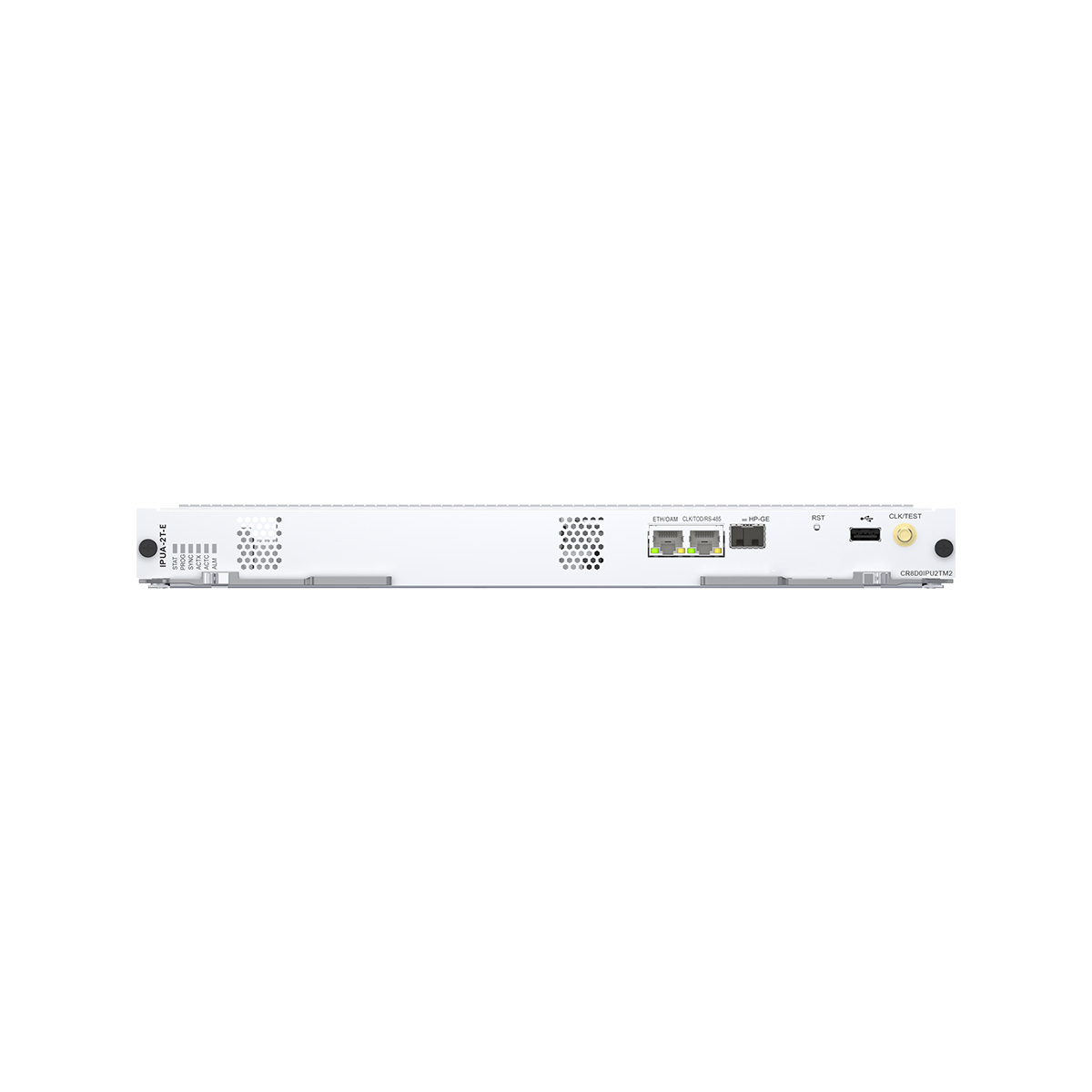

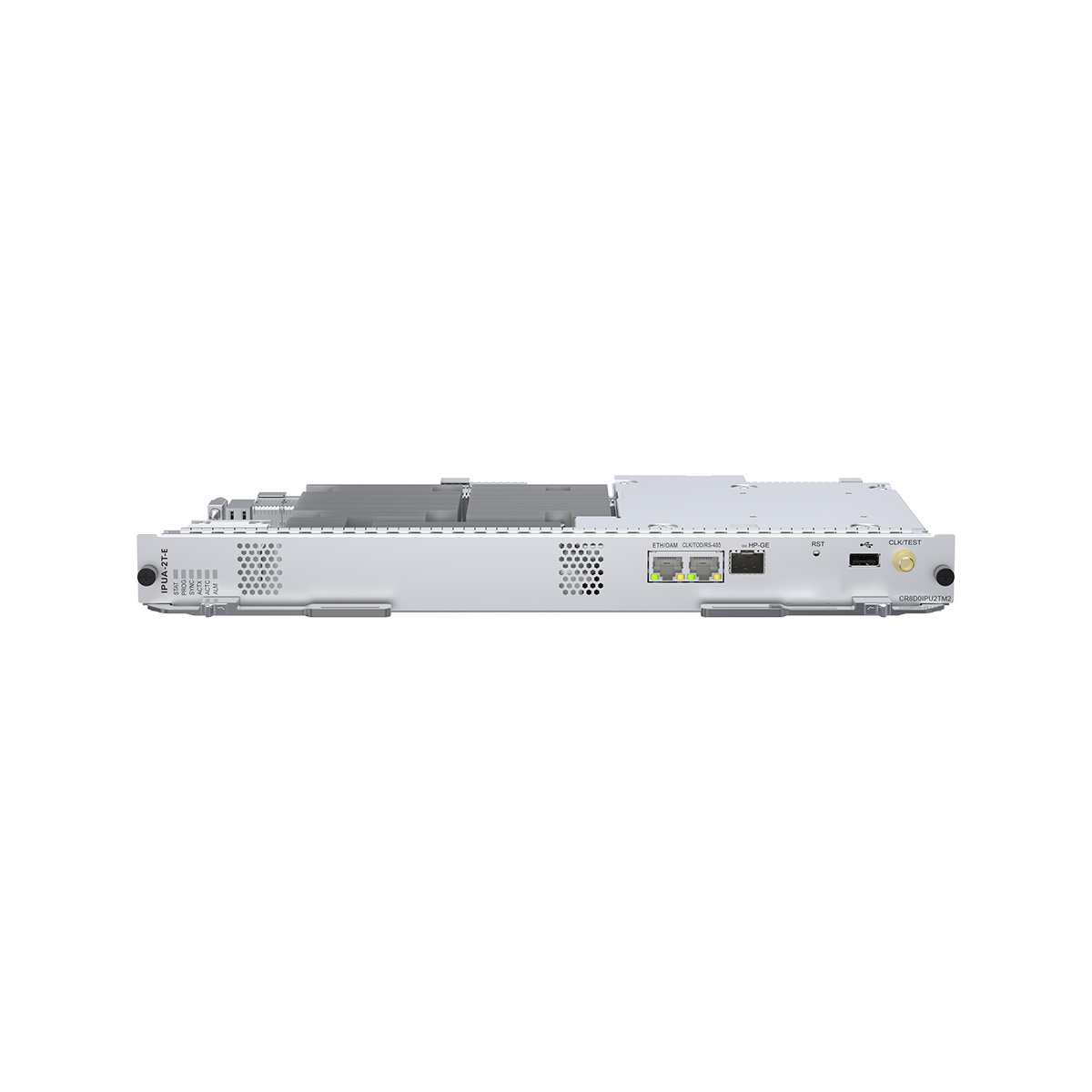

Appearance

CR8D0IPU2TM1





Mappings between CR8D0IPU2TM1 and Product Models

Part Type Part Number Part Model Description Supported Versions IDs of available slots
Chassis 02353ABK

CR8B0BKPACC2

 NetEngine 8000 M14 Integrated AC Chassis Components (Including 4*AC Power,Fan Box) V800R022C10SPC500 and later versions 15,16
Chassis 02356AQM

CR8B0BKPACC6

 NetEngine 8000 M14 Integrated AC Chassis Components(Including 2*AC Power,Fan Box) V800R023C10SPC500 and later versions 15,16
Chassis 02355VUR

CR8B0BKPACM1

 NetEngine 8000 M14 Integrated AC Chassis Components(Including 2*AC Power,Fan Box) V800R023C10SPC500 and later versions 15,16
Chassis 02353ABJ

CR8B0BKPDCC1

 NetEngine 8000 M14 Integrated DC Chassis Components (Including 2*DC Power,Fan Box) V800R022C10SPC500 and later versions 15,16
Chassis 02355VUS

CR8B0BKPDCM1

 NetEngine 8000 M14 Integrated DC Chassis Components(Including 2*DC Power,Fan Box) V800R023C10SPC500 and later versions 15,16
Item CR8D0IPU2TM1
Basic function Data forwarding: The IPU is the core of service processing in the entire system, and is connected to all subcards through data channels. Control and management: The MPU manages subcards and transmits routing protocol data through management channels. Supports 4 Tbit/s@256 bytes (bidirectional).
Reliability and availability Hot swappable; 1:1 backup mode.
Restrictions and remarks 1. The board cannot work with IPUs of other models. 2. When working with the 03033VMC board to support FlexE services, the board supports a maximum of eight FlexE physical interfaces.
Breakout supported No
Interface rate auto-sensing supported No
Dimensions without packaging (H x W x D) [mm(in.)] 34.8 mm x 354.4 mm x 209 mm (1.37 in. x 13.95 in. x 8.23 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 185 mm x 485 mm x 385 mm (7.28 in. x 19.09 in. x 15.16 in.)
Weight without packaging [kg(lb)] 4 kg (8.82 lb)
Weight with packaging [kg(lb)] 5.4 kg (11.9 lb)
Typical power consumption [W] 385.3W
Typical heat dissipation [BTU/hour] 1250.08 BTU/hour
Long-term operating temperature [°C(°F)] –20°C to +55°C, startup: ≥ –5°C
CPU 20-core 2.0 GHz
Memory 16GB
Storage 4 GB NandFlash
