Huawei NetEngine 8000 M14 DP52PDC2K4A1 power interface board, 03025PJJ

Huawei

In Stock

Shenzhen Warehouse

SKU: 2012513 PN: 03025PJJ Category:

Description

DP52PDC2K4A1 overview

Huawei NetEngine 8000 M14 DP52PDC2K4A1 power interface board, 03025PJJ. This power module does not support hot swap, DC power module and AC power module cannot be used at the same time.



Mapping products and versions

Product Slot Minimum Version Requirement
NetEngine 8000 M14 slot 17 to slot 18 V800R012C00

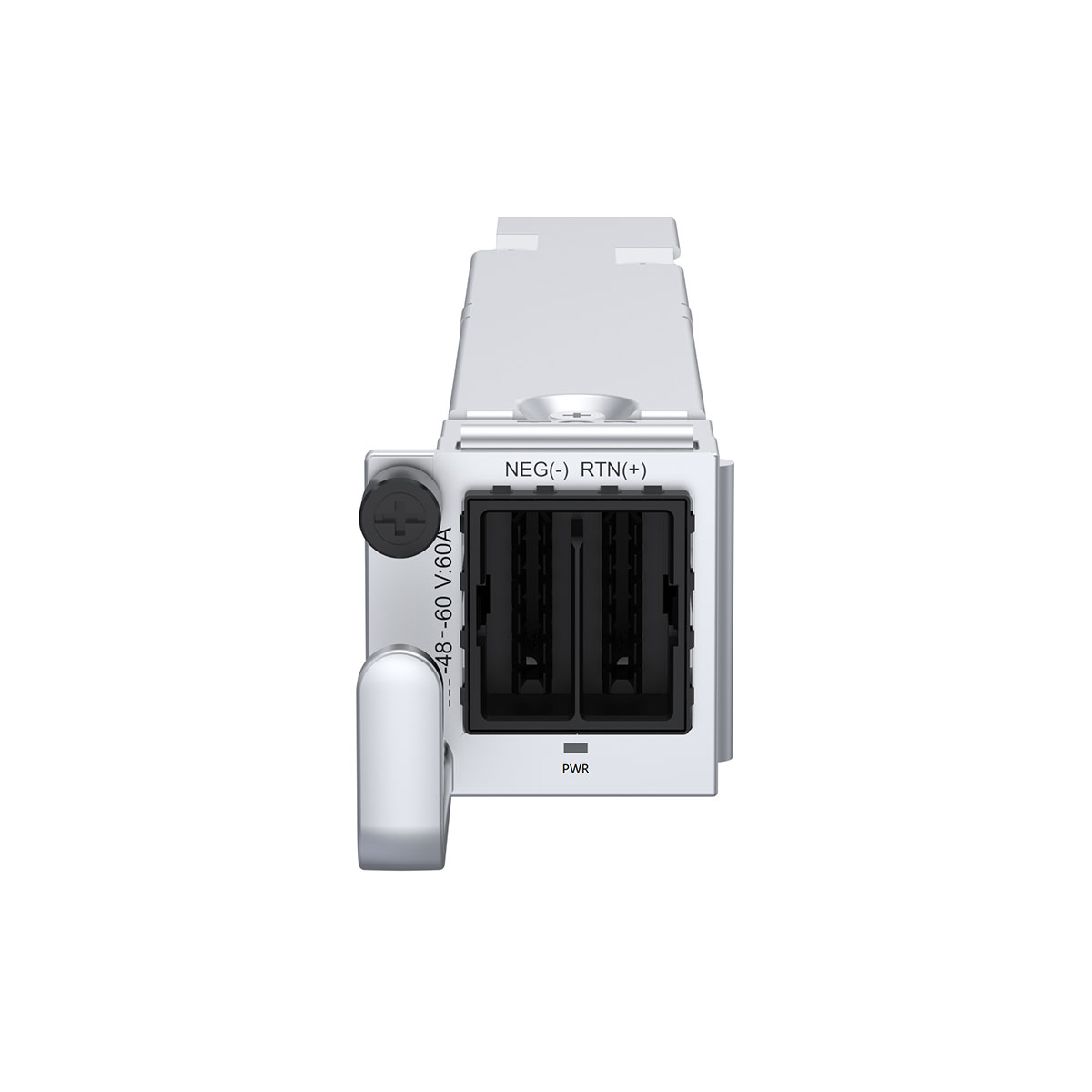

Appearance of the DP52PDC2K4A1

DP52PDC2K4A1 4



Ports on the DP52PDC2K4A1

DP52PDC2K4A1 6

Ports on the DP52PDC2K4A1

Port Description
NEG(-) -48 V/-60 V power input interface
RTN(+) BGND power input interface



Indicators on the DP52PDC2K4A1

Silkscreen Name Color Status Description
PWR Description of the Power Supply Status Indicator Green Steady on The voltage of input DC power is normal.
Off The voltage of input DC power is abnormal.





Item DP52PDC2K4A1
Dimensions without packaging (H x W x D) [mm(in.)] 34.8 mm x 35 mm x 209 mm (1.37 in. x 1.38 in. x 8.23 in.)
Weight without packaging [kg(lb)] 0.3 kg
Number of inputs 1
Rated input voltage [V] -48 V/-60 V
Input voltage range [V] -40 V to -72 V
Maximum input current [A] 60 A
Rated output voltage [V] -48 V/-60 V
Rated output current [A] 60 A
Rated output power [W] 2400 W
Power supply efficiency (25°C) 0.99
Power dissipation Mode Air cooling
Type of power cables 10 mm2 (0 to 14 meters), 16 mm2 (15 to 23 meters)
