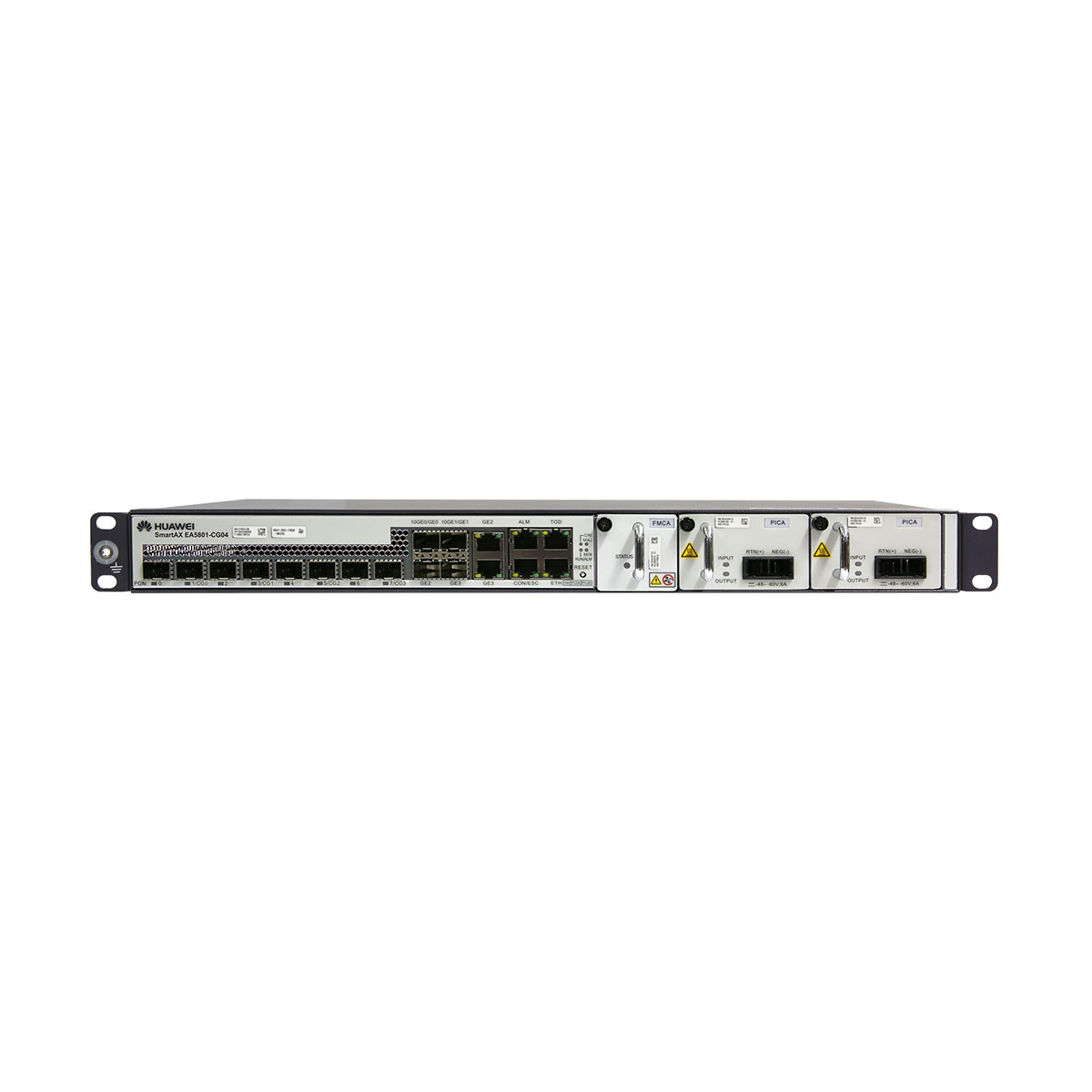

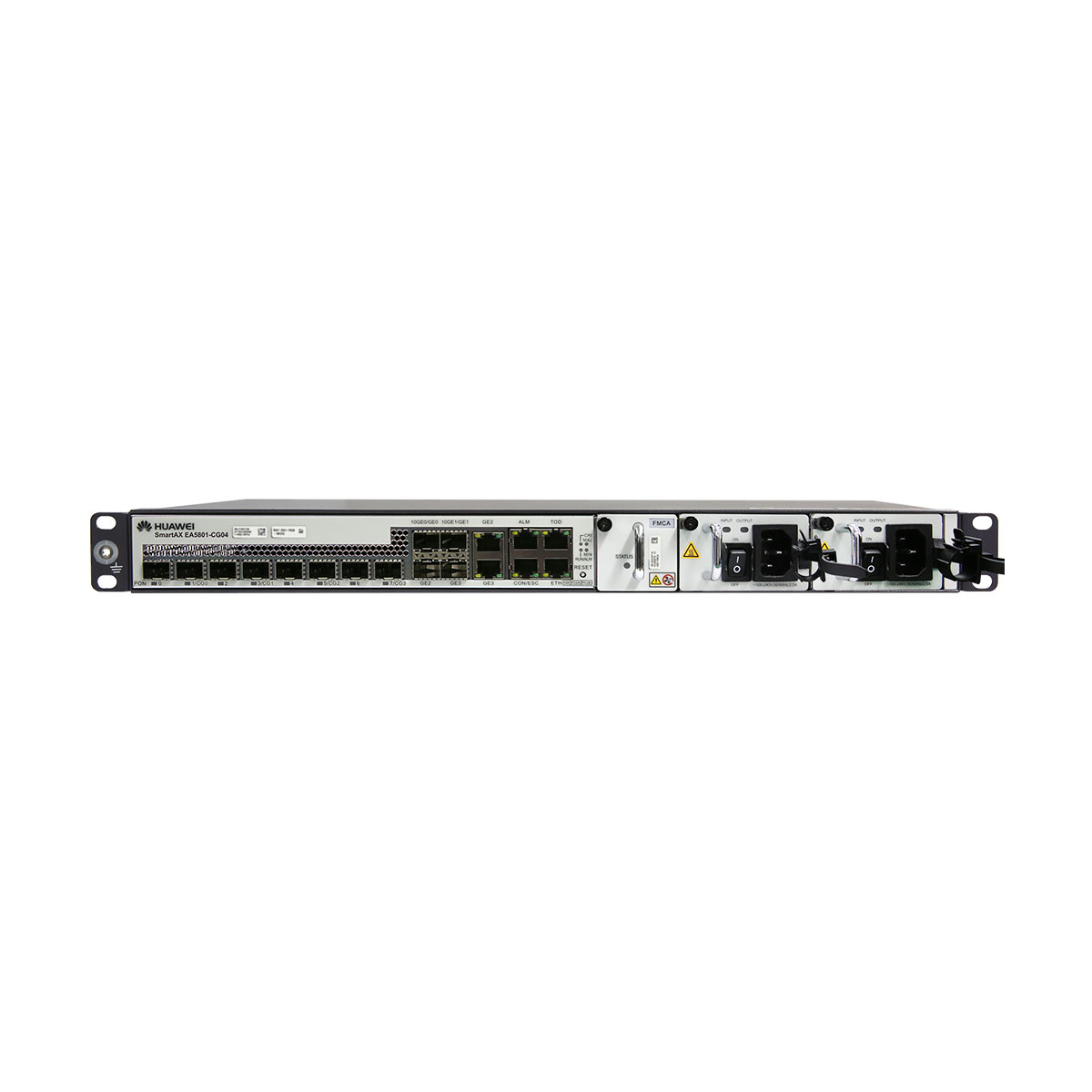

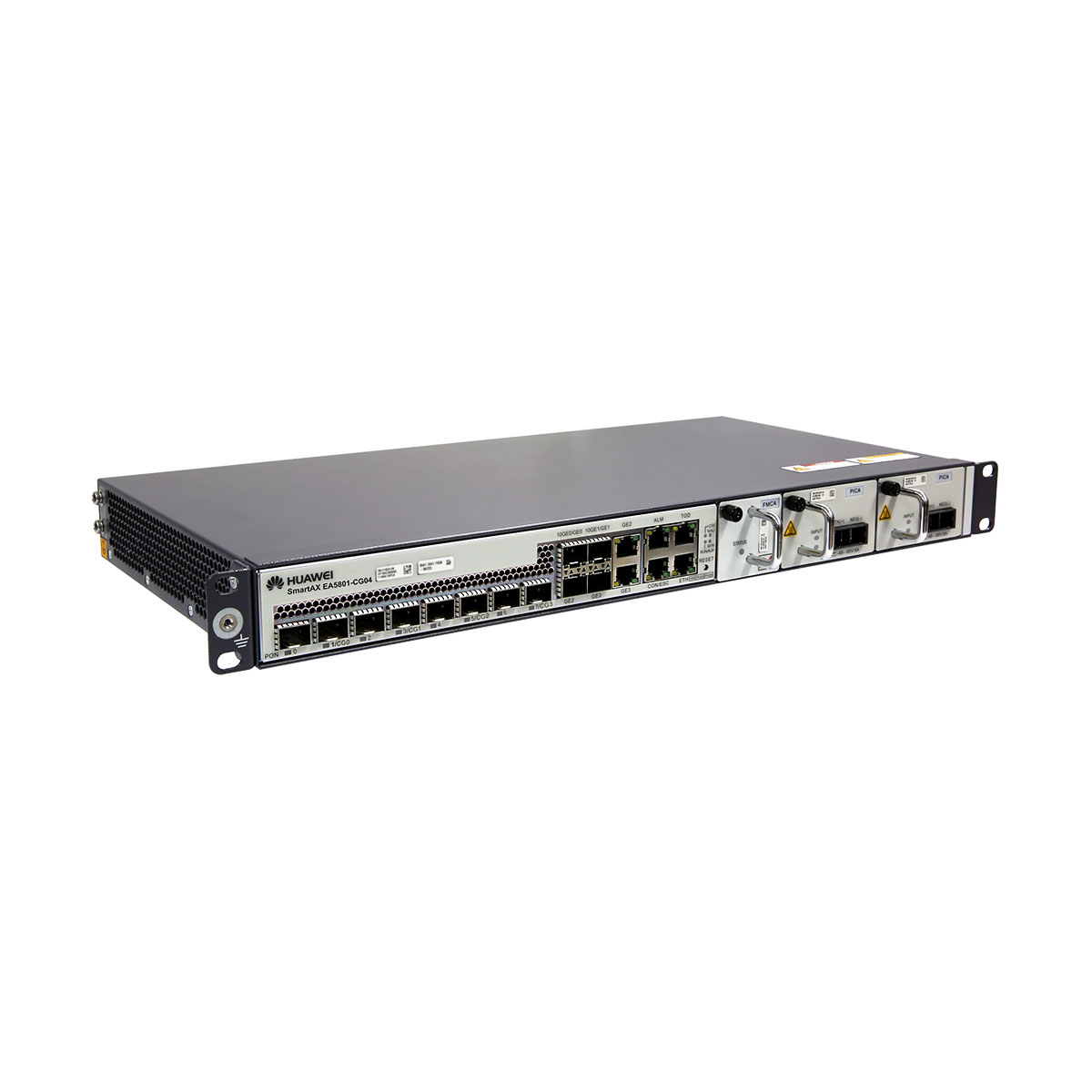

Huawei EA5801-GG04 integrated OLT with 8*GPON Ports, 2*10GE/GE Uplink Ports,  4* XG-PON&GPON combo Ports, 2*AC Power Module

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

SmartAX EA5801 is a compact and low-density OLT in the form of a box. It supports XG-PON&GPON combo access, and it provides a unified carrying platform for multiple services, including broadband, voice, video, and monitoring.

The EA5801 unit supports two types of chassis: EA5801-GP08 and EA5801-CG04. It can be installed in indoor or outdoor cabinets. Outdoors can be installed in high-temperature environments, protecting personnel and saving closet space.

The EA5801 is a box-shaped OLT that requires 1U installation space and is applicable to access point convergence on a small scale. It is suitable for lightweight deployment in enterprises. One OLT can meet the service-carrying requirements for an enterprise or campus.

The EA5801-CG04 supports the PON combo technology and can work with the built-in WDM1r optical module to support smooth evolution from GPON to XG-PON.

The EA5801-CG04 supports POL and FTTH network construction modes. It carries all services over one fiber network, simplifying network architecture and reducing OPEX.

The EA5801-CG04 can be installed in indoors or outdoors cabinets. When installed outdoors, it can be easily deployed in high temperatures, conserving man power and cabinet space.

Show More Show Less
Item EA5801-CG04
10GE/GE upstream ports 2
Number of service ports 4 XG-PON&GPON combo
GE upstream ports 2 optical/electrical combo ports
System Layer 2 packet forwarding rate 13 Mpps
MAC addresses 32768
Access ONT 1024
IPv4 routing table 8192
IPv6 routing table 4096
ARP table 16384
Dimensions (H x W x D) Without mounting ears: 43.6 mm x 442 mm x 222.3 mm
With IEC-standard mounting ears: 43.6 mm x 482.6 mm x 222.3 mm
With ETSI-standard mounting ears: 43.6 mm x 535 mm x 222.3 mm
Power supply mode DC power supply (dual for backup)
AC power supply (dual for backup)
Working voltage range DC power supply: -38.4 V to -72 V
AC power supply: 100 V to 240 V
Rated voltage DC power supply: -48 V/-60 V
AC power supply: 110 V/220 V
Maximum input current DC power supply: 6 A
AC power supply: 2.5 A
Ambient temperature -40°C to +65°C* (normal operation)  Minimum startup temperature: -25°C
+65°C indicates the temperature of the air intake vent of the service subrack.
Ambient humidity 5% RH to 95% RH
Atmospheric pressure 70 kPa to 106 kPa
Altitude < 4000 m
The air density varies with the altitude and will affect the heat dissipation of a device. Therefore, the working environment temperature of the device varies with the altitude.


Additional information

Weight 8 kg
Dimensions 4.36 × 53.5 × 22.23 cm
Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item EA5801-CG04
10GE/GE upstream ports 2
Number of service ports 4 XG-PON&GPON combo
GE upstream ports 2 optical/electrical combo ports
System Layer 2 packet forwarding rate 13 Mpps
MAC addresses 32768
Access ONT 1024
IPv4 routing table 8192
IPv6 routing table 4096
ARP table 16384
Dimensions (H x W x D) Without mounting ears: 43.6 mm x 442 mm x 222.3 mm
With IEC-standard mounting ears: 43.6 mm x 482.6 mm x 222.3 mm
With ETSI-standard mounting ears: 43.6 mm x 535 mm x 222.3 mm
Power supply mode DC power supply (dual for backup)
AC power supply (dual for backup)
Working voltage range DC power supply: -38.4 V to -72 V
AC power supply: 100 V to 240 V
Rated voltage DC power supply: -48 V/-60 V
AC power supply: 110 V/220 V
Maximum input current DC power supply: 6 A
AC power supply: 2.5 A
Ambient temperature -40°C to +65°C* (normal operation)  Minimum startup temperature: -25°C
+65°C indicates the temperature of the air intake vent of the service subrack.
Ambient humidity 5% RH to 95% RH
Atmospheric pressure 70 kPa to 106 kPa
Altitude < 4000 m
The air density varies with the altitude and will affect the heat dissipation of a device. Therefore, the working environment temperature of the device varies with the altitude.
