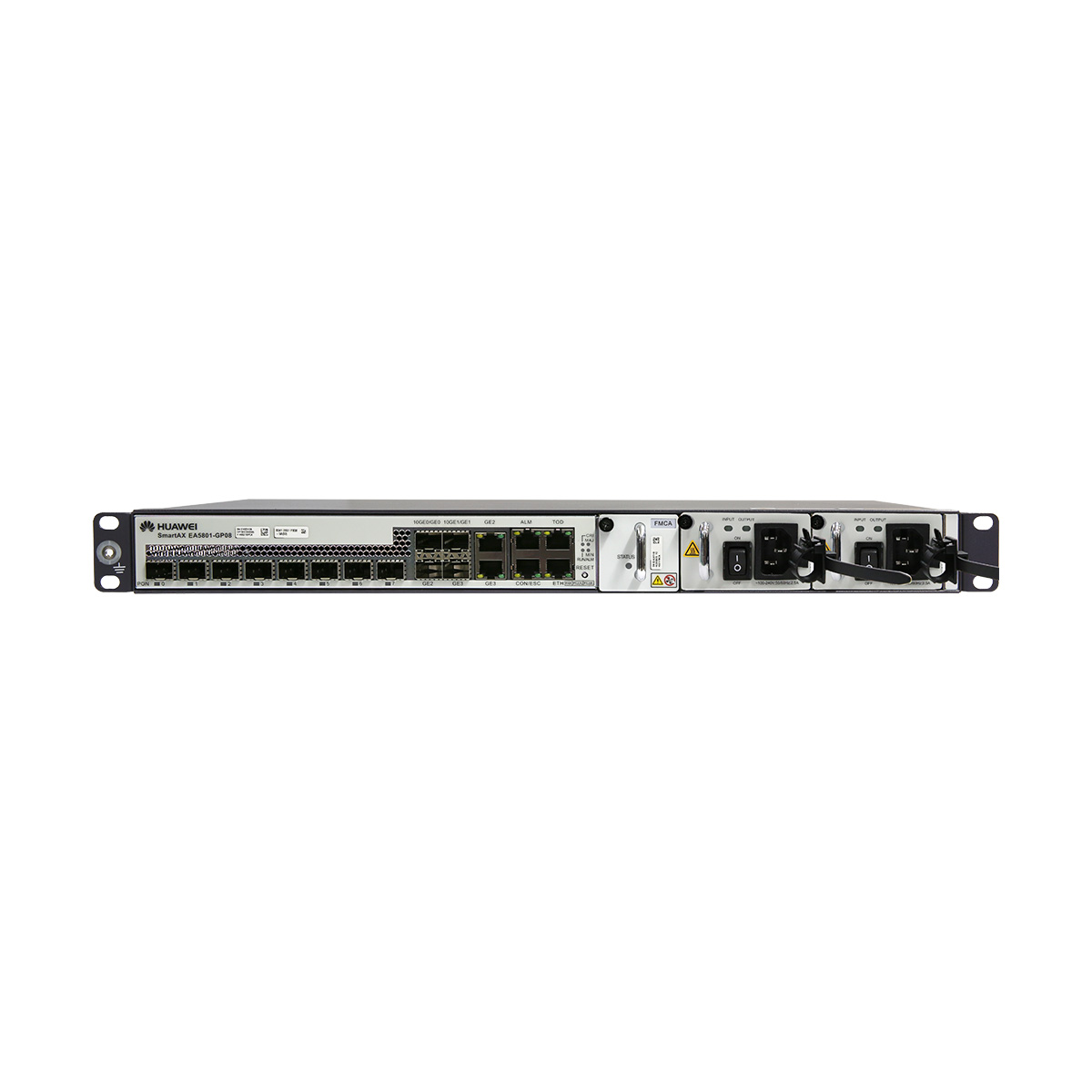

Huawei EA5801-GP08 integrated OLT with 8*GPON Ports, 2*10GE/GE Uplink Ports, 2*AC Power Module

SKU: 10873 Category: Tag:


SmartAX EA5801 is a compact and low-density OLT in the form of a box. Provides GPON or XG-PON access and GPON combo, and supports passive optical LAN (POL) and fiber to the home (FTTH) solutions. It carries all services over a fiber network, which simplifies the network architecture and reduces OPEX. The EA5801 unit supports two types of chassis: EA5801-GP08 and EA5801-CG04. It can be installed in indoor or outdoor cabinets. Outdoors can be installed in high-temperature environments, protecting personnel and saving closet space. The EA5801 is a box-shaped OLT that requires 1U installation space and is applicable to access point convergence on a small scale. It is suitable for lightweight deployment in enterprises. One OLT can meet the service-carrying requirements for an enterprise or campus. The EA5801-CG04 supports the PON combo technology and can work with the built-in WDM1r optical module to support smooth evolution from GPON to XG-PON. The EA5801 can be installed in indoor or outdoor cabinets. When installed outdoors, it can be easily deployed in high temperatures, protecting personnel and conserving cabinet space.

EA5801-GP08 Datasheet
Item EA5801-GP08
Width x Depth x Height(mm) Excluding mounting ears: 442×222.3×43.6
Width x Depth x Height(mm) Including IEC mounting ears: 482.6×222.3×43.6
Width x Depth x Height(mm) Including ETSI mounting ears: 535×222.3×43.6
Power supply mode DC power supply (dual for backup)

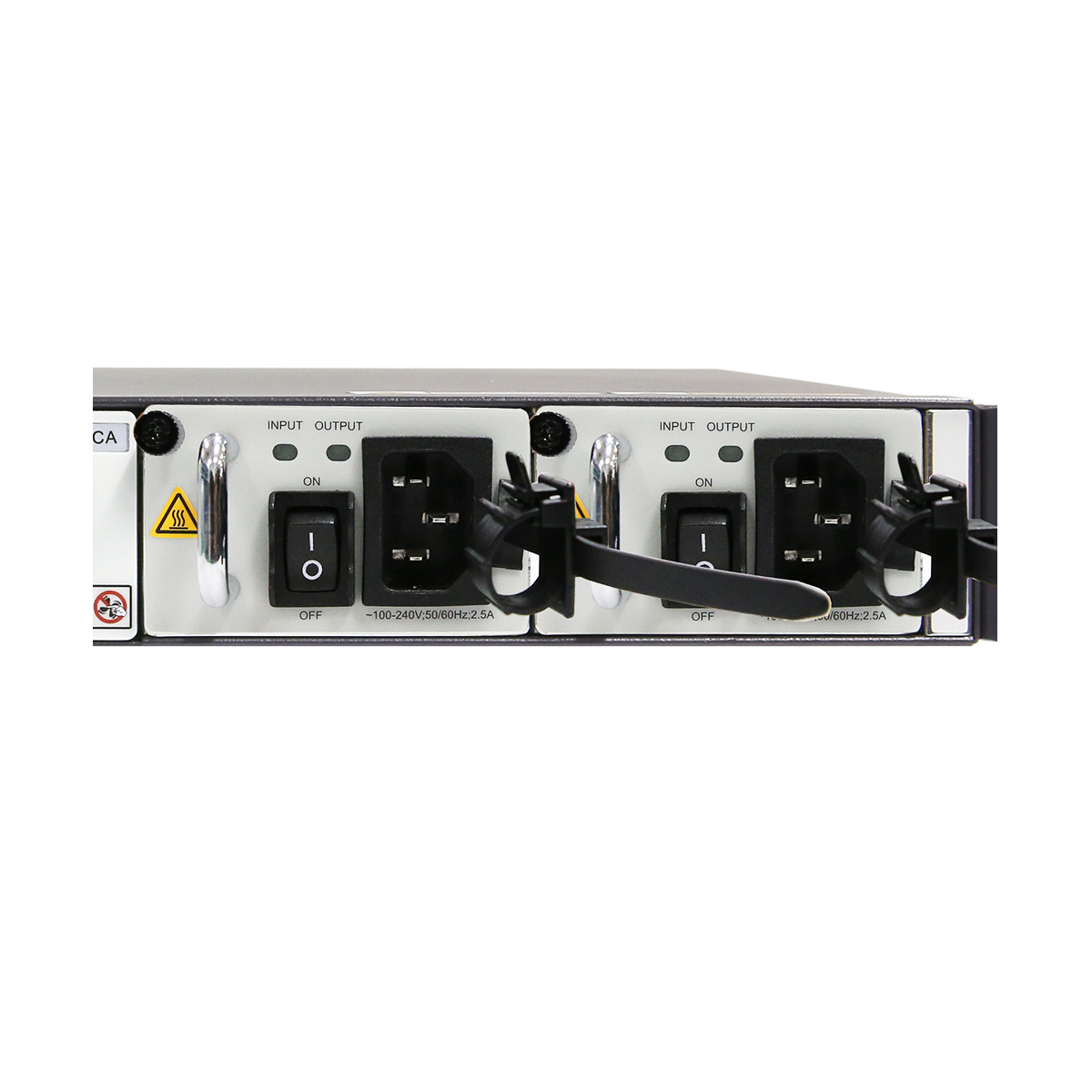

AC power supply (dual for backup)
Working voltage range DC power supply: -38.4 V to -72 V
AC power supply: 100 V to 240 V
Rated voltage DC power supply: -48 V/-60 V
AC power supply: 110V/220V
Maximum input current DC power supply: 6 A
AC power supply: 2.5 A
Ambient temperature -40℃ to +65℃
It can start up at a lowest temperature of 25℃ .
*The +65℃ temperature refers to the highest temperature measured at the air intake vent.
Ambient humidity 5% RH to 95% RH
Atmospheric pressure 70 kPa to 106 kPa
Altitude < 4000 m
The air density varies with the altitude and will affect the heat dissipation of a  device. Therefore, the working environment temperature of the device varies with the altitude.
System Layer 2 packet forwarding rate 13 Mpps
MAC address 32768
Access ONT 1024
IPv4 routing table 8192
IPv6 routing table 4096
ARP table 16384
Bit error rate (BER) in full load A BER smaller than 10 e-7 for a port that transmits data in full load

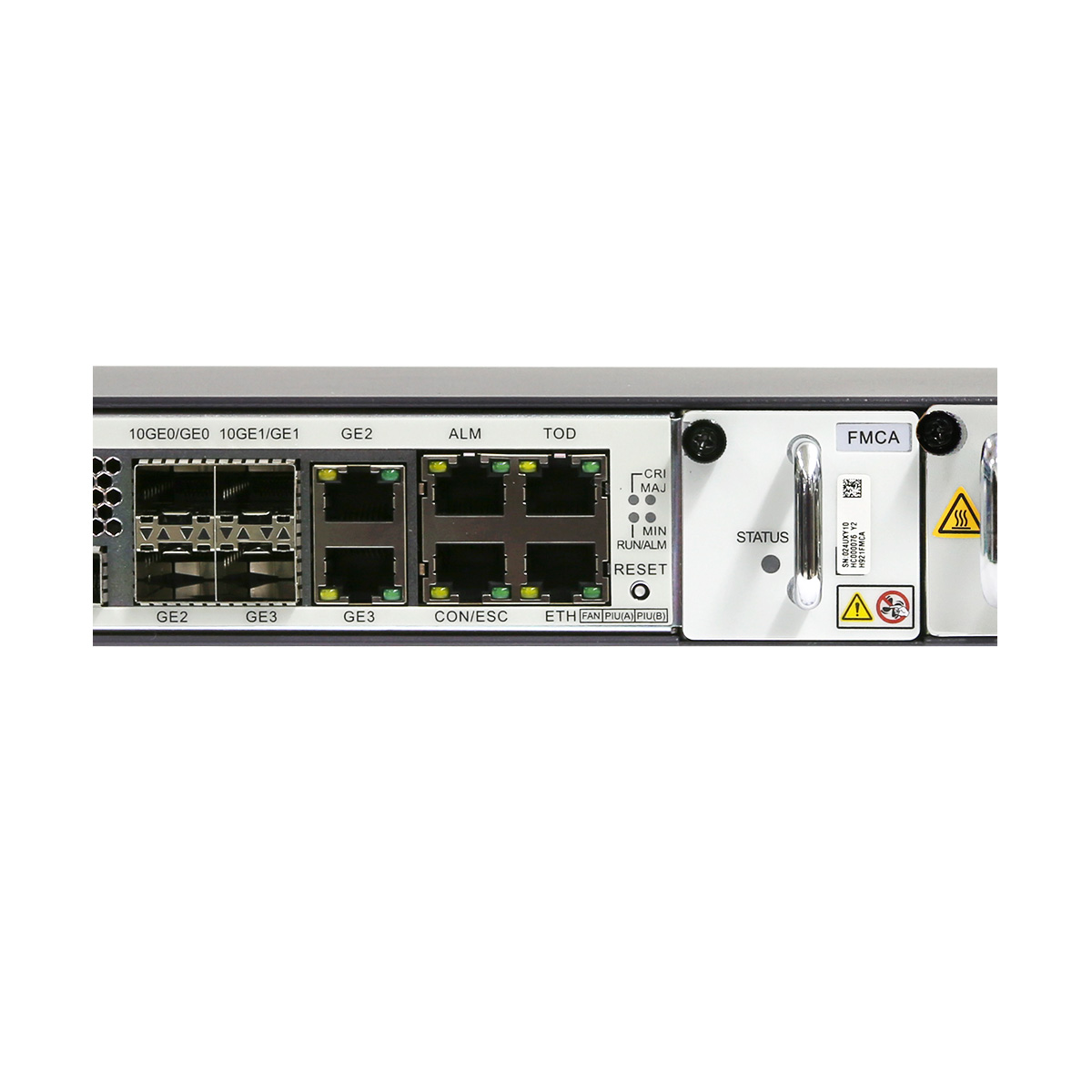

GE upstream ports 2 optical/electrical combo ports
10GE/GE upstream ports 2
Service ports

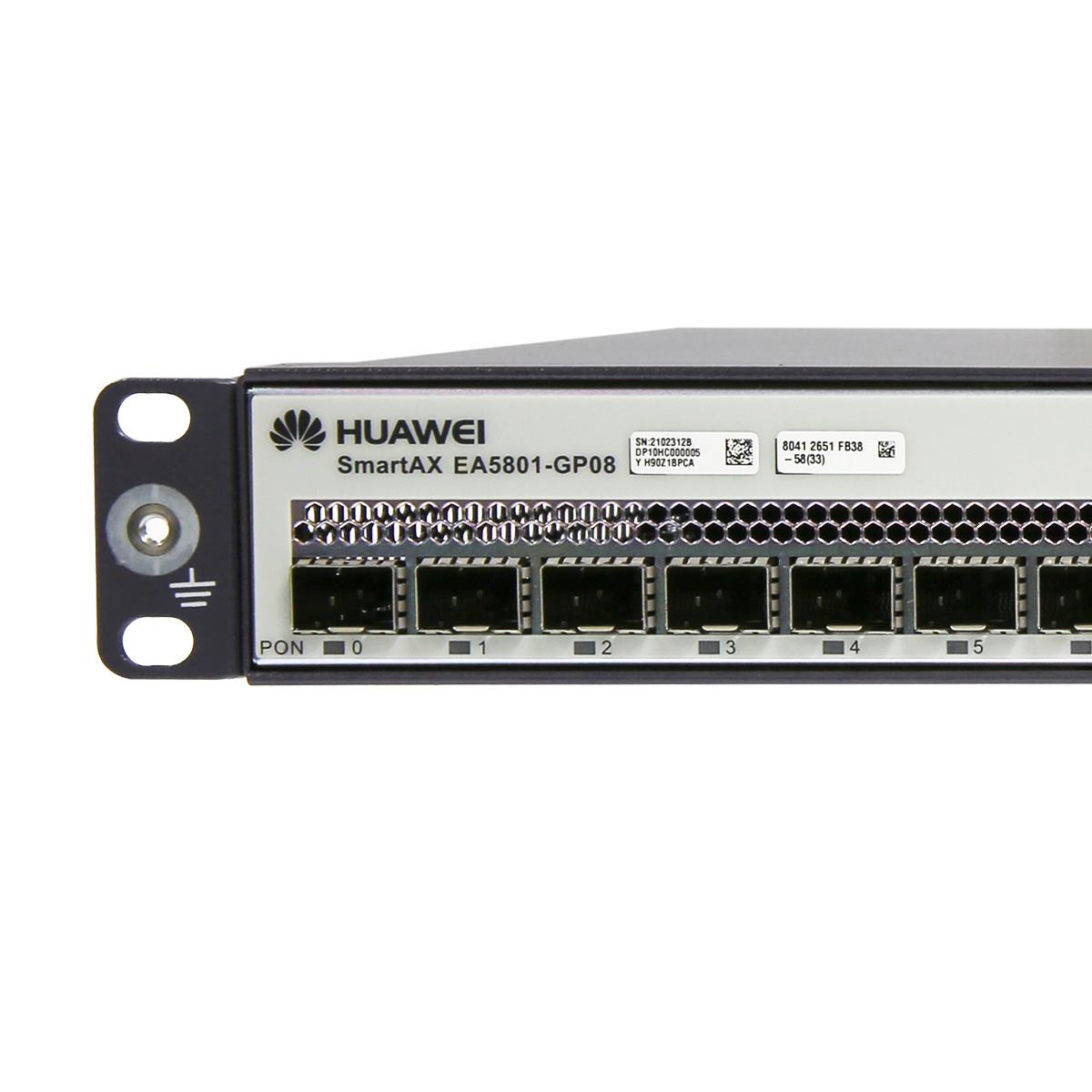

EA5801-GP08: 8 GPON

Additional information

Weight 8 kg
Dimensions 55.0000 × 23.0000 × 5.0000 cm
