EFTH

1 Review Write a review
SKU2011107
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

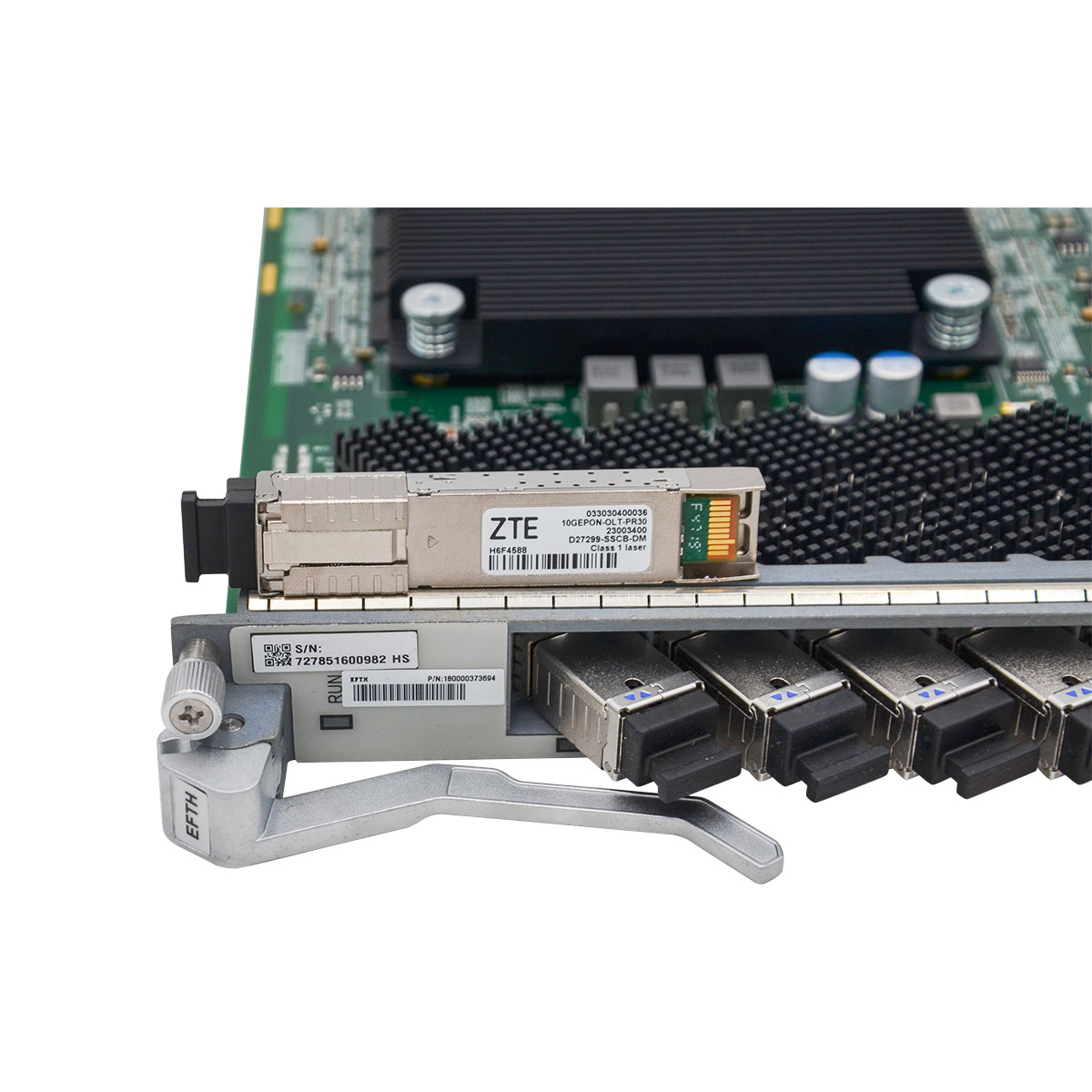

ZTE ZXA10 C600/C650/C680 16-port 10G EPON OLT interface board with PR30 symmetric module

Description

ZTE 16-port 10G EPON interface board with PR30 symmetric module

The 10G-EPON subscriber card EFTH provides 16-port symmetric or non-symmetric 10G-EPON access, and supports clock synchronization and 1PPS time transfer.

  • Apply to ZTE ZXA10 C600/C650/C680
  • Maximum split ratio: 1:128
  • Transmission distance: 20km
  • GE Output optical power: 3.0~7.0 dBm
  • 10G Output optical power: 2.0~5.0 dBm
Item EFTH
Service ports
EPON Port 16-port 10G EPON
Function
Management and control module Configures, controls, and manages the card.
PONMAC module Implements all the functions on the PON layer.
NP module Implements data processing on the service layer, including service bandwidth and QoS processing based on service types and user needs to meet the SLA requirements.
Optical module Provides a 10G-EPON optical interface that complies with IEEE 802.3av.
Clock module Processes the system clock in compliance with ITU-T G.8262, G.8264, and G.781.
EPON SFP Module Specification
Type PR30 Module : Single Fiber Bidirectional Optical Module, Class PR30 Symmetric
Operating Wavelength Tx: 1577nm, 1490nm; Rx: 1270nm, 1310nm
Encapsulation Type SFP
Port Rate Tx: 10.3125Gbit/s; 10.3125Gbit/s; Rx: 1.25Gbit/s, 1.25Gbit/s
Minimun Output Optical Power 10G: 2dBm; GE: 3dBm
Maximum Output Optical Power 10G: 5dBm; GE: 7dBm
Maximum Receiver Sensitivity 10G: -28dBm; GE: -29.78dBm
Optical Connector Type SC
Optical Fiber Type Single-mode
Reach 20.00 km
Overload Optical Power 10G: -6dBm; GE: -9dBm
Extinction Ratio 10G: 6dB; GE: 9dB
Device Specifications
Weight 1.74kg
Dimensions (H x W x D) 393.1 mm × 23.9 mm × 214 mm

Additional information

Brand

ZTE

Lead Time

3-5 days

Ship From

Shenzhen Warehouse

Item EFTH
Service ports
EPON Port 16-port 10G EPON
Function
Management and control module Configures, controls, and manages the card.
PONMAC module Implements all the functions on the PON layer.
NP module Implements data processing on the service layer, including service bandwidth and QoS processing based on service types and user needs to meet the SLA requirements.
Optical module Provides a 10G-EPON optical interface that complies with IEEE 802.3av.
Clock module Processes the system clock in compliance with ITU-T G.8262, G.8264, and G.781.
EPON SFP Module Specification
Type PR30 Module : Single Fiber Bidirectional Optical Module, Class PR30 Symmetric
Operating Wavelength Tx: 1577nm, 1490nm; Rx: 1270nm, 1310nm
Encapsulation Type SFP
Port Rate Tx: 10.3125Gbit/s; 10.3125Gbit/s; Rx: 1.25Gbit/s, 1.25Gbit/s
Minimun Output Optical Power 10G: 2dBm; GE: 3dBm
Maximum Output Optical Power 10G: 5dBm; GE: 7dBm
Maximum Receiver Sensitivity 10G: -28dBm; GE: -29.78dBm
Optical Connector Type SC
Optical Fiber Type Single-mode
Reach 20.00 km
Overload Optical Power 10G: -6dBm; GE: -9dBm
Extinction Ratio 10G: 6dB; GE: 9dB
Device Specifications
Weight 1.74kg
Dimensions (H x W x D) 393.1 mm × 23.9 mm × 214 mm
