ZTE ZXA10 C650 OLT Overview

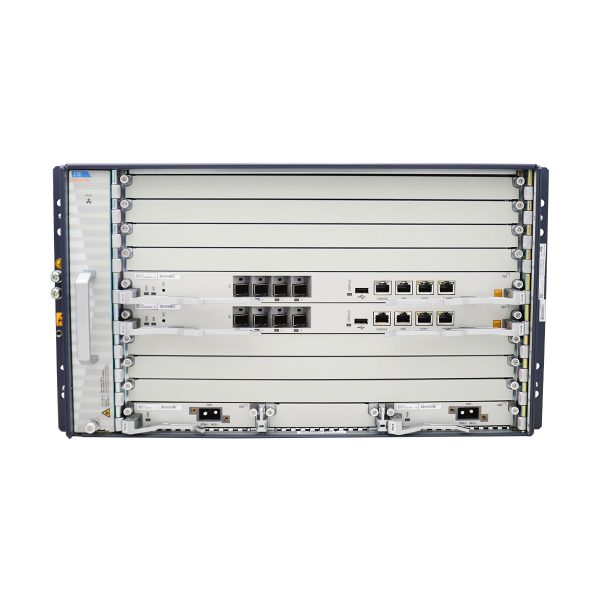

ZTE ZXA10 C650 19-inch Chassis with 2*Main Control Board, 2*PRVR DC power board.
ZTE ZXA10 C650 19-inch, 6U height Chassis
Regarding the main control board: You can choose SFUL, SFULV, SFUH (with 4*10GE optical upstream), SFUHV (with 4*10GE optical upstream).
As for the uplink board: XFTH(16-port GE/10GE Uplink); XFTO(8-ports 10GE Uplink)
- Middle capacity and high bandwidth: Provides 7 service slots for plugging user-side line cards and network-side line cards.
- Separated control and forwarding: Provides redundant control & switch card on the control plane, and supports dual matrix load balancing on the forwarding plane.
- High availability: supports ISSU and NSR.
- Card compatibility: The main cards are compatible with the ZXA10 C600; thereby saving the spare parts cost.
- Consistent functions: The functions are consistent with the ZXA10 C600 to make the maintenance easier and to reduce the training expenditures.
Supported Pon Board for ZTE OLT
|GPON||XG-PON||XGS-PON||XG-PON and GPON Combo||XGS-PON and GPON Combo||Port|
The ZXA10 C650 is a piece of medium-capacity optical access equipment based on the TITAN platform. It meets the full-scenario access needs of ultra-high bandwidth, big video, FMC and network re-architecture, as well as carrier-class QoS and security.
State-of-the-art architecture meets future requirements
High-end route and fully distributed programmable architecture.
Separated control and forwarding planes makes the system more reliable.
Supports ISSU and NSR to make possible 0 interruption during switchover or upgrade.
Supports TDM-like channels to ensure ultra-low latency to meet 5G uRLLC requirements.
The largest capacity meets multiple services access
Large switching capacity and slot bandwidth.
Fully compatible with multiple generations of PON.
Fully compatible with multiple technology directions.
SDN ready, AO/CO re-architecture oriented
Supports network slicing.
Supports built-in blade as NFVI for experience-sensitive services.
Supports Combo PON, industry’s first 3-in-1 combination
The WDM1r is built in the optical module without affecting existing GPON services.
Supports on-demand deployment of GPON and 10G-GPON ONUs according to service development.
|Item||ZTE ZXA10 C650 bundle|
|Main Control Board||SFUL: 2|
10GE Ethernet Optical Interface Card with 8 ports 10GE Uplink each
|Switching capacity of backplane bus||ZXA10 C650: 6Tbit/s|
|Switching card switching capacity||ZXA10 C650: 3.6 Tbit/s (single switching board SFUL/SFULV/SFUH/SFUHV)|
|System switching capacity||ZXA10 C650: 7.2Tbit/s|
|Service Slots Remain||7|
|environment||Operating temperature: -40℃~65℃ for overall unit
Starting up temperature: ≥-25℃
Operating humidity: 5%~95%, non-condensing
Air pressure: 70kPa~106kPa
|Power Supply Mode(W)||DC power supply: -48V+/-20%, -60V+/-20%|
|Dimensions (mm)||263.9 mm × 482.6 mm × 285.3mm|
|Weight(kg)||Empty frame: 12kg
Full configuration: <30kg
|Dimensions||26.39 × 48.26 × 25.53 cm|
