ZXA10 C620 10GE DC

Name: ZXA10 C620 10GE DC
SKU: 2011206
Rating: 5.00 (4 reviews)

Rated 5.00 out of 5 based on 4 customer ratings

4 Reviews Write a review

SKU2011206

BrandsZTE

AvailabilityIn Stock

WarrantyUp to 36 months

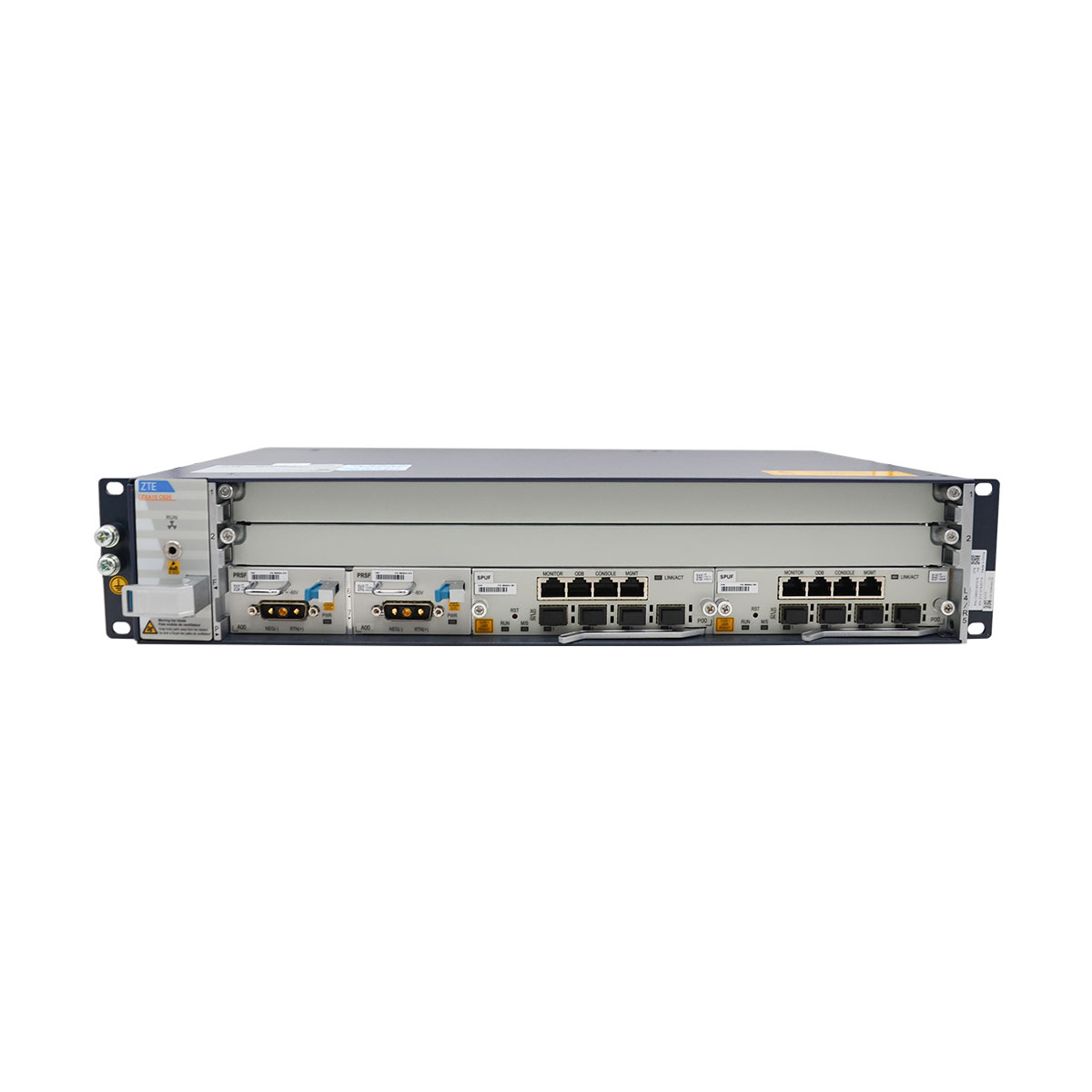

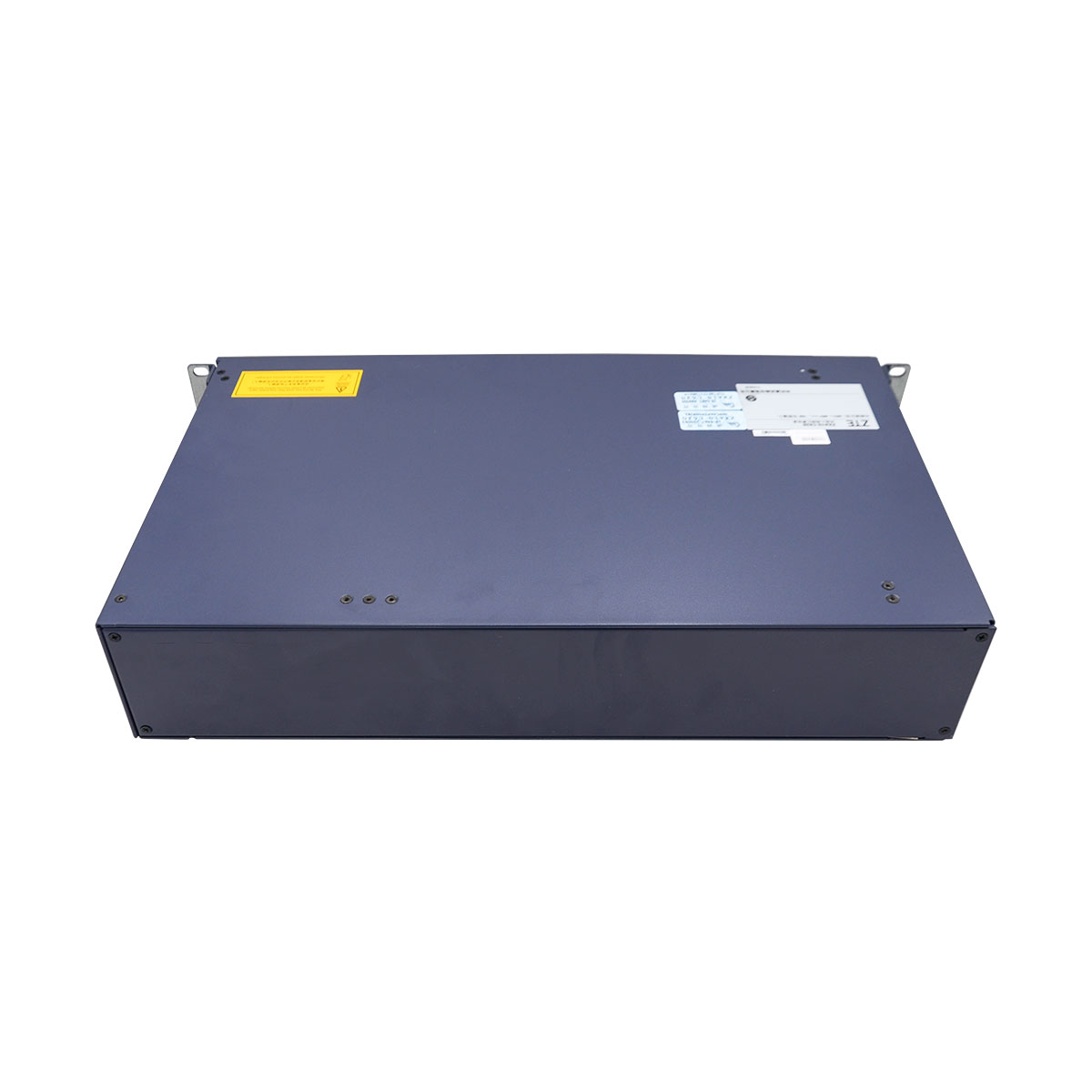

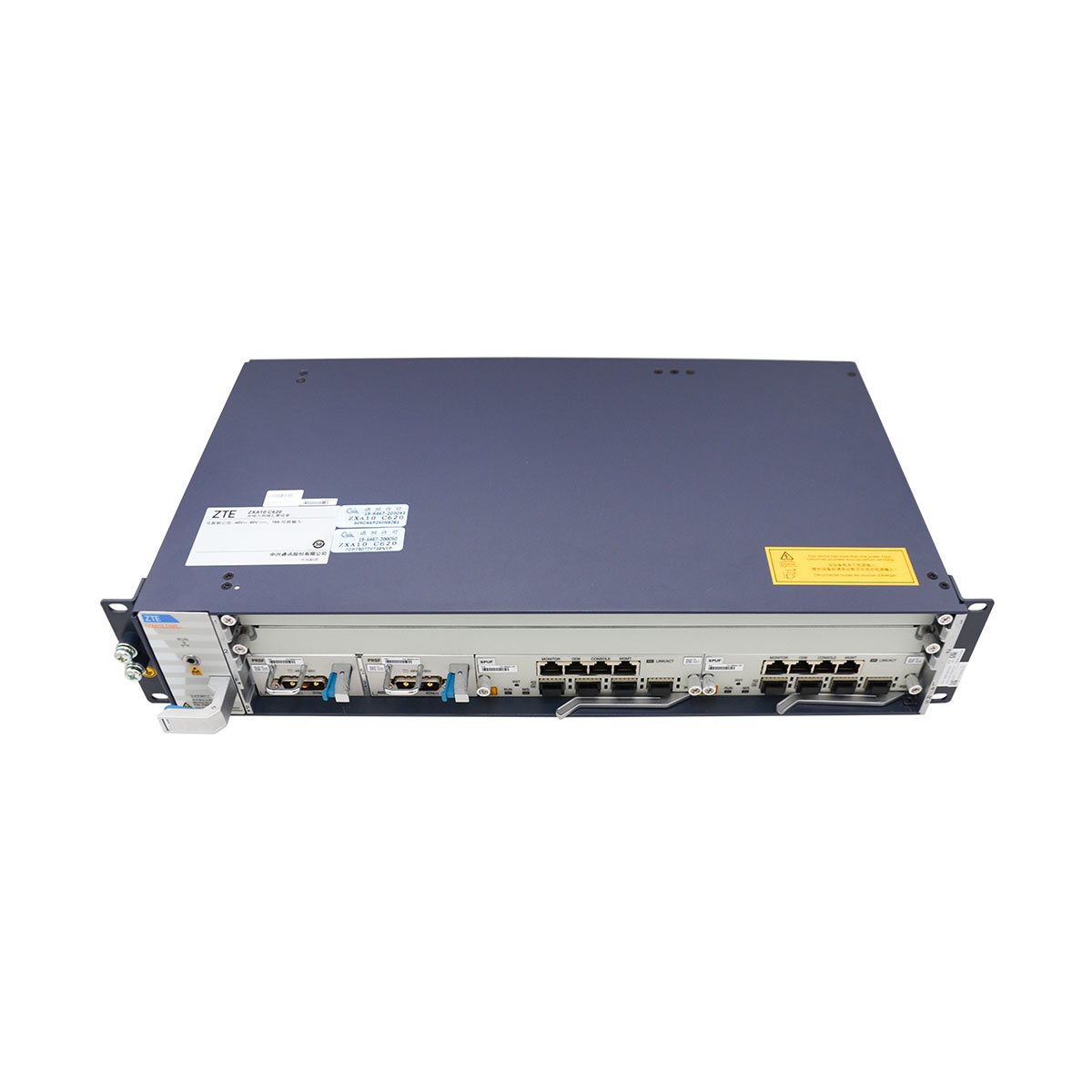

ZTE ZXA10 C620 Chassis with 2xSPUF 10GE/GE Switch & Control Card, 1xPRSF DC Power Card

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

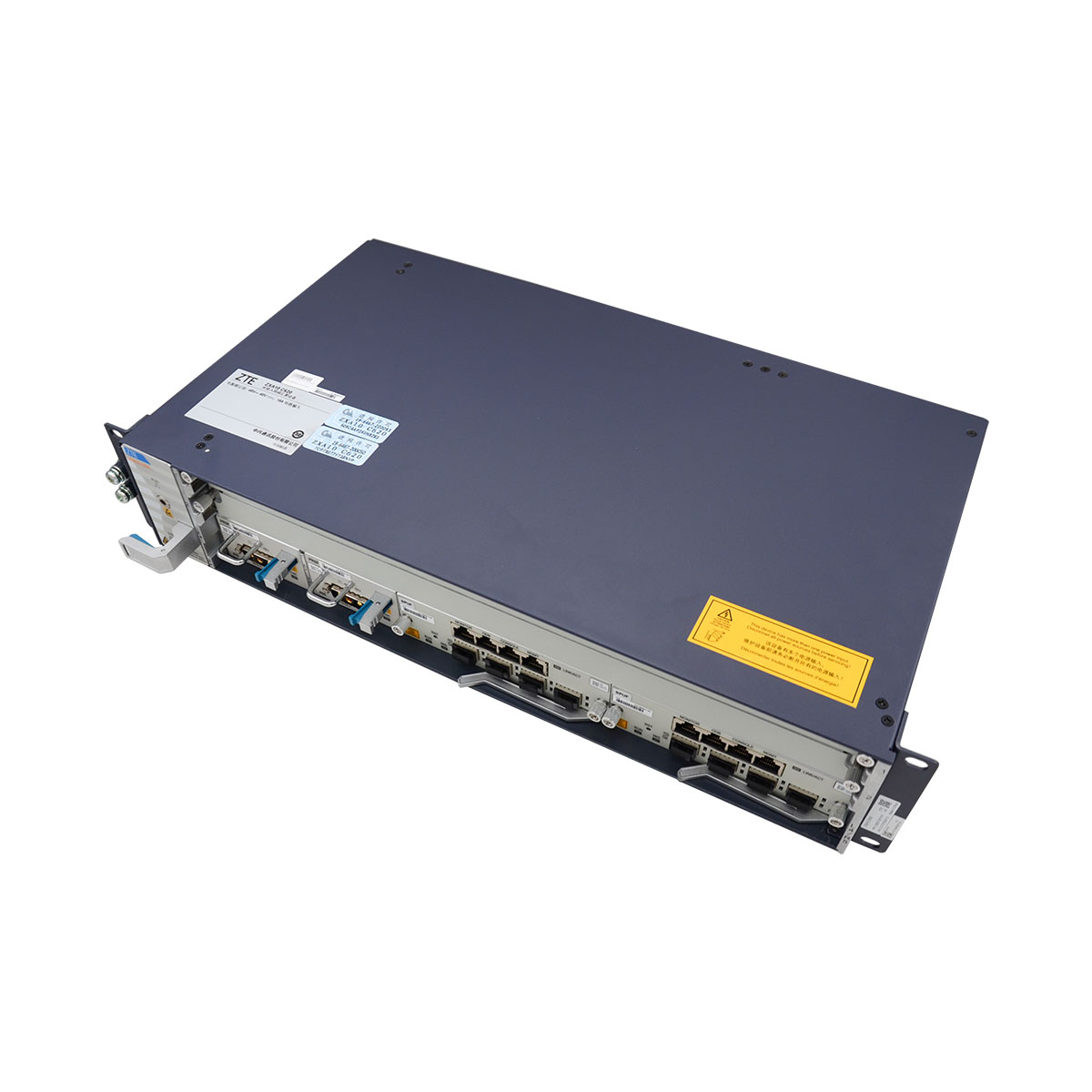

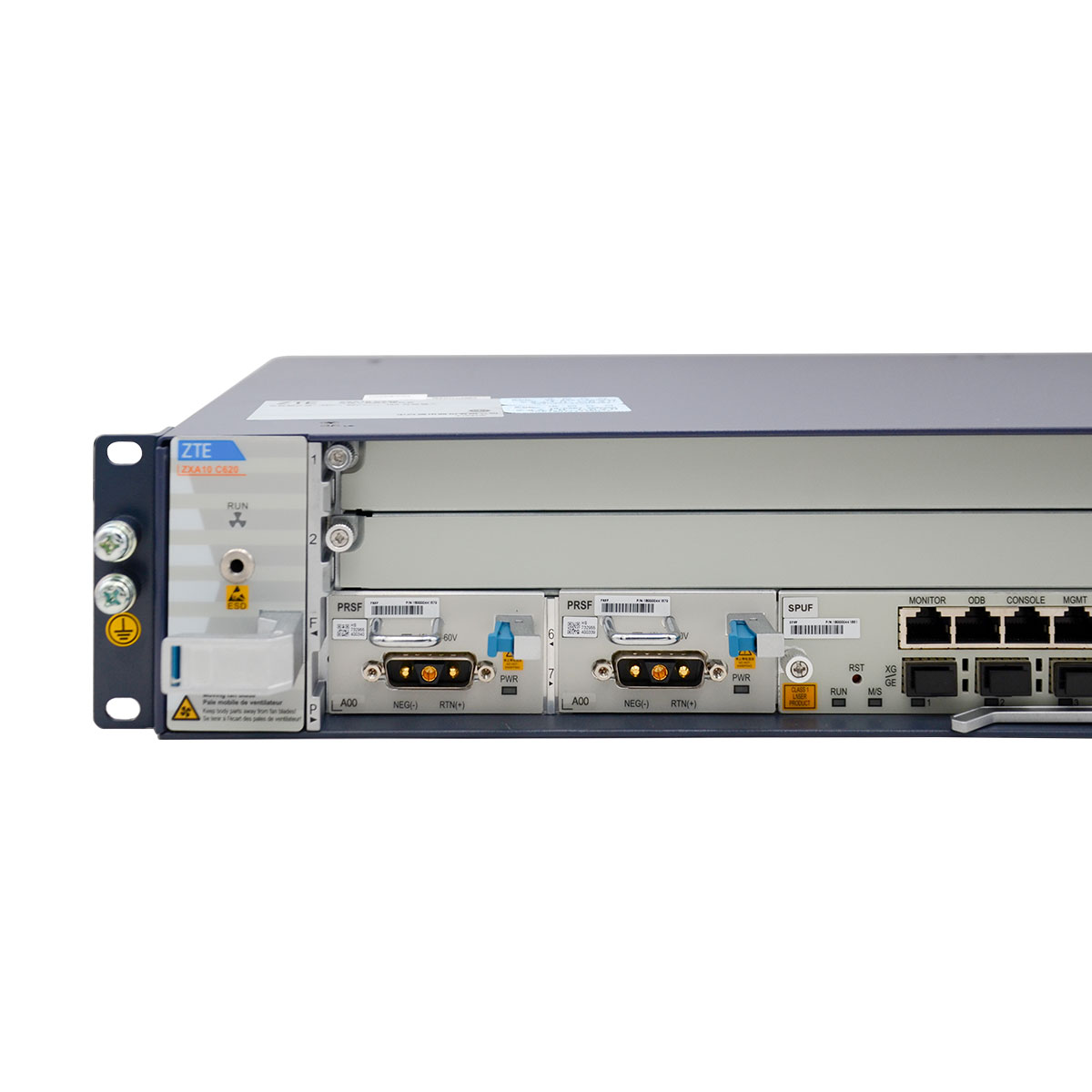

ZTE ZXA10 C620 Chassis with 2xSPUF 10GE/GE Switch & Control Card, 1xPRSF DC Power Card

19inch, 2U height, 2 service slots, equivalent to Huawei MA5800-X2

SPUF: ZXA10 C620 switch & control card, with 4x10GE/GE Ethernet optical interfaces

PRAF: ZXA10 C620 AC power interface card

Supports 220V/110V AC input

Supports backup battery interface (including battery temperature sensor interface)

Show More Show Less

Item	ZTE ZXA10 C620
Switch & Control Card	SPUF: 2 SPUF provides 4x10GE/GE Ethernet optical interfaces
GPON Ports	0
Service Slots Remain	2
Power Supply Mode(W)	PRSF: DC power supply
Device Specifications
Dimensions (mm)	88.1 mm x 482.6 mm x 283.5 mm
Weight(kg)	3.93 kg (Empty chassis)
Weight(kg)	<13 kg (Full Configuration)

Card Supported

Card Type	Card Code	Card Name	Functions
Switch & control card	Enhanced SFUL	Enhanced System Control And Switching Card Type L	ZXA10 C600/C650 switch & control card
	Enhanced SFUP	Enhanced System Control And Switching Card Type P	ZXA10 C600/C650 switch & control card
	Enhanced SFUH	Enhanced System Control And Switching Card Type H	ZXA10 C600/C650 switch & control card
	Enhanced SFUQ	Enhanced System Control And Switching Card Type Q	ZXA10 C600/C650 switch & control card
	SPUF	Type-F switch & control card	ZXA10 C620 switch & control card
	SPUFS	Type-FS switch & control card	ZXA10 C620 switch & control card
Power card	PRVR	Type-R DC power interface card	ZXA10 C600/C650 DC power card
	PRVR(C)	Type-RC DC power interface card	ZXA10 C600/C650 DC power card

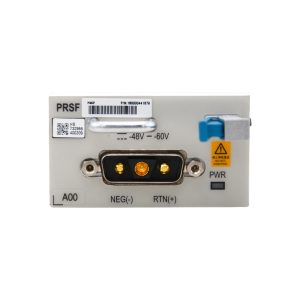

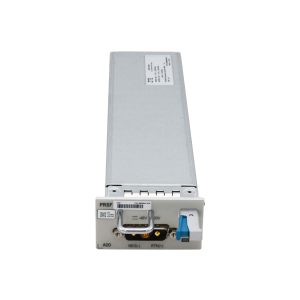

	PRSF	Type-F DC power interface card	ZXA10 C620 single-channel DC power interface card
	PRAF	Type-F AC power interface card	ZXA10 C620 AC power interface card
Service card	Enhanced GFGH	16-port GPON Enhanced Line Card	Supports 16 GPON SFP interfaces
	Enhanced GFGH	16-port GPON Enhanced Line Card	Maximum optical split ratio: 1:128
	GFGL	16-port GPON Line card Type-L	Supports 16 GPON SFP interfaces
	GFGL	16-port GPON Line card Type-L	Maximum optical split ratio: 1:128

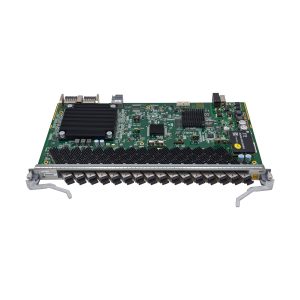

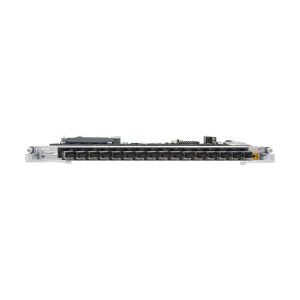

	Enhanced GFTH	16-port XGS-PON Enhanced Line Card	Supports 16 XGS-PON SFP+ interfaces
	Enhanced GFTH	16-port XGS-PON Enhanced Line Card	Maximum optical split ratio: 1:256
	GFTL	16-port XGS-PON Line card Type-L	Supports 16 XGS-PON SFP+ interfaces
	GFTL	16-port XGS-PON Line card Type-L	Maximum optical split ratio: 1:256
	GFXL	16-port XG-PON Line card Type-L	Supports 16 XG-PON SFP+ interfaces
	GFXL	16-port XG-PON Line card Type-L	Maximum optical split ratio: 1:256

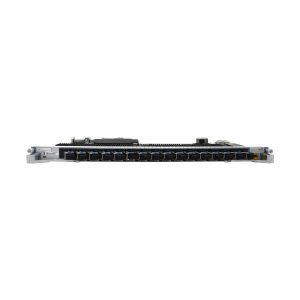

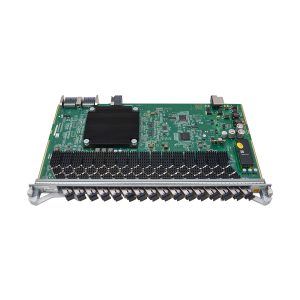

	Enhanced GFCH	16-port XGS-PON & GPON Combo Enhanced Line Card	Supports 16 XGS-PON & GPON SFP+ hybrid interfaces
			Maximum optical split ratio of GPON: 1:128
			Maximum optical split ratio of XGS-PON: 1:128
			Supports the access of XGS-PON ONUs, XG-PON ONUs and GPON ONUs
	GFCL	16-port XGS-PON & GPON Combo Line card Type-L	Supports 16 XGS-PON & GPON SFP+ hybrid interfaces
			Maximum optical split ratio of GPON: 1:128
			Maximum optical split ratio of XGS-PON: 1:128
			Supports the access of XGS-PON ONUs, XG-PON ONUs and GPON ONUs

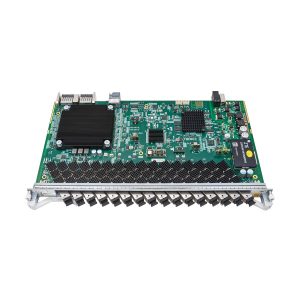

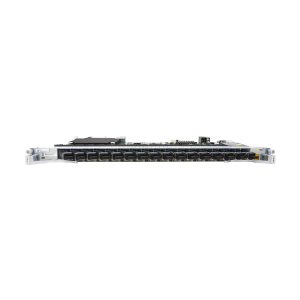

	Enhanced GFBH	16-port XG-PON & GPON Combo Enhanced Line Card	Supports 16 XG-PON & GPON SFP+ hybrid interfaces
			Maximum optical split ratio of GPON: 1:128
			Maximum optical split ratio of XG-PON: 1:128
	GFBL	16-port XG-PON & GPON Combo Line card Type-L	Supports 16 XG-PON & GPON SFP+ hybrid interfaces
			Maximum optical split ratio of GPON: 1:128
			Maximum optical split ratio of XG-PON: 1:128
	Enhanced HFTH	16-port Any-PON Enhanced Line Card	Supports 16 Any-PON SFP+ interfaces
	Enhanced HFTH	16-port Any-PON Enhanced Line Card	The port access features is consistent with the corresponding xPON card according to the type of the plugged optical module
	HFTL	16-port Any-PON Line Card Type L	Supports 16 Any-PON SFP+ interfaces
	HFTL	16-port Any-PON Line Card Type L	The port access features is consistent with the corresponding xPON card according to the type of the plugged optical module

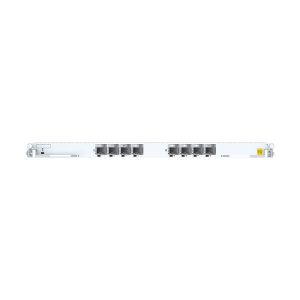

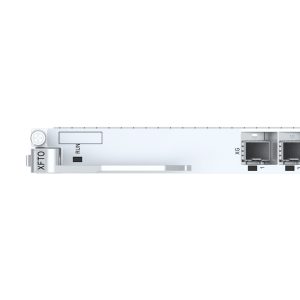

Ethernet interface card	Enhanced XFTO	8-port 10GE Enhanced Optical Interface Card	Supports 8 10GE SFP+/GE SFP Ethernet interfaces
	XFEO	8-port 10GE Optical Interface Card Type E	Supports 8 10GE SFP+/GE SFP Ethernet interfaces
	Enhanced XFTH	16-port 10GE Enhanced Optical Interface Card	Supports 16 10GE SFP+/GE SFP Ethernet interfaces
	XFEH	16-port 10GE Optical Interface Card Type E	Supports 16 10GE SFP+/GE SFP Ethernet interfaces
	XFWD	2-port 100GE Ethernet optical interface card	Supports 2 100GE QSFP28 Ethernet interfaces
	XFPH	16-port P2P Ethernet optical subscriber card	ZXA10 C600/C650 P2P Ethernet optical subscriber card
	XFPH	16-port P2P Ethernet optical subscriber card	Supports 16 10GE SFP+/GE SFP P2P Ethernet interfaces
	Enhanced XFQH	16-port P2P Ethernet optical subscriber card	ZXA10 C600/C650 P2P Ethernet optical subscriber card
	Enhanced XFQH	16-port P2P Ethernet optical subscriber card	Supports 16 10GE SFP+/GE SFP P2P Ethernet interfaces
	PFEK	48-port P2P Ethernet optical subscriber card	Supports 24 Compact SFP (CSFP) P2P GE/FE optical modules (supports 48-port P2P users)
	PFEK	48-port P2P Ethernet optical subscriber card	Supports 24 GE SFP/FE SFP Ethernet modules (supports 24 users)

Additional information

Brand	ZTE
Lead Time	3-5 days

Item	ZTE ZXA10 C620
Switch & Control Card	SPUF: 2 SPUF provides 4x10GE/GE Ethernet optical interfaces
GPON Ports	0
Service Slots Remain	2
Power Supply Mode(W)	PRSF: DC power supply
Device Specifications
Dimensions (mm)	88.1 mm x 482.6 mm x 283.5 mm
Weight(kg)	3.93 kg (Empty chassis)
Weight(kg)	<13 kg (Full Configuration)

Card Supported

Card Type	Card Code	Card Name	Functions
Switch & control card	Enhanced SFUL	Enhanced System Control And Switching Card Type L	ZXA10 C600/C650 switch & control card
	Enhanced SFUP	Enhanced System Control And Switching Card Type P	ZXA10 C600/C650 switch & control card
	Enhanced SFUH	Enhanced System Control And Switching Card Type H	ZXA10 C600/C650 switch & control card
	Enhanced SFUQ	Enhanced System Control And Switching Card Type Q	ZXA10 C600/C650 switch & control card
	SPUF	Type-F switch & control card	ZXA10 C620 switch & control card
	SPUFS	Type-FS switch & control card	ZXA10 C620 switch & control card
Power card	PRVR	Type-R DC power interface card	ZXA10 C600/C650 DC power card
	PRVR(C)	Type-RC DC power interface card	ZXA10 C600/C650 DC power card
	PRSF	Type-F DC power interface card	ZXA10 C620 single-channel DC power interface card
	PRAF	Type-F AC power interface card	ZXA10 C620 AC power interface card
Service card	Enhanced GFGH	16-port GPON Enhanced Line Card	Supports 16 GPON SFP interfaces
	Enhanced GFGH	16-port GPON Enhanced Line Card	Maximum optical split ratio: 1:128
	GFGL	16-port GPON Line card Type-L	Supports 16 GPON SFP interfaces
	GFGL	16-port GPON Line card Type-L	Maximum optical split ratio: 1:128
	Enhanced GFTH	16-port XGS-PON Enhanced Line Card	Supports 16 XGS-PON SFP+ interfaces
	Enhanced GFTH	16-port XGS-PON Enhanced Line Card	Maximum optical split ratio: 1:256
	GFTL	16-port XGS-PON Line card Type-L	Supports 16 XGS-PON SFP+ interfaces
	GFTL	16-port XGS-PON Line card Type-L	Maximum optical split ratio: 1:256
	GFXL	16-port XG-PON Line card Type-L	Supports 16 XG-PON SFP+ interfaces
	GFXL	16-port XG-PON Line card Type-L	Maximum optical split ratio: 1:256
	Enhanced GFCH	16-port XGS-PON & GPON Combo Enhanced Line Card	Supports 16 XGS-PON & GPON SFP+ hybrid interfaces
			Maximum optical split ratio of GPON: 1:128
			Maximum optical split ratio of XGS-PON: 1:128
			Supports the access of XGS-PON ONUs, XG-PON ONUs and GPON ONUs
	GFCL	16-port XGS-PON & GPON Combo Line card Type-L	Supports 16 XGS-PON & GPON SFP+ hybrid interfaces
			Maximum optical split ratio of GPON: 1:128
			Maximum optical split ratio of XGS-PON: 1:128
			Supports the access of XGS-PON ONUs, XG-PON ONUs and GPON ONUs
	Enhanced GFBH	16-port XG-PON & GPON Combo Enhanced Line Card	Supports 16 XG-PON & GPON SFP+ hybrid interfaces
			Maximum optical split ratio of GPON: 1:128
			Maximum optical split ratio of XG-PON: 1:128
	GFBL	16-port XG-PON & GPON Combo Line card Type-L	Supports 16 XG-PON & GPON SFP+ hybrid interfaces
			Maximum optical split ratio of GPON: 1:128
			Maximum optical split ratio of XG-PON: 1:128
	Enhanced HFTH	16-port Any-PON Enhanced Line Card	Supports 16 Any-PON SFP+ interfaces
	Enhanced HFTH	16-port Any-PON Enhanced Line Card	The port access features is consistent with the corresponding xPON card according to the type of the plugged optical module
	HFTL	16-port Any-PON Line Card Type L	Supports 16 Any-PON SFP+ interfaces
	HFTL	16-port Any-PON Line Card Type L	The port access features is consistent with the corresponding xPON card according to the type of the plugged optical module
Ethernet interface card	Enhanced XFTO	8-port 10GE Enhanced Optical Interface Card	Supports 8 10GE SFP+/GE SFP Ethernet interfaces
	XFEO	8-port 10GE Optical Interface Card Type E	Supports 8 10GE SFP+/GE SFP Ethernet interfaces
	Enhanced XFTH	16-port 10GE Enhanced Optical Interface Card	Supports 16 10GE SFP+/GE SFP Ethernet interfaces
	XFEH	16-port 10GE Optical Interface Card Type E	Supports 16 10GE SFP+/GE SFP Ethernet interfaces
	XFWD	2-port 100GE Ethernet optical interface card	Supports 2 100GE QSFP28 Ethernet interfaces
	XFPH	16-port P2P Ethernet optical subscriber card	ZXA10 C600/C650 P2P Ethernet optical subscriber card
	XFPH	16-port P2P Ethernet optical subscriber card	Supports 16 10GE SFP+/GE SFP P2P Ethernet interfaces
	Enhanced XFQH	16-port P2P Ethernet optical subscriber card	ZXA10 C600/C650 P2P Ethernet optical subscriber card
	Enhanced XFQH	16-port P2P Ethernet optical subscriber card	Supports 16 10GE SFP+/GE SFP P2P Ethernet interfaces
	PFEK	48-port P2P Ethernet optical subscriber card	Supports 24 Compact SFP (CSFP) P2P GE/FE optical modules (supports 48-port P2P users)
	PFEK	48-port P2P Ethernet optical subscriber card	Supports 24 GE SFP/FE SFP Ethernet modules (supports 24 users)
