Huawei ES5D00ETPC00 Stack Rear Card


3-5 days

Shenzhen Warehouse

SKU: 8373 PN: 2319959 Categories: ,


ES5D00ETPC00 overview

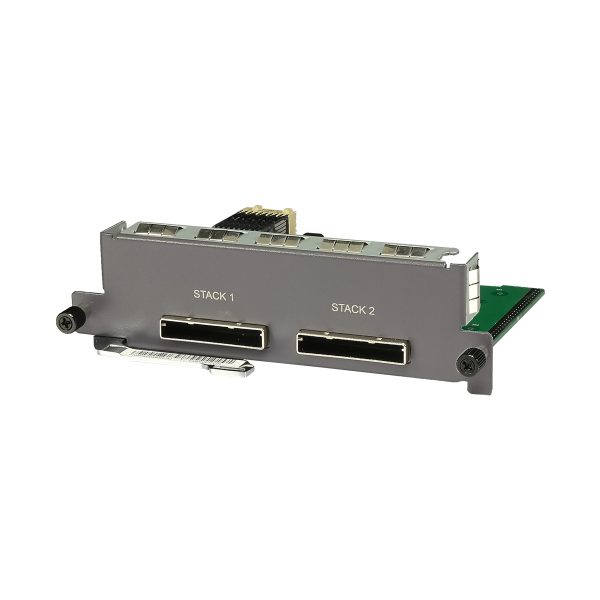

Huawei ES5D00ETPC00 Stack Rear Card.

Intelligent Stack (iStack) technology enables multiple stacking-capable devices to function as a logical device.

Before a stack is set up, each switch is an independent entity that has its own IP address and MAC address. You need to manage the switches separately. After a stack is set up, switches in the stack form a logical entity that can be managed and maintained using a single IP address. Stack technology improves forwarding performance and network reliability, and simplifies network management.

Switches can be connected as a stack using service ports or stack cards (ES5D00ETPC00).

The ES5D00ETPC00 stack card can be installed in a rear card slot of the switch models listed in Table 8-189.

Table 8-189 Applicable switch models

Card Switch Model
  • S5700-24TP-SI-AC
  • S5700-24TP-SI-DC
  • S5700-48TP-SI-AC
  • S5700-48TP-SI-DC
  • S5700-24TP-PWR-SI
  • S5700-48TP-PWR-SI
  • S5700-28C-SI
  • S5700-52C-SI
  • S5700-28C-PWR-SI
  • S5700-52C-PWR-SI
  • S5700-28C-EI
  • S5700-52C-EI
  • S5700-28C-EI-24S
  • S5700-28C-PWR-EI
  • S5700-52C-PWR-EI
  • S5710-28C-LI
  • S5710-52C-LI
  • S5710-28C-PWR-LI
  • S5710-52C-PWR-LI

Function Description
Basic function Provides two 12 Gbit/s electrical ports for stacking. The 12 Gbit/s electrical ports on multiple switches are connected using PCIe cables to set up a stack.
Topology Switches in a stack can be connected in a chain or ring topology. A link failure in the chain topology causes the stack to split. In contrast, the ring topology changes into a chain topology upon a link failure so that services in the stack are not affected. Therefore, the ring topology is more reliable than the chain topology.


When connecting stack cables, connect stack1 port of one switch to stack2 port of another switch.

Ports on the ES5D00ETPC00
1. Two stack electrical ports

Stack electrical port

The ES5D00ETPC00 provides two 12 Gbit/s electrical ports for stacking. The two 12 Gbit/s electrical ports must be used with PCIe Cables. Table 8-191 describes attributes of the 12 Gbit/s electrical port.

Table 8-191 Attributes of a stack electrical port

Attribute Description
Connector type PCIe
Standards compliance IEEE 802.3ae
Frame format Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol IP

Technical specifications
Item Description
Physical specifications
  • Dimensions (H x W x D): 43 mm x 143 mm x 126 mm (1.69 in. x 5.63 in. x 4.96 in.)
  • Weight: 0.2 kg (0.44 lb)
  • Maximum power consumption: 0.5 W
Ordering information
Card Description Card Name Part Number
Ethernet Stack Interface Card (Including Stack Card, 100 cm Stack Cable) ES5D001VST00 02319959
Ethernet Stack Interface Card (Including Stack Card, 300 cm Stack Cable) ES5D2VS02000 02310QPL

Additional information

Weight 2.5000 kg
Dimensions 30.0000 × 23.0000 × 10.0000 cm
