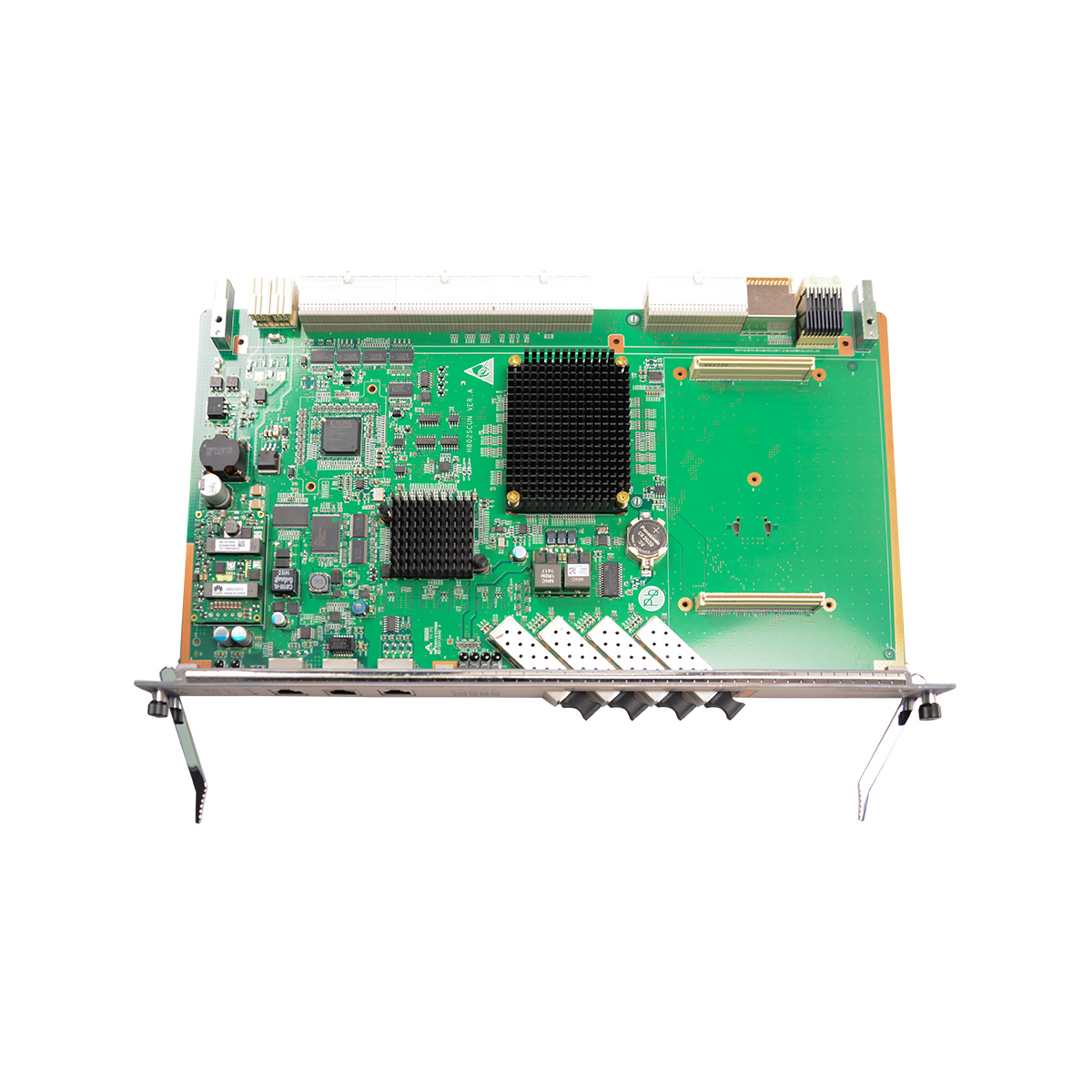

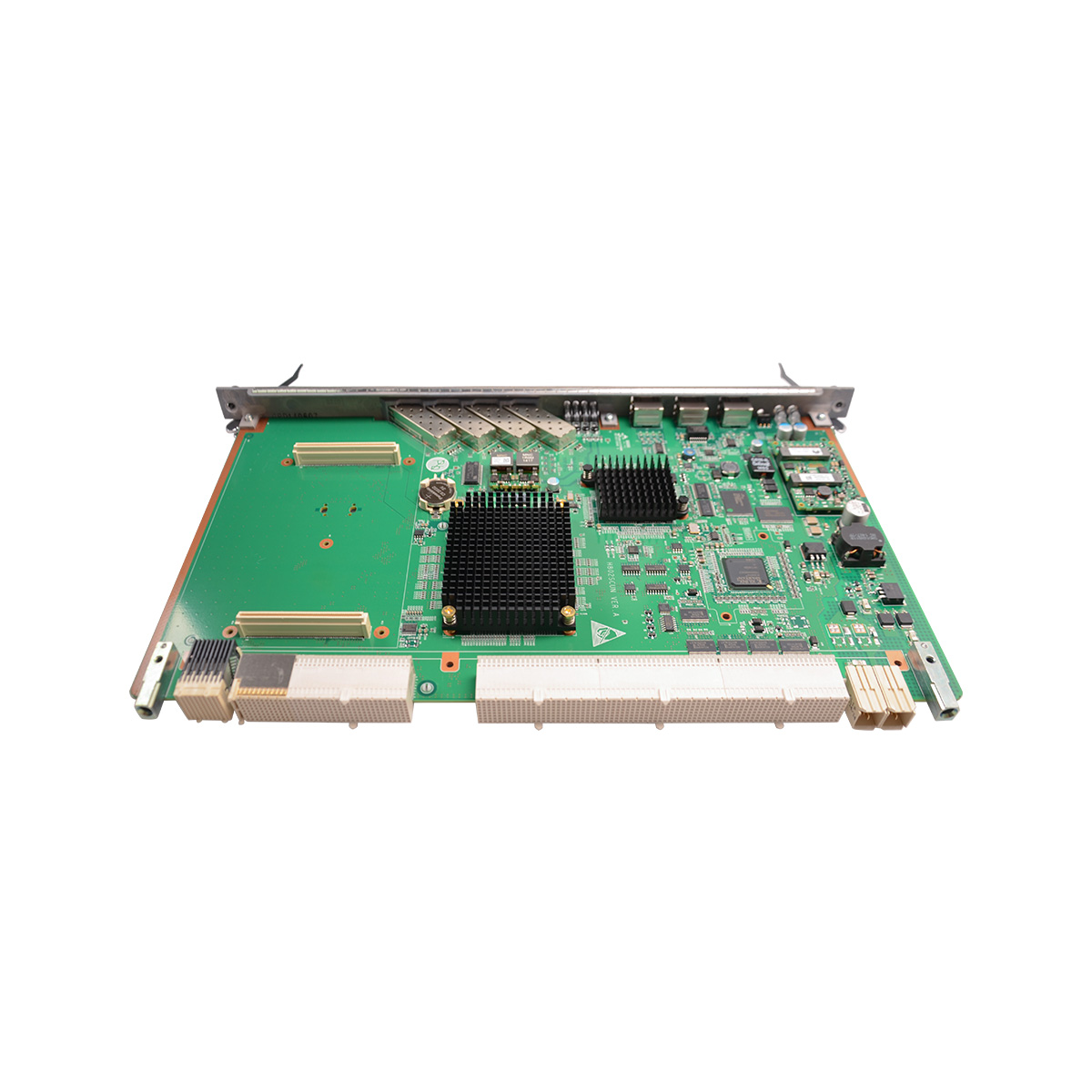

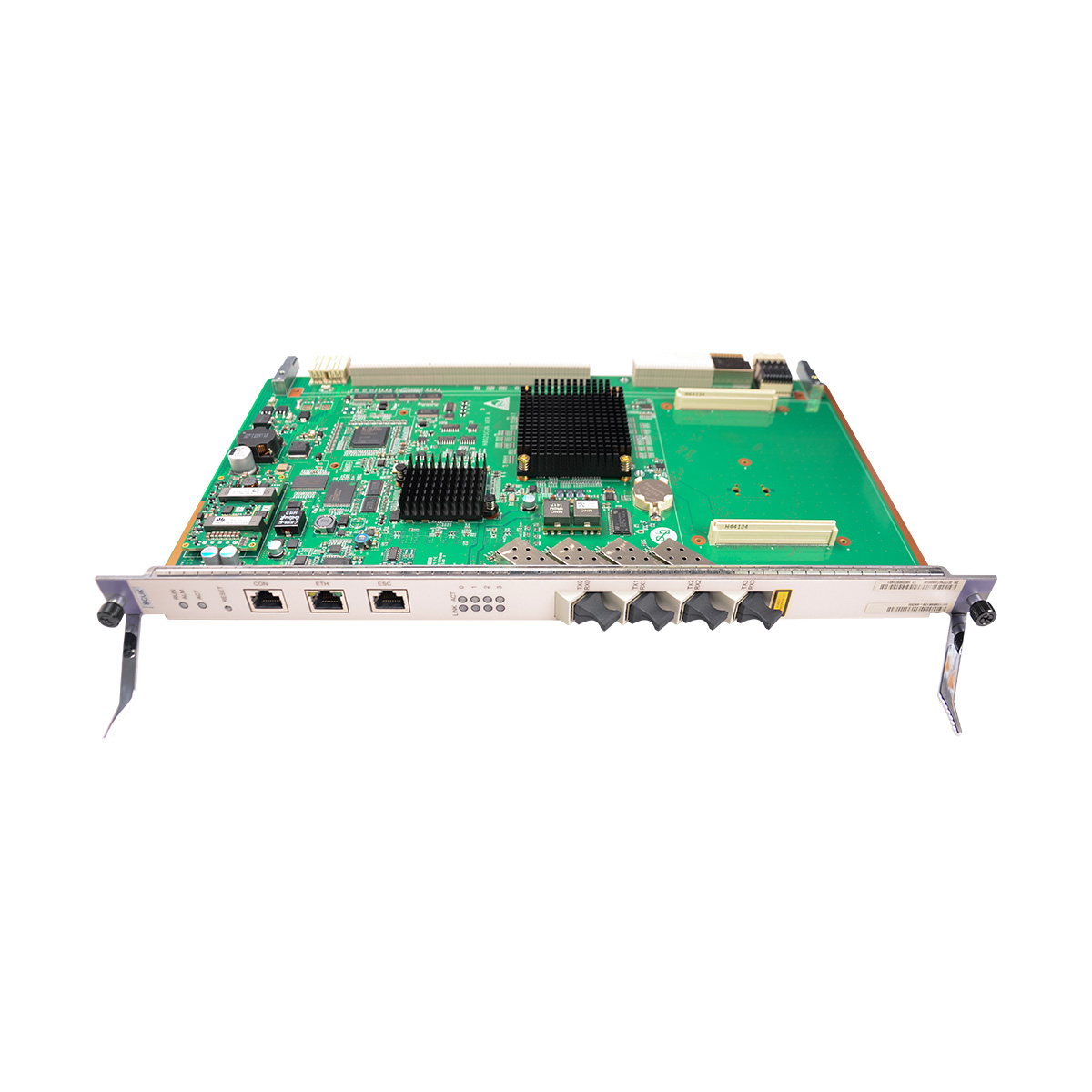

Huawei MA5683T MA5680T main control board H801SCUK

SKU: 03021YPA Category:


Huawei MA5683T MA5680T main control board integrated with 4-port GE optical uplink port

SCUK is a main control card of Huawei OLT MA5680T, MA5683T; it is the core of the system control and service switching and aggregation. Provide 480G switching capacity (active/standby mode), MAX access 8192 subscribers. SCUK has one hardware version, H801SCUK.

Supports integrated optical copper access for GPON, P2P, xDSL, and voice services.

Supports 480 Gbit/s (active/standby mode), 960 Gbit/s (load sharing mode) switching capacity.

Supports active/standby mode and load sharing mode, doubling processing performance.

Supports ISSU, saving the upgrade interruption time.

Supports 1588v2, and 1588 ACR by working together with the H801CKMD daughter board.

Item H801SCUK
LAN switch 24 x 10GE + 4 x GE
Switching capacity 480 Gbit/s (active/standby mode)
960 Gbit/s (load sharing mode)
Bandwidth per slot 10 Gbit/s (active/standby mode)
20 Gbit/s (load sharing mode)
MAC address table 32768
Access user 8192
Multicast user 8192
Configurable multicast channel 4096
Concurrent multicast channel 2000
IPv4 routing table 5120
IPv6 routing table 5120
Service port 32768
ARP table 8192
ACL rule 1024
Maximum Frame Size 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216
bytes can be supported.
VRF (L3 VPN) Supported
Operating temperature -25°C to +65°C
Power consumption Static: 30 W
Maximum: 50 W
Mechanical Specification
Dimensions(mm) 25.40 (W)x 237.00 (D) x 395.40(H)
Weight(kg) 0.5

Additional information

Weight 3.5000 kg
Dimensions 50.0000 × 33.0000 × 8.0000 cm
