Huawei MA5680T
Huawei MA5680T
Huawei MA5680T
Huawei MA5680T
Huawei MA5680T
Huawei MA5680T
Categories:

Huawei MA5680T

7 Reviews Write a review
SKU10936
Brands
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

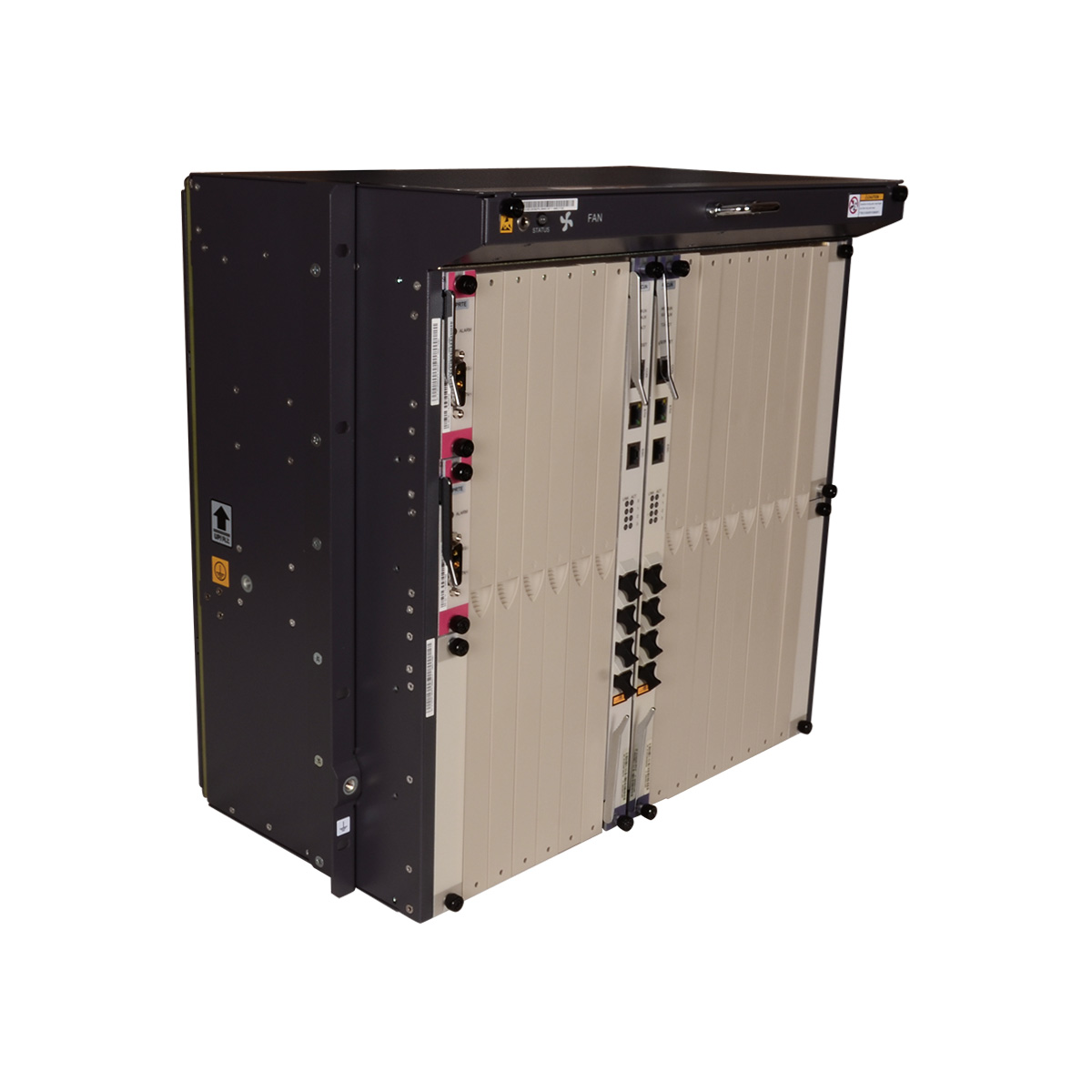

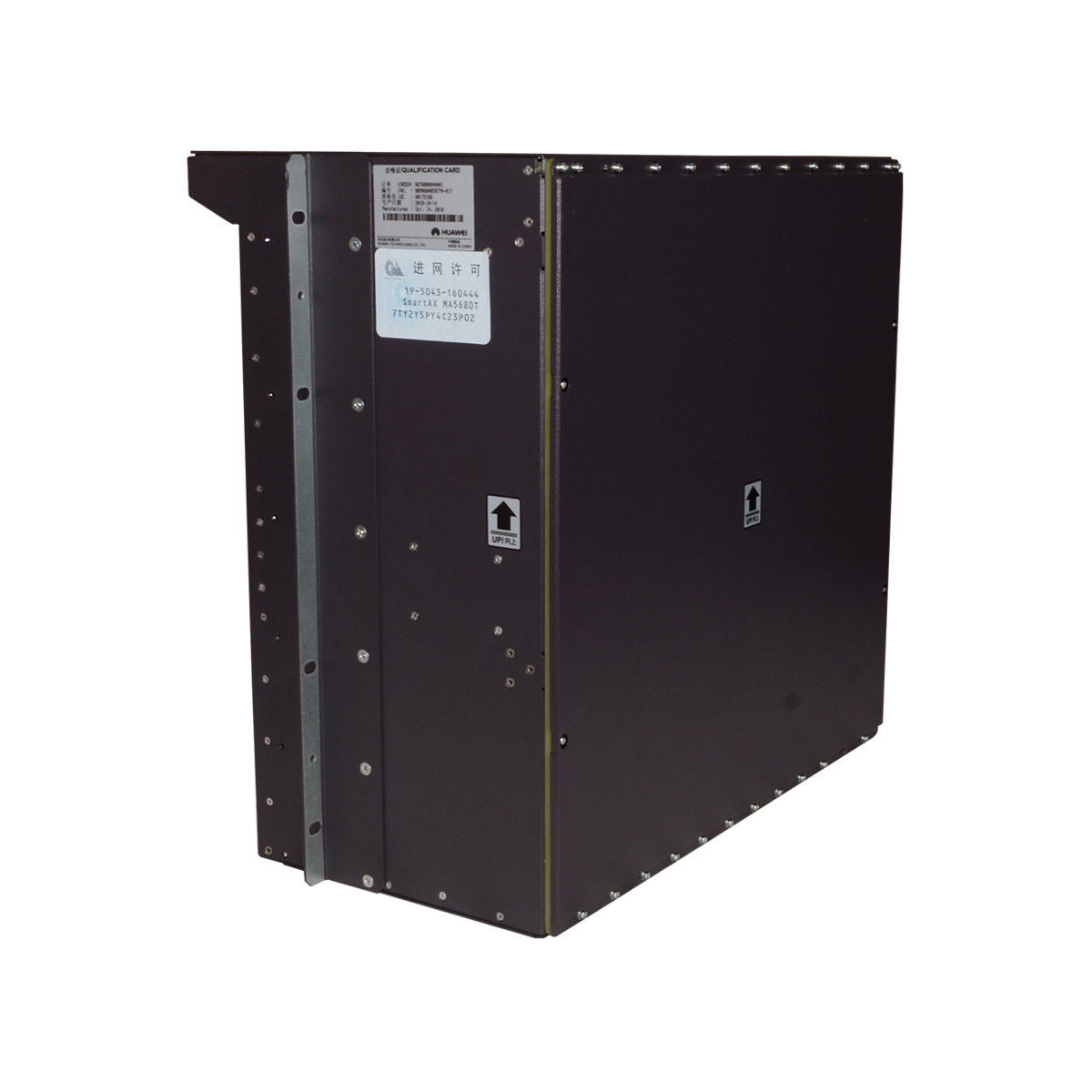

Huawei MA5680T 19inch chassis with 14 service slots, 2xSCUN main control board, 2xPRTE DC power board

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

MA5680T Overview

The Huawei MA5600T series OLT includes MA5608T, MA5680T, and MA5683T, as a series of large-/medium-/small-capacity devices, they share the same software platform and service boards.

  • Large-capacity device: MA5680T
  • Medium-capacity device: MA5683T
  • Small-capacity device: MA5608T

The Huawei SmartAX MA5680T GPON OLT is 19inch with 10U height, 14 service slots, supports EPON, GPON, X-GPON, X-EPON, and P2P service, provides Internet access, voice, and video services to subscribers.





Supported Main Control Board and Service Board

Main control board:

  • SCUN(the most applications main control board, which comes with 4 GE uplink ports)
  • SCUH(supports 4 GE/10GE uplink ports)
  • SCUK

Uplink board:

  • X2CS(2*10GE optical interface board)
  • GICF(2*GE optical interface board)
  • GICG(2-port GE electrical interface board)

Pon Service board:

  • 8 GPON ports interface board: GPBD, GPBH, 16 GPON ports interface board: GPFD.
  • 8 EPON ports interface board: EPBD, 16 EPON ports interface board: EPFD.
  • 8 10G GPON ports interface board: XGBD.
  • 8 10G EPON ports interface board: XEBD.

MA5680T is PRTE DC power-based, recommend AC/DC power converter ETP48100-B1-A1, ETP4860-B1A12 to change power solution.



MA5680T Layout

MA5680T Layout

MA5680T Datasheet

Item MA5680T
System performance
Backplane bus switching capacity 3.2 Tbit/s
System L2 packet forwarding rate SCUB: 72 Mpps
SCUN: 726 Mpps(Active/Standby mode), 1452 Mpps(Load-sharing mode)
SCUF: 190 Mpps
SCUH: 1428 Mpps(Active/Standby mode), 2856 Mpps(Load-sharing mode)
Control board switching capacity SCUB: 48 Gbit/s
SCUN: 480 Gbit/s(Active/Standby mode), 960Gbit/s(Load-sharing mode)
SCUF: 128 Gbit/s
SCUH: 960 Gbit/s(Active/Standby mode), 1920Gbit/s(Load-sharing mode)
Switching/Forwarding delay Short forwarding delay: The 100 Mbit/s Ethernet port sends the 64-byte Ethernet packets at a delay shorter than 20 μs.
Supported Service Board
Uplink Boards GICF(2*GE Uplink Board)
X2CS(2*10GE Uplink Board)
Service Board GPBD(8-port Gpon with SFP B+/C+/C++)
GPBH(8-port Gpon with SFP B+/C+/C++)
GPFD(16-port Gpon with SFP B+/C+/C++)
XGBD(8-port 10G GPON with SFP+ N1/N2a)
EPBD(8-port Epon with SFP PX20/PX20+/PX20++)
EPFD(16-port Epon with SFP PX20/PX20+/PX20++)
XEBD(8-port 10G EPON with SFP+ PRX30)
Board Slot
Control board slot 7, 8
Service board slot 1-6, 9-16
upstream interface board slot 17, 18
Universal interface board slot 0
Power board slot 19, 20
Upstream/Cascading Port
GE/10GE  ports (Control board) SCUN/SCUK: 8 x GE (in the load-sharing mode) SCUH: 8 x GE/10GE (in the load-sharing mode) SCUB/SCUF: 4 x GE (in the active/standby mode)
Access port
GPON ports 224
XG-PON ports N/A
XGS-PON ports N/A
GE/FE ports 672
10GE ports N/A
SuperVector ports N/A
Vectoring ports 768
ADSL2+ ports N/A
VDSL2 ports 896
POTS ports 448
SHDSL ports 448
ISDN ports 448
System Parameters
Band Width per slot N/A
Bit error rate (BER) in full load <10 e-7
System availability for the typical configuration >99.999%
System forwarding capacity N/A
Switching capacity of the control board SCUN/SCUK: 480 Gbit/s in active/standby mode or 960 Gbit/s in load-sharing mode SCUH: 960 Gbit/s in active/standby mode or 1920 Gbit/s in load-sharing mode SCUB: 48 Gbit/s SCUF: 128 Gbit/s
MAC address SCUN/SCUK: 32768 SCUH: 134072
Access ONT SCUN/SCUK: 8192 SCUH: 16384
IPv4 routing table SCUN/SCUK: 5120 SCUH: 12288
IPv6 routing table SCUN/SCUK: 5120 SCUH: 6144
ARP table SCUN/SCUK: 8192 SCUH: 16384
Supported cabinet
Indoor cabinet N66E-22
Outdoor cabinet N/A
Physical Parameters
Dimensions ( W x D x H, excluding mounting brackets) 442 mm x 275.8 mm x 441.7mm
Dimensions ( W x D x H, including mounting brackets of IEC standard) N/A
Maximum  Weight at full configuration 30.54 kg
Power Supply
Power supply mode DC
Rated voltage -48 V/-60 V
Working voltage range -38.4 V to -72 V
Maximum input current 40 A
Environmental Parameters
Ambient temperature (for normal device running) -40 °C to +65 °C
Ambient temperature (for normal device startup) -25 °C to +65 °C
Ambient humidity 5%RH to 95%RH
Atmospheric pressure 70 kPa to 106 kPa
Altitude ≤4000 m

Item MA5680T (ETSI) MA5680T (IEC) MA5683T MA5608T
Supported cabinet Indoor cabinet: N63E-22, N66E-18 Outdoor cabinet: F01T500 Indoor cabinet: N66E-22 Outdoor cabinet: none Indoor cabinet: N66E-18 Outdoor cabinet: F01S300, F01T500, F01T300 Indoor cabinet: N63E-22 Outdoor cabinet: F01S100, F01S200
Board configuration 2 slots for control boards 16 slots for service boards 1 slot for the universal interface board 2 slots for upstream interface boards 2 slots for power interface boards. 2 slots for control boards 14 slots for service boards 1 slot for the universal interface board 2 slots for upstream interface boards 2 slots for power interface boards. 2 slots for control boards 6 slots for service boards 1 slot for the universal interface board 2 slots for upstream interface boards 2 slots for power interface boards. 2 slots for control boards 2 slots for service boards 1 or 2 slots for the power interface board.
Supported control board and its switching capacity SCUB: 48 Gbit/s SCUF: 128 Gbit/s SCUN/SCUK: 480 Gbit/s in active/standby mode or 960 Gbit/s in load-sharing mode SCUH/SCUV: 960 Gbit/s in active/standby mode or 1920 Gbit/s in load-sharing mode MCUD/MCUD1/MCUE: 128 Gbit/s in active/standby mode or 256 Gbit/s in load-sharing mode
System Layer 2 packet forwarding rate SCUB: 72 Mpps SCUF: 190 Mpps SCUN/SCUK: 726 Mpps in active/standby mode or 1452 Mpps in load-sharing mode SCUH/SCUV: 1428 Mpps in active/standby mode or 2856 Mpps in load-sharing mode MCUD/MCUD1/MCUE: 190 Mpps in active/standby mode or 380 Mpps in load-sharing mode
Switching/Forwarding delay Short forwarding delay: The 100 Mbit/s Ethernet port sends the 64-byte Ethernet packets at a delay shorter than 20 μs.
BER in full load BER of a port when the port transmits data in full load < 10 e-7
System reliability specifications System: redundant configuration. System availability for the typical configuration: > 99.999% Mean time between failures (MTBF): about 45 years.
NOTE:
Due to different network environments and different boards used by devices, the preceding MTBF (45 years) of the MA5600T/MA5603T/MA5608T is only for reference. The average repair time for field replaceable units (FRUs) is about 2 hours. The preceding values are only for reference. For details, contact the related Huawei engineers.
Maximum number of ADSL2+ ports in a subrack 1024 896 384 128
Maximum number of VDSL2 ports in a subrack 1024 896 384 128
Maximum number of Vectoring ports in a subrack 768 768 384 N/A
Maximum number of SuperVector ports in a subrack N/A N/A 384 N/A
Maximum number of EFM SHDSL ports in a subrack 512 448 192 64
Maximum number of TDM SHDSL ports in a subrack 256 224 96 32
Maximum number of POTS ports in a subrack 1024 896 384 128
Maximum number of ISDN BRA ports in a subrack 512 448 192 64
Maximum number of ISDN PRA ports in a subrack 64 64 64 64
Maximum number of GPON ports in a subrack 256 224 96 32
Maximum number of 10G GPON ports in a subrack 128 112 48 16
Maximum number of P2P FE ports in a subrack 768 672 288 96
Maximum number of P2P GE ports in a subrack 768 672 288 96
Maximum number of upstream ports (GE ports in the GIU slot) in a subrack 8 8 8 N/A
Maximum number of upstream ports (10GE ports in the GIU slot) in a subrack 4 4 4 N/A
Maximum number of upstream ports (PON ports in the GIU slot) in a subrack 1 1 1 N/A
Maximum number of upstream ports (ports on the control board) in a subrack SCUB/SCUF: 4 x GE (in the active/standby mode) SCUN/SCUK: 8 x GE (in the load-sharing mode) SCUH/SCUV: 8 x 10GE/GE (in the load-sharing mode) MCUD/MCUE: 8 x GE (in the load-sharing mode) MCUD1: 4 x GE + 2 x 10GE/GE (in the load-sharing mode)
Maximum number of extended subracks connected to a master subrack 32 32 32 N/A
Maximum number of ONUs supported by each subrack
  • For Layer 2 applications, the maximum number of ONUs supported by each subrack is determined based on the number of MAC addresses and service flows supported by the control board, as well as the number of MAC addresses and service flows planned for the ONUs.
  • For Layer 3 applications, the maximum number of ONUs supported by each subrack is determined based on the number of routes and ARP entries supported by the control board.

Additional information

Weight 32.0000 kg
Dimensions 63.0000 × 58.0000 × 43.0000 cm
Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
