Huawei 2-port 10GE optical uplink board without SFP+ Module, apply to Huawei MA5680T/MA5683T

SKU: 03024GDX Category:

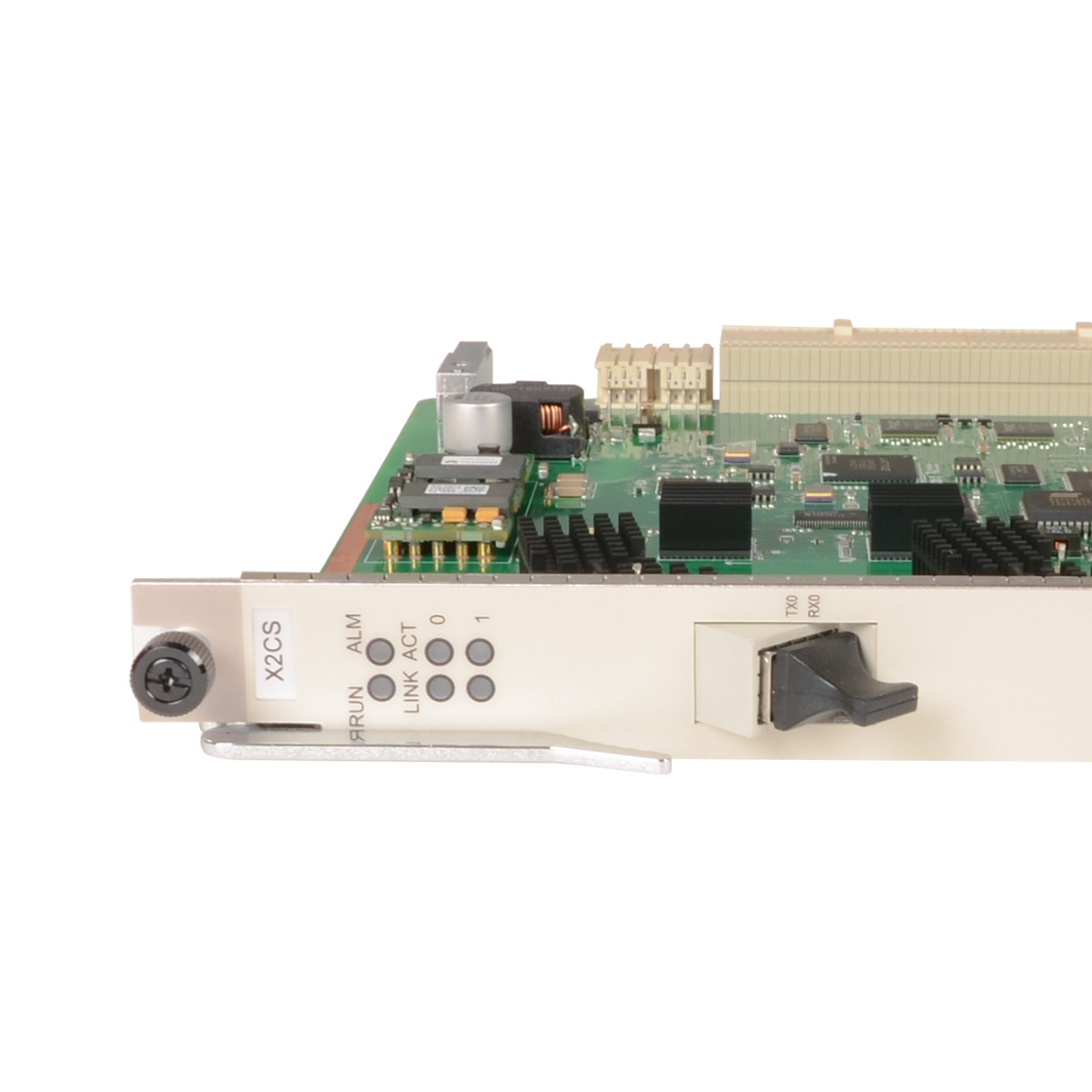

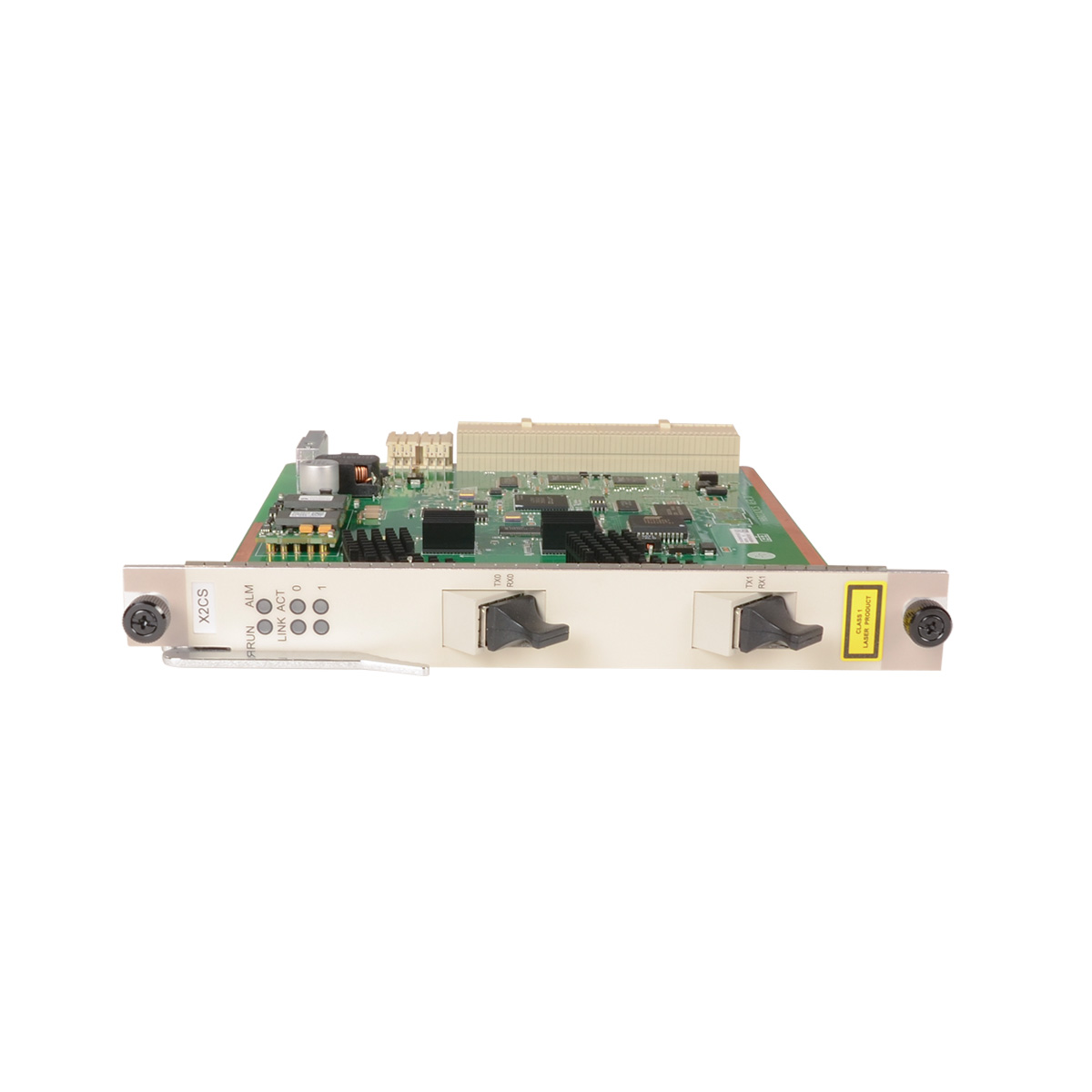

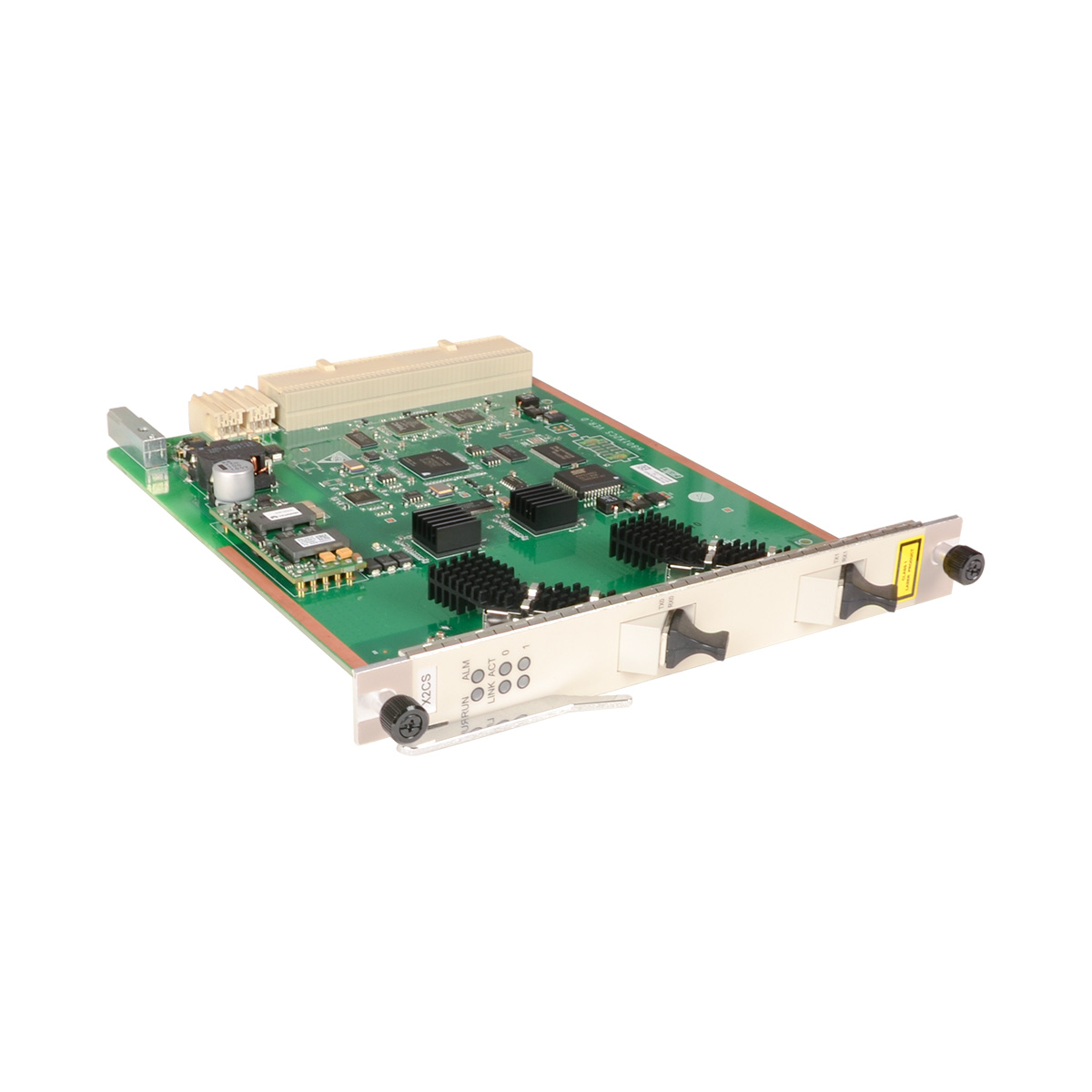

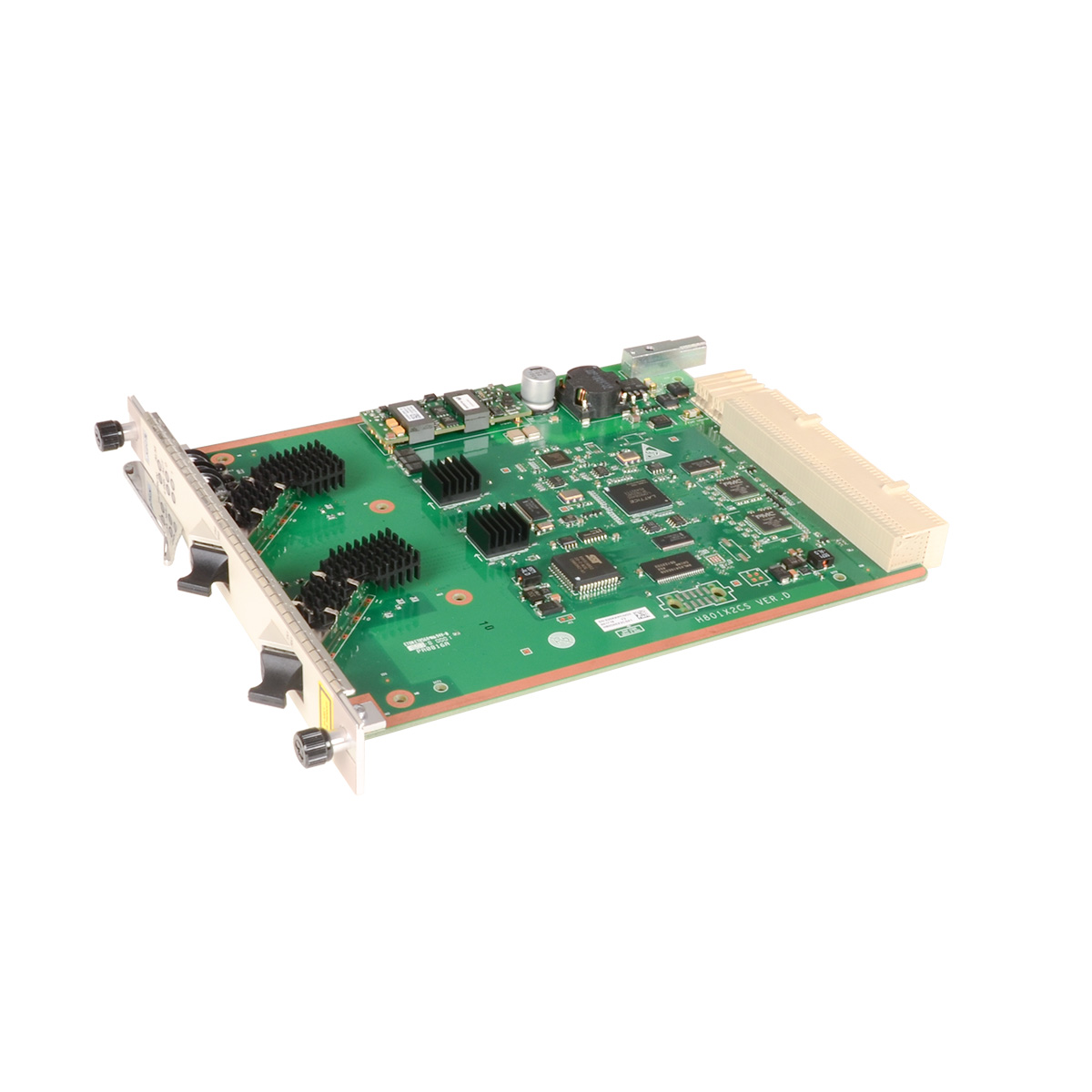

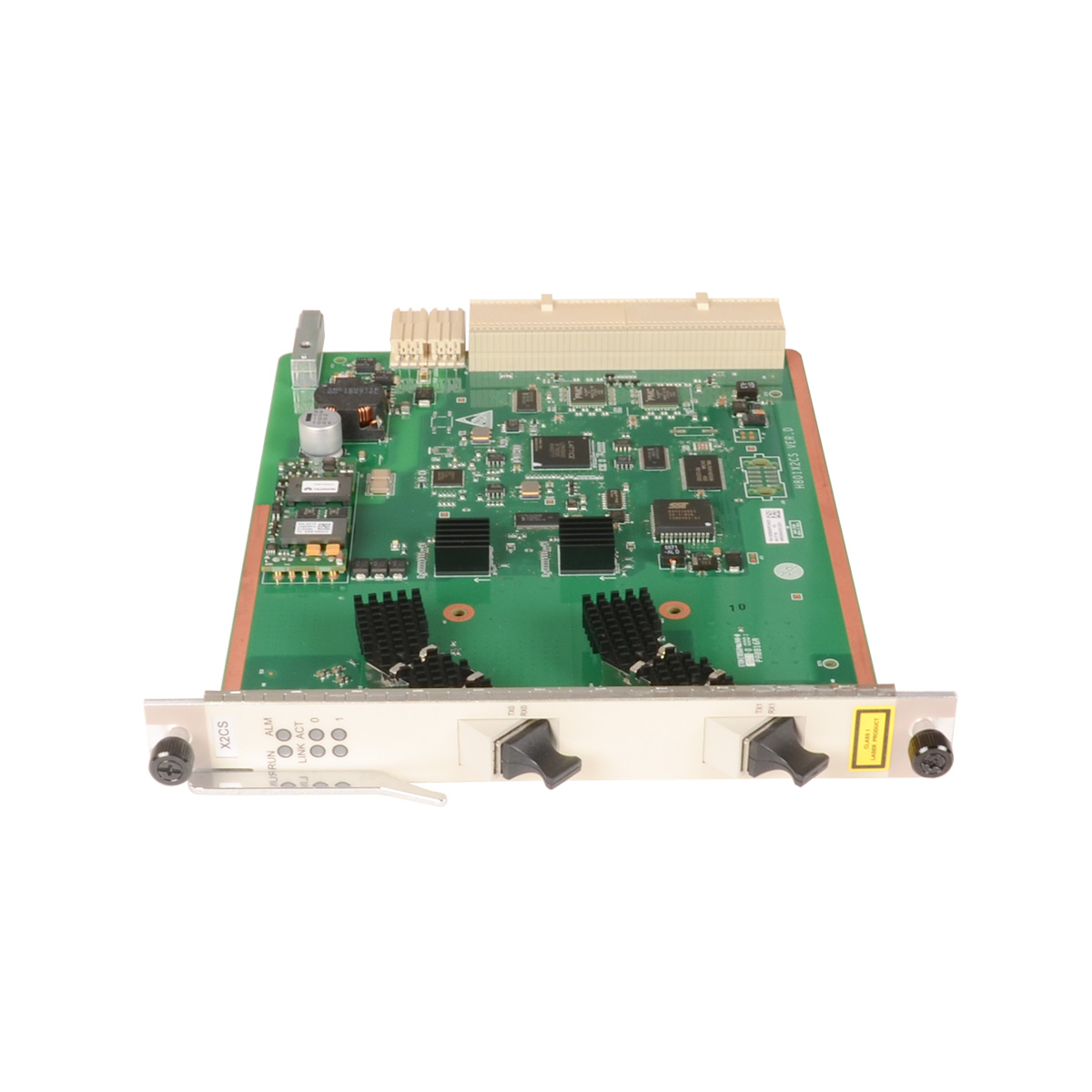

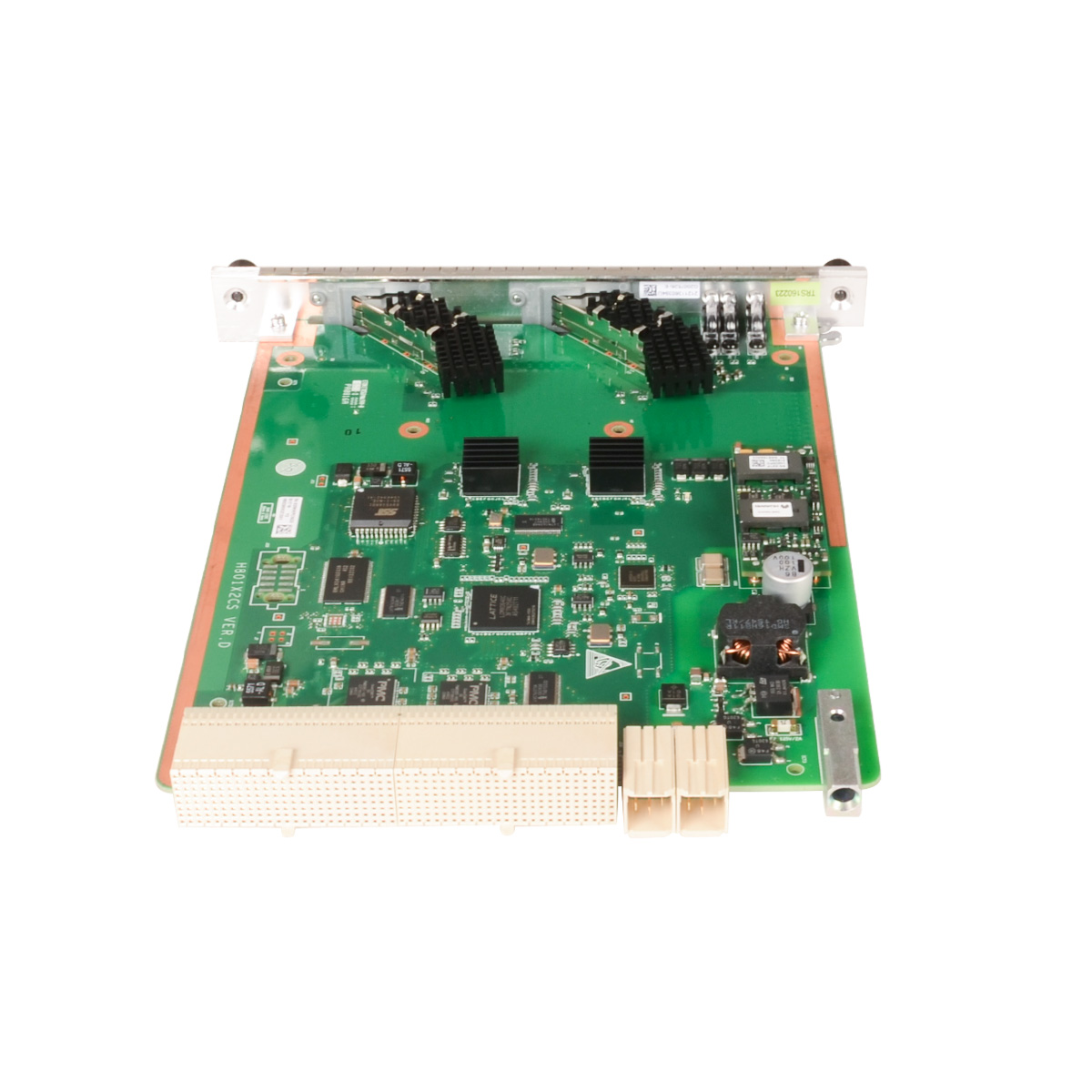

H802X2CS Overview

The H802X2CS board is a 2-port 10GE/GE uplink interface card that provides two 10GE/GE upstream or cascading optical ports,  which can be used in the Huawei MA5600T serie OLT: MA5683T MA5680T.

You can run the network-role command in the GIU mode to switch the role of a port. Default role is uplink.

This board comes without any optical transceiver, but it is supposed to work with two SFP+, and there are two modules for your choice: 10GE 0.3km SFP+ and 10GE 10km SFP+.

Working principle of the H802X2CS board

H802X2CS Datasheet
Item X2CS
Port 2 10GE Uplink Ports
Pluggable Module SFP+ Module
Corresponding Control Board SCUF/SCUN/SCUL/SCUH
Device Specifications
Dimensions (mm) 25.40 (W) x 237.00 (D) x 197.20 (H)
Power Consumption and Maximum Frame Size
Power Consumption Static: 17.6 W
Maximum: 18 W
Maximum Frame Size 2052 bytes. After jumbo frame function is enabled, a maximum of 9216 bytes can be supported
Operating temperature -25°C to +65°C

Additional information

Weight 2.5000 kg
Dimensions 34.0000 × 25.5000 × 10.0000 cm
