Description

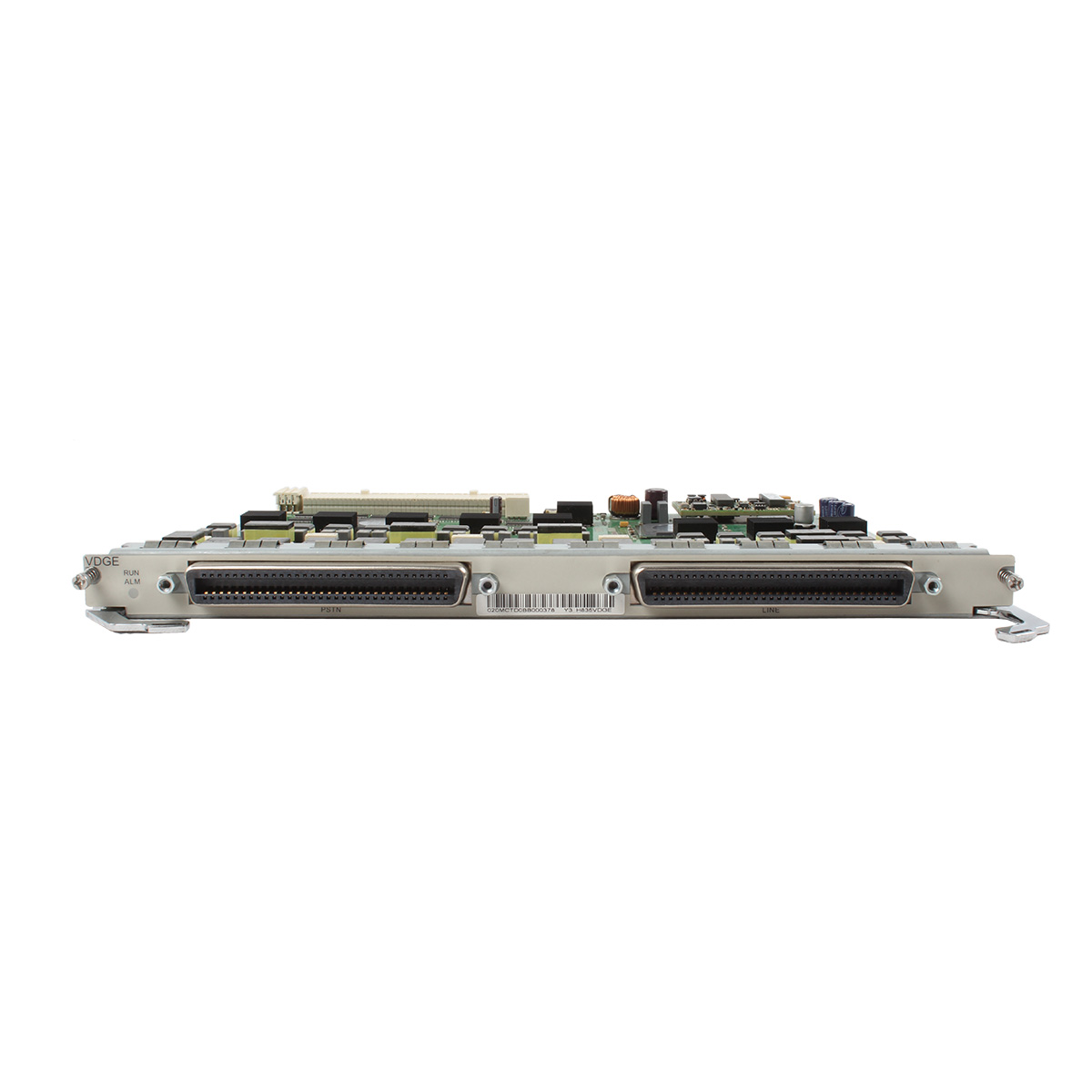

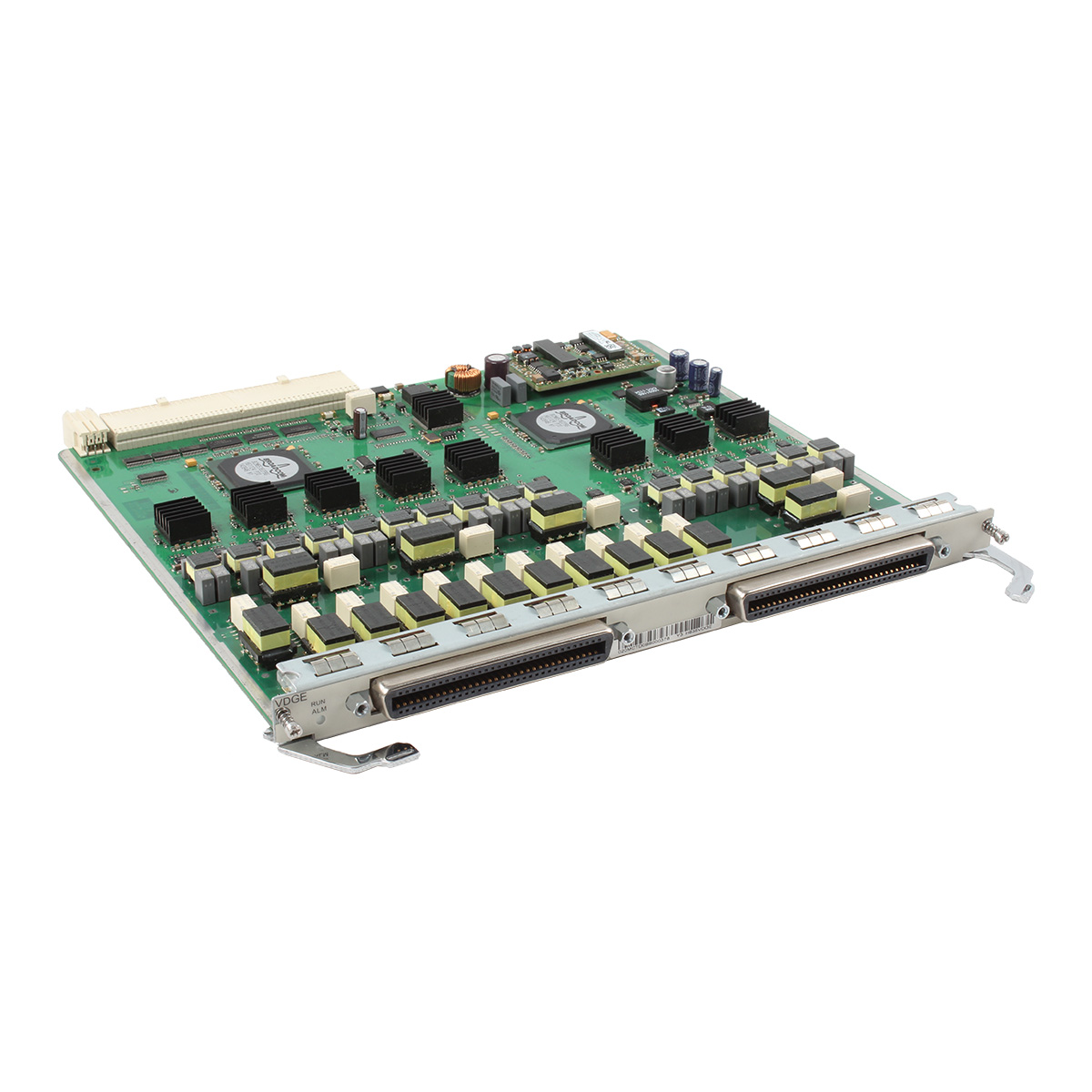

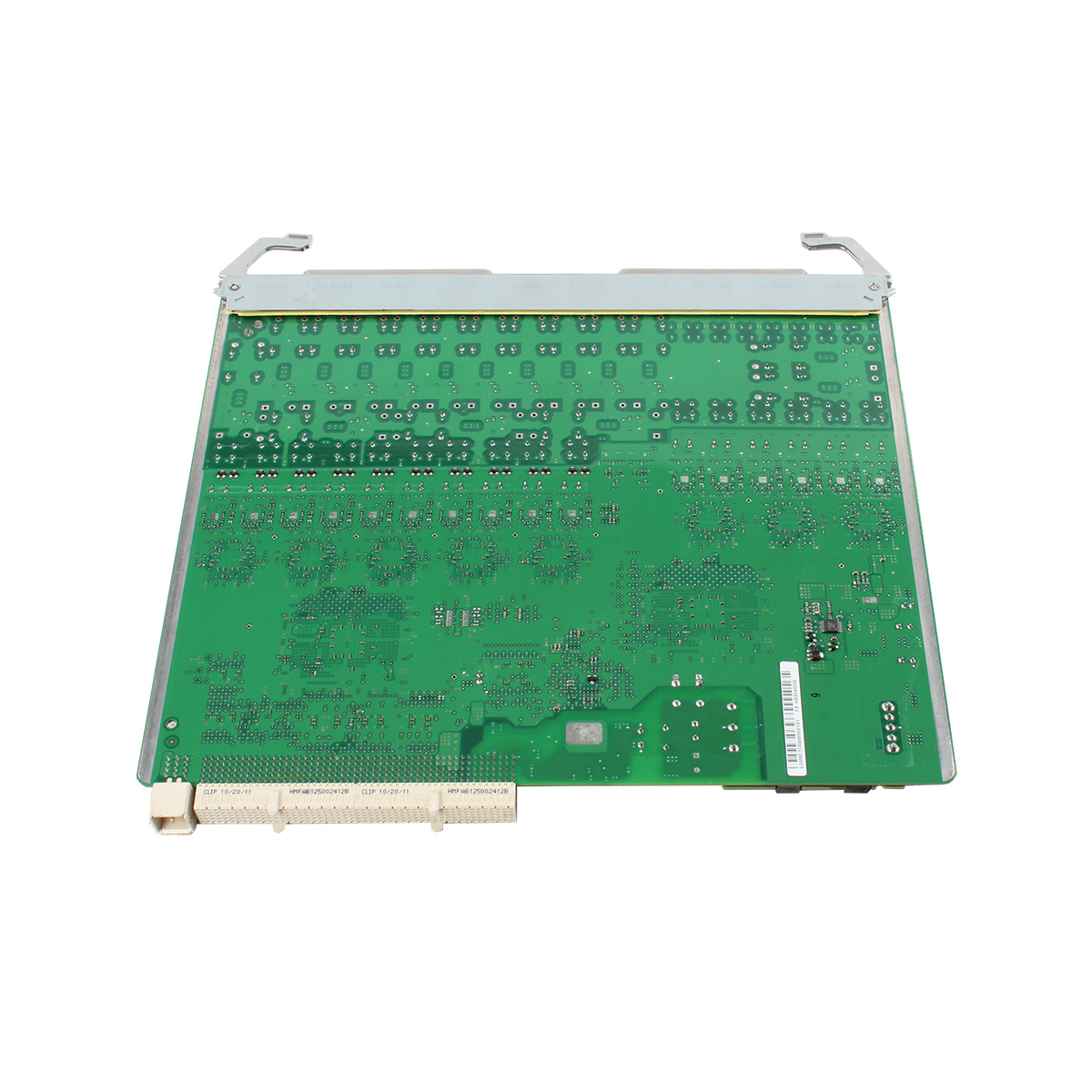

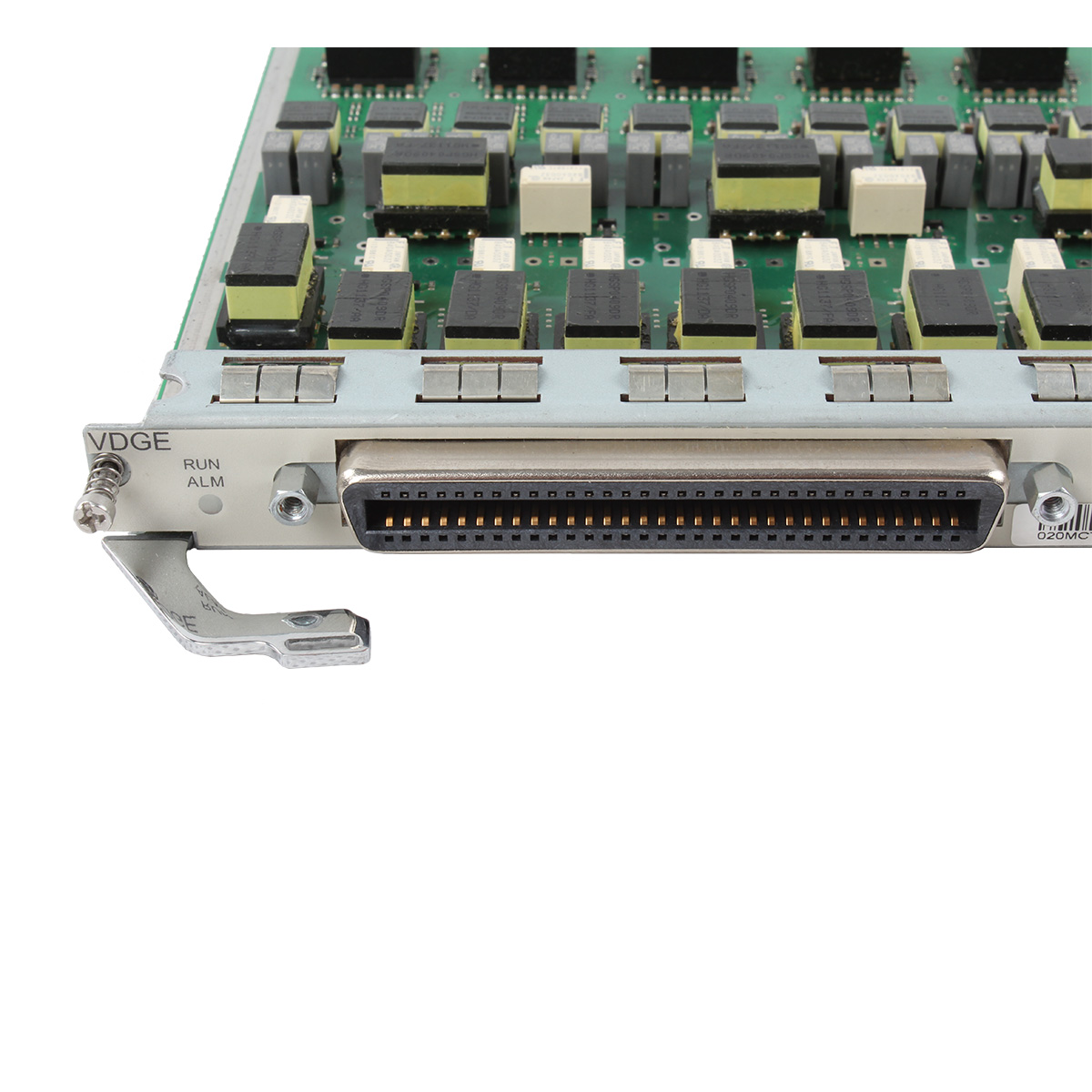

Huawei MA5616 16 channels VDSL2 over POTS service board can be configured with 3/5/10/20 meters Subscriber Cable.
| Specification | |
| PSTN port | Transmits 16 channels of POTS signals separated by the built-in splitter of the H835VDGE board. |
| LINE port | Supports 16 channels of VDSL2 and POTS integrated signals. |
| Power Consumption | Static Power Consumption: 8b:15W, 17a:15 W |
| Typical Power Consumption: 8b:25W 17a:23W | |
| Maximum Power Consumption: 8b:34W 17b:29W | |
| Operating temperature | -40℃ to 65℃; startup at -25℃ |
| Humidity | 5% to 95% (non-condensing) |
| Power supply | AC: 220 V/110 V, DC: -48 V |
| Clock features | Network time synchronization |
| Line clocks recovered on upstream ports | |
| Mechanical Specification | |
| Dimensions (H×W×D) | H835VDGE: 265 mm x 220 mm x 20.32 mm |
