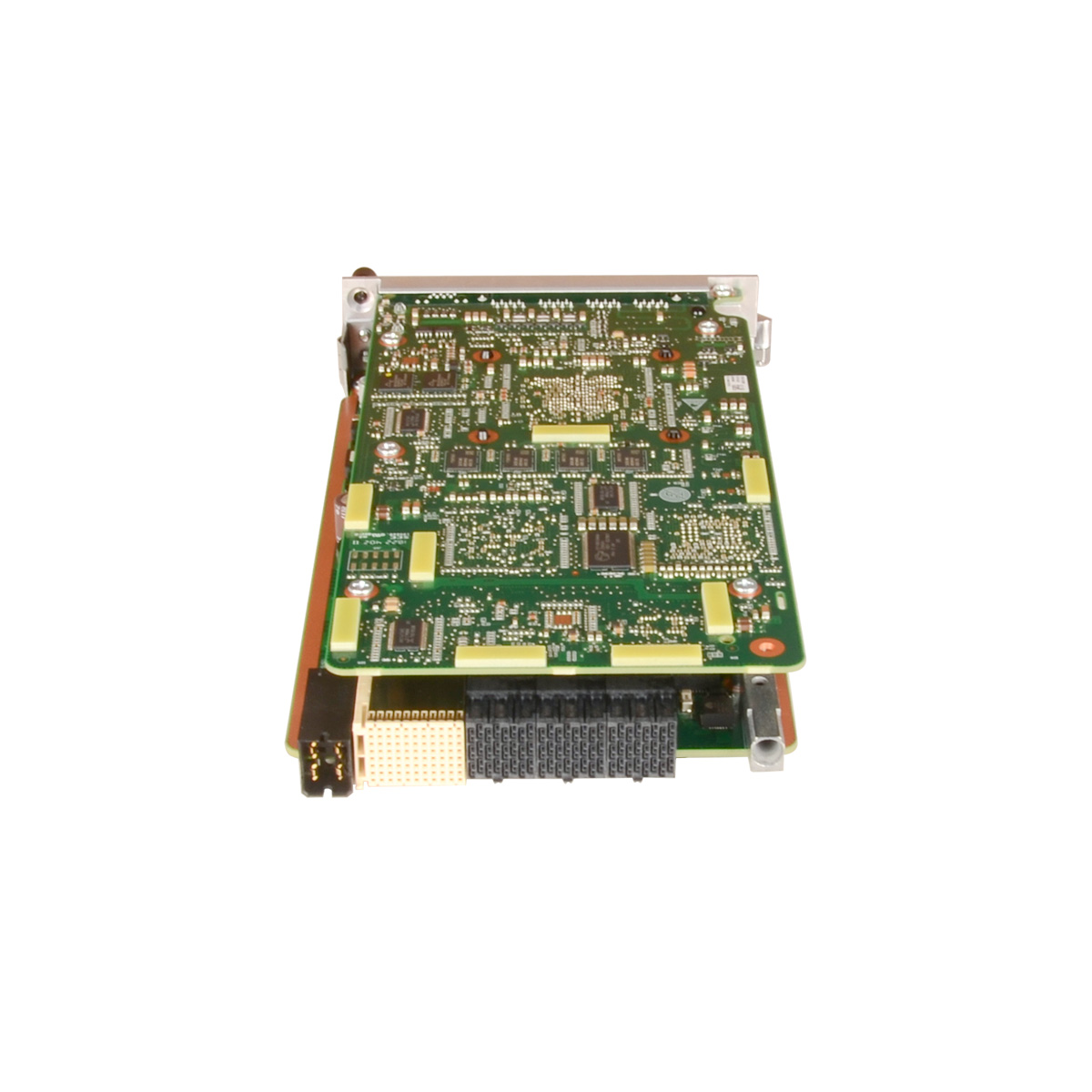

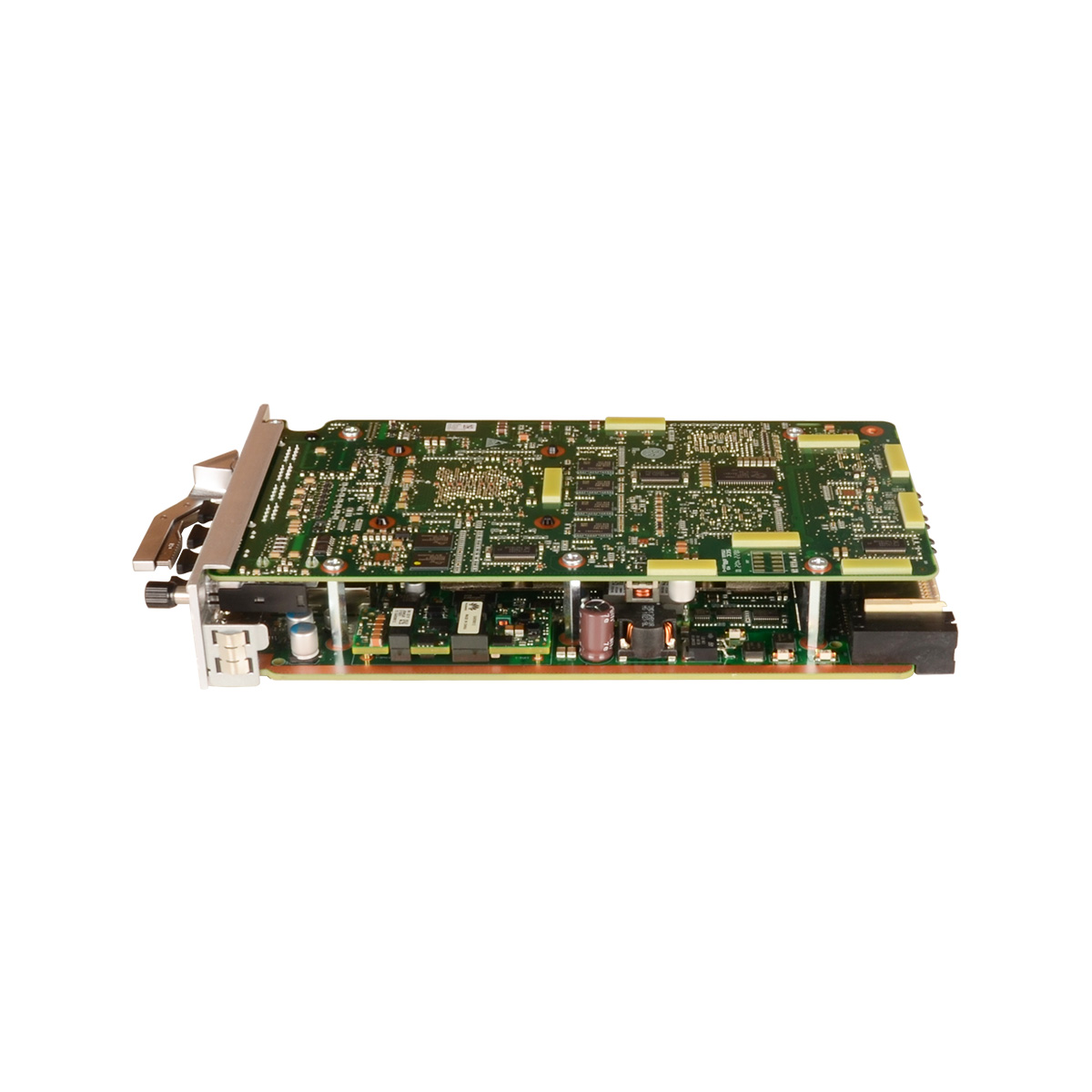

H901MPSC

Huawei MA5800 X2 main control board integrated with 4-port 10GE/GE optical uplink port

3-5 days

Shenzhen Warehouse

SKU: 5031 PN: 03023WDY Category:

Description

H901MPSC is a main control card of Huawei SmartAX MA5800-X2 NG OLT; it is the core of system control and service switching and aggregation. MAX access 4096 subscribers, and supports 98816 ARP table.

Supports active/standby switchover at the control plane

Supports load sharing mode at the forwarding plane, doubling processing performance

Supports ISSU, saving the upgrade interruption time

Supports synchronization Ethernet

Supports 1588v2

Supports interfaces CON (RJ-45)/ESC (RJ-45), ETH (RJ-45)

Supports Communication Interfaces L/A 0 to L/A 3 (4 x SFP+/SFP 10GE/GE ports)



Item H901MPLA
Environment Operating temperature:-40°C to +65°C
Power consumption:Static: 53W
Maximum: 67W
Bandwidth per slot 100 Gbit/s (load sharing mode)
MAC address table 262143
Access ONT 4096
Multicast user 4000
IPv4 routing table 65536
IPv6 routing table 16384
Service port 32768
ARP table 65536
Maximum Frame Size 2052 bytes9216 bytes (jumbo frame enabled)
Dimensions(mm) 35.28 (W)x 258.15 (D) x 130.36 (H)
Weight(kg) 2.2kg

Additional information

Weight 2.5000 kg
Dimensions 34.0000 × 25.5000 × 10.0000 cm

Differences between control boards

Board Specifications H901MPLA H902MPLA H901MPLB H901MPSC H901MPLE
Bandwidth per slot (load balancing mode) 100 Gbit/s 100 Gbit/s 200 Gbit/s 80 Gbit/s
  • 20 Gbit/s (default)
  • 40 Gbit/s (middle mode)
  • 100 Gbit/s (large mode)
Upstream or cascading port 4 x 10GE/GE ports 4 x 10GE/GE ports 4 x 10GE/GE ports 4 x 10GE/GE ports 4 x 10GE/GE ports
ALM port No No No Yes (7 Boolean value inputs and 1 Boolean value output) No
BITS/TOD port No No No Yes (1 external clock/time input and output) No
MAC address table size 262143 262143 262143 262143
  • 32768 (default)
  • 131072 (middle mode)
  • 262143 (large mode)
Access ONTs 17408 17408 17408 4096 17408
Multicast users 17408 17408 17408 4096 17408
Static programs
  • 4096 (earlier than V100R017C00)
  • 8192 (V100R017C00 and later versions)
8192
  • 4096 (earlier than V100R017C00)
  • 8192 (V100R017C00 and later versions)
8192 (V100R017C10 and later versions) 8192
Online programs V100R016C00: 4000

V100R016C10:

  • IPv4: 4000
  • IPv6: 2000

V100R017C10 and later versions:

  • IPv4: 8000
  • IPv6: 2000
  • IPv4: 8000
  • IPv6: 2000
V100R016C00: 4000

V100R016C10:

  • IPv4: 4000
  • IPv6: 2000

V100R017C10 and later versions:

  • IPv4: 8000
  • IPv6: 2000
V100R017C10 and later versions:

  • IPv4: 8000
  • IPv6: 2000
  • IPv4: 8000
  • IPv6: 2000
IPv4 routing table size 65536 65536 65536 65536
  • 5120 (default)
  • 12288 (middle mode)
  • 65636 (large mode)
IPv6 routing table size 16384 16384 16384 16384
  • 5120 (default)
  • 6144 (middle mode)
  • 16384 (large mode)
Service ports 139264 139264 139264 32768 139264
ND table size 16384 16384 16384 16384
  • 4096 (default)
  • 8192 (middle mode)
  • 16384 (large mode)
ARP table size
  • 66048 (earlier than V100R017C10)
  • 98816 (V100R017C10)
  • 131072 (V100R018C00 and later versions)
  • 66048 (V100R017C00)
  • 98816 (V100R017C10 version)
  • 131072 (V100R018C00 and later versions)
  • 66048 (earlier than V100R017C10)
  • 98816 (V100R017C10)
  • 131072 (V100R018C00 and later versions)
  • 98816 (V100R017C10)
  • 131072 (V100R018C00 and V100R018C10 versions)
  • 32768 (V100R019C00 and later versions)
  • 8192 (default)
  • 16384 (middle mode)
  • 131072 (large mode)
Ethernet synchronization Yes Yes Yes Yes Yes
1588v2 Yes Yes Yes Yes Yes
1588ACR Yes Yes Yes No Yes
D-CCAP Yes Yes Yes Yes Yes

3 reviews for H901MPSC

  1. 5 out of 5

    Daveonasaf

    There are some differences with MPSA. My own MPSA just supprts 40G slot bandwidth, this one enhanced a lot and it supports 80G slot bandwidth. MPSC also integrated with 4* GE/10GE uplink
    port, better than before.

  2. 5 out of 5

    Abner

    Compared with MPSA, MPSC has stronger performance. It has 80G slot bandwidth and supports 4* GE/10GE uplink interface. I prefer MPSC.

  3. 5 out of 5

    Linur

    MPSC is shortage in the market recently, so i bought MPSA.
