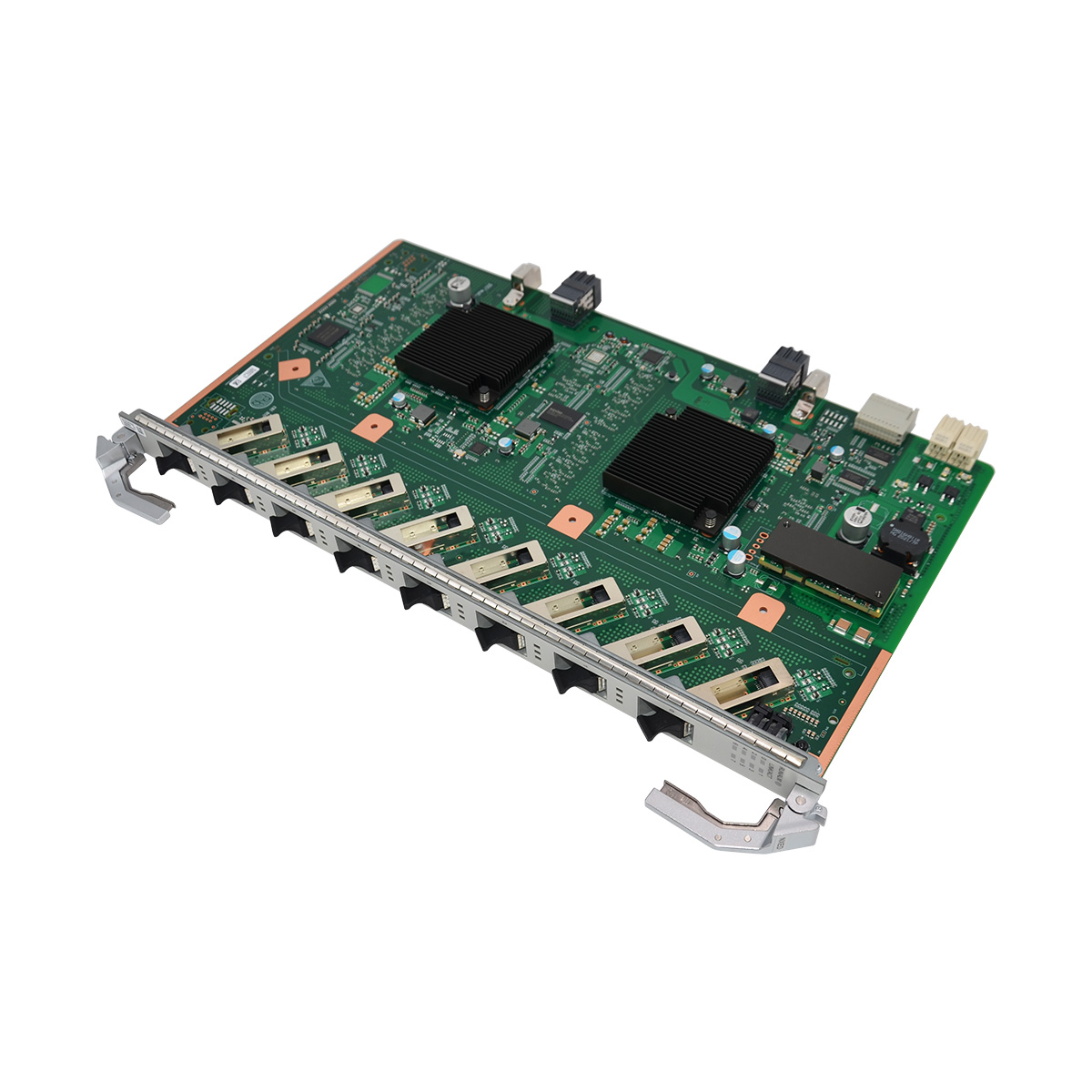

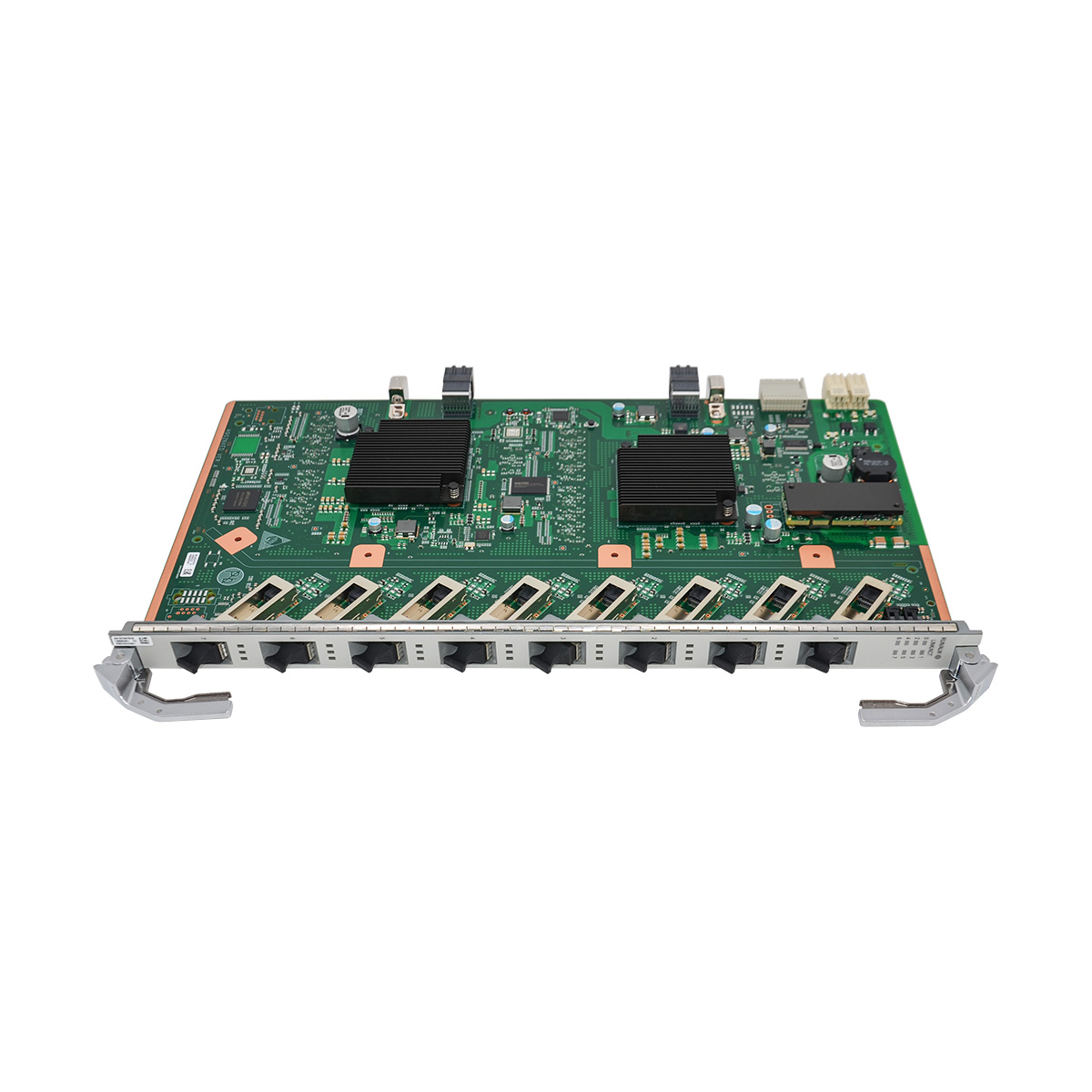

H902NXED

8-port Enhanced 10GE/GE optical uplink board apply to Huawei MA5800 series

SKU: 10999 PN: 03025KFB Category:

Description

H902NXED Overview



Huawei H902NXED is an 8-port upstream interface board, providing 10GE/GE optical ports. Apply to Huawei MA5800-X2, X7, X15, X17 OLT system

Without 10GE SFP+ module equipped by default. If need equip SFP+ module, please contact: [email protected]

Maximum number of MAC addresses: 262143



Maximum frame size

2052 bytes

9216 bytes(jumbo frame enabled)

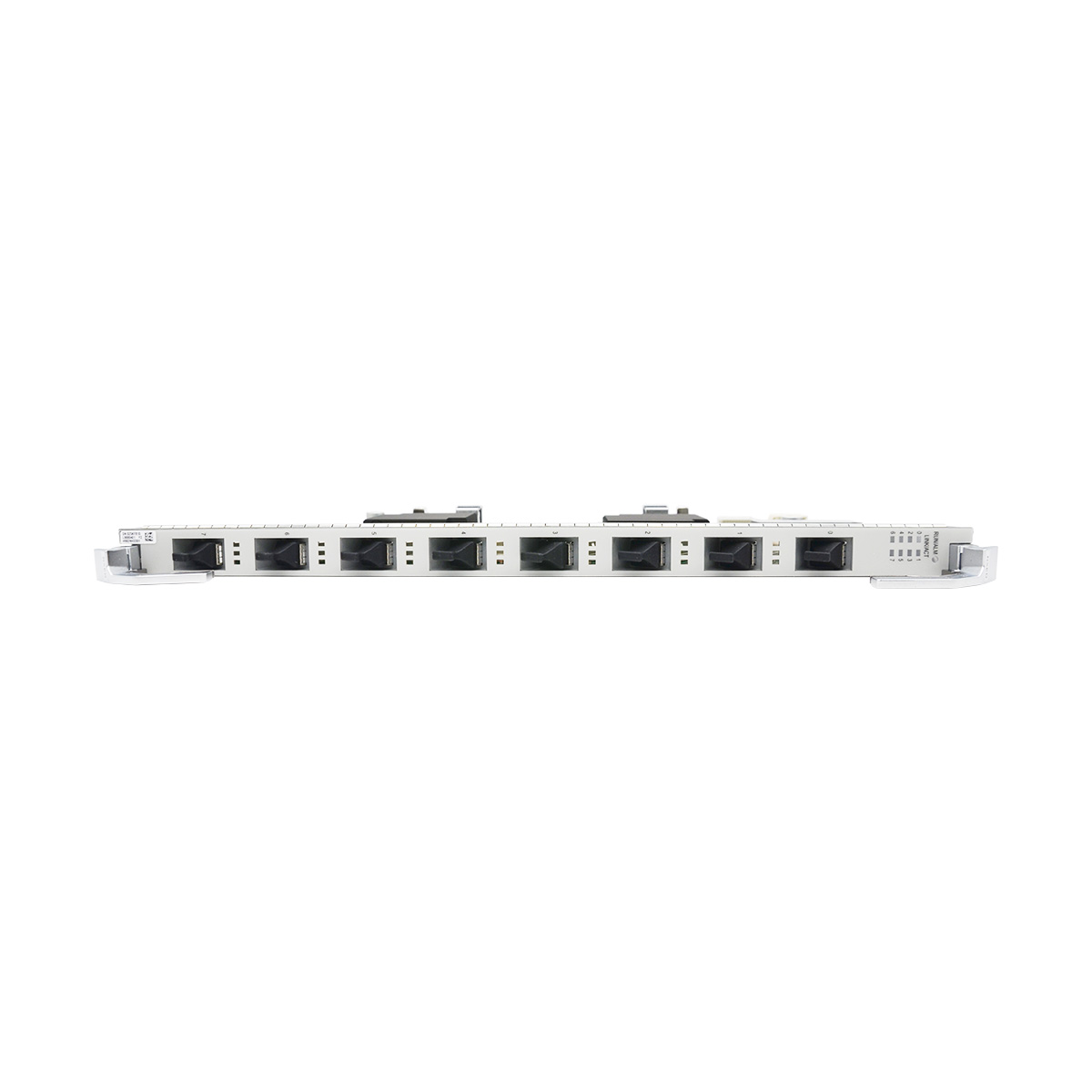

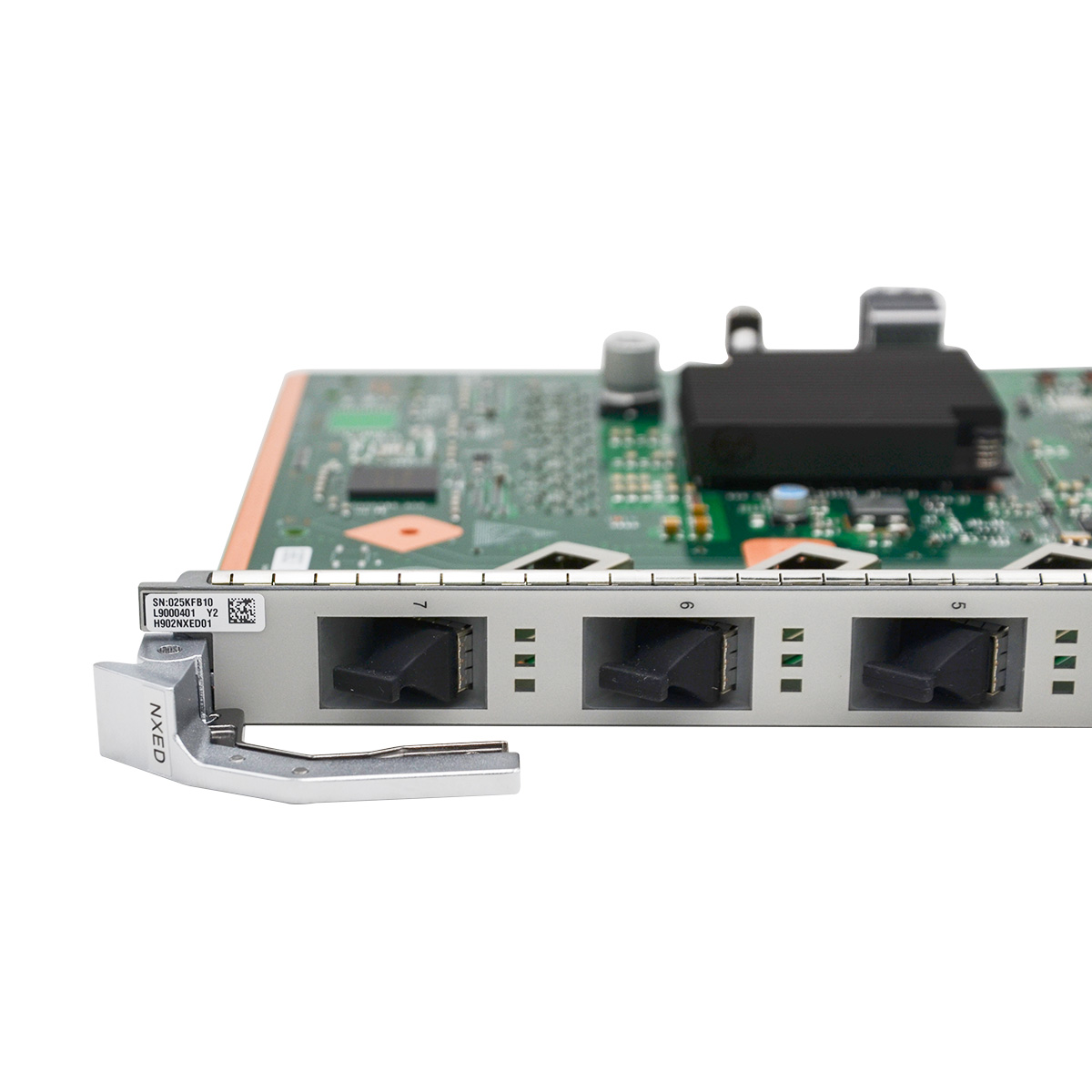

Front Panel

H902NXED

Item H902NXED
Function
Port & Quantity 8*10GE/GE optical
MAC address number 262143
Upstream transmission Supported
Link aggregation Supported
Pluggable optical Supported
Temperature query and high temperature alarm Supported
Automatic shutdown at high temperature Supported
1588v2 Supported
1588ACR Supported
Sync ETH clock Supported
Maximum frame size 2052 bytes

9216 bytes(jumbo frame enabled)

Protection group Supported
Dimensions (mm) 23.30 (W) x 257.90 (D) x 399.20 (H)
Weight (kg) 0.99
Environment
Power Consumption (W) Static: 40
Maximum: 53
Operating temperature -40°C to +65°C



Additional information

Weight 3.0000 kg
Dimensions 49.0000 × 32.5000 × 7.5000 cm
