Description

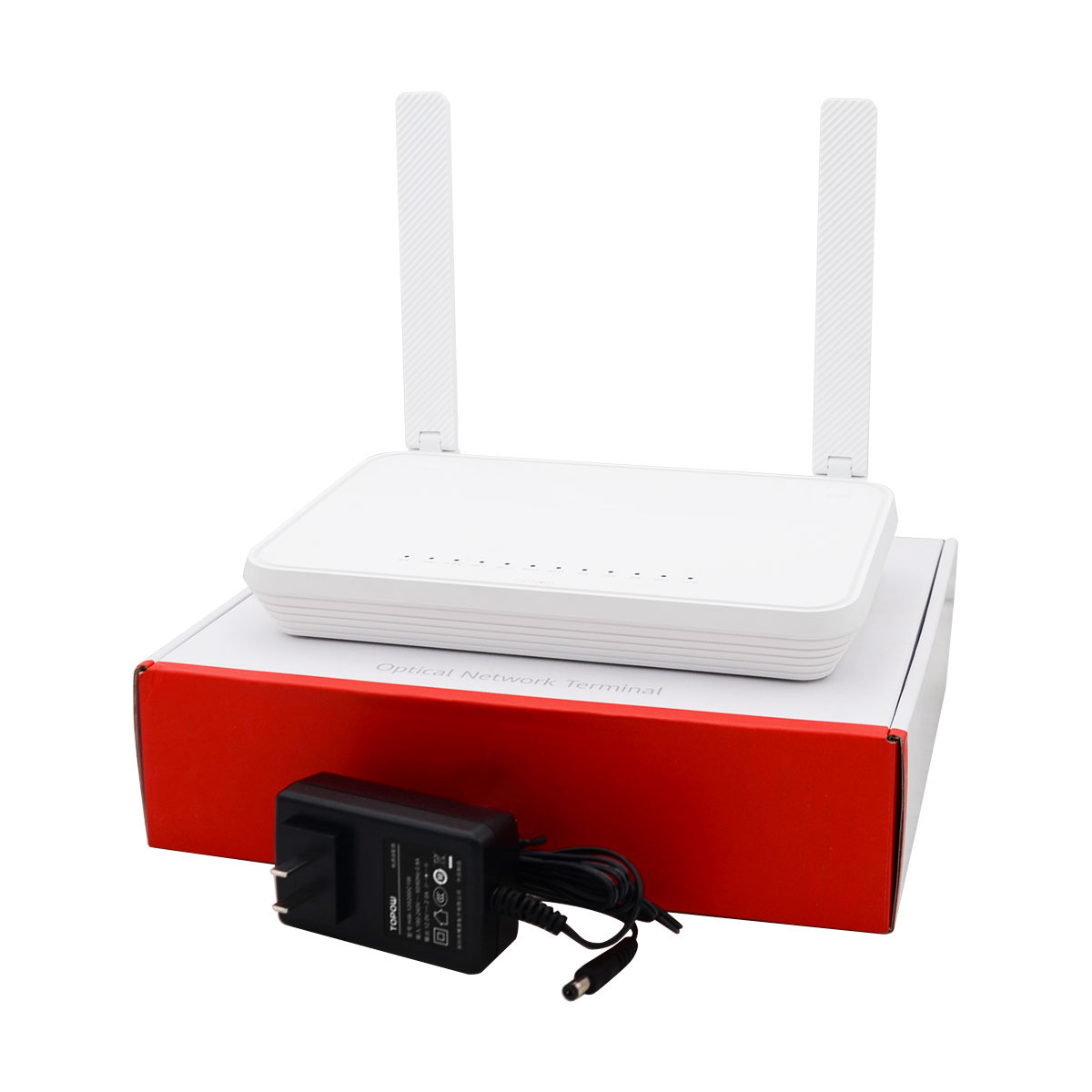

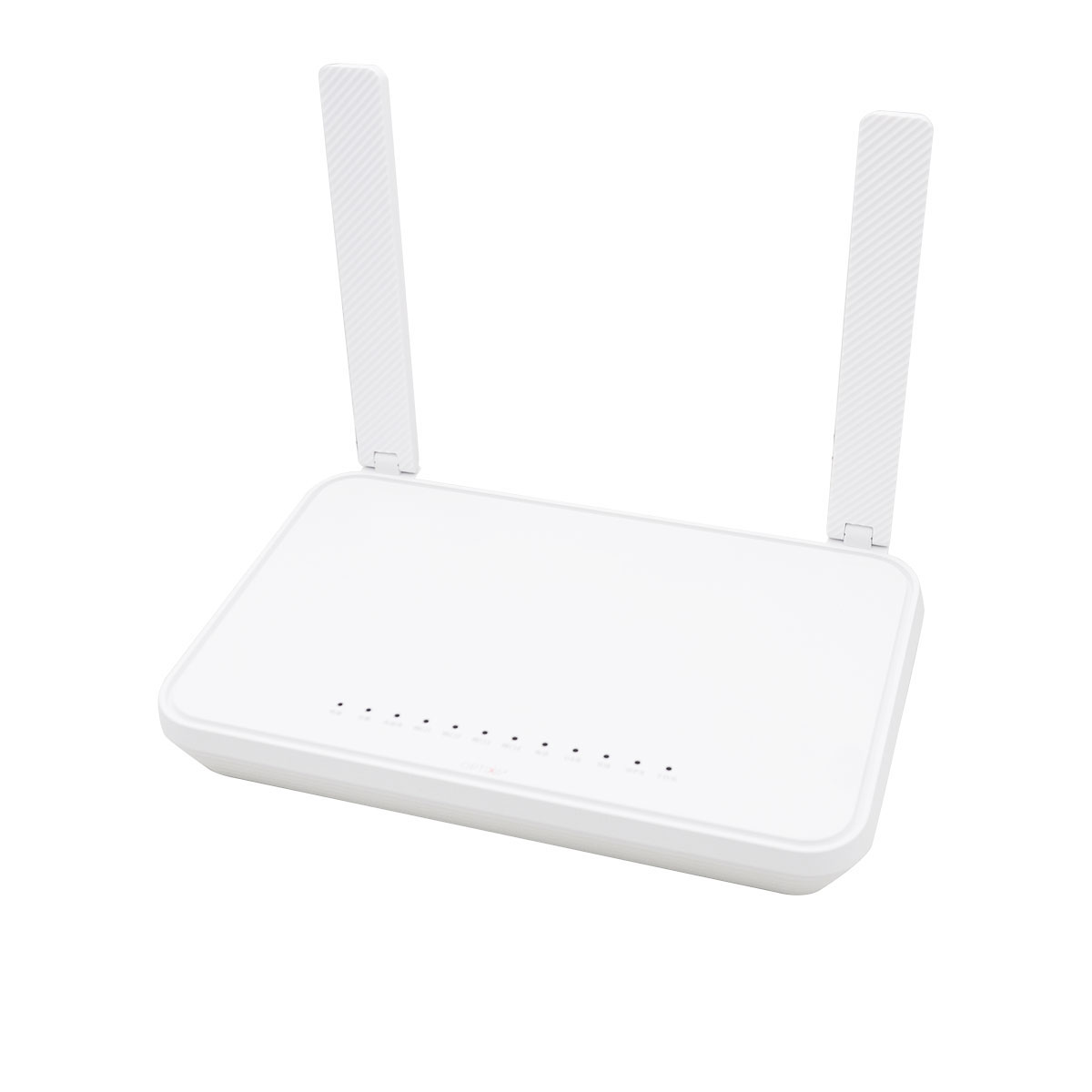

HN8145XR overview
Huawei OLT compatible HN8145XR is an all-in-one FTTR main optical network terminal and home router two-in-one device of the optical access network solution, which realizes ultra-broadband access for users through XG-PON or asymmetric 10G-EPON technology.
This device comes with 4 GE Lan ports, 1 USB port, 1 POTS port, 2.4/5G dual-band WIFI6, and two optical ports, one is for connecting with OLT and another is a downstream port and work with K662d or other FTTR solution product.
HN8145XR Features
XG-PON SFP+: Class N1/N2a; Asymmetric 10G EPON SFP+: Class PRX 30
Receive Sensitivity:XG-PON: -28dBm, Asymmetric 10G EPON: -28.5dBm
Wavelength: Upstream 1260-1280nm, downstream 1575-1580nm (XG-PON/Asymmetric 10G EPON)
Up and down rate: Upstream 2.5Gbps, downstream 10Gbps (XG-PON); Upstream 1.25Gbps, downlink 10Gpbs (asymmetric 10G EPON) Type B (single-homing & dual-homing)
Memory: 256MB Flash,512MB RAM
Super gigabit to room
Whole house signal coverage
Remote management
HN8145XR interface parameters
Optical interfaces | Ethernet ports |
Interface type:
Wan side: SC/UPC User side: SC/UPC |
4 GE LAN ports
MAC address restriction |
Super Gigabit Optical Interface Optical network terminal & home router all-in-one plug and play |
Support 10Mbit/s, 100Mbit/s, 1000Mbit/s adaptive |
Item | HN8145XR |
Wan side interface | XG-PON/10G-EPON |
User side interface | 1 POTS+4GE+1USB+2.4G&5G Wi-Fi 6+1 optical downstream port |
Fiber interface | Wan side: SC/UPC User side: SC/UPC |
Memory | 256MB Flash,512MB RAM |
Size | 240mm x 151mm x 40mm(not including antenna and footpads) |
Power | 170 ~ 240 V AC,50/60 Hz, 12V DC, 2 A, 20 W |
Weight | Less than 700 g |
Working temperature and humidity | 0°C ~ +40°C 5% RH ~ 95% RH |
XG-PON/10G EPON | XG-PON: Class N1/N2a Asymmetric 10G EPON: Class PRX 30 Receiving Sensitivity: XG-PON: -28dBm Asymmetric 10G EPON: -28.5dBm Wavelength: Upstream 1260-1280nm, Downstream 1575-1580nm (XG-PON/ Asymmetric 10G EPON) Supports flexible mapping between Band Stop Filter (WBF) GEM Port and TCONT Uplink and downlink rate: uplink 2.5Gbps, downlink 10Gbps (XG-PON); uplink 1.25Gbps, downlink 10Gpbs (asymmetric 10G EPON) Type B (single-homed & dual-homed) |
POTS | A maximum number of ports connected in parallel: 4 G.711A/u, G.729a/b, G.722 codec
Support T.30/T.38/G.711 fax DTMF Emergency call (SIP protocol) |
Ethernet ports | Ethernet-based VLAN Tag/Tag stripping 1:1 VLAN/N:1 VLAN/VLAN transparent transmission QinQ VLAN MAC address restrictions MAC address learning Support 10Mbit/s, 100Mbit/s, 1000Mbit/s adaptive |
Downstream optical ports | Super Gigabit Optical Interface Plug and Play from Optical Cat Routing All-in-One |
USB ports | USB 2.0 |
Wi-Fi | IEEE 802.11 ax (2.4G&5G)
2×2 MIMO (2.4G&5G) WMM(Wi-Fi Multi-Media) Multi SSID WPS Air interface rate:574 Mbps (2.4GHz),2402 Mbps (5GHz) |
L3 | PPPoE/Static IP/DHCP NAT/NAPT port forwarding
DDNS/DNS server/DNS IPv6/IPv4 dual-stack, DS-Lite static route/default route One WAN carries multiple services |
Management | OMCI/OAM/Web UI/tr069
Variable-length OMCI Software dual backup and rollback |
QoS | Ethernet port speed limit
802.1p priority SP/WRR/SP+WRR Broadcast packet rate limit |
Additional information
Weight | 700 kg |
---|---|
Dimensions | 25 × 15 × 5 cm |
