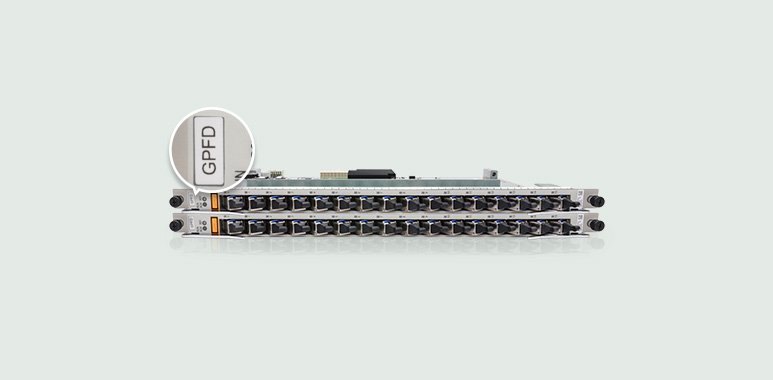

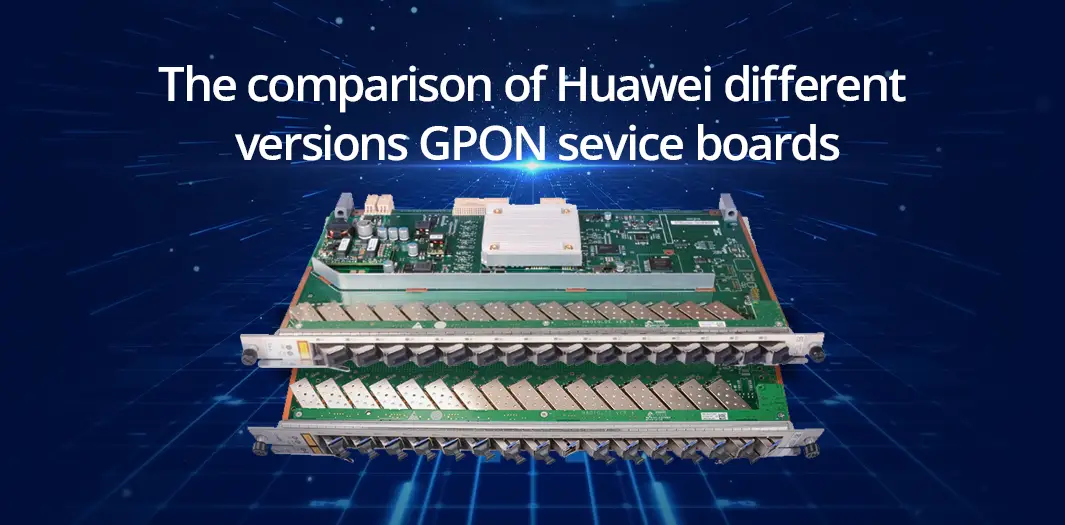

There are always customers asking about Huawei GPON boards differences. For example: What’s the differences between H802GPFD, H805GPFD, and H806GPFD?
The article will tell us some differences among them.

1.From version:

H802GPFD, H805GPFD, and H806GPFD stand for different versions.“H802” version, “H805” version, and “H806” version. The order from the old to new is H802GPFD> H805GPFD > H806GPFD

2.From Benefits:

H802GPFD, H805GPFD, and H806GPFD same benefits:

High density and energy saving

High density and low power consumption, supporting 2048
access users

High reliability

Chip-level type B protection (single-homing and dual-homing) and
type C protection (single-homing and dual-homing) switching
Real-time rogue ONU detection and isolation, ensuring stable
service running

Efficient OAM

Variable-length of OMCI, improving upgrade efficiency and
reducing break off time

A maximum distance difference of 40 km between two ONUs
under the same PON port (board capability), simplifying network
planning

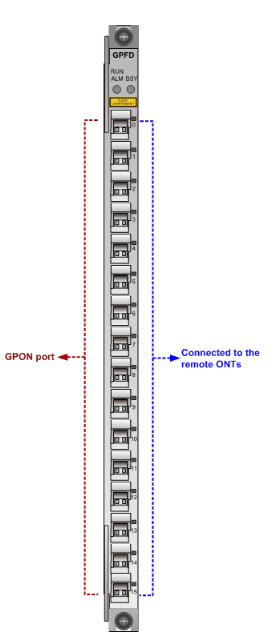

External Interfaces

16 GPON ports with SFP optical modules:

l Max. split radio:
Ø Class B+: 1:64
Ø Class C+/C++: 1:128

H805GPFD and H806GPFD benefits, but H802GPFD without:

High-value services

4-level HQoS, improving user experience
9216 jumbo frames, greatly improving transmission efficiency

3.Data Comparison:

	H802GPFD	H805GPFD	H806GPFD
Forwarding capability	40 Gbit/s	40 Gbit/s	40 Gbit/s
T-CONTs per PON port	1024	1024	1024
Service flows per PON board	16368	16368	16368
Maximum frame size	2004 bytes	2004 bytes 9216 bytes (jumbo frame enabled)	2004 bytes 9216 bytes (jumbo frame enabled)
MAC addresses	16384	32768	32768
Maximum distance difference between two ONUs under the same PON port (board capability)	40 km from V800R013	40 km from V800R013	40km
N:1/1:1 VMAC	Supported	Supported	Supported
FEC	Bidirection	Bidirection	Bidirection
CAR group	Supported	Supported	Supported
IPv6	Supported	Supported	Supported
4-level HQoS	NO	Supported	Supported
Variable-length OMCI	Supported from V800R013	Supported from V800R013	Supported
ONU-based shaping or queue-based shaping	Supported	Supported	Supported
Load sharing	Supported	Supported	Supported
High-precision clock time synchronization	Supported	Supported	Supported
Type B protection (single-homing and dual-homing)	Supported	Supported	Supported
Type C protection (single-homing and dual-homing)	Supported	Supported	Supported
Rogue ONU detection and isolation	Supported	Supported	Supported
Automatic shutdown at high temperature	Supported	Supported	Supported
Automatic shutdown of an idle port	Supported	Supported	Supported
1588v2	Supported	Supported	Supported

From the above data, we can see that although they are all GPFD 16 port GPON board, but different versions, the parameters are still different, especially MAC addresses and 4-level HQoS.
The current mainstream version is the H805 version, when you are buying a product, you can ask the seller to indicate the version. Some sellers do not inform the clear version, causing customers to receive very old H802GPFD, etc. Although the price is low, the product version is old and cannot meet customer needs.
