Description

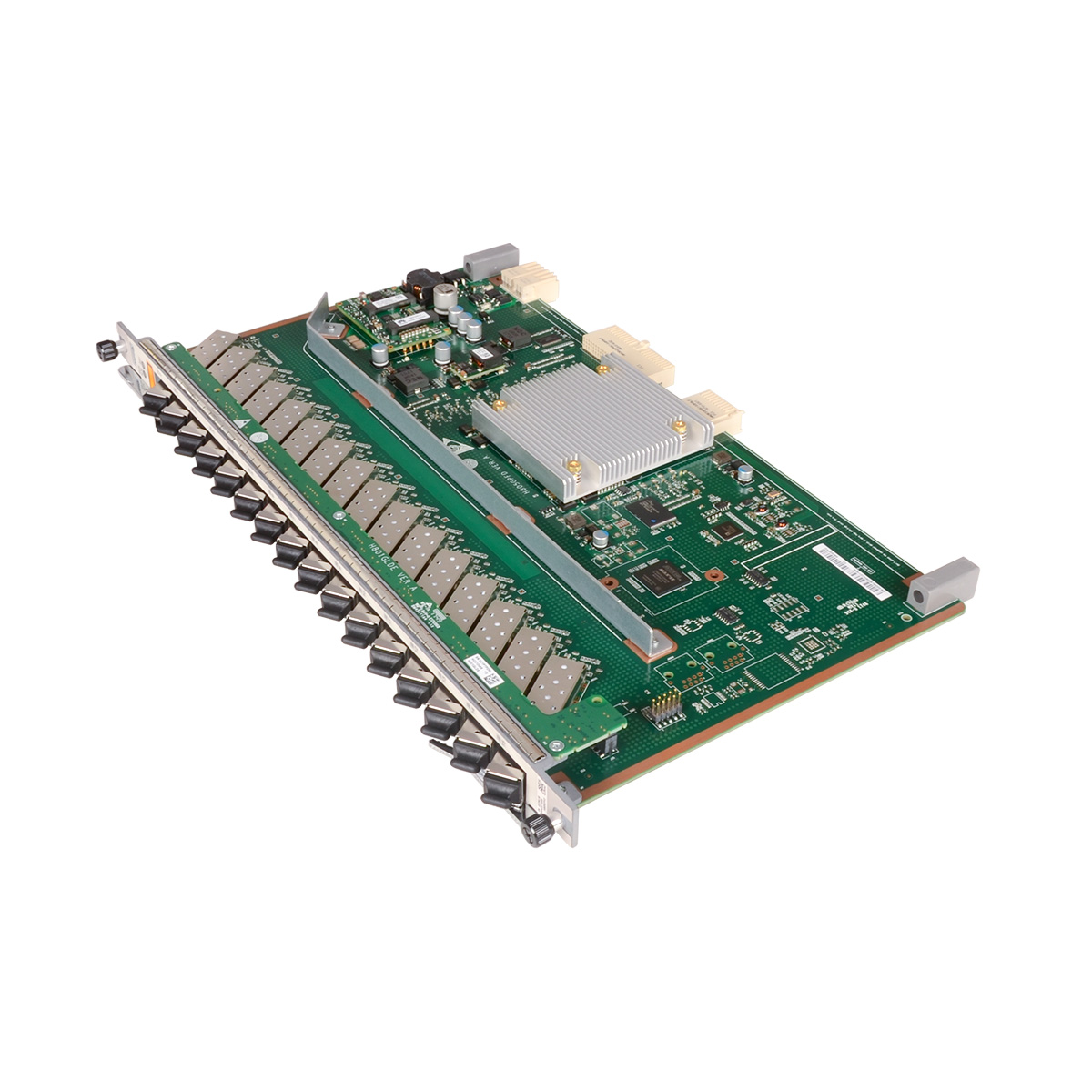

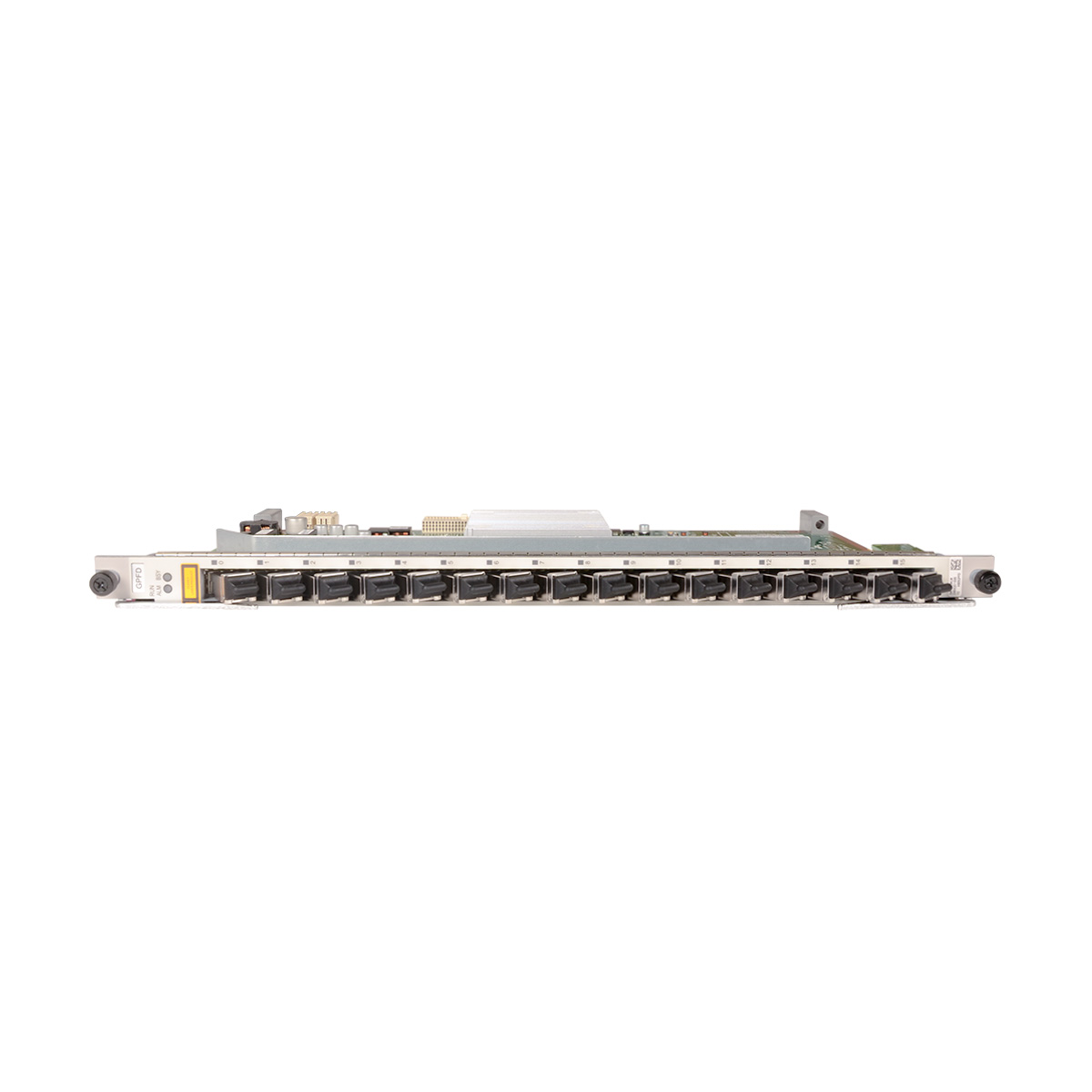

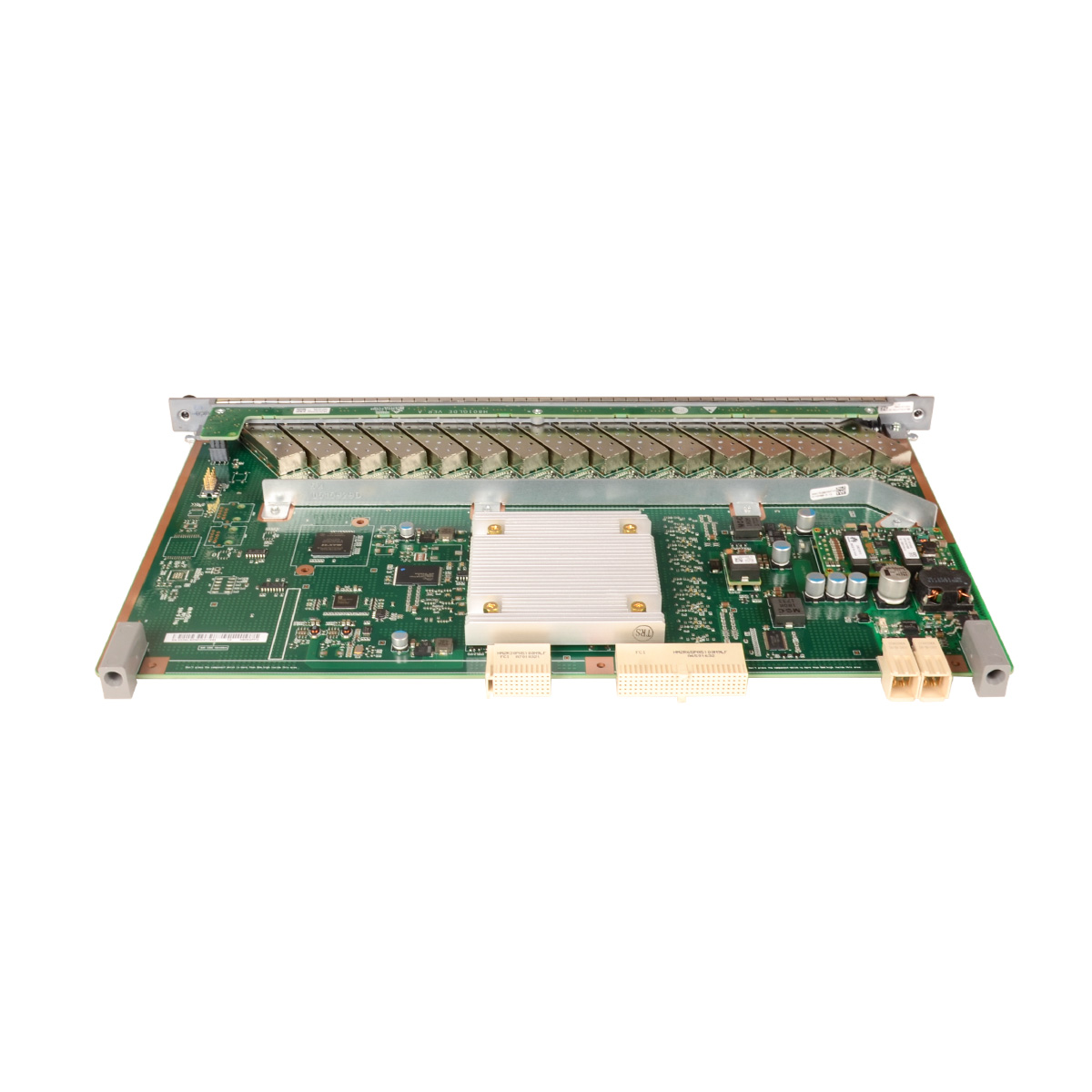

Huawei H805GPFD 16-port GPON OLT Interface Board with B+/C+/C++ module, which can be used in the Huawei MA5600T series OLTs: MA5608T MA5683T MA5680T.
Standards Compliance: ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3, ITU-T G.984.4
Interface Type: SC/PC
Operating Wavelength: Tx: 1490nm, Rx: 1310nm
Max. split radio:
Class B+: 1:64
Class C+/++: 1:128
- B+ SFP Module Optical Power: 1.5 dBm~5 dBm, Receiver Sensitivity: -28 dBm
- C+ SFP Module Optical Power: 3 dBm~7 dBm, Receiver Sensitivity: -32 dBm
- C++ SFP Module Optical Power: 6 dBm~10dBm, Receiver sensitivity: -35 dBm
Class B+/C+: Tx: 2.49Gbit/s Rx: 1.24Gbit/s
Class C++: Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s
Working principle of the H805GPFD board
