Description

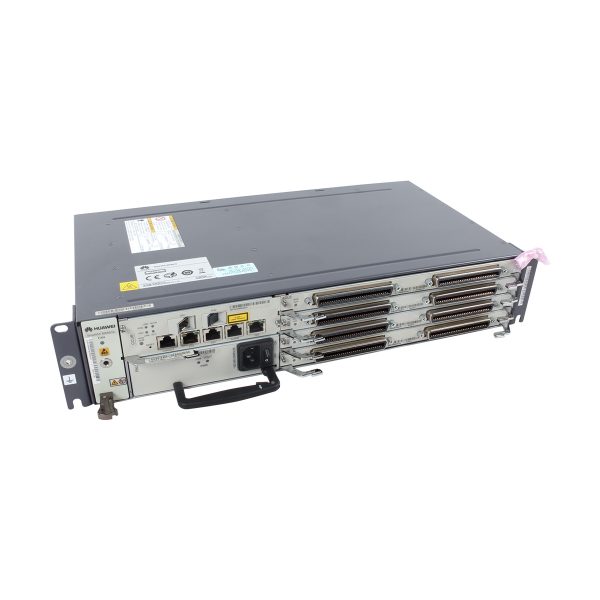

Huawei MA5616 H82BZ1MABA03 subrack with AC power
| Specification | |
| Network-side port | CCUB: 1*GPON + 1*GE or 2*GE or 1*EPON +1*GE |
| CCUC: 1*GPON + 1*GE or 2*GE | |
| CCUD: 1*GPON + 1*GE | |
| CCUE: 2*GPON/GE Adaptive or 1*GE+1*10G GPON | |
| User-side port | 16-channel VDSL2 over POTS (Supports 8a, 8c, 8d, 12a, 12b, 17a, and 30a spectrum profiles) |
| 24-channel VDSL2 over POTS(Supports 8a, 8b, 8c, 8d, 12a, 12b, and 17a spectrum profiles) | |
| 24-channel VDSL2 over ISDN(Supports 8a, 8b, 8c, 8d, 12a, 12b, and 17a spectrum profiles) | |
| 32-channel VDSL2 over POTS(Supports 8a, 8b, 8c, 8d, 12a, 12b, and 17a spectrum profiles) | |
| 32-channel VDSL2 over POTS(Supports system-level Vectoring function.) | |
| 48-channel VDSL2(Supports 8a, 8b, 8c, 8d, 12a, 12b, and 17a spectrum profiles) | |
| 48-channel VDSL2(Supports system-level Vectoring function) | |
| 64-channel POTS board | |
| 32-channel POTS board | |
| 8-channel ISDN board | |
| 16-channel G.SHDSL board (supporting ATM and PTM) | |
| 16-channel FE (electrical) board | |
| P2P board with 4 GE (combo of optical port and electrical port) + 4 FE (optical port) | |
| 32-channel ADSL2+ board (built-in SPL) | |
| 64-channel ADSL2+ board (built-in SPL) | |
| 32-channel combo board (32 × POTS + 32 × ADSL2+) | |
| Operating temperature | -40℃ to 65℃; startup at -25℃ |
| Humidity | 5% to 95% (non-condensing) |
| Heat dissipation mode | Providing fans for heat dissipation. The rotating speed can be automatically adjusted. |
| Power supply | AC: 220 V/110 V, DC: -48 V |
| Backup power | Support for 48-V backup power Support for lead-acid batteries and LiFePO4 batteries |
| Feature List | |
| Layer 2 management | MAC address management |
| VLAN management | |
| Flow bundle | |
| Layer 2 forwarding policies: Outer VLAN+MAC forwarding | |
| Layer 2 forwarding policies: Service VLAN (S-VLAN)+customer VLAN (C-VLAN) forwarding | |
| Layer 2 isolation | |
| Layer 2 bridging | |
| Transparent transmission of protocol packets | |
| 1:1 virtual MAC address (VMAC) | |
| N:1 VMAC | |
| Quality of service (QoS) | Traffic classification policies |
| Priority processing | |
| Traffic policing | |
| Congestion control | |
| Access control list (ACL) policies | |
| Emulation services | PPPoE dialup emulation |
| Dynamic Host Configuration Protocol (DHCP) dialup emulation | |
| Call emulation | |
| Multicast service emulation | |
| Layer 3 features | DHCP Client |
| Address Resolution Protocol (ARP) | |
| Domain name service (DNS) client | |
| Static route | |
| Multicast | Internet Group Management Protocol (IGMP) version 2 or version 3 proxy and snooping |
| Multicast users | |
| Multicast logs | |
| Port-based multicast connection admission control (CAC) | |
| IPv6 | IPv6 traffic classification |
| IPv6 ACL | |
| DHCPv6 layer 2 | |
| IPv6 basic protocol stack | |
| IPv6 basic routing | |
| IPv6 neighbor discovery (ND) | |
| IPv6 security | |
| IPv6 multicast listener discovery (MLD) | |
| The CCUB control board does not support IPv6 features. | |
| Voice services | H.248 |
| Session Initiation Protocol (SIP) | |
| Semi-permanent connections (SPCs) | |
| Voice signal processing | |
| Voice service test and maintenance | |
| Reliability of voice services | |
| ISDN BRA | H.248 |
| SIP | |
| ISDN attendant system (H.248 is used) | |
| Networking features | Multiple Spanning Tree Protocol (MSTP) |
| Link Aggregation Control Protocol (LACP) | |
| Layer 2 virtual private network (L2VPN) | |
| PON type B protection | |
| GPON type C protection | |
| User security | Policy Information Transfer Protocol (PITP) |
| DHCP option 82 | |
| Relay agent info option (RAIO) | |
| MAC address anti-flapping | |
| MAC address anti-spoofing | |
| IP address anti-spoofing | |
| Access user isolation | |
| Ring check | |
| 802.1X authentication | |
| Note: The CCUB control board does not support 802.1X authentication. | |
| System security | Source MAC address filtering |
| Destination MAC address filtering | |
| Denial of service (DoS) anti-attack | |
| IP packet anti-attack | |
| Internet Control Message Protocol (ICMP) packet anti-attack | |
| Source route filtering | |
| Firewall | |
| Blacklist | |
| Permitted or denied address segment | |
| Service overload control | |
| Operation and maintenance security | SNMP |
| SSH | |
| User management | |
| Remote connection security | |
| Log management | |
| Line security | Advanced Encryption Standard (AES) 128 encryption for GPON downstream transmission |
| AES 128 encryption for 10G GPON downstream transmission | |
| Note: Only the CCUD and CCUE support AES128 encryption. | |
| Operation and maintenance features | Ethernet operations, administration and maintenance (OAM), including connectivity fault management (CFM) and Ethernet in the first mile (EFM) |
| Enabling or disabling ETH OAM 802.1ag globally | |
| Y.1731-defined CFM | |
| Y.1731-defined bidirectional diagnosis tests, including bit error rate (BER) tests | |
| Access Node Control Protocol (ANCP) | |
| Single-ended loop test (SELT) | |
| Metallic loop test (MELT) | |
| NOTE: Only the VCMM and VDMM service boards support MELT. | |
| Batch dynamic line management (DLM) performance statistics measurement | |
| Line optimization | |
| Startup time optimization | |
| Local operation and maintenance | |
| Remote operation and user management | |
| Version and data management | |
| Device exception management | |
| GPON MxU authentication | |
| Remote DHCP software commissioning for GE upstream transmission | |
| Remote network access control (NAC) software commissioning for GE upstream transmission | |
| N2510 intelligent diagnosis | |
| Clock features | Network time synchronization |
| Line clocks recovered on upstream ports | |
| Environment monitoring | Providing one environment monitoring port that supports four digital parameters (default: smoke, door status, surge protection, and main distribution frame) |
| 4830 power monitoring | |
| SMU | |
| MiniESC | |
| Mechanical Specifications | |
| Dimensions (H×W×D) | 88.1 mm x 442 mm x 245 mm (without mounting ears) |
| 88.1 mm x 482.6 mm x 245 mm (with mounting ears) | |
| Weight | 4.8 kg (empty chassis) |
| 7.2 kg (full configuration) | |
