Description

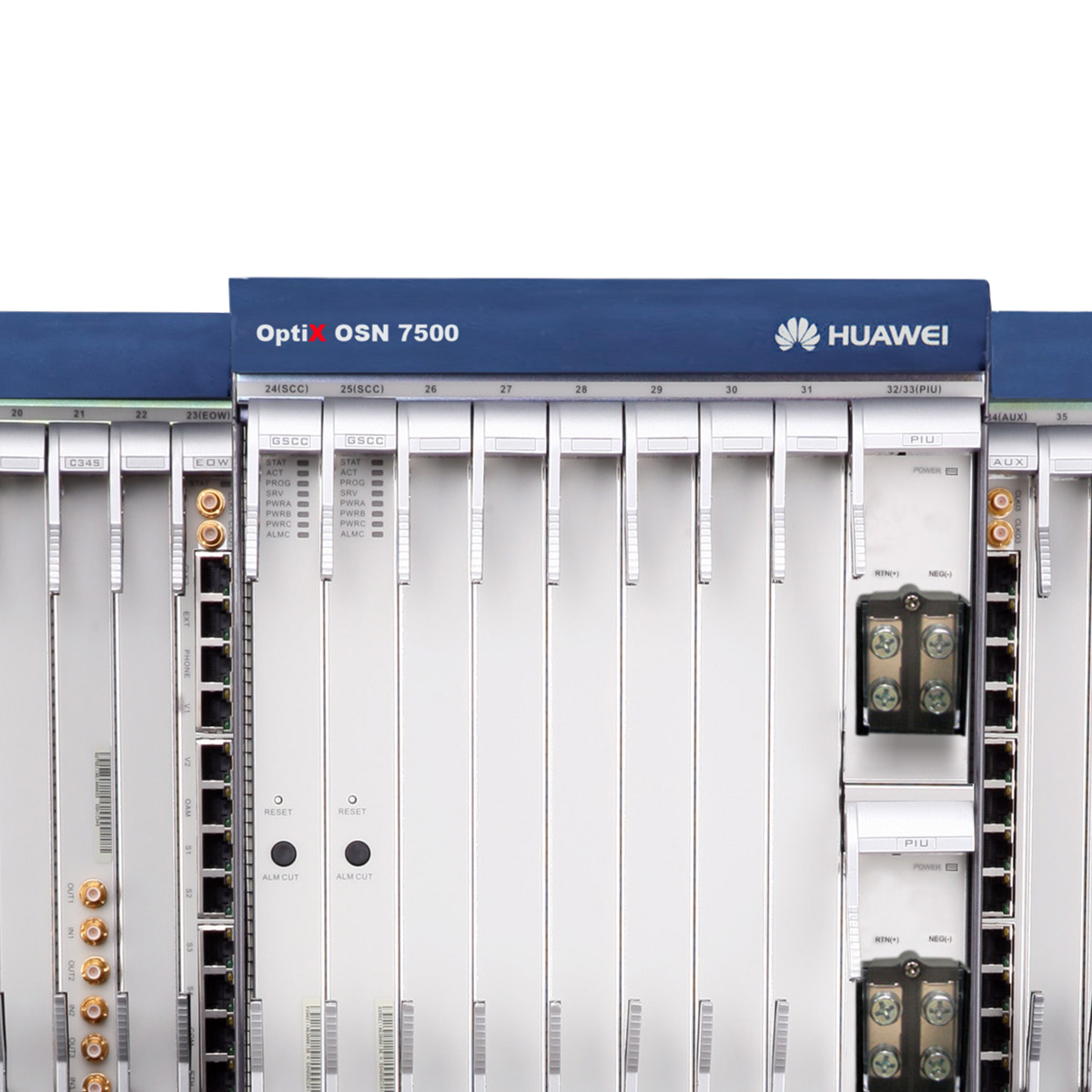

OSN7500 empty subrack SSNESUBRACK default equipped with 2 SSN1PIU (Power Interface Unit), 1 SSN1AUX (System Auxiliary Interface Board), 2 PCS power cable, 1 PCS earth cable, 1 accessory package.
| Specifications | ||||
| Switching Capacity | TDM: 360 Gbit/s (higher order), 40Gbit/s (lower order) Packet: 160 Gbit/s |
|||
| Service Slots | 22 slots for interface boards and 8 slots for processing boards | |||
| Supported Interfaces | MSTP interfaces | STM-1/4/16/64, E1/E3/E4/T1/T3, FE/GE/10GE, DDN, IMA/ATM, FEC/EFEC, E1 optical interface, SAN, Video | ||
| Packet transport interfaces |
E1, ch STM-1, ATM STM-1, FE/GE/10GE | |||
| WDM interfaces | 40-channel DWDM interfaces, compliant with ITU-T G.694.1 8-channel CWDM interfaces, compliant with ITU-T G.694.2 |
|||
| Power Supply | DC: -48V DC or -60V DC, AC: 220V/110V AC | |||
| Maximum Number of Services Supported by a Single Subrack | Service Interface | Max | Service Interface | Max |
| STM-64 | 28 | STM-16 | 112 | |
| STM-4 | 352 | STM-1 | 352 | |
| STM-1 (electrical) | 66 | E4 | 16 | |
| E3/T3 | 102 | E1/T1 | 252 | |
| E1 Optical | 176 | FE | 208 | |
| GE | 256 | 10GE | 44 | |
| DDN (N×64K) | 34 | Framed E1 | 32 | |
| STM-1 ATM | 88 | STM-4 ATM | 22 | |
| ESCON | 88 | FICON/FC100 | 44 | |
| FC200 | 22 | DVB-ASI | 88 | |
| Clock Synchronization | Line clock source Tributary clock source Two external clock inputs/outputs (2 MHz or 2 Mbit/s) |
|||
| Auxiliary Interface | Orderwire interface, NNI connection interfaces. RS-232 remote maintenance interface, F1 interface for the 64 kbit/s codirectional data channel, Ethernet NM interfaces, management serial interface F&f. Alarm interface, Cabinet alarm indicator interface. |
|||
| Mechanical Specifications | ||||
| Dimensions(mm) | 757mm(H)×497mm(W)×295mm(D) | |||
| Weight(kg) | 44 | |||
