Description

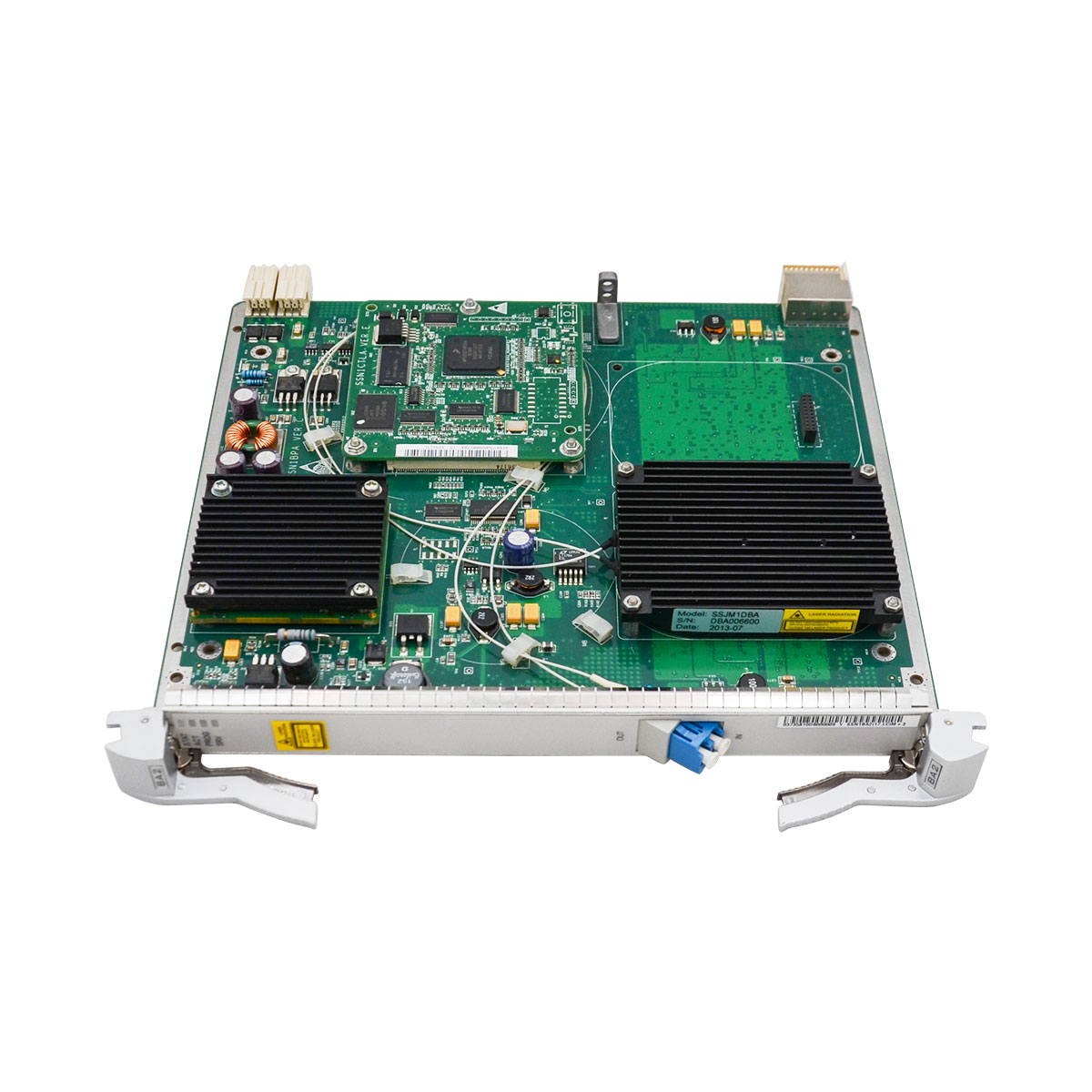

SSN1BA2(17,LC)M+3 overview
SSN1BA2(17,LC)M+3 is an optical amplifier board for Huawei OSN1500B, OSN2500, OSN3500, OSN7500.
The SSN1BA2(17,LC)M+3 working together with V-16.2, U-16.2, L-64.2, V-64.2 and U-64.2 optical service board, deploy at transmit side to increase two-channel launched optical power of the line board to 14dBm.
- Dual Booster Amplifier Board(-6dBm~+3dBm,17dBm,LC)
- Increases the launched optical power of the line board to 13–15 dBm or 15–18 dBm.
- Supports the automatic control of the laser temperature and optical power of the EDFA module.
- Supports the automatic monitoring of input/output optical power of EDFA module and query of optical power of EDFA module.
- Supports the protection function of the EDFA module.
- Supports the reporting of the performance parameters of the laser.
- Supports the software upgrade and expansion without interrupting services.
Functional version
| Board | Start Version |
|---|---|
| N1BA2 | V100R001 |

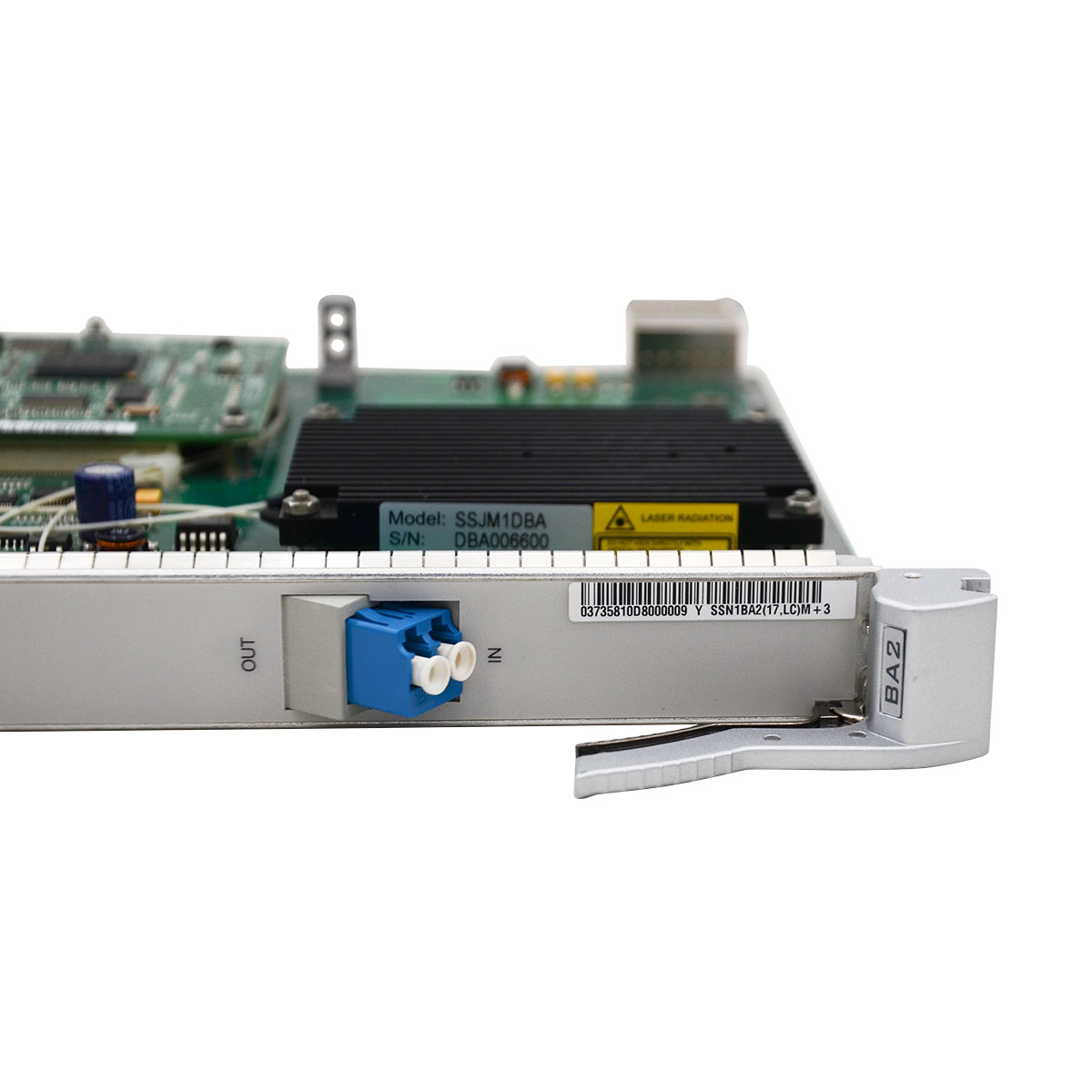

Front panel of the one-interfaceSSN1BA2(17,LC)M+3
