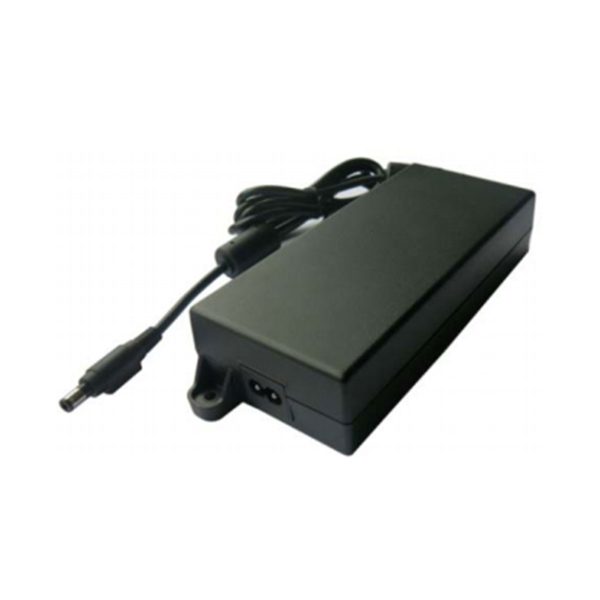

HW-560268D0D

HW-560268D0D

HW-560268D0D (Adapter, -5degC, 45degC, 90V, 290V, 55.5V/2.71A, C8/3.0*6.5*12.5mm H PLUS)

SKU: 2014872 PN: 02221024 Category:

Description

Basic information about the HW-560268D0D



Item Details
Description Adapter, -5degC, 45degC, 90V, 290V, 55.5V/2.71A, C8/3.0*6.5*12.5mm H PLUS
Part Number 02221024
Model HW-560268D0D
Remarks This power adapter is used with the power adapter transfer cable (model: LIN2P-YIN; part number: 04052074).



Mappings between HW-560268D0D and product models



Product Product Model First Supported Version Last Supported Version Unsupported Version
AR600 AR651W-8P (50010492) V300R019C13
AR600 AR651W-8P (50010492) V300R019C13
AR600 AR651W-8P (50010492-001) V300R022C00
AR600 AR651W-8P (50010492-001) V300R022C00
AR6100 AR6120-VW (02352CQY) V300R019C00
Item HW-560268D0D
Dimensions without packaging (H x W x D) [mm(in.)] 44 mm x 80 mm x 180 mm (1.73 in. x 3.15 in. x 7.09 in.)
Weight without packaging [kg(lb)] 0.75 kg (1.65 lb)
Rated input voltage [V] 100 V AC to 240 V AC, 50 Hz/60 Hz
Input voltage range [V] 90 V AC to 290 V AC, 47 Hz to 63 Hz
Maximum input current [A] 2 A
Rated output voltage [V] 56 V DC
Rated output power [W] 150 W
Power dissipation Mode

Natural heat dissipation

Do not touch the power adapter for a long time because the plastic shell may be slightly hot when the power adapter is heavily loaded. This condition does not affect the performance and reliability of the adapter.

Hot swapping Not supported
