Description

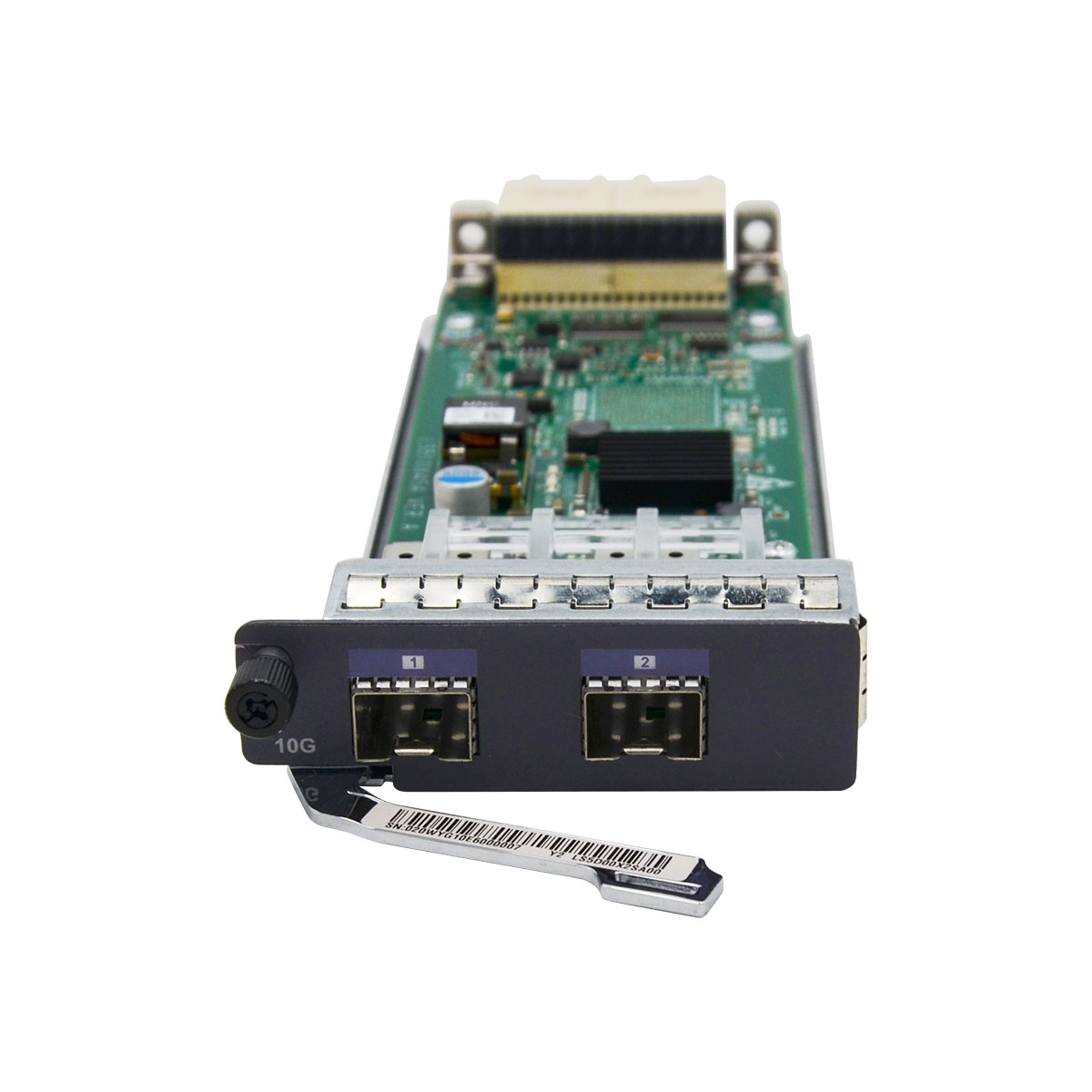

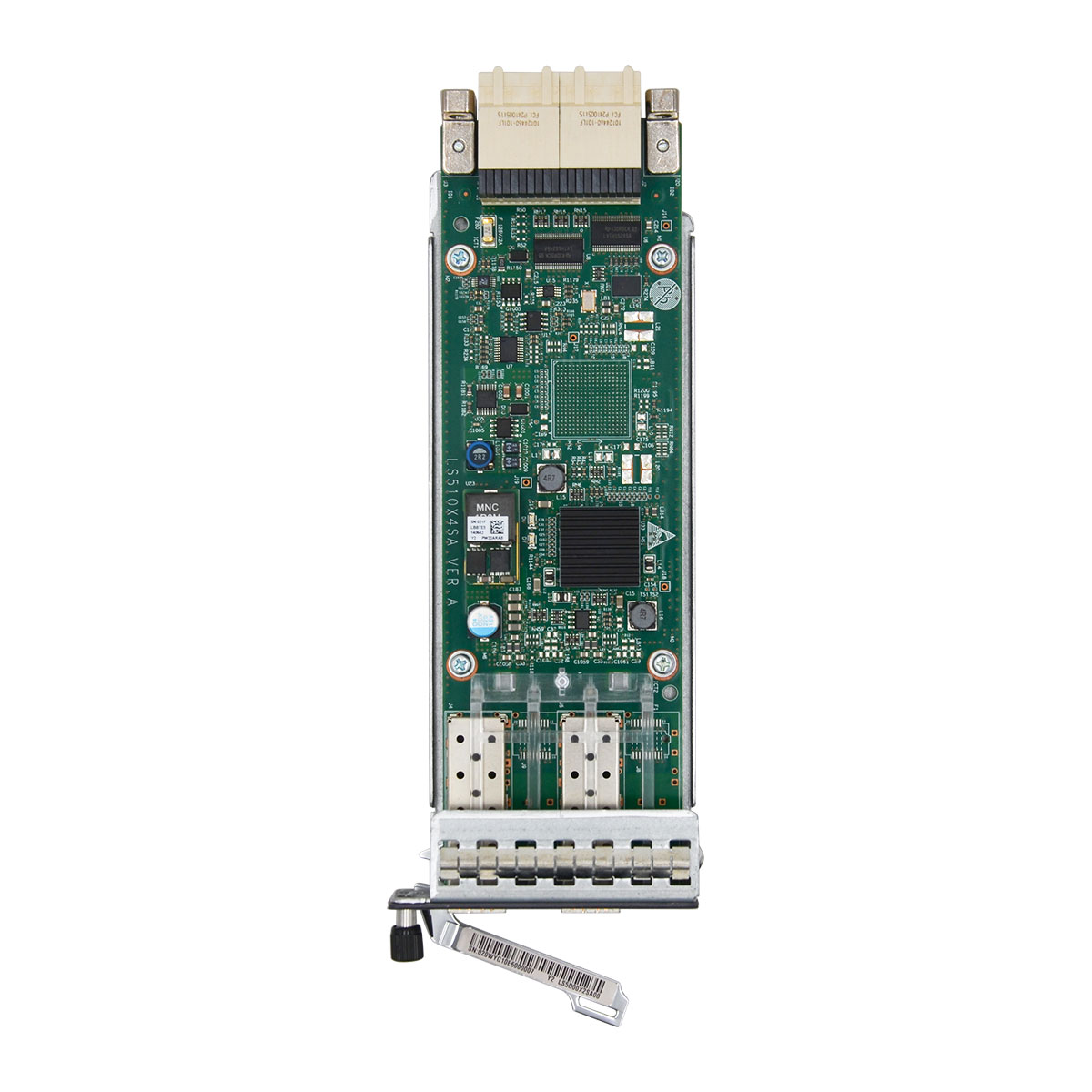

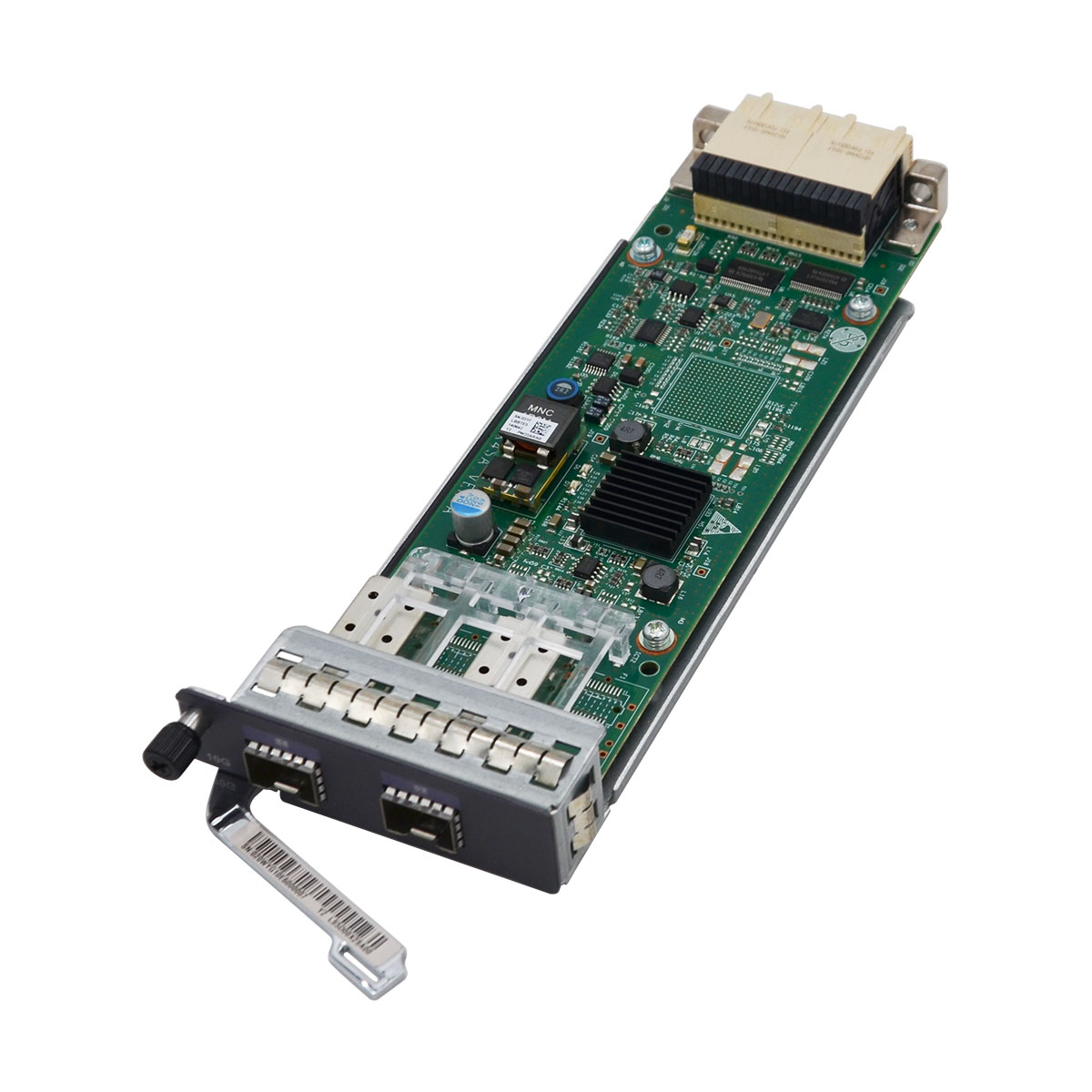

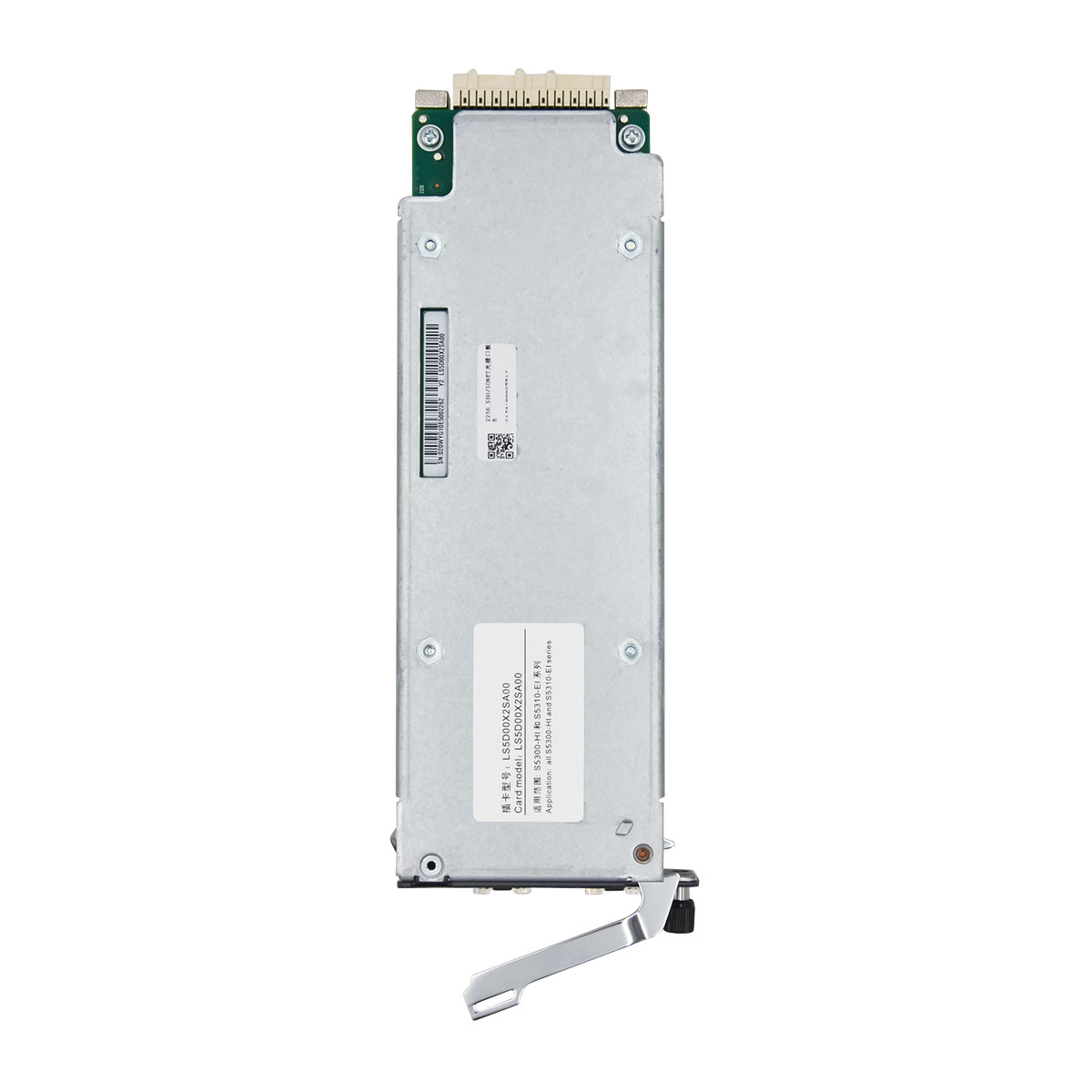

2 Port GE SFP/10GE SFP+ Optical Interface Card
Used In S5300 HI&S5310 EI Series
| Item | LS5D00X2SA00 | ||||
| Attributes of an SFP optical port | |||||
| Connector type | LC/PC | ||||
| Standards compliance | IEEE 802.3ae | ||||
| Attributes of GE optical modules | |||||
| Model | Transmission Distance (km) | Standard | Fiber Type | ||
| eSFP-GE-SX-MM850 | ≤ 0.22 | 1000base-SX |
|
||
| ≤ 0.275 | 1000base-SX |
|
|||
| ≤ 0.5 | 1000base-SX |
|
|||
| ≤ 0.55 | 1000base-SX |
|
|||
| ≤ 1 | 1000base-SX |
|
|||
| SFP-GE-LX-SM1310 | ≤ 10 | 1000base-LX/LH |
|
||
| S-SFP-GE-LH40-SM1310 | ≤ 40 | 1000base-LX/LH | |||
| S-SFP-GE-LH40-SM1550 | ≤ 40 | 1000base-LX/LH | |||
| S-SFP-GE-LH80-SM1550 | ≤ 80 | 1000base-ZX | |||
| eSFP-GE-ZX100-SM1550 | ≤ 100 | 1000base-ZX | |||
| SFP-GE-LX-SM1310-BIDI
(Single-fiber single-fiber bidirectional optical module) |
≤ 10 | 1000base-BX | |||
| SFP-GE-LX-SM1490-BIDI
(Single-fiber single-fiber bidirectional optical module) |
≤ 10 | 1000base-BX | |||
| LE2MGSC40DE0
(Single-fiber single-fiber bidirectional optical module) |
≤ 40 | 1000base-BX | |||
| LE2MGSC40ED0
(Single-fiber single-fiber bidirectional optical module) |
≤ 40 | 1000base-BX | |||
| SFP-GE-ZBXD1
(Single-fiber single-fiber bidirectional optical module) |
≤ 80 | 1000base-BX | |||
| SFP-GE-ZBXU1
(Single-fiber single-fiber bidirectional optical module) |
≤ 80 | 1000base-BX | |||
| SFP-GE-BXU1-SC
(Single-fiber single-fiber bidirectional optical module) |
≤ 10 | 1000base-BX |
|
||
| Optical parameters of GE optical modules | |||||
| Model | Center Wavelength (nm) | Transmit Power (dBm) | Receiver Sensitivity (dBm) | Overload Optical Power (dBm) | Extinction Ratio (dB) |
| eSFP-GE-SX-MM850 | 850 | -9.5 to -2.5 | ≤ -17 | 0 | ≥ 9 |
| SFP-GE-LX-SM1310 | 1310 | -9.0 to -3.0 | ≤ -20 | -3.0 | ≥ 9 |
| S-SFP-GE-LH40-SM1310 | 1310 | -5.0 to 0 | ≤ -23 | -3.0 | ≥ 9 |
| S-SFP-GE-LH40-SM1550 | 1550 | -5.0 to 0 | ≤ -22 | -3.0 | ≥ 8.5 |
| S-SFP-GE-LH80-SM1550 | 1550 | -2.0 to +5.0 | ≤ -23 | -3.0 | ≥ 9 |
| eSFP-GE-ZX100-SM1550 | 1550 | 0 to 5 | ≤ -30 | -9.0 | ≥ 9 |
| SFP-GE-LX-SM1310-BIDI
(Single-fiber single-fiber bidirectional optical module) |
RX1490/TX1310 | -9.0 to -3.0 | ≤ -19.5 | -3.0 | ≥ 6 |
| SFP-GE-LX-SM1490-BIDI
(Single-fiber single-fiber bidirectional optical module) |
RX1310/TX1490 | -9.0 to -3.0 | ≤ -19.5 | -3.0 | ≥ 6 |
| LE2MGSC40DE0
(Single-fiber single-fiber bidirectional optical module) |
RX1490/TX1310 | -2.0 to +3.0 | ≤ -23 | -3.0 | ≥ 9 |
| LE2MGSC40ED0
(Single-fiber single-fiber bidirectional optical module) |
RX1310/TX1490 | -2.0 to +3.0 | ≤ -23 | -3.0 | ≥ 9 |
| SFP-GE-BXU1-SC
(Single-fiber single-fiber bidirectional optical module) |
RX1310/TX1490 | -9.0 to -3.0 | ≤ -19.5 | -3.0 | ≥ 9 |
| SFP-GE-ZBXD1
(Single-fiber single-fiber bidirectional optical module) |
RX1490/TX1570 | -2.0 to +4.0 | ≤ -26 | -3.0 | ≥ 9 |
| SFP-GE-ZBXU1
(Single-fiber single-fiber bidirectional optical module) |
RX1570/TX1490 | -2.0 to +4.0 | ≤ -26 | -3.0 | ≥ 9 |
| Attributes of 10GE SFP+ optical modules | |||||
| Model | Transmission Distance (km) | Standard | Fiber Type | Center Wavelength (nm) | Transmit Power (dBm) |
| SFP-10G-USR | ≤ 0.1 | 10Gbase-USR | Fiber mode: multimode (OM3)
Connector type: LC |
850 | -7.3 to -1.0 |
| OSXD22N00 | ≤ 0.1 | 10Gbase-LRM | Fiber mode: multimode
Modal bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC |
1310 | -6.5 to 0.5 |
| ≤ 0.22 | 10Gbase-LRM | Fiber mode: multimode
Modal bandwidth: 500 MHz*km Core diameter: 62.5 μm Connector type: LC |
|||
| ≤ 0.22 | 10Gbase-LRM | Fiber mode: multimode (OM1, OM2, OM3)
Connector type: LC |
|||
| OMXD3000 | ≤ 0.026 | 10Gbase-SR | Fiber mode: multimode
Modal bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC |
850 | -7.3 to -1.0 |
| ≤ 0.033 | 10Gbase-SR | Fiber mode: multimode (OM1)
Connector type: LC |
|||
| ≤ 0.066 | 10Gbase-SR | Fiber mode: multimode
Modal bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC |
|||
| ≤ 0.082 | 10Gbase-SR | Fiber mode: multimode (OM2)
Connector type: LC |
|||
| ≤ 0.3 | 10Gbase-SR | Fiber mode: multimode (OM3)
Connector type: LC |
|||
| ≤ 0.4 | 10Gbase-SR | Fiber mode: multimode (OM4)
Connector type: LC |
|||
| OSX01000 | ≤ 10 | 10Gbase-LR | Fiber mode: single-mode
Connector type: LC |
1310 | -8.2 to 0.5 |
| OSX040N01 | ≤ 40 | 10Gbase-ER | 1550 | -4.7 to 4.0 | |
| SFP-10G-BXU1 (bidirectional single-mode fiber) | ≤ 10 | 10GBase-BX | RX1330/TX1270 | -8.2 to 0.5 | |
| SFP-10G-BXD1 (bidirectional single-mode fiber) | ≤ 10 | 10GBase-BX | RX1270/TX1330 | -8.2 to 0.5 | |
| SFP-10G-ZR
limiting |
≤ 80 | 10Gbase-ZR | 1550 | 0 to 4.0 | |
| Attributes of a 10GE-CWDM optical module | |||||
| Model | Encapsulation type | Transmission distance | Fiber mode, connector type | Standard | Operating temperature |
| 1471, SFP-10G-ZCW1471 | SFP+ | 70 km | single-mode, LC | CWDM | 0°C to 70°C |
| 1491, SFP-10G-ZCW1491 | |||||
| 1511, SFP-10G-ZCW1511 | |||||
| 1531, SFP-10G-ZCW1531 | |||||
| 1551, SFP-10G-ZCW1551 | |||||
| 1571, SFP-10G-ZCW1571 | |||||
| 1591, SFP-10G-ZCW1591 | |||||
| 1611, SFP-10G-ZCW1611 | |||||
|
|||||
| Physical specifications | |||||
| Dimensions (mm) | 77 (W)x 207 (D) x 23 (H) | ||||
| Weight (kg) | 0.5 | ||||
| Maximum power consumption (W) | 7 | ||||
| Environment parameters | |||||
| Operating temperature | -5°C to +55°C | ||||
| Relative humidity | 5% RH to 95% RH | ||||
| Storage temperature | -40°C to +70°C | ||||
