M454
M454 2.4G&5G CATV GPON Terminal with 4*GE+1*POTS+1*USB+CATV+2.4G/5G WIFI, 4 antennas
3-5 days
Shenzhen Warehouse
- Description
- DATASHEET
- Comparison
- FAQ
- Download
- Reviews (5)
Description
M454 overview

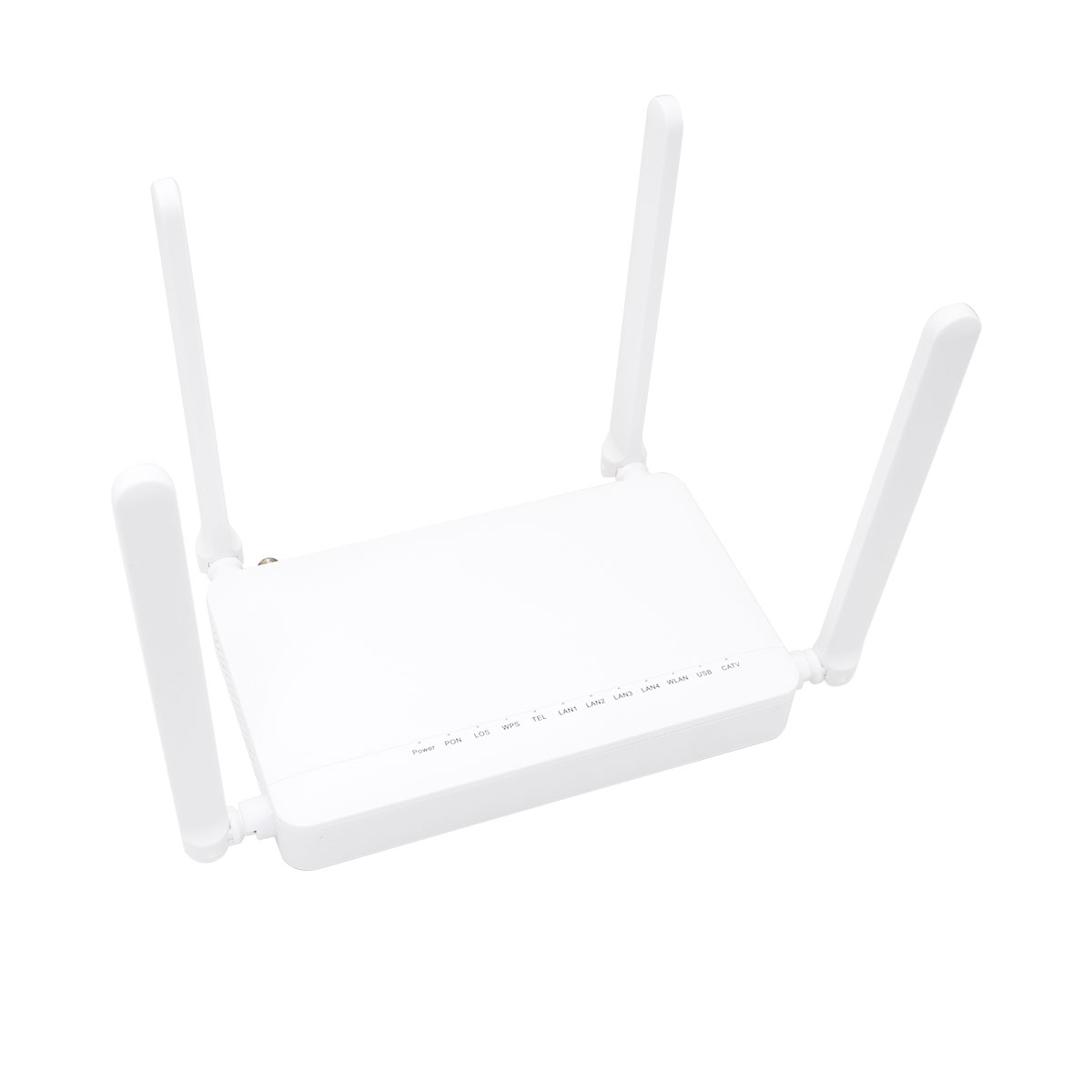

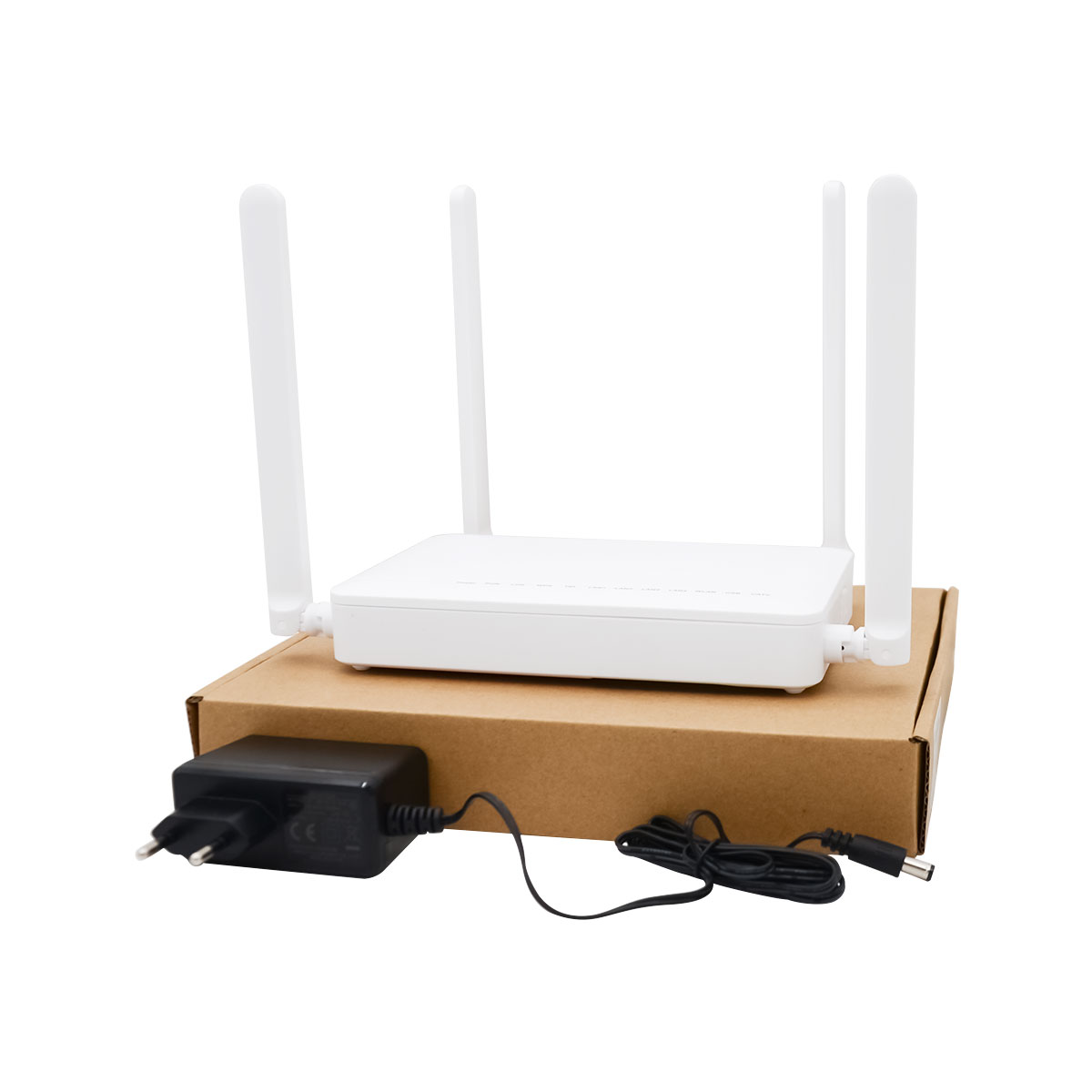

M454 is a 2.4G&5G WIFI CATV GPON Terminal with 4*GE+1*POTS+1*USB+CATV+2.4G/5G WIFI, and 4 antennas.
The M454 GPON ONT is specially designed to meet the FTTH and triple-play service needs of fixed-line operators or cable operators. Based on the mature, stable, cost-effective Gigabit GPON technology and ZTE’s perfect solution, it adopts layer 2/3 technology, integrates CATV, and is flexible in configuration. The QoS of different services is guaranteed, and it fully complies with technical specifications such as Cable TV and international telecommunication GPON equipment technical requirements, with high reliability and easy maintenance.
M454 fast spec
ZTE Chipset solution
RF/CATV is controllable via OLT
Compatible with Huawei/ZTE/Nokia OLT
Antenna Gain: 5dBi
Connector type: SC/APC
ENG firmware, ENG interface, ENG indicators, CE Label
OMCI TR069 Supported
WiFi Standard: IEEE 802.11b、 IEEE 802.11g、 IEEE 802.11n
| Item | M454 |
| Working environment | Operating temperature: 0ºC to 40ºC |
| Environment humidity: 5% to 95% (noncondensing) | |
| Static power consumption | 7.5 W |
| Power specifications | Power adapter input: 100 to 240 V AC, 50–60 Hz |
| System power supply: 11–14 V DC, 1 A | |
| Network-side Port | GPON |

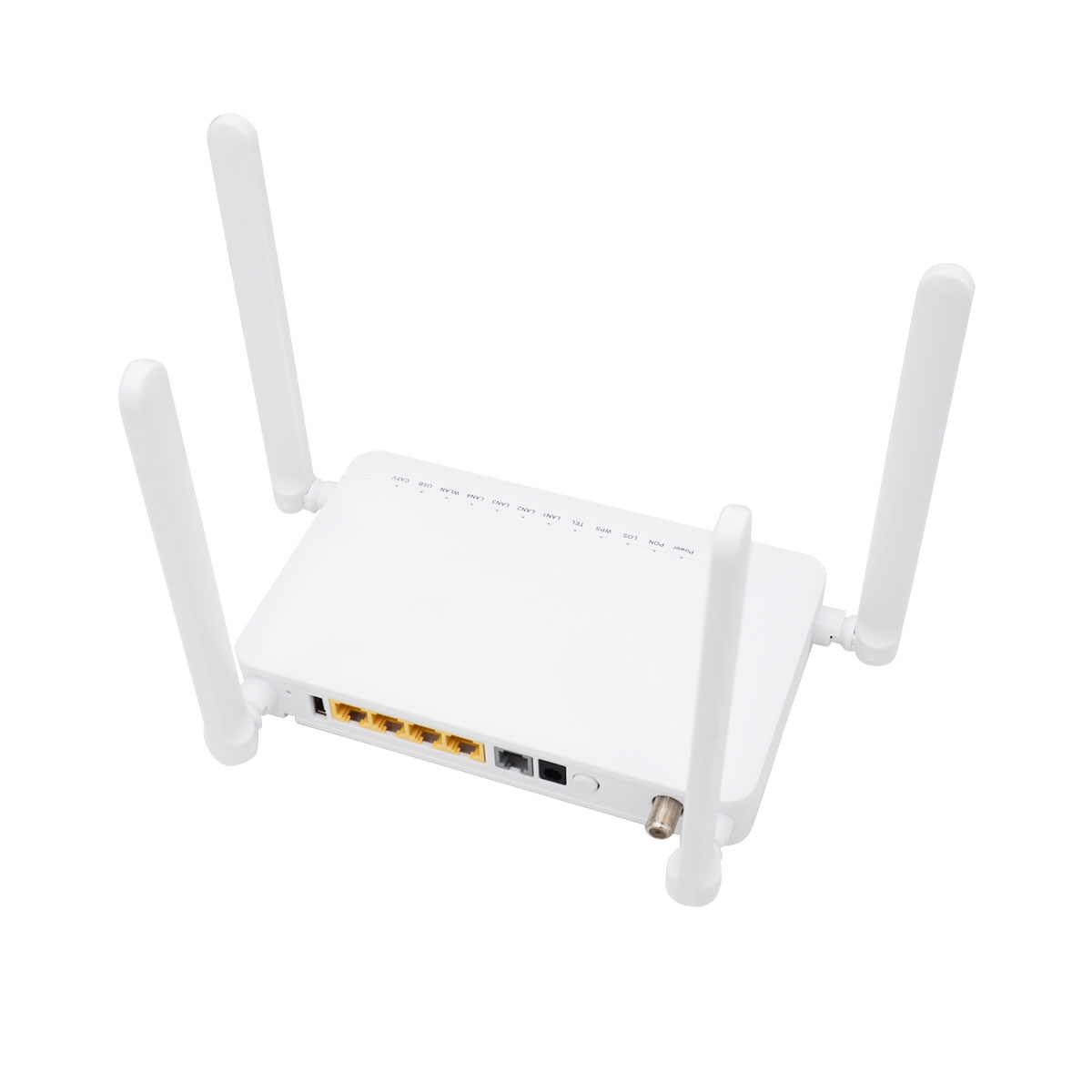

| User-side Ports | 4*GE+1*POTS+1*USB+CATV+2.4G/5G WIFI |
| Indicators | POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS/CATV |
WIFI CATV Model Compraration
| Model | M454 | F668V | EG8247H5 | EG8141A5 | EG8247W5 |
| Brand | OEM | OEM | Huawei | Huawei | Huawei |
| Ports | 4GE+1POTS+1USB+CATV | 1*GE+3*FE+1*POTS+2*USB+CATV | 1*GE+3*FE+1*POTS+1*USB+1*CATV | 1*GE+3*FE+1*POTS+1*USB+CATV | 4GE+1POTS+USB+CATV |
| WI-FI | 2.4G/5G4 | antenna | 2.4/5G | 2.4G | 2.4G |
| RF Controllable | Yes | Yes | Yes | Yes | No |
Q: Is M454 compatible with ZTE OLT?
A: M454 is a solution based on ZTE regardless of PCB, chipset, or firmware, so it is not only compatible with ZTE OLT but also supports ZTE OMCI protocol.
Q: Is the CATV function of M454 controllable?
A: The CATV/FR interface of M454 is controllable, of course, you can also choose an uncontrollable version.
Q: What is the difference between 4 antennas and two antennas?
A: Four antennas can effectively improve the coverage and stability of WIFI. M454 also has a version with two antennas available.
Q: Does the M454 support voice calls?
A: M454 is available in two versions with POTS and without POTS.
Jamie McNeil –
When this model finished in production and after many tests they send me one for testing. And it showed good performance, also the price is good. A really good replacement.
David –
Compatible with my MA5800-X7 OLT, and no POTS function saves me 2 USD/pcs.
Bard –
I bought two to test, and if all goes well, I will buy in bulk.
José Torras –
Este modelo es compatible con el protocolo ZTE OMCI, y nuestros ingenieros pueden gestionarlo directamente por mando, lo que es conveniente para nosotros.
Andres –
M454 is compatible with Huawei OLT, and Huawei OLT can control it remotely.
