M680

1 Review Write a review
SKU2025778
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

M680 congfigure with 4GE+1USB+1POTS+CATV+2.4G&5G and similar to ZTE F668P, F680; Huawei EG8247H5.

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

M680 Overview

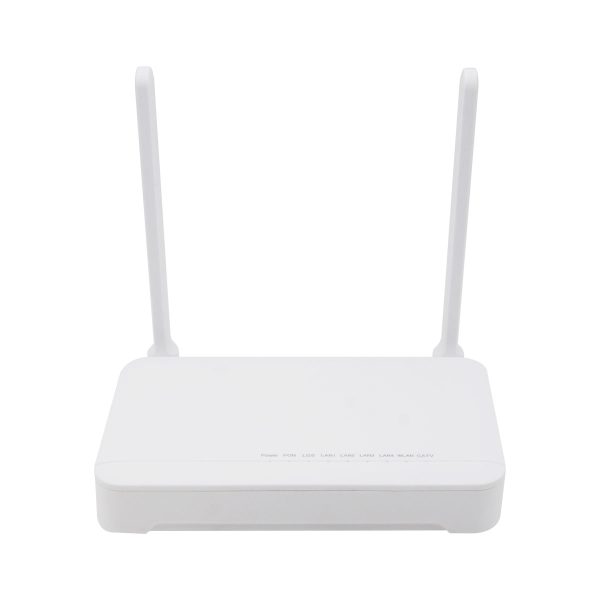

M680 Optical Network Terminal (ONT) an advanced solution designed to enhance your network connectivity experience.



The M680 provides 4*GE, 1*POTS voice interface, 1*USB interface, CATV, 2.4G& 5G Wi-Fi.



Through high-performance forwarding capabillities, it effectively guarantees the srvice experience of voice, data and 4K/VR, providing customers with ideal all-opticcal access solutions and future-oriented business support capabilities.

M680H3 2SCATV 01 1

M680H3 2SCATV 02

M680_03

For more customized requirements, please contact us: csd@telecomate.com

Device Specifications
Ports: 4GE+1USB+1POTS+CATV Operating temperature: 0°C to +40C
Indicators: POWE/PON/LOS/LAN/WLAN/CATV Operating humidity: 5%RH to 95%RH (non-condensing)
Power supply: 11-13V DC, 1-1.5A Weigh: About 250g
Ratedin putrange: 12V DC, 1.5A Dimensions(H*W*D): 30mm*190mm*140mm (with an external antenna)
InterfacesParameters
Opticalport: 1xGPON interface(SC/APC) Operating temperature: 0°C to +40C
Receiver sensitivity: -27dBm Wavelengths: US1310nm, DS1490nm
Transmission Distance: 0-20km Transmit rate: 2.488Gbps Downstream 1.244Gbps Upstream
User network interface: 4xGE 1xCATV interface WLAN: IEEE 802.11 b/g/n/ac Antenna gain: 5dBi WPS
GPON Class B+
Function
Supported Services: VolP, internet, CATV VLAN: 802.1Q, 802.1P, 802.1ad
VolP: SIP/H.248, G.711/G.729, T.30/T.38 L3 function: DHCP server/Client/Relay, NAT
Wi-Fi authentication: WPA-PSK, WPA2-PSK, WPA-PSK+WPA2-PSK Wi-Fi: WPS
USB: USB backup Management: Web Ul, TR069, ACS


Additional information

Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Device Specifications
Ports: 4GE+1USB+1POTS+CATV Operating temperature: 0°C to +40C
Indicators: POWE/PON/LOS/LAN/WLAN/CATV Operating humidity: 5%RH to 95%RH (non-condensing)
Power supply: 11-13V DC, 1-1.5A Weigh: About 250g
Ratedin putrange: 12V DC, 1.5A Dimensions(H*W*D): 30mm*190mm*140mm (with an external antenna)
InterfacesParameters
Opticalport: 1xGPON interface(SC/APC) Operating temperature: 0°C to +40C
Receiver sensitivity: -27dBm Wavelengths: US1310nm, DS1490nm
Transmission Distance: 0-20km Transmit rate: 2.488Gbps Downstream 1.244Gbps Upstream
User network interface: 4xGE 1xCATV interface WLAN: IEEE 802.11 b/g/n/ac Antenna gain: 5dBi WPS
GPON Class B+
Function
Supported Services: VolP, internet, CATV VLAN: 802.1Q, 802.1P, 802.1ad
VolP: SIP/H.248, G.711/G.729, T.30/T.38 L3 function: DHCP server/Client/Relay, NAT
Wi-Fi authentication: WPA-PSK, WPA2-PSK, WPA-PSK+WPA2-PSK Wi-Fi: WPS
USB: USB backup Management: Web Ul, TR069, ACS


Reviews

  1. Jaxon –

    It is easy to use and has a friendly management interface. For our small and micro enterprises, it not only saves costs but also improves network quality. It is highly recommended!
