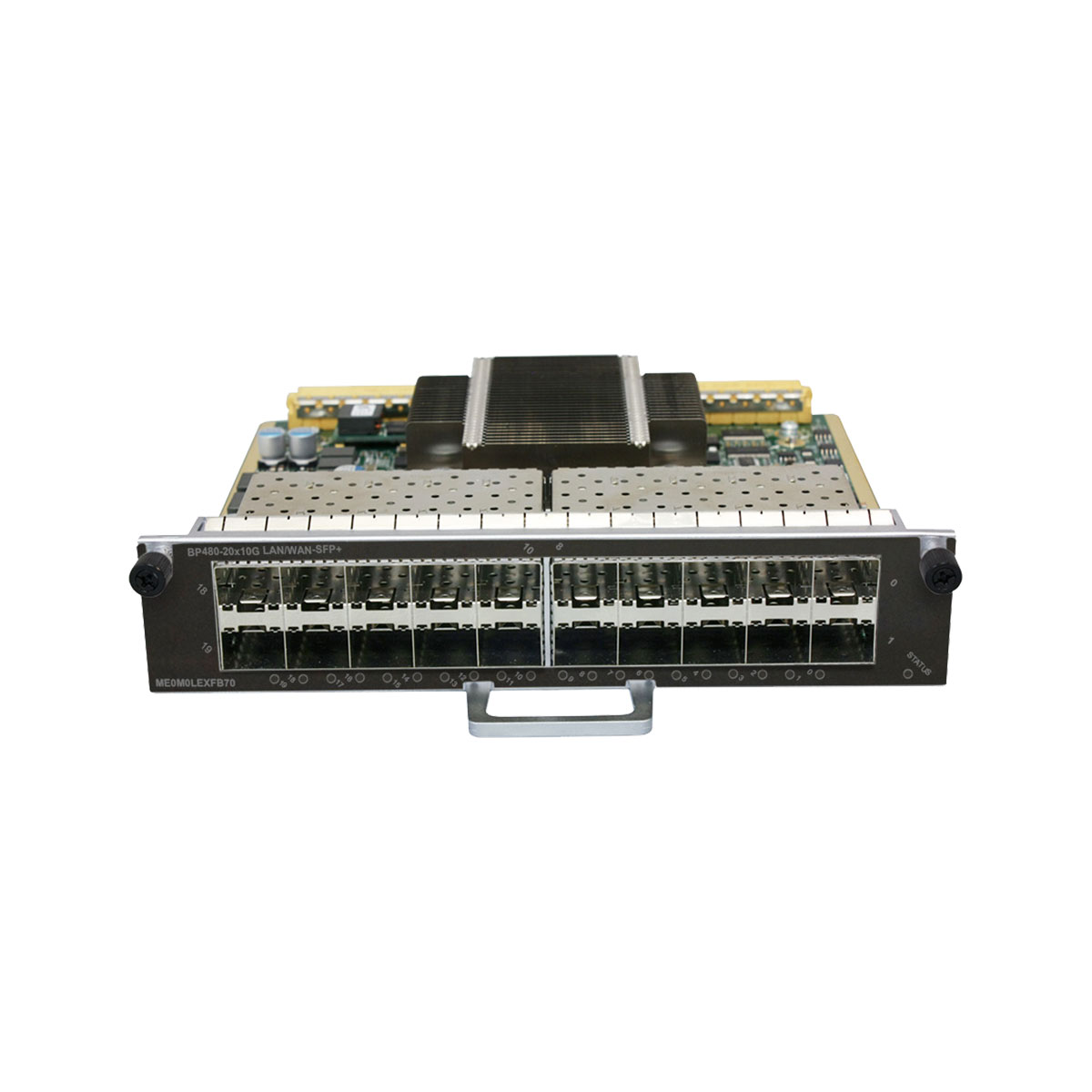

20-Port 10GBase LAN/WAN-SFP+ Flexible Card(BP480)

SKU: 11802 PN: 03032DJX Category:

Description

ME0M0LEXFB70 Overview

20-Port 10GBase LAN/WAN-SFP+ Flexible Card(BP480)

Mapping products and versions
Product Motherboard Minimum Version Requirement for Flexible Card
ME60X8A

Flexible Card Broadband Service Unit(BSUF-480,2 sub-slots)

Flexible Card Multi Service Unit(MSUF-480,2 sub-slots)

Flexible Card Broadband Service Unit(BSUF-480,2 sub-slots)

Flexible Card Multi Service Unit(MSUF-480,2 sub-slots)

V800R009C00
ME60X16A

Flexible Card Broadband Service Unit(BSUF-480,2 sub-slots)

Flexible Card Multi Service Unit(MSUF-480,2 sub-slots)

Flexible Card Broadband Service Unit(BSUF-480,2 sub-slots)

Flexible Card Multi Service Unit(MSUF-480,2 sub-slots)

V800R009C00
ME0M0LEXFB70 Datasheet
Item ME0M0LEXFB70
Line-Rate capability Provides twenty 10GE interfaces for line-rate transmitting and receiving.
Whether breakout is supported No
Reliability and availability Hot swappable.
Restrictions and remarks

The 10G interfaces 0 to 3 support the LAN and WAN modes. The 10G interfaces working in WAN mode can function only as master interfaces.

Optical type supported

10Gbps SFP+ optical module

10Gbps SFP+ CWDM optical module

10Gbps SFP+ BIDI optical module

10Gbps SFP+ DWDM optical module

Working mode Full-duplex
Compliant standard IEEE 802.3
Frame format Ethernet_II, Ethernet_SAP and Ethernet_SNAP
Dimensions (H x W x D) 37.2 mm x 178.7 mm x 193.3 mm (1.46 in. x 7.04 in. x 7.61 in.)
Typical power consumption 93.4 W
Typical heat dissipation 303.0 BTU/hour
Weight 0.9 kg (1.98 lb)
Ambient temperature Long terms: 0 °C to 45 °C (32°F to 113°F) ; Short terms: -5 °C to 55 °C (23°F to 131°F)

Additional information

Weight 0.9000 kg
Dimensions 19.3300 × 17.8700 × 3.7200 cm
