Description

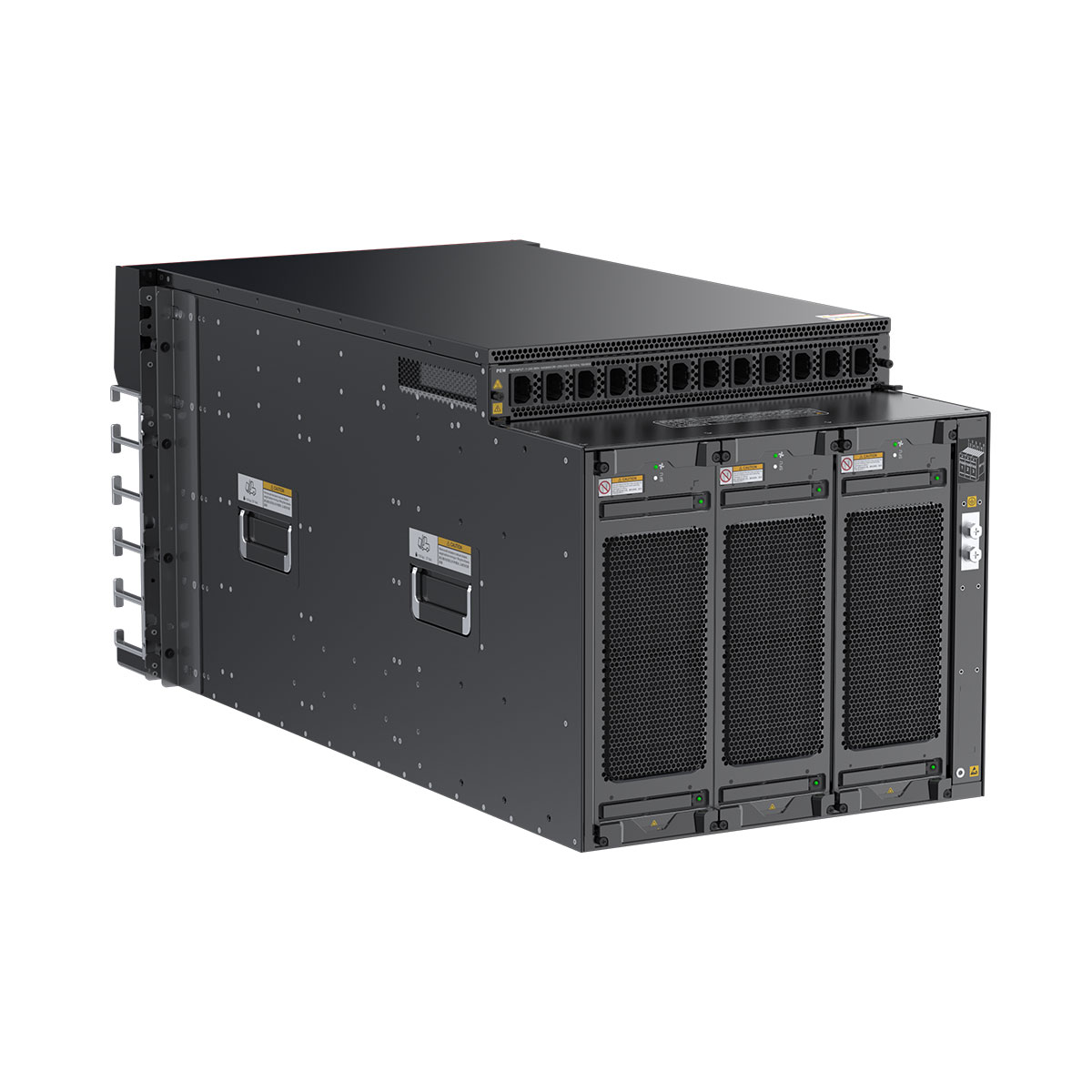

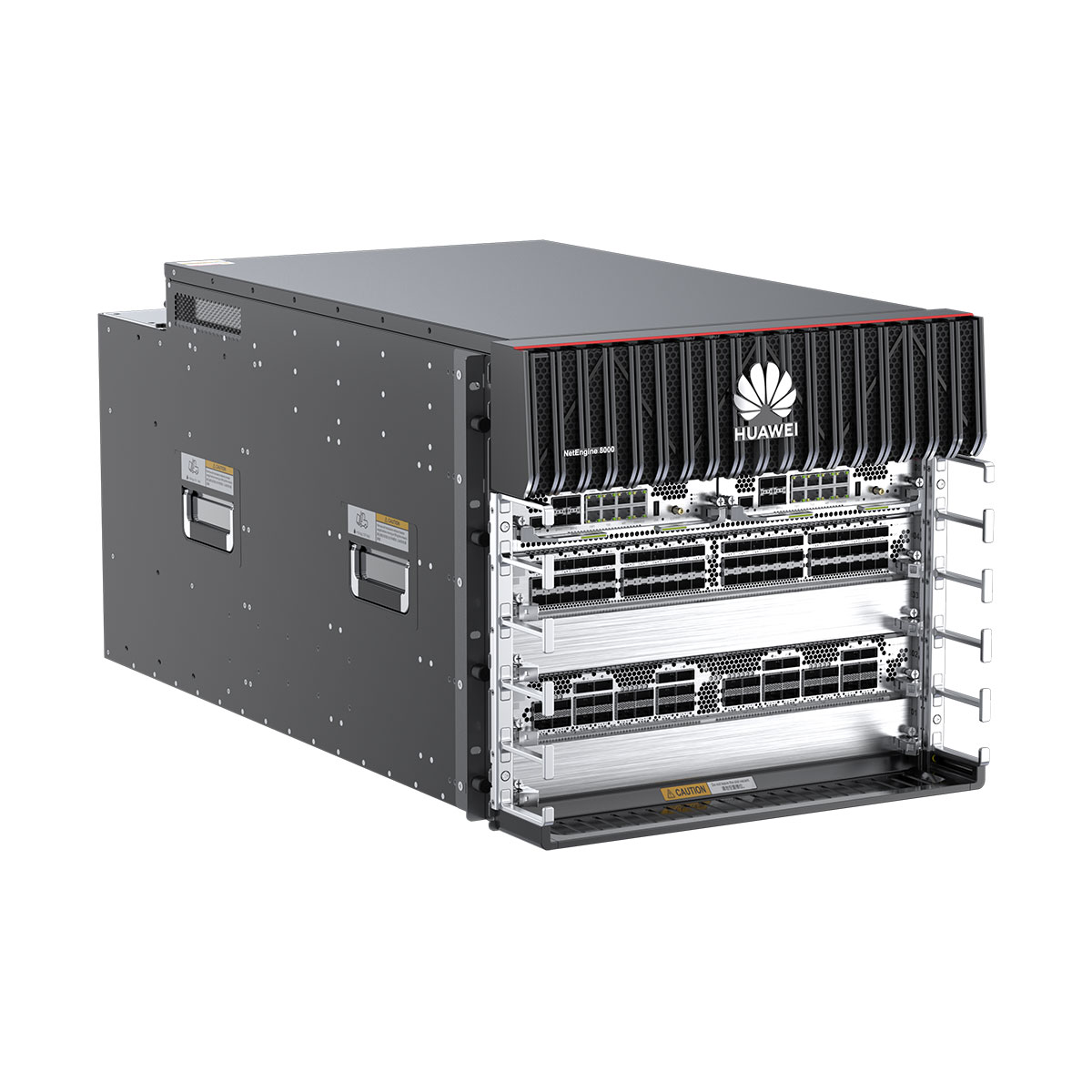

Huawei NetEngine 8000 X4 Router is a full-service intelligent router platform for the cloud era launched by Huawei. The ultra-wide pipeline creates a simple network. The leading SR / SRv6 enables intelligent connection. The new generation of intelligent brain realizes full life cycle automation and leadership. Active operation and maintenance
The 5G and cloud era is already underway. IP networks are fundamental for 5G infrastructure. Ultra-large bandwidths and application-level SLA are required to deliver the massive connectivity services needed for 5G vertical industries. The intelligent and all-service-in-one metro network is set to become an industry trend. The three key characteristics of metro networks in the 5G and cloud era are: simplified networks, intelligent connectivity, and committed high availability.
Huawei NE8000 X4 with 2*IPU(1:1) , 8*SFU(8, 7+1), 4*Processing Board/Subcard
Switching Capacity: 41.89 Tbit/s
Forwarding Performance: 7248Mpps
Max. Capacity of a Board: 4 Tbit/s
Capacity Density (G/U): 400
IPU: 2, 1:1
SFU: 8, 7+1
Processing Board/Subcard: 4
Power Supply Module: Max 6, N+1
Fan Module: 6, 5+1
| Item | NetEngine 8000 X8 | NetEngine 8000 X4 | NetEngine 8000 M14 | NetEngine 8000 M8 | NetEngine 8000 M6 | NetEngine 8000 M1A | NetEngine 8000 M1C | NetEngine 8000 F1A |
| Switching Capacity |
83.78 Tbit/s | 41.89 Tbit/s | 4 Tbit/s | 2.4 Tbit/s | 320 Gbit/s | 352 Gbit/s | 344 Gbit/s | 2.4 Tbit/s |
| Forwarding Performance |
14,496 Mpps | 7248 Mpps |
906 Mpps | 453 Mpps | 72 Mpps | 72 Mpps | 72 Mpps | 453 Mpps |
| Max. Capacity of a Board | 4 Tbit/s | 4 Tbit/s | 200 Gbit/s | 200 Gbit/s | 50 Gbit/s | Fixed-configuration router does not support flexible cards | Fixed-configuration router does not support flexible cards | Fixed-configuration router does not support flexible cards |
| Capacity Density (G/U) | 2025 | 1633 | 400 | 400 | 80 | 176 | 172 | 1200 |
| IPU | 2, 1:1 | 2, 1:1 | 2, 1:1 | 2, 1:1 | 2, 1:1 | Fixed-configuration router does not support flexible cards | Fixed-configuration router does not support flexible cards | Fixed-configuration router does not support flexible cards |
| SFU | 8, 7+1 | 8, 7+1 | 2, 1:1 (integrated) |
2, 1:1 (integrated) |
2, 1:1 (integrated) |
Fixed-configuration router does not support flexible cards | Fixed-configuration router does not support flexible cards | Fixed-configuration router does not support flexible cards |
| Processing Board/ Subcard |
8 | 4 | 14(DC) 10(AC) |
8(DC) 6(AC) |
6(DC) 4(AC) |
Fixed-configuration router does not support flexible cards | Fixed-configuration router does not support flexible cards | Fixed-configuration router does not support flexible cards |
| Power Supply Module | Max 10, N+1 | Max 6, N+1 | 2, 1+1 (DC) 4, 2+2 (AC) |
2, 1+1 | 2, 1+1 | 2, 1+1 (DC) | 2, 1+1 | 2, 1+1 |
| Fan Module |
12, 11+1 | 6, 5+1 | 4, 3+1 | 2, 1+1 | 2, 1+1 | 3 (integrated) | 2 (integrated) | 4, 3+1 |
| Dimensions (H x W x D) |
702.3 x 442 x 861.4 mm (15.8 U) | 435.6 x 442 x 861.4 mm (9.8 U) | 222 x 442 x 220 mm (5 U) | 132.6 x 442 x 220 mm (3 U) | 88.9 x 442 x 220 mm (2 U) | 44.45 x 442 x 220 mm (1 U) | 44.45 x 442 x 220 mm (1 U) | 43.6 x 442 x 420 mm (1 U) |
| Typical Power Consumption | 11,017 W | 5913 W | 1270 W | 485 W | 220 W | 75 W | 89.21 W | 350 W |
| Weight (With Full Configuration) |
296.6 kg | 186.2 kg | 27.4 kg | 16.5 kg | 3.52 kg | 3.4 kg | 3.9 kg | 7.25 kg |
| Item | NetEngine 8000 X4 |
| Switching Capacity | 41.89 Tbit/s |
| Forwarding Performance | 7248 Mpps |
| Max. Capacity of a Board | 4 Tbit/s |
| Capacity Density (G/U) | 1633 |
| IPU | 2, 1:1 |
| SFU | 8, 7+1 |
| Processing Board/Subcard | 4 |
| Power Supply Module | Max 6, N+1 |
| Fan Module | 6, 5+1 |
| Interface types | 100GE/50E/40GE/25GE/10GE/GE/FE/E1/Channelized STM-1c/OC-3c/STM-1c |
| Layer 2 Ethernet protocols | G.8032, STP/RSTP, MSTP, BPDU, and LACP Transparent transmission of Layer 2 protocols |
| Ethernet services | VLAN and bridge domain |
| Routing protocols | Routing protocols such as RIP, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP,
BGPv6, IPv4 multicast, IPv6 multicast, static routes, and multicast static routes |
| IPv4 | TCP/IP protocol suite, including ICMP, IP, TCP, UDP, socket (TCP/UDP/RAW IP),
and ARP Static DNS DNS client FTP server FTP client TFTP client DHCP relay and DHCP server Ping Tracert NQA IP policy-based routing Flow-based next hop IP policy-based routing for load balancing QinQ interfaces (QinQ termination and dot1q termination interfaces) supporting IPv4 load balancing Interface board-specifific fast ping reply Egress protection through mirror SIDs for MPLS-in-UDP tunnels |
| IPv6 | IPv6 (ND)
Path MTU (PMTU) TCP6 Ping IPv6 Tracert IPv6 Socket IPv6 DHCPv6 relay Static IPv6 DNS TFTP IPv6 client IPv6 policy-based routing ND fast reply |
| L2VPN | PWE3/VLL、VPLS、EVPN、EVPN L3VPN、VxLAN |
| L3VPN | CE access to an L3VPN through a Layer 3 interface
Support for static, BGP, RIP, OSPF, and IS-IS routes between CEs and PEs Inter-AS VPN, including RFC 2547 bis option A Inter-AS VPN, including RFC 2547 bis option B Inter-AS VPN, including RFC 2547 bis option A NG MVPN IPv6 VPN HoVPN Seamless MPLS BGP LSP entropy label Redirection to a VPN L3VPN PIPE/uniform mode (unifified and separate confifiguration for upstream and downstream traffic) L3VPN traffic statistics collection |
| SRv6 | SRv6 BE, SRv6 TE Policy, and SRv6 egress protection |
| Clock | Physical layer synchronization and 1588v2 |
| OAM | iFIT
IP FPM NQA TWAMP BFD MPLS OAM MPLS TP OAM VRRP Ethernet OAM 802.3ah Y.1731 Ethernet LPT Bit error-triggered switching |
| QoS | QPPB, Differ-Serv, HQoS, and redirection |
| Dimensions (H x W x D) |
435.6 x 442 x 861.4 mm (9.8 U) |
| Typical Power Consumption | 5913 W |
| Weight (With Full Configuration) |
186.2 kg |
