PAC-60WA-L Overview

Huawei PAC-60WA-L supports 60W AC Power Module apply to S5720 series switch.

Product support for a 60 W AC power module
Power Module Name Product Support
PAC-60WA-L S5721-28X-SI-24S-AC, S5720-28P-SI-AC, S5720-52P-SI-AC, S5720-28X-SI-AC, S5720-28X-SI-DC, S5720-52X-SI-AC, S5720-52X-SI-DC

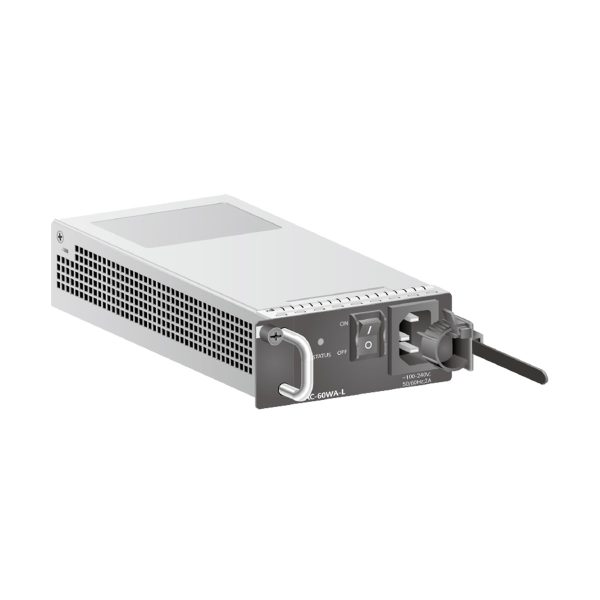

Panel of a 60 W AC power module


1. Handle 2. Indicator 3. Power switch 4. AC power socket
5. Captive screw 6. AC power cable locking strap

Functions of a 60 W AC power module
Function Description
Input protection Provides protection against input undervoltage condition.
Output protection Provides protection against output undervoltage, output overvoltage, output overcurrent, and output short circuit conditions.
Overtemperature protection When the temperature of the power module exceeds a specified threshold (70°C or 158°F), the power module stops supplying power. When the temperature falls into the normal range, the power module automatically resumes power supply.
Surge protection
Hot swapping Supported




Dimensions (H x W x D) 40 mm x 100 mm x 205 mm (1.6 in. x 3.9 in. x 8.1 in.)
Weight 0.8 kg (1.76 lb)
Rated input voltage range 100 V AC to 240 V AC, 50/60 Hz
Maximum input voltage range 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum input current 2 A
Maximum output current 5 A
Rated output voltage 12 V
Maximum output power 60 W
Part number 98010653
