S1850-10P
H3C S1850-10P switch supports 8 × 10/100/1000Base-T Ethernet ports, 2 × 100/1000 BASE-X SFP ports
H3C
3-5 days
Shenzhen Warehouse
- Description
- DATASHEET
- Comparation
- Reviews (1)
Description
S1850-10P overview
H3C 1850 Switch Series consists of advanced smart-managed fixed-configuration Gigabit switches designed for small businesses in an easy-to-administer solution. By utilizing the latest design in
silicon technology, this series is one of the most power-efficient in the market. S1850 series has four models: three non-PoE models and one PoE+ model. All models are equipped with additional Gigabit SFP ports for fiber connectivity.
The series is part of the portfolio of H3C small business networking products. These switches provide a great value and include features to satisfy even the most advanced small business networks. All models support rack mounting or desktop operation. Customizable features include basic Layer 2 features like VLANs and link aggregation and advanced features such as Layer 3 static routing, IPv6, ACLs, and Spanning Tree Protocols.
S1850-10P Features and benefits
Simple Web management
Single IP management
Jumbo frame support
DHCP relay
Static IPv4/IPv6 routing
Switching capacity: 20 Gbps
Packet forwarding rate: 15 Mpps

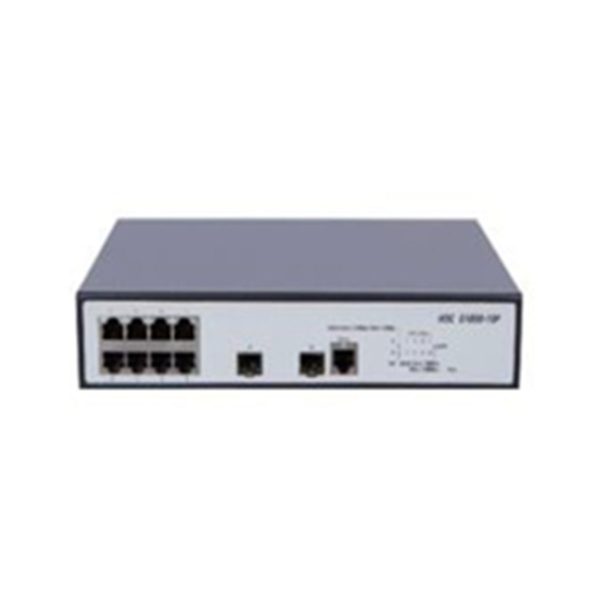

S1850-10P Appearance
| (1) 10/100/1000BASE-T copper port |
| (2) 100/1000BASE-X SFP fiber port |
| (3) Console port |
| (4) Port status LED |
| (5) Power status LED (Power) |
| (1) Grounding screw | (2) AC power receptacle |
| (3) Security slot | |
| Item | S1850-10P |
| Fixed ports | 8 × 10/100/1000Base- T Ethernet ports 2 × 100/1000 BASE-X SFP ports |
| Management Ethernet ports | 1 RJ-45 console port to access limited CLI port |
| Dimensions (H × W × D) | 44 × 266 × 162 mm |
| Weight | 0.9 kg |
| Fan | Fanless |
| Switching capacity | 20 Gbps |
| Packet forwarding rate | 15 Mpps |
| MAC table | 8K |
| Lightning protection level | 6 KV |
| PoE power | Not support |
| AC input voltage | AC：100V～240V AC，50/60Hz |
| Power consumption | ≤ 9W |
| Operating temperature | 0ºC to 40ºC Short-term operating temperature : 0ºC to 45ºC |
| Operating humidity | 5% RH to 95% RH, non-condensing |
| Product ID | Product Description |
| SMB-S1850-10P-GL | H3C S1850-10P, 10-Port Gigabit Ethernet Switch(8GE+2SFP) |
| SMB-S1850-28P-GL | H3C S1850-28P, 28-Port Gigabit Ethernet Switch(24GE+4SFP) |
| SMB-S1850-52P-GL | H3C S1850-52P, 52-Port Gigabit Ethernet Switch(48GE+4SFP) |
| SMB-S1850-28P-PWR-GL | H3C S1850-28P-PWR,28-Port Gigabit Ethernet Switch(24GE+4SFP+PoE,AC) |
Ramon –
This 1U mini 8-port switch works great for the distribution of my office network
