H3C S1850-52P switch supports 48 × 10/100/1000BASE-T copper ports, 4 × 100/1000BASE-X SFP ports


3-5 days

Shenzhen Warehouse


S1850-52P overview

H3C 1850 Switch Series consists of advanced smart-managed fixed-configuration Gigabit switches designed for small businesses in an easy-to-administer solution. By utilizing the latest design in

silicon technology, this series is one of the most power-efficient in the market. S1850 series has four models: three non-PoE models and one PoE+ model. All models are equipped with additional Gigabit SFP ports for fiber connectivity.

The series is part of the portfolio of H3C small business networking products. These switches provide a great value and include features to satisfy even the most advanced small business networks. All models support rack mounting or desktop operation. Customizable features include basic Layer 2 features like VLANs and link aggregation and advanced features such as Layer 3 static routing, IPv6, ACLs, and Spanning Tree Protocols.


S1850-52P Features and benefits

Jumbo frame support

Link aggregation

VLAN support and tagging

Green IT and power

Switching capacity: 104 Gbps

Packet forwarding rate: 78 Mpps

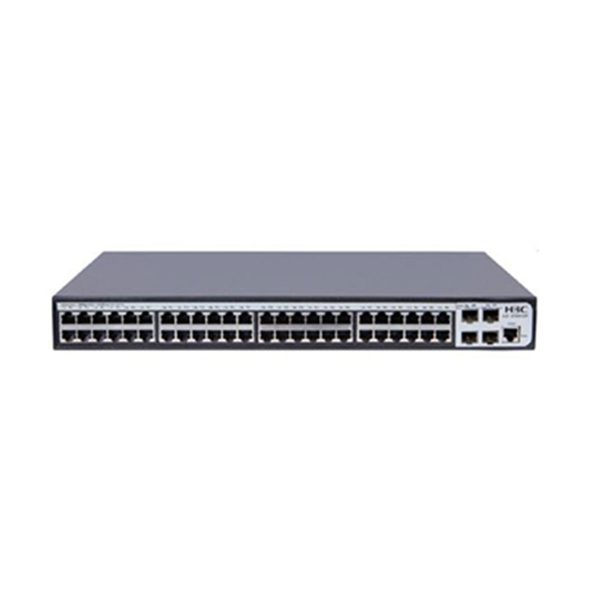

S1850-52P Appearance

S1850-52P Appearance


(1) 10/100/1000BASE-T copper port
(2) 100/1000BASE-X SFP fiber port
(3) Console port
(4) Port status LED
(5) Power status LED (Power)

S1850-52P Appearance

(1) Grounding screw (2) AC power receptacle
(3) Security slot
Item S1850-52P
Fixed ports 48 × 10/100/1000Base-T Ethernet ports, 4 × 100/1000 BASE-X SFP ports
Management Ethernet ports 1 RJ-45 console port to access limited CLI port
Dimensions (H × W × D) 44 × 440 ×238 mm
Weight 3.4 kg
Fan 1
Switching capacity 104 Gbps
Packet forwarding rate 78 Mpps
MAC table 16K
Lightning protection level 6 KV
PoE power Not support
AC input voltage AC:100V~240V AC,50/60Hz
Power consumption ≤ 32W
Operating temperature 0ºC to 40ºC Short-term operating temperature : 0ºC to 45ºC
Operating humidity 5% RH to 95% RH, non-condensing


Product ID Product Description
SMB-S1850-10P-GL H3C S1850-10P, 10-Port Gigabit Ethernet Switch(8GE+2SFP)
SMB-S1850-28P-GL H3C S1850-28P, 28-Port Gigabit Ethernet Switch(24GE+4SFP)
SMB-S1850-52P-GL H3C S1850-52P, 52-Port Gigabit Ethernet Switch(48GE+4SFP)
SMB-S1850-28P-PWR-GL H3C S1850-28P-PWR, 28-Port Gigabit Ethernet Switch(24GE+4SFP+PoE, AC)
