H3C S1850-28P-PWR switch supports 24 × 10/100/1000BASE-T copper ports, 4 × 100/1000BASE-X SFP ports, PoE+

Description

S1850-28P-PWR overview

H3C 1850 Switch Series consists of advanced smart-managed fixed-configuration Gigabit switches designed for small businesses in an easy-to-administer solution. By utilizing the latest design in

silicon technology, this series is one of the most power-efficient in the market. S1850 series has four models: three non-PoE models and one PoE+ model. All models are equipped with additional Gigabit SFP ports for fiber connectivity.

The series is part of the portfolio of H3C small business networking products. These switches provide a great value and include features to satisfy even the most advanced small business networks. All models support rack mounting or desktop operation. Customizable features include basic Layer 2 features like VLANs and link aggregation and advanced features such as Layer 3 static routing, IPv6, ACLs, and Spanning Tree Protocols.



S1850-28P-PWR Features and benefits

IGMP snooping

BPDU filtering

VLAN support and tagging

Auto voice VLAN

Address Resolution Protocol (ARP)

Switching capacity: 56 Gbps

Packet forwarding rate: 42 Mpps

PoE+

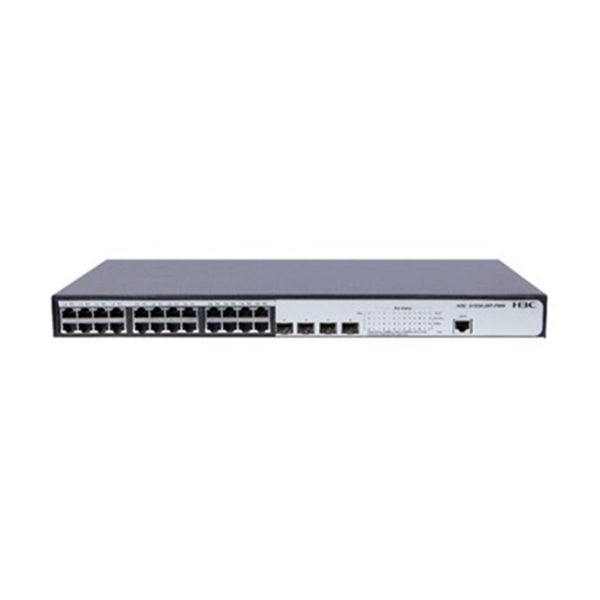

S1850-28P-PWR Appearance

S1850-28P-PWR Appearance

(1) 10/100/1000BASE-T copper port
(2) 100/1000BASE-X SFP fiber port
(3) Console port
(4) Port status LED
(5) Power status LED (Power)

S1850-28P-PWR Appearance

(1) Grounding screw (2) AC power receptacle
(3) Security slot
Item S1850-28P-PWR
Fixed ports 24 × PoE+ 10/100/1000Base-T Ethernet ports, 4 × 100/1000 BASE-X SFP ports
Management Ethernet ports 1 RJ-45 console port to access limited CLI port
Dimensions (H × W × D) 44 × 440 × 238 mm
Weight 3.4 kg
Fan 2
Switching capacity 56 Gbps
Packet forwarding rate 42 Mpps
MAC table 8K
Lightning protection level 6 KV
PoE power Maximum per switch 190W Maximum per port 30W
AC input voltage AC:100V~240V AC,50/60Hz
Power consumption ≤ 235W
Operating temperature 0ºC to 40ºC Short-term operating temperature : 0ºC to 45ºC
Operating humidity 5% RH to 95% RH, non-condensing

Additional information

Brand

H3C

Lead Time

3-5 days

Ship From

Shenzhen Warehouse

Item S1850-28P-PWR
Fixed ports 24 × PoE+ 10/100/1000Base-T Ethernet ports, 4 × 100/1000 BASE-X SFP ports
Management Ethernet ports 1 RJ-45 console port to access limited CLI port
Dimensions (H × W × D) 44 × 440 × 238 mm
Weight 3.4 kg
Fan 2
Switching capacity 56 Gbps
Packet forwarding rate 42 Mpps
MAC table 8K
Lightning protection level 6 KV
PoE power Maximum per switch 190W Maximum per port 30W
AC input voltage AC:100V~240V AC,50/60Hz
Power consumption ≤ 235W
Operating temperature 0ºC to 40ºC Short-term operating temperature : 0ºC to 45ºC
Operating humidity 5% RH to 95% RH, non-condensing
