Description

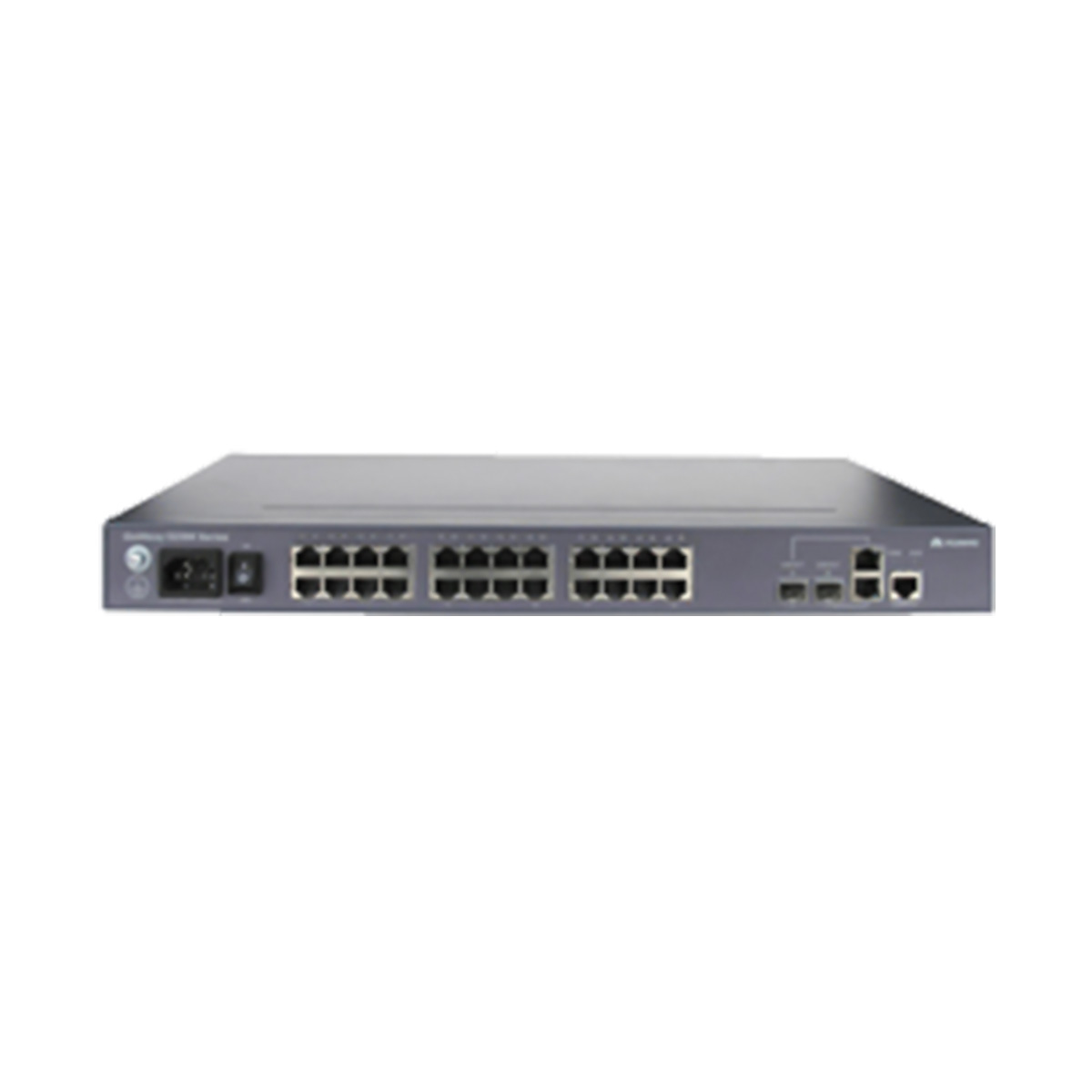

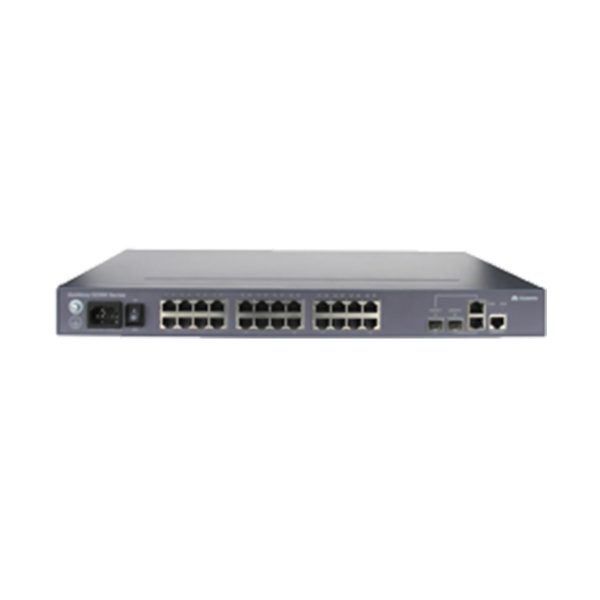

| Item | S2326TP-SI-AC |
| Fixed port | 24 10/100Base-T ports, 2 10/100/1000Base-T or 100/1000Base-X ports |
| Processor | 8.8 Gbit/s |
| Switching capacity | 6.6Mpps |
| Forwarding performance | 64 MB |
| DDR memory | 16 MB |
| Flash Memory | 2.7 MB |
| Backplane switching capacity | 32 Gbit/s |
| MAC address table | Supports 8K MAC address entries. |
| Supports manual addition and deletion of a MAC address table. | |
| Supports configuration of MAC address aging time. | |
| Supports disabling of MAC address learning based on port or aggregation group. | |
| Supports limit on the number of MAC addresses to be learned on a port. | |
| Supports blackhole MAC addresses. | |
| VLAN features | Supports IEEE 802.1Q (VLAN) and 4096 VLANs. |
| Supports port-based VLAN. | |
| QoS | Supports port rate limit and traffic rate limit. |
| Supports four queues with different priorities on each port. | |
| Supports mapping of packets to different queues based on 802.1p. | |
| Supports multiple algorithms including SP, WRR, and SP+WRR. | |
| IPv6 features | Supports IPv6 host functions. |
| Supports static route configuration. | |
| Multicast | Supports IGMP v1/v2/v3 snooping. |
| Supports multicast load sharing among bundled ports. | |
| Supports port-based multicast rate limit and traffic statistics. | |
| Port mirroring | Supports 1:1 or N:1 port mirroring. |
| Supports packet forwarding on an observing port. | |
| Security | Supports port isolation. |
| Supports supperession of multicast,broadcast, and unknown single-cast packets. | |
| Supports CPU protection | |
| Surge protection | Each port has a surge protection capability of 6 KV. Each port has a surge protection capability of 15 KV after an extra surge protection device is added. |
| Management and maintenance | Supports iStack |
| Supports automatic configuration. | |
| Supports CLI configuration. | |
| Supports remote configuration and maintenance by using Telnet. | |
| Supports SNMP v1/v2/v3. | |
| Supports RMON. | |
| Supports HGMP v2. | |
| Supports SSH v2. | |
| Supports Web management. | |
| Supports GVRP. | |
| Operating environment | Operating temperature: 0°C to 50°C (long term); –5°C to 55°C (short term); relative humidity: 10% to 90% (non-condensing) |
| Power supply | AC: Rated voltage: 100 V to 240 V, 50/60 Hz Maximum voltage: 90 V to 264 V, 50/60 Hz |
| Dimensions (mm) | 442 (W) x 420 (D)x 43.6 (H) |
| Weight | < 3.5 kg |
| Power consumption | < 38 W |
