S5120V2-20P-LI

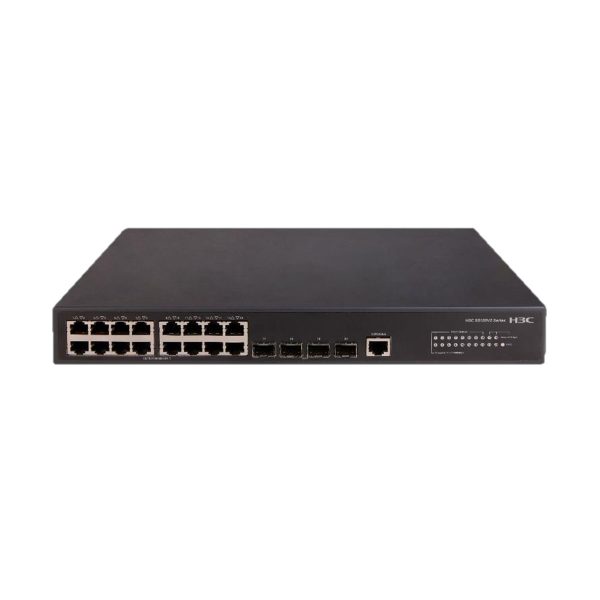

H3C S5120V2-20P-LI L2 Ethernet Switch with 16*10/100/1000BASE-T Ports
and 4*1000BASE-X SFP Ports,(AC)
H3C
3-5 days
Shenzhen Warehouse
- Description
- DATASHEET
- Comparation
- Reviews (0)
Description
S5120V2-20P-LI overview
H3C S5120V2-LI is the latest development of Gigabit Layer 2 access switch. It’s the second generation intelligent managed switches designed for networks requiring high performance, high
port density and easy to use.
H3C S5120V2-LI series switch offers Gigabit connectivity with10/100/1000 autosensing ports and SFP optical uplink ports.
S5120V2-20P-LI Features and benefits
Abundant service capabilities
Intelligent Resilient Framework 2 (IRF2)
Comprehensive security control policies
Abundant QoS policies
Excellent manageability
Rich Layer 3 routing features
| Feature | S5120V2 -10P-LI | S5120V2 -20P-LI | S5120V2 -28P-LI | S5120V2 -52P-LI | S5120V2 -10P- PWR- LI | S5120V2 -28P- PWR- LI | S5120V2 -28P- HPWR -LI | S5120V2 -52P- PWR-LI | ||
| Switching capacity | 20Gbps | 40Gbps | 56Gbps | 104Gbps | 20Gbps | 56Gbps | 56Gbps | 104Gbps | ||
| Packet forwarding rate | 15Mpps | 30Mpps | 41.7Mpps | 77.4Mpps | 15Mpps | 41.7Mpps | 41.7Mpps | 77.4Mpps | ||
| Dimensions (H × W × D) | 43.6× 266 × 161 mm | 43.6× 330 × 230 mm | 43.6× 440 × 160 mm | 43.6× 440 × 230 mm | 43.6× 330 × 230 mm | 43.6× 440 × 260 mm | 43.6× 440 × 260 mm | 43.6× 440 × 260 mm | ||
| Weight | ≤ 1.5kg | ≤ 2kg | ≤ 2.5kg | ≤ 3.5kg | ≤ 3kg | ≤ 4kg | ≤ 4.5kg | ≤ 6kg | ||
| Console ports | 1 | |||||||||
| Fixed ports | 8*10/100 /1000TX | 16*10/10 0/1000TX | 24*10/10 0/1000TX | 48*10/10 0/1000TX | 8*10/100 /1000TX | 24*10/10 0/1000TX | 24*10/10 0/1000TX +4*10/10 0/1000 BASE-T Combo | 48*10/10 0/1000TX | ||
| +2*SFP | +4*SFP | +4*SFP | +4*SFP | +2*SFP | +4*SFP | + 4*SFP | +4*SFP | |||
| Input voltage range | 100 VAC to 240 VAC @ 50 Hz/60 Hz | AC: 100-240V @50/60Hz | ||||||||
| DC: -48V~-60V | ||||||||||
| Power consumption | MIN: 7W MAX: 12W | MIN: 9W MAX: 19W | MIN: 9W MAX: 23W | MIN: 18W MAX: 41W | MIN: 13W MAX:153 W (PoE 125W) | MIN: 19W MAX: 240W(Po E 170W) | MIN: AC: 23W DC: 16W MAX: AC: 446W (PoE 370W ) DC: 790W(PoE 740W) | MIN: AC: 36W DC: 26W MAX: AC: 467W (PoE 370W) DC: 807W(PoE 740W) | ||
| Operating temperature | 0ºC to 45ºC | |||||||||
| Operating humidity | 10% RH to 95% RH, non-condensing | |||||||||
| Stacking | Intelligent Resilient Framework 2 (IRF2) | |||||||||
| Link aggregation | 1G/10GE port aggregation Static aggregation Dynamic aggregation Multichassislink aggregation | |||||||||
| Jumbo frame | Supported | |||||||||
| MAC address table | Blackhole MAC Address MAC learning limit | |||||||||
| Flow control | 802.3x flow control and half-duplex backpressure | |||||||||
| VLAN | Port-based VLANQinQ Voice VLAN MAC VLAN | |||||||||
| ARP | ARP Detection ARP speed limit | |||||||||
| ND | Supported | |||||||||
| VLAN virtual port | Supported | |||||||||
| DHCP | DHCP Client DHCP Snooping DHCP Relay DHCP Server DHCP Option82 | |||||||||
| DNS | Static and Dynamic DNS IPV4 and IPV6 | |||||||||
| Routing protocols | IPV4/IPV6 static routing RIP/ RIPng, OSPFV1/V2/V3 | |||||||||
| Multicast | IGMP Snooping V1/V2/V3 MVR | |||||||||
| Strom suppression | Storm suppression based on port bandwidth percentage Storm suppression based on PPS | |||||||||
| Layer 2 ring network protocol | STP/RSTP/MSTP STP Root Protection Smart Link RRPP | |||||||||
| Mirroring | Flow mirroring Port mirroring | |||||||||
| QoS/ACL | Packet filter Flexible queue scheduling algorithms based on ports and queues, including SP, WRR and SP+WRR Bidirectional ACL Port-based speed limit Flow redirection Time-range | |||||||||
| Security | Hierarchical user management and password protection MAC- based authentication 802.1X SSH2.0 Port isolation IP source guard HTTPs EAD | |||||||||
| IEEE | IEEE 802.3x IEEE 802.3ad IEEE 802.3af IEEE 802.3at IEEE 802.1p IEEE 802.1x IEEE 802.1q IEEE 802.1d IEEE 802.1w IEEE 802.1s | |||||||||
| Loading and upgrading | Loading and upgrading through FTP/TFTP | |||||||||
| Management and maintenance | Configuration from CLI Login through Telnet, and the console port SimpleNetwork Management Protocol(SNMP) Remote Monitoring (RMON) IMC network management system WEB management System log Alarming based on severity IRF NTP Debugging information output Telnet-based remote maintenance NQA DLDP Virtual Cable Test | |||||||||
| Product ID | Product Description |
| LS-5120V2-28P-LI- GL | H3C S5120V2-28P-LI L2 Ethernet Switch with 24*10/100/1000BASE-T Ports and 4*1000BASE-X Ports,(AC) |
| LS-5120V2-52P-LI- GL | H3C S5120V2-52P-LI L2 Ethernet Switch with 48*10/100/1000BASE-T Ports and 4*1000BASE-X Ports,(AC) |
| LS-5120V2-10P- PWR-LI-GL | H3C S5120V2-10P-PWR-LI L2 Ethernet Switch with 8*10/100/1000BASE-T PoE+ Ports(AC 125W), and 2*1000BASE-X SFP Ports,(AC) |
| LS-5120V2-10P-LI- GL | H3C S5120V2-10P-LI L2 Ethernet Switch with 8*10/100/1000BASE-T Ports and 2*1000BASE-X SFP Ports,(AC) |
| LS-5120V2-28P- HPWR-LI-GL | H3C S5120V2-28P-HPWR-LI L2 Ethernet Switch with 24*10/100/1000BASE- T PoE+ Ports(AC 370W,DC 740W), 4*100/1000BASE-X Ports, and 4*GE Combo Ports,(AC/DC) |
| LS-5120V2-52P- PWR-LI-GL | H3C S5120V2-52P-PWR-LI L2 Ethernet Switch with 48*10/100/1000BASE-T PoE+ Ports(AC 370W,DC 740W) and 4*1000BASE-X SFP Ports,(AC/DC) |
| LS-5120V2-20P-LI- GL | H3C S5120V2-20P-LI L2 Ethernet Switch with 16*10/100/1000BASE-T Ports and 4*1000BASE-X SFP Ports,(AC) |
| LS-5120V2-28P- PWR-LI-GL | H3C S5120V2-28P-PWR-LI L2 Ethernet Switch with 24*10/100/1000BASE-T PoE+ Ports(AC 185W) and 4*1000BASE-X Ports,(AC) |
