S5710-52C-PWR-EI

S5710-52C-PWR-EI

Huawei S5710-52C-PWR-EI switch supports 48 1000BASE-T ports, 4 10GE SFP+ ports, 2 power slots, 2 extension slots, POE+

Huawei

3-5 days

Shenzhen Warehouse

Description

S5710-52C-PWR-EI Overview

This switch comes with 48 1000BASE-T ports, 4 10GE SFP+ ports, 2 power slots, 2 extension slots, POE+, without power module

Huawei Quidway S5700 series gigabit enterprise switches are designed for high-bandwidth access and Ethernet aggregation. Huawei Quidway S5700 can be used in various campus network scenarios: access switch, aggregation switch, gigabit access switch in the Internet data center, or desktop switch to provide 1000 Mbps access for terminals.



S5710-52C-PWR-EI Quick Specs

48 10/100/1000BASE-T ports

4 10GE SFP+ ports

Forwarding performance: 192Mpps

Switching capacity: 256Gbps/2.56Tbps

PoE+

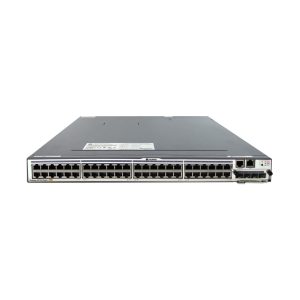

S5710-52C-PWR-EI appearance and structure

S5710-52C-PWR-EI appearance and structure

1 Forty-eight POE+ 10/100/1000BASE-T ports 7 One PNP button
2 Four 10GE SFP+ ports

  • GE optical module
  • 10GE SFP+ optical module
8 Ground screw
3 One console port 9 Rear card slot 1
4 One ETH management port 10 Rear card slot 2
5 One USB port 11 Power module slot 1
6 ESN label 12 Power module slot 2
S5710-52C-PWR-EI Datasheet



Item S5710-52C-PWR-EI
Fixed port Forty-eight POE+ 10/100/1000BASE-T ports, 4 10GE SFP+ ports
Memory (RAM) 512 MB
Flash V200R001: 64 MB; V200R002 and later versions: 200 MB
Mean time between failures(MTBF) 36.86 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Power supply surge protection Using 580 W AC power modules: ±6 kV in differential mode, ±6 kV in common mode; Using 1150 W AC power modules: ±2 kV in differential mode, ±4 kV in common mode
Service port surge protection Common mode: ±1 kV
Stack ports Four fixed 10GE SFP+ ports on the front panel or ports on the 2-port 10GE rear card
Rated voltage range

100 V AC to 240 V AC, 50/60 Hz

-48 V DC to -60 V DC

Maximum voltage range

90 V AC to 264 V AC, 47 Hz to 63 Hz

-36 V DC to -72 V DC

Maximum power consumption

(100% throughput, full speed of fans)

Using two 580 W power modules; No card: 1023 W (system power consumption: 283 W, PoE: 740 W); Two 8-port GE electrical card: 1035 W (system power consumption: 295 W, PoE: 740 W); Two 8-port GE optical card: 1043 W (system power consumption: 303 W, PoE: 740 W); Two 2-port 10GE optical card: 1040 W (system power consumption: 300 W, PoE: 740 W) Using two 1150 W power modules; No card: 1605 W (system power consumption: 165 W, PoE: 1440 W); Two 8-port GE electrical card: 1625 W (system power consumption: 185 W, PoE: 1440 W); Two 8-port GE optical card: 1635 W (system power consumption: 195 W, PoE: 1440 W); Two 2-port 10GE optical card: 1633 W (system power consumption: 193 W, PoE: 1440 W)

Certification EMC certification; Safety certification; Manufacturing certification
Dimensions (H x W x D) Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 420.0 mm
Weight (with packaging) 8 kg



Additional information

Weight 8.0000 kg
Dimensions 59.0000 × 55.5000 × 12.0000 cm
