S5720S-52P-PWR-LI-AC

S5720S-52P-PWR-LI-AC

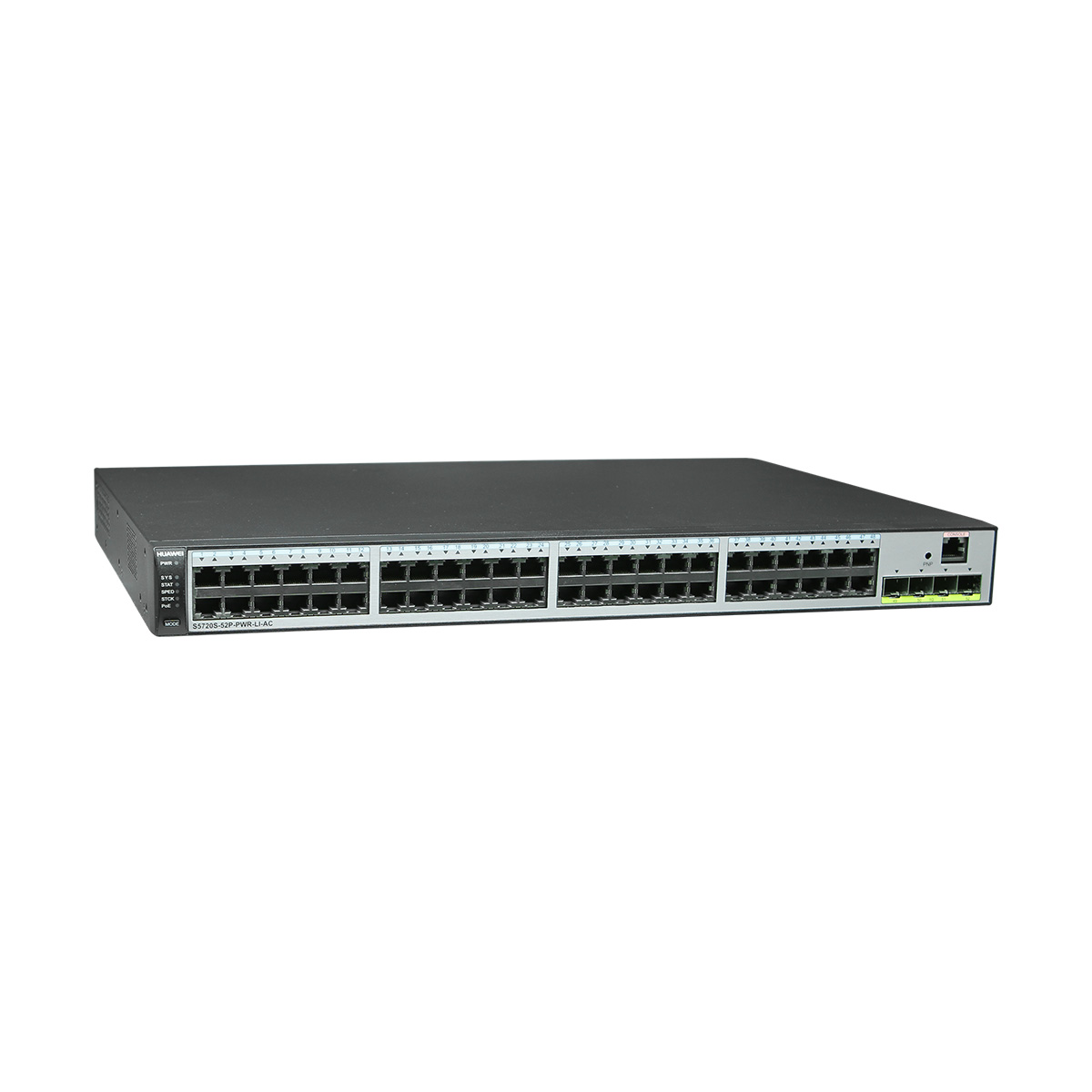

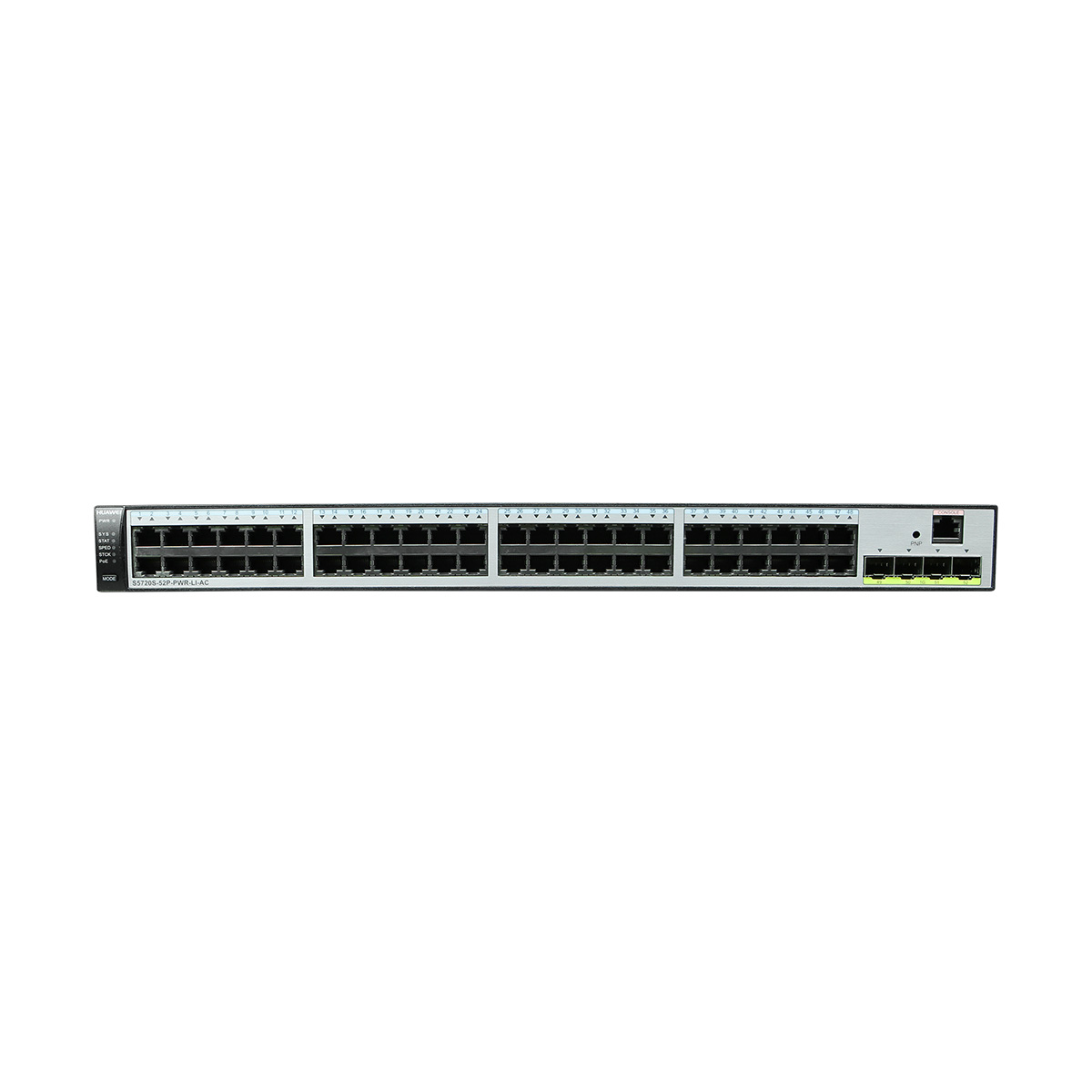

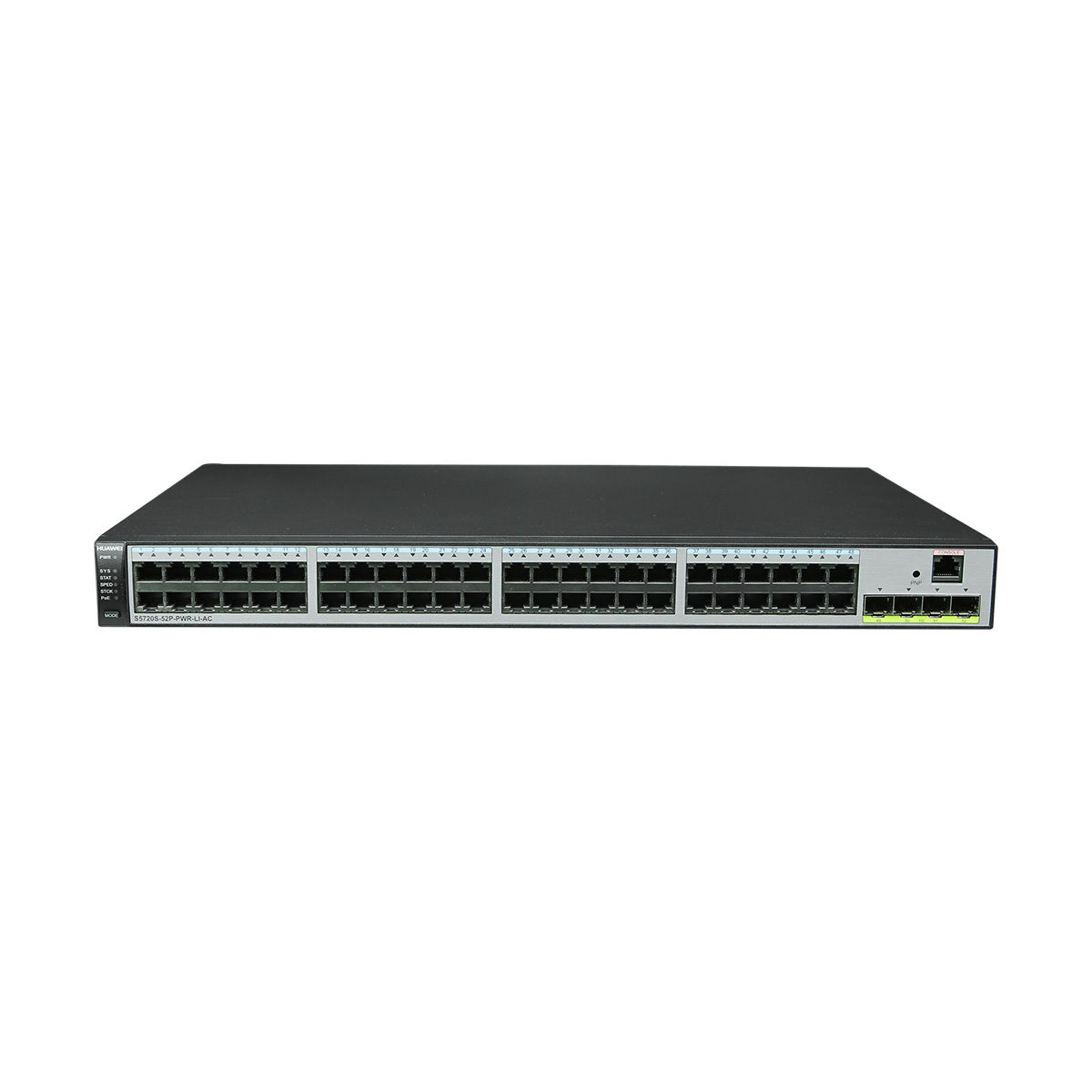

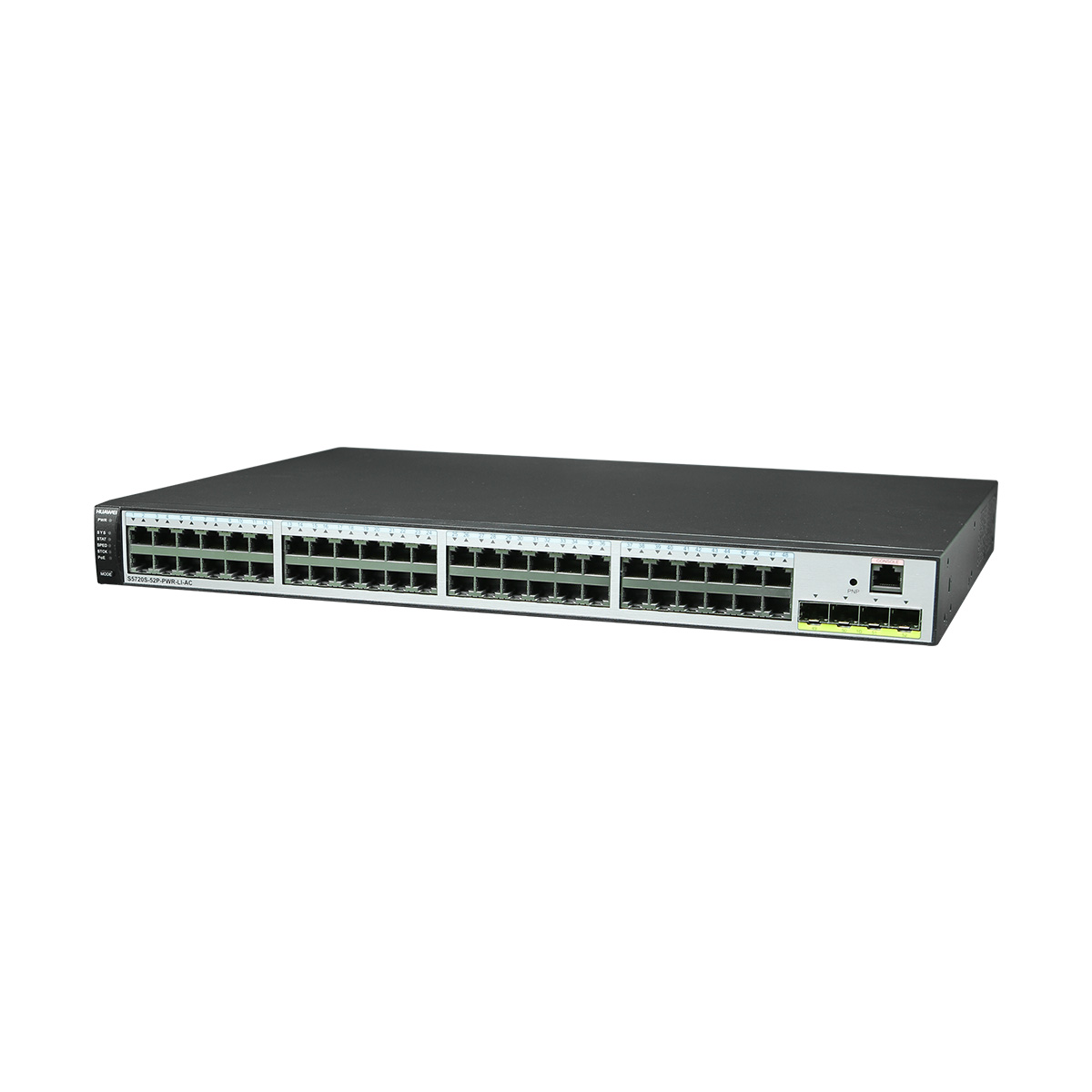

Huawei S5720S-52P-PWR-LI-AC switch supports 48 10/100/1000BASE-T ports, 4 GE SFP ports, fixed AC power, PoE+

Description

S5720S-52P-PWR-LI-AC Overview

Huawei S5720S-52P-PWR-LI-AC switch with 48 10/100/1000BASE-T ports, 4 GE SFP ports, fixed AC power, PoE+, which is one of the S5720 serie switch.

Huawei S5720 series Ethernet switches are next-generation energy-saving GE switches designed to provide high-bandwidth access and Ethernet multi-service aggregation.

Telecomate.com provides a full range of Huawei switches, optical modules, extension boards, if you have more demands, please contact [email protected].

S5720S-52P-PWR-LI-AC Quick Specs

48 10/100/1000BASE-T ports

4 GE SFP ports

Fixed AC power

PoE+

Forwarding performance is 87 Mpps

Switching capacity is 336 Gbit/s

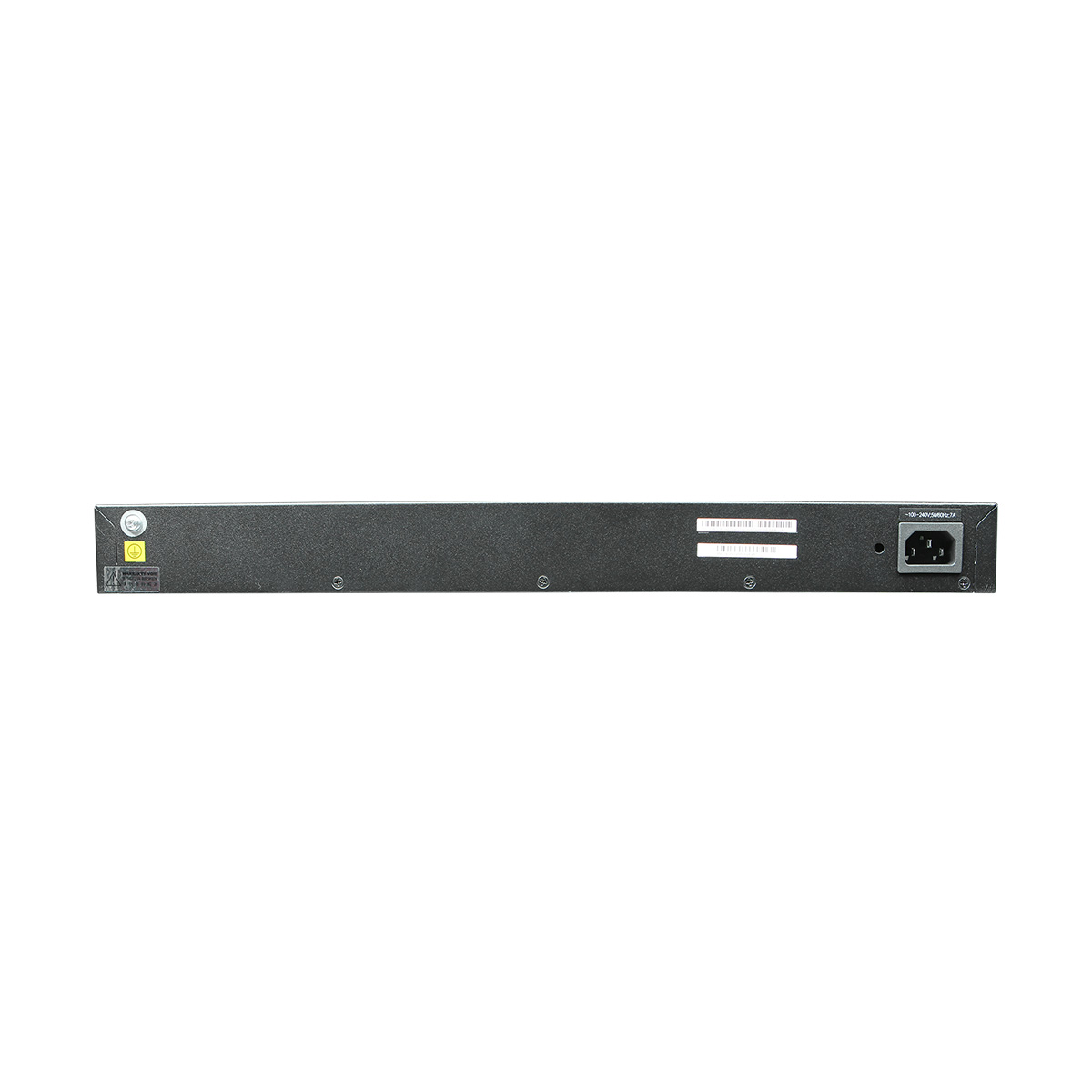

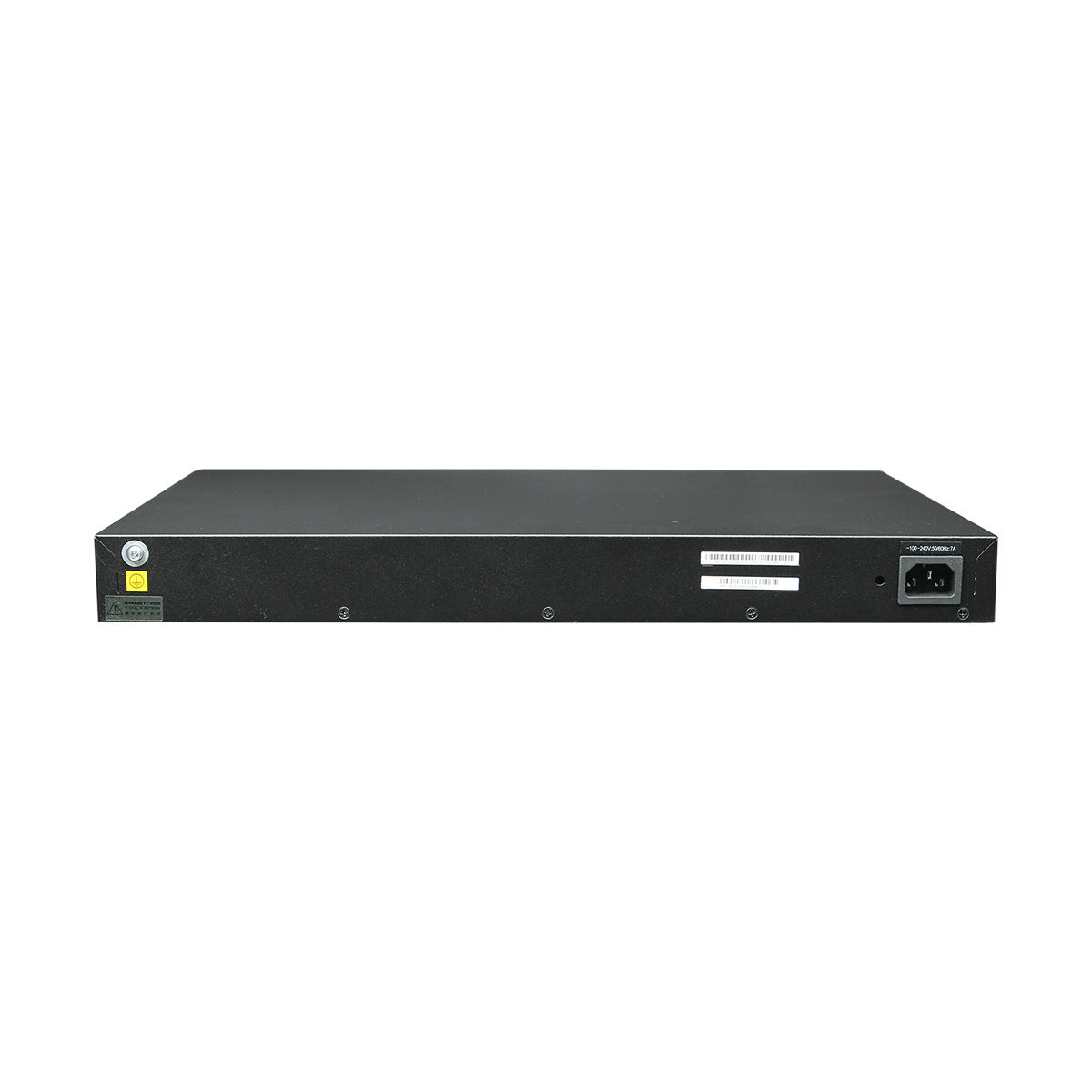

S5720S-52P-PWR-LI-AC appearance and structure

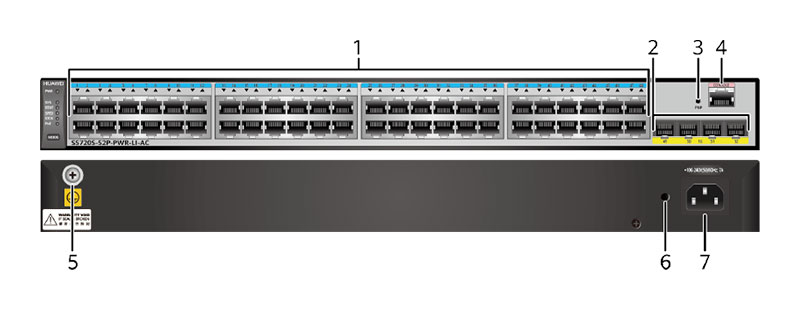

 S5720S-52P-PWR-LI-AC appearance and structure

1. Forty-eight PoE+ 10/100/1000BASE-T ports 5. Ground screw
2. Four 1000BASE-X ports 6. Jack for AC power cable locking strap
3. One PNP button 7. AC socket
4. One console port
S5720S-52P-PWR-LI-AC Datasheet
Item S5720S-52P- PWR-LI-AC
Fixed ports 48 Ethernet 10/100/1000Base-T ports, 4 Gig SFP ports
Forwarding performance 87Mpps
Switching capacity 336Gbit/s
Input voltage Rated voltage range: 100-240 V AC; 50/60 Hz
 Maximum voltage range: 90-264 V AC; 47–63 Hz
Maximum power consumption Without PD: 61.7 W

With PD: 461.8 W (PoE: 370 W)

Typical power consumption (Without PoE) 42 W
Operating temperature 0-1800 m altitude: -5°C to +45°C
1800-5000 m altitude: The operating temperature reduces by 1°C every time the altitude increases by 220 m.
Relative humidity 5% to 95% (non- condensing)
Heat dissipation Heat dissipation with fan, intelligent fan speed adjustment
Dimensions (W x D x H) 442 mm x 310 mm x 43.6 mm

Additional information

Weight 5.5000 kg
Dimensions 46.0000 × 52.2000 × 10.5000 cm
