S5731S-H24T4S-A

S5731S-H24T4S-A

Huawei S5731S-H24T4S-A switch supports 24 10/100/1000BASE-T ports, 4 GE SFP ports

Huawei

3-5 days

Shenzhen Warehouse

SKU: 02353DJE Category:

Description

S5731S-H24T4S-A Overview

Huawei S5731S-H24T4S-A switch supports 24 10/100/1000BASE-T ports, 4 GE SFP ports

The S5731-H series switches are the next-generation intelligent gigabit fixed switches developed by Huawei. The CloudEngine S5731-H builds on Huawei’s unified Versatile Routing Platform (VRP) and boasts various IDN features. For example, the integrated wireless AC capabilities can manage up to 1,024 wireless APs; the free mobility feature ensures consistent user experience; the VXLAN functionality implements network virtualization; and built-in security probes support abnormal traffic detection, threat analysis even in encrypted traffic, and network-wide threat deception.

S5731S-H24T4S-A Quick Spec

24 10/100/1000BASE-T ports, 4 GE SFP ports

Forwarding Performance is 51/126 Mpps

Switching capacity is 758 Tbps/7.58Tbps

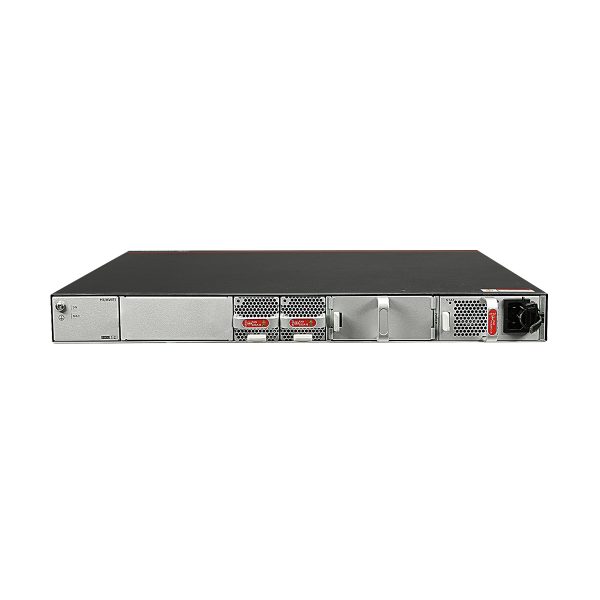

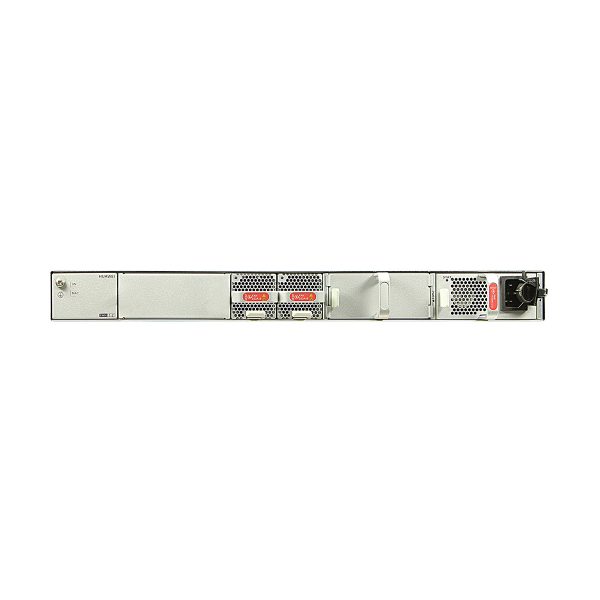

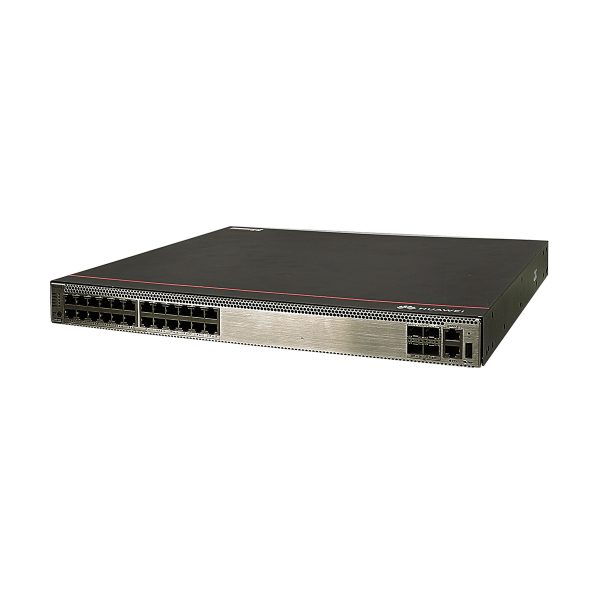

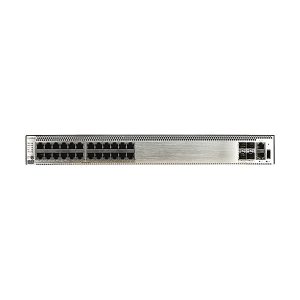

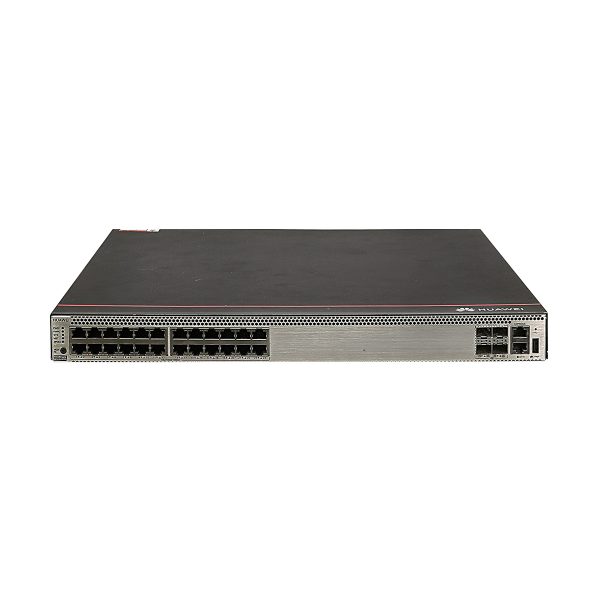

S5731S-H24T4S-A appearance and structure

S5731S-H24T4S-A appearance and structure

1 Twenty-four 10/100/1000BASE-T ports

SFP-1000Base-T

7 Ground screw
2 Four GE SFP ports

eSFP-GE-SX-MM850 eSFP-GE-ZX100-SM1550

LE2MGSC40DE0    LE2MGSC40ED0

8 Fan module slot 1
3 One console port 9 Fan module slot 2
4 One ETH management port 10 Power module slot 1
5 One USB port 11  Power module slot 2
6 One PNP button
S5731S-H24T4S-A Datasheet
Item S5731S-H24T4S-A
Fixed port 24 10/100/1000BASE-T (PoE+) ports, 4 GE SFP+ ports
Power supply surge protection Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode; Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Rated voltage range AC input: 100 V AC to 240 V AC, 50/60 Hz; High-Voltage DC input: 240 V DC; DC input: -48 V DC to -60 V DC
Maximum voltage range AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz; High-Voltage DC input: 190 V DC to 290 V DC; DC input: -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans) 91 W
Operating temperature -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Relative humidity 5% to 95% (non- condensing)
Service port surge protection Common mode: ±6 kV
Dimensions (H x W x D) 43.6 mm x 442 mm x 420 mm
Weight (with packaging) 9.4kg

Additional information

Weight 9.4000 kg
Dimensions 43.6000 × 44.2000 × 42.0000 cm
